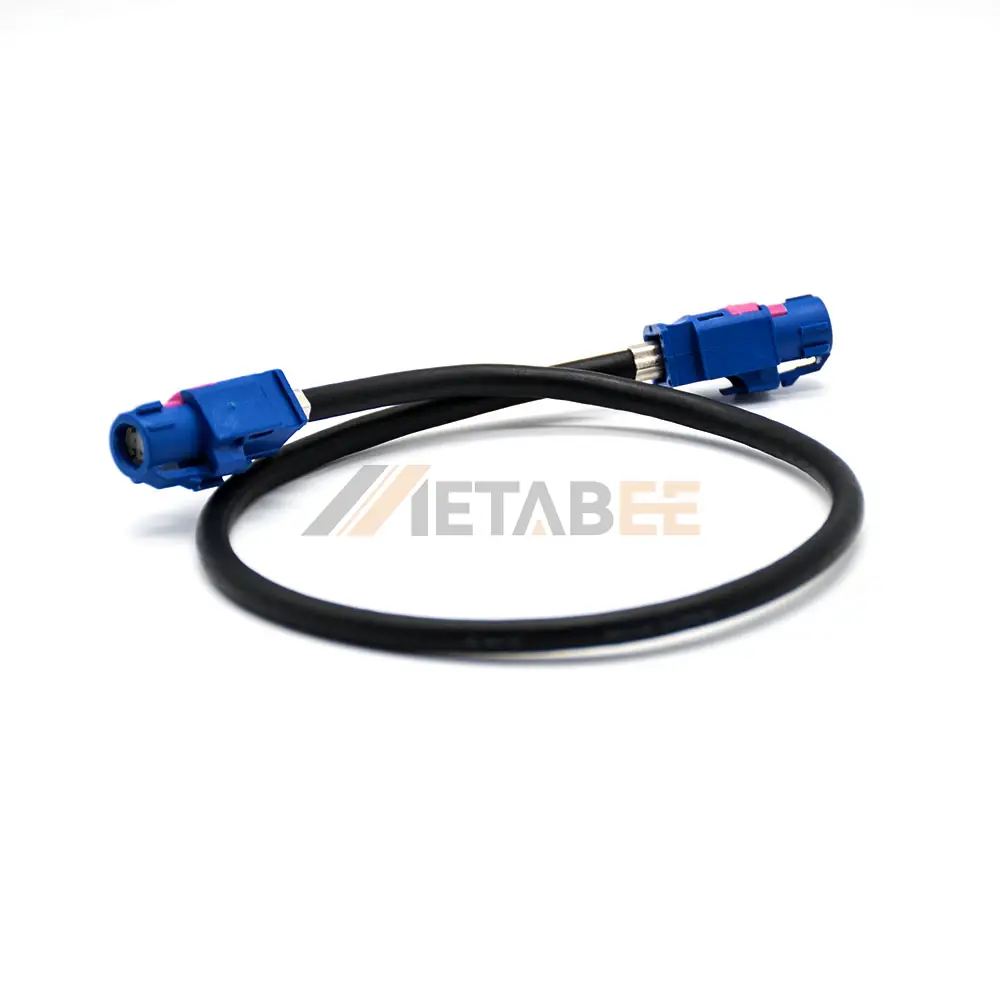

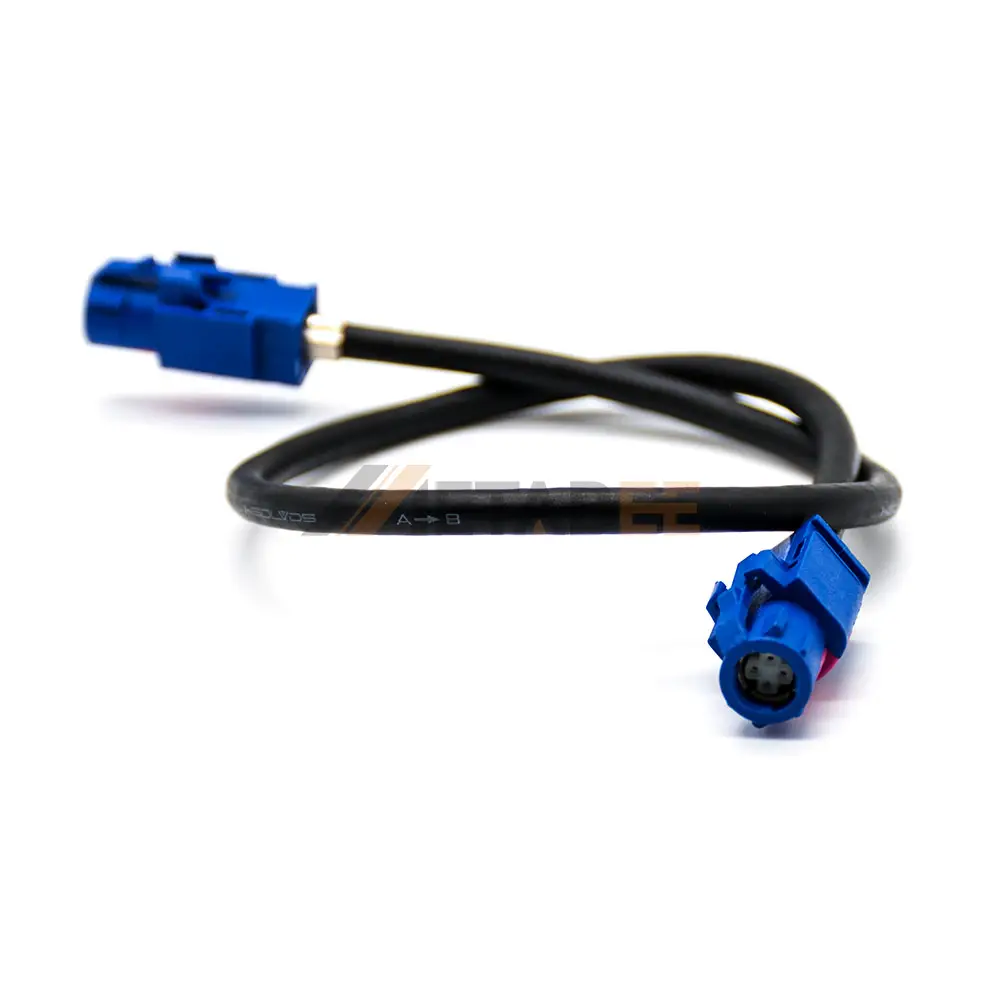

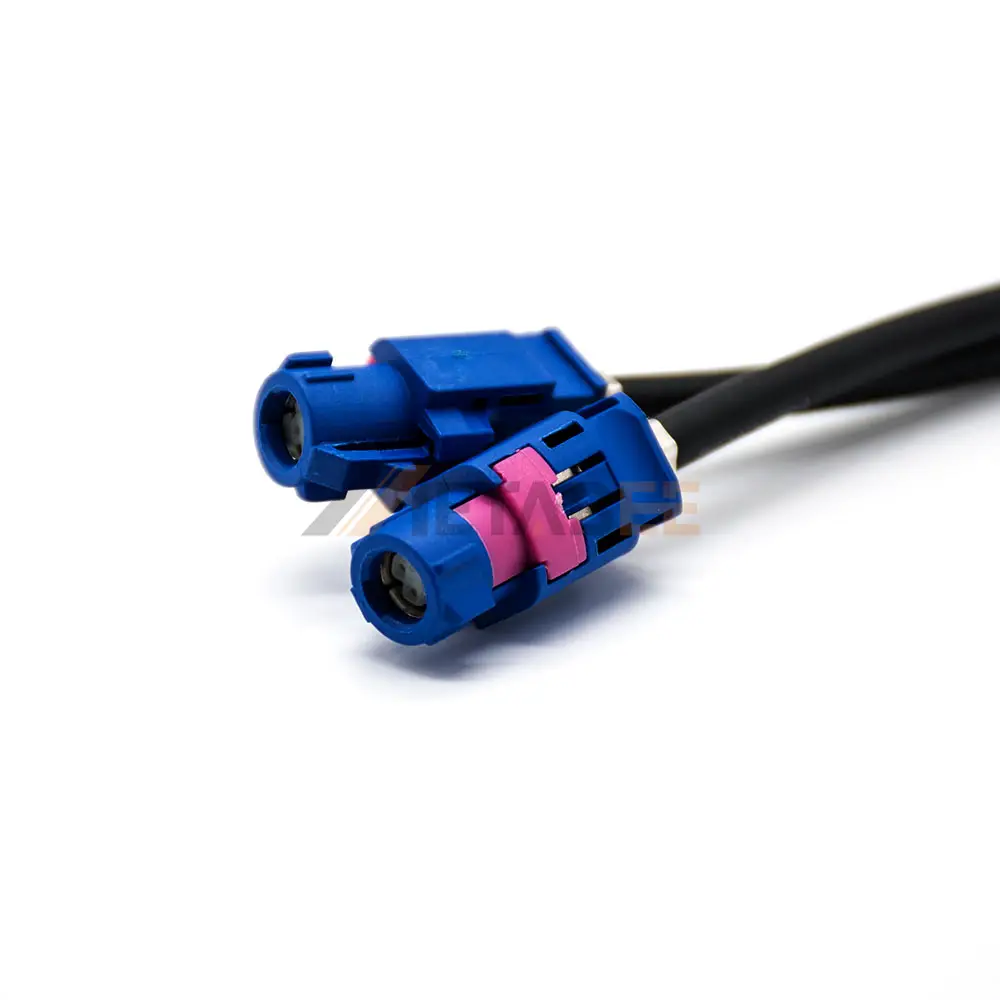

High Speed Data HSD C-Coded 4 Pin Jack to Jack Cable Assembly
Introduction
This HSD C-Coded 4 Pin Jack to Jack Cable Assembly is a robust solution designed for high-performance automotive and industrial applications. It features a straightforward, HSD to HSD cable configuration with identical straight-mount connectors on both ends. This design ensures reliable, secure connections for transmitting high-speed data.
The cable assembly’s core strength lies in its specialized construction. Both connectors are 4-pin HSD connectors with C-coding and a jack gender, ensuring proper mating and preventing misconnections. With a 50-ohm impedance, this cable is optimized for minimal signal loss and maximum data transfer efficiency. Its impressive operating temperature range of -40°C to 105°C makes it suitable for use in harsh environments, from engine compartments to industrial machinery, without compromising performance.
Key Features:
- High-Speed Data Transmission: Optimized for fast and reliable data transfer in demanding applications.
- Secure C-Coded Connectors: Ensures correct orientation and prevents accidental misconnections.
- Durable Design: Withstands extreme temperatures from -40°C to 105°C.
- 50-Ohm Impedance: Engineered for superior signal integrity and minimal signal loss.
- Versatile Application: Ideal for use in automotive, industrial, and other high-performance settings.
Main Specifications:
| Part No.: | 102-11-10003 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | C-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | C-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this High Speed Data HSD C-Coded 4 Pin Jack to Jack Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
