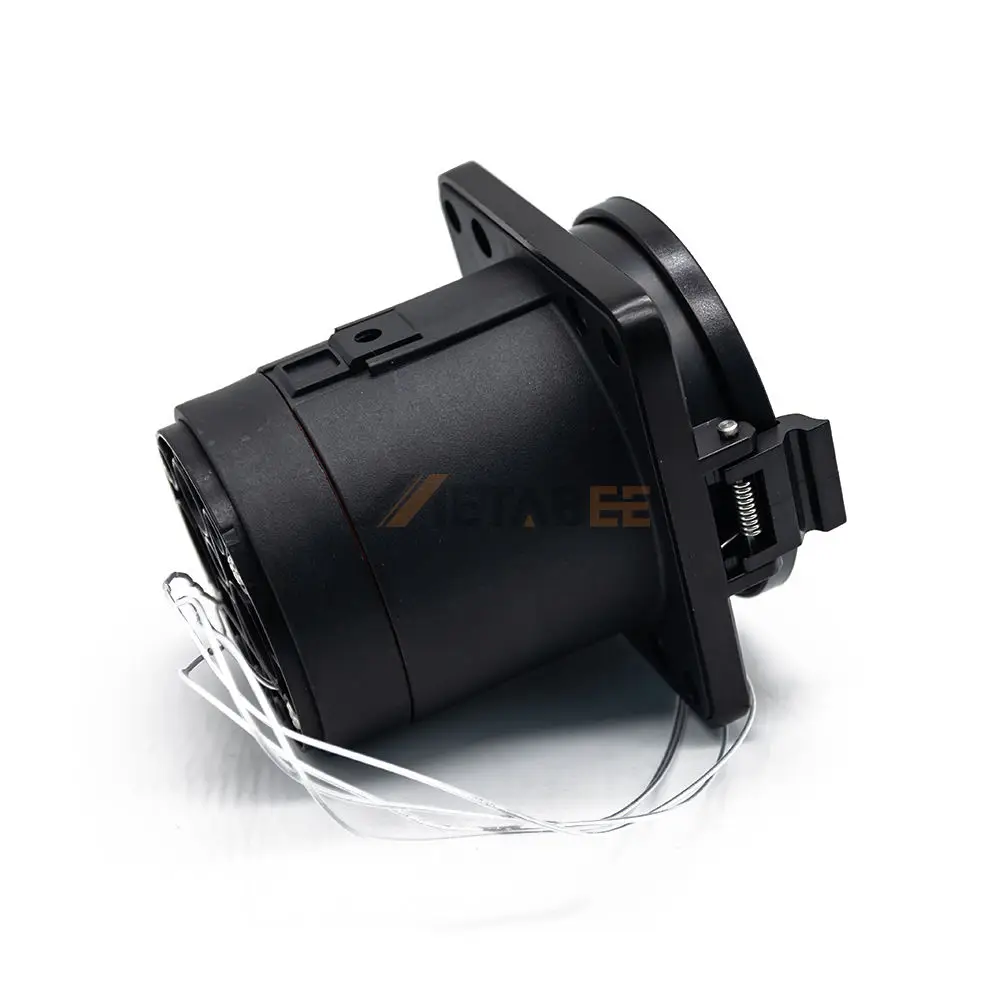

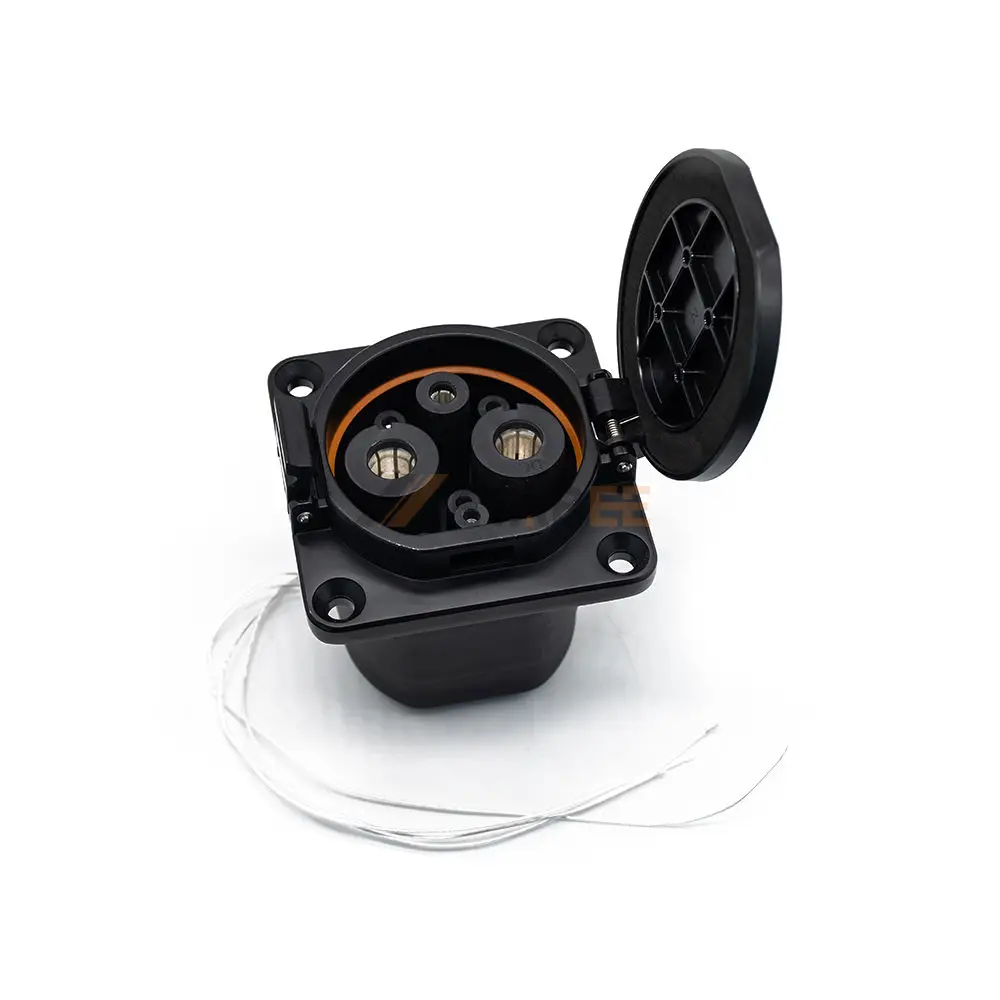

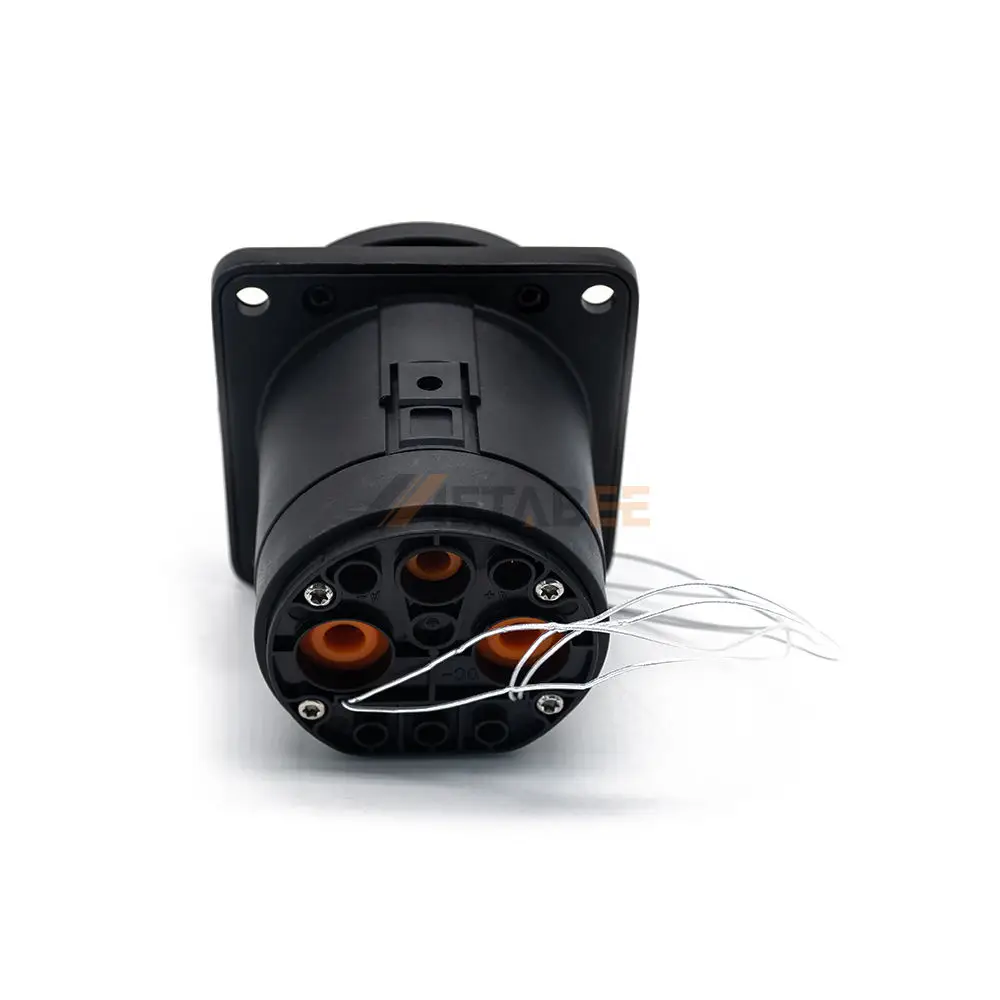

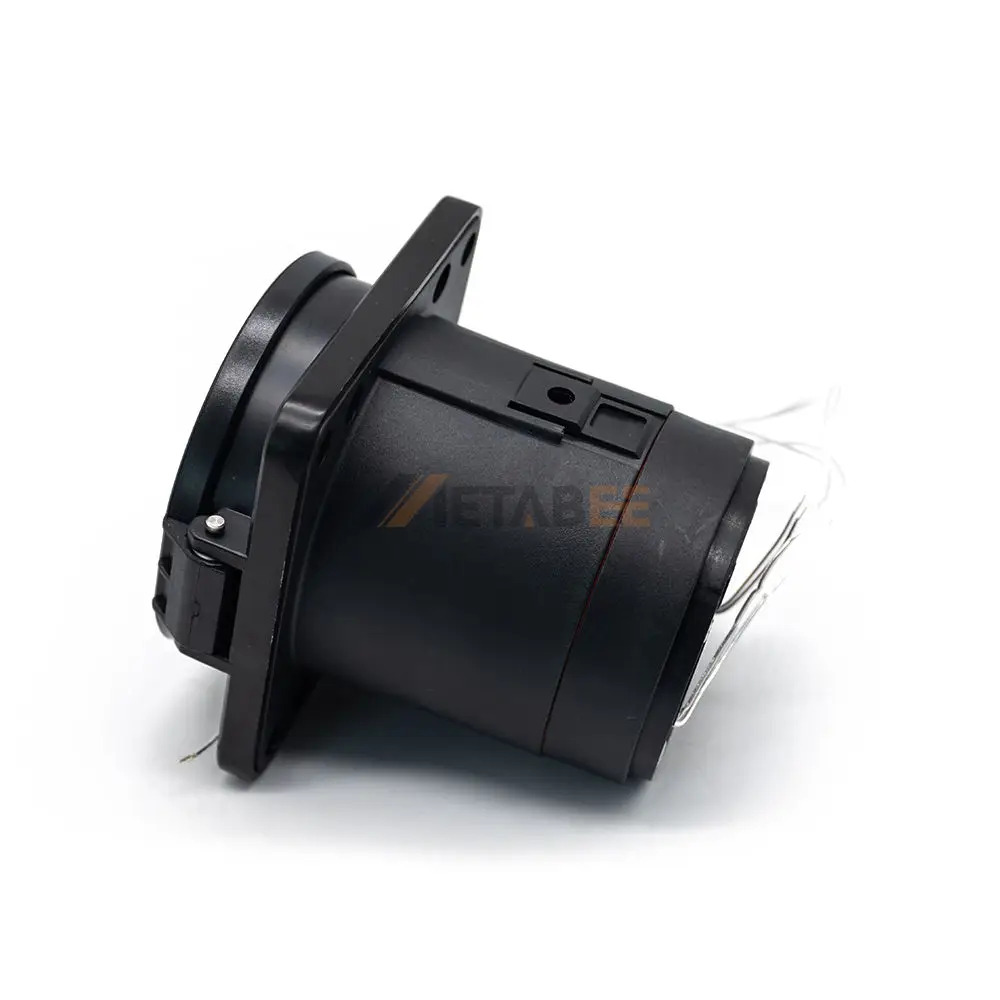

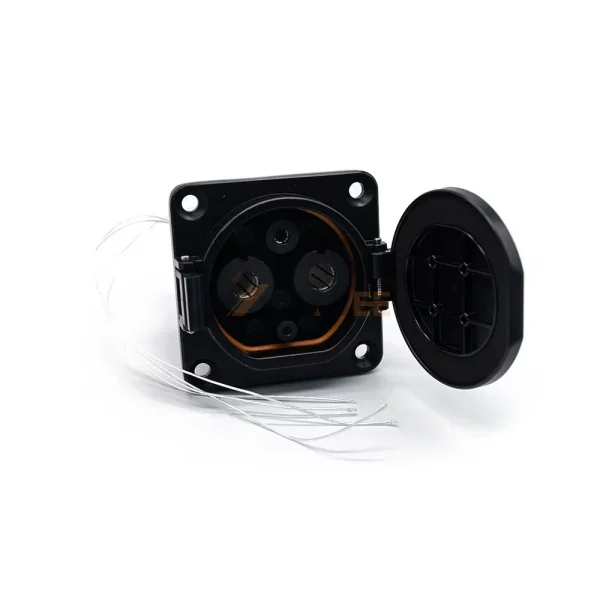

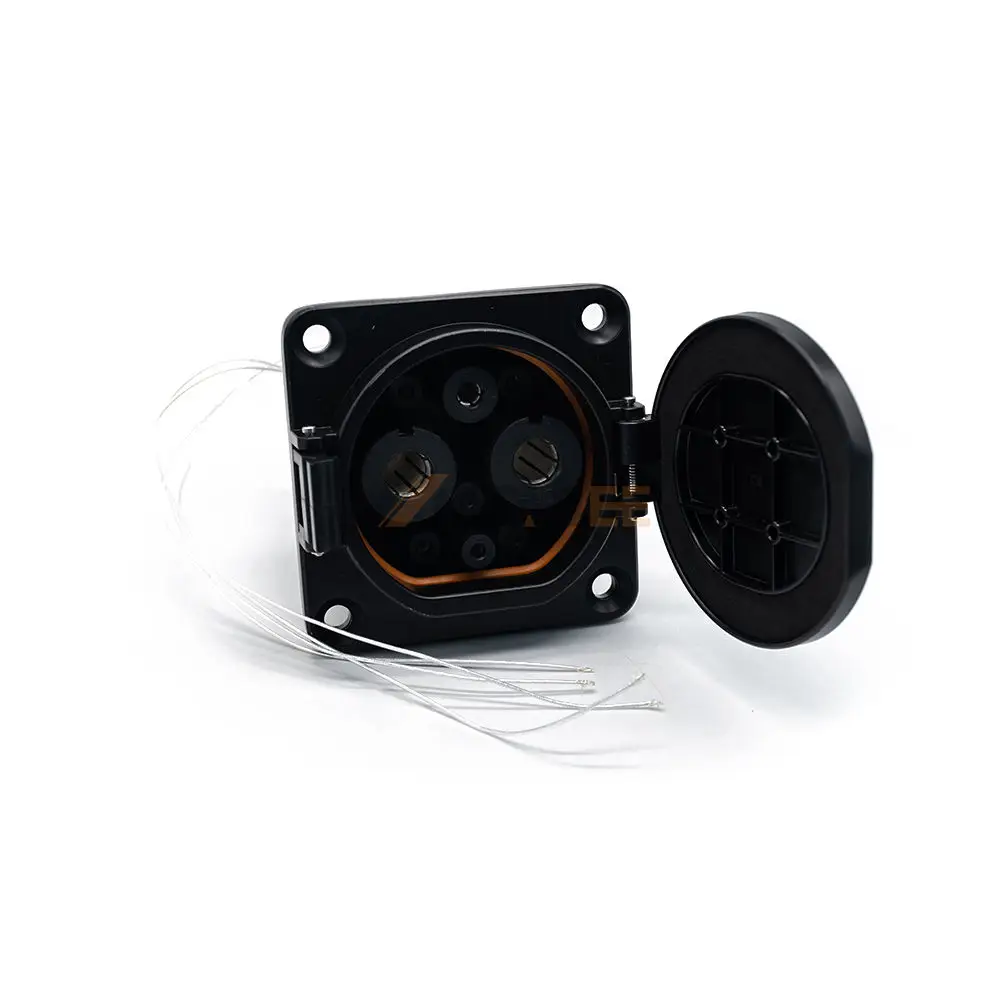

GB/T DC Fast Charging Connector, Socket for EV, Single Phase, 750V, 200A
Introduction
Engineered for high-power DC fast charging applications, this GB/T standard socket is the definitive solution for rapid electric vehicle charging. It operates on a single-phase DC system, delivering a formidable 200A rated current at 750V. This enables a maximum charging power of 150kW, significantly reducing vehicle charging times and enhancing operational efficiency for commercial and private charging stations. Full compliance with the GB/T 20234.2-2015 standard ensures safety, reliability, and broad compatibility with compliant vehicles.
Constructed for exceptional durability and safety, the connector features a high-grade thermoplastic housing and robust copper alloy contacts with a silver-plated finish for superior conductivity and corrosion resistance. It is rigorously tested to meet an IP65 ingress protection rating, guaranteeing performance in all weather conditions. Furthermore, a UL94V-0 flame-retardant rating provides critical safety assurance. This socket is designed to operate flawlessly in a wide temperature range, from -30°C to 50°C, making it a reliable choice for any climate.
Key Features:
- 150kW DC Fast Charging: Enables ultra-fast charging sessions to reduce vehicle downtime drastically.
- High Current Capacity: A 200A rating provides powerful and efficient energy transfer.
- GB/T Standard Compliant: Certified to GB/T 20234.2-2015 for guaranteed safety and compatibility.
- All-Weather Durability: An IP65 rating ensures complete protection against dust and water ingress.
- Superior Safety: UL94V-0 flame-retardant materials for the highest level of fire safety.
- Premium Materials: Silver-plated copper alloy contacts ensure maximum conductivity and a long service life.
Main Specifications:
General Information:
| Part No.: | NV2-YC-G-EV200S | |
| Product Series: | GB Standards DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 2x35mm²+1x16mm²+2x4mm²+2P(3x16mm²)+2P(3x16mm²) | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 750V | |
| Rated Current: | 200A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 150kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
AC charging Type of GB standards
GB Standards DC Charging Connector
GB Standards DC Charging Connector Drawing
Applications of this GB/T DC Electric Vehicle Charging Plug:
The GB Standards DC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
