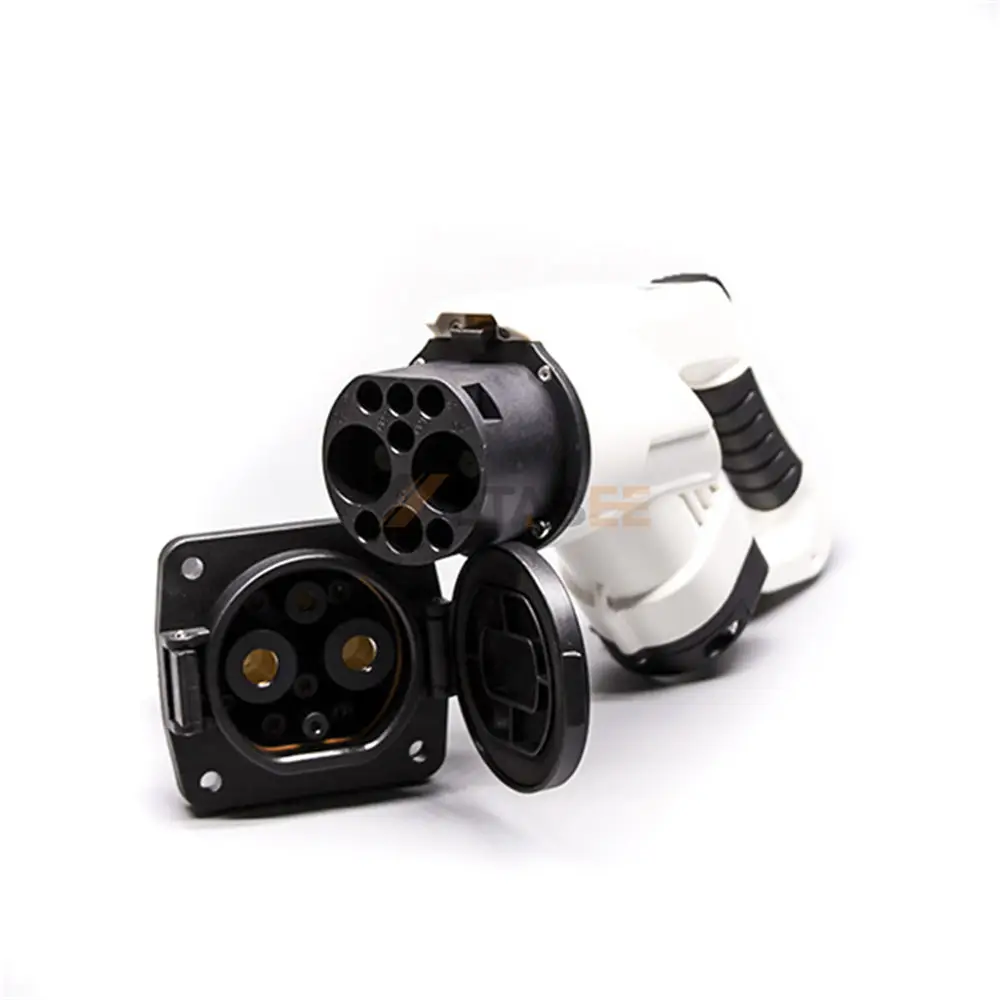

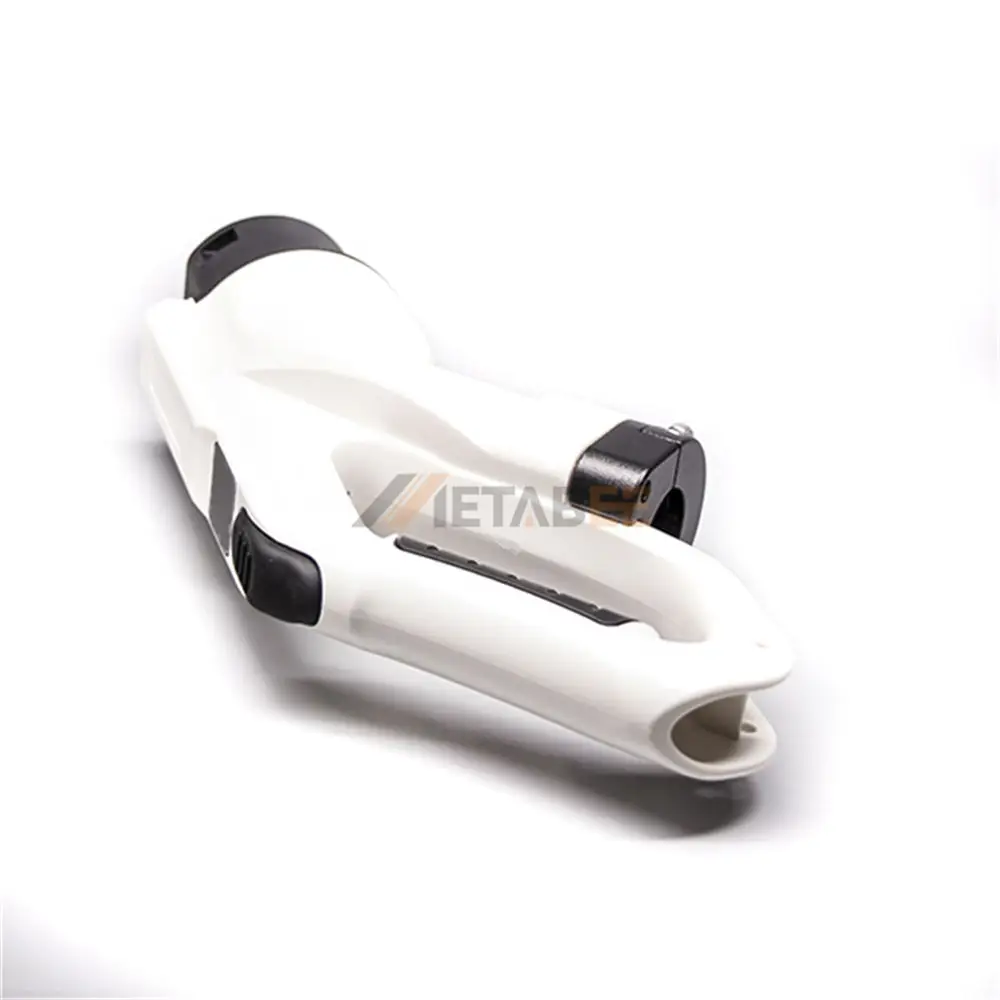

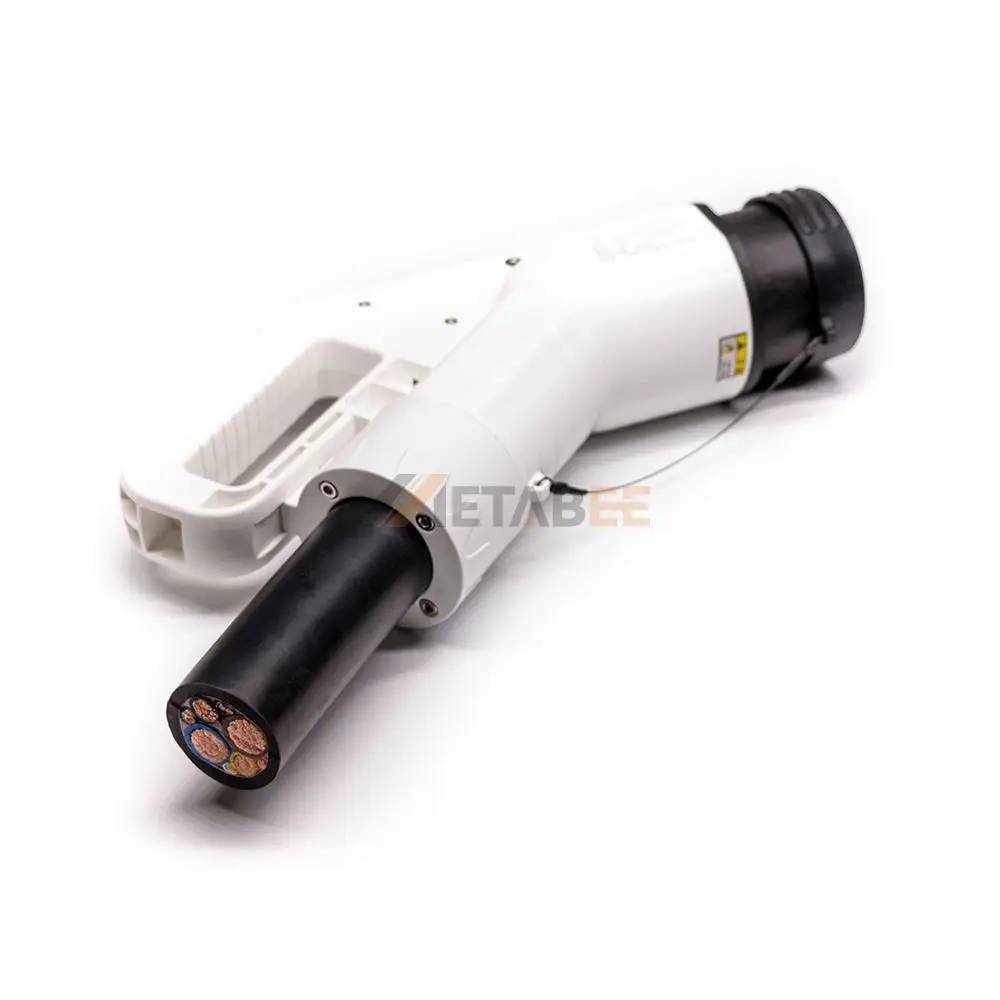

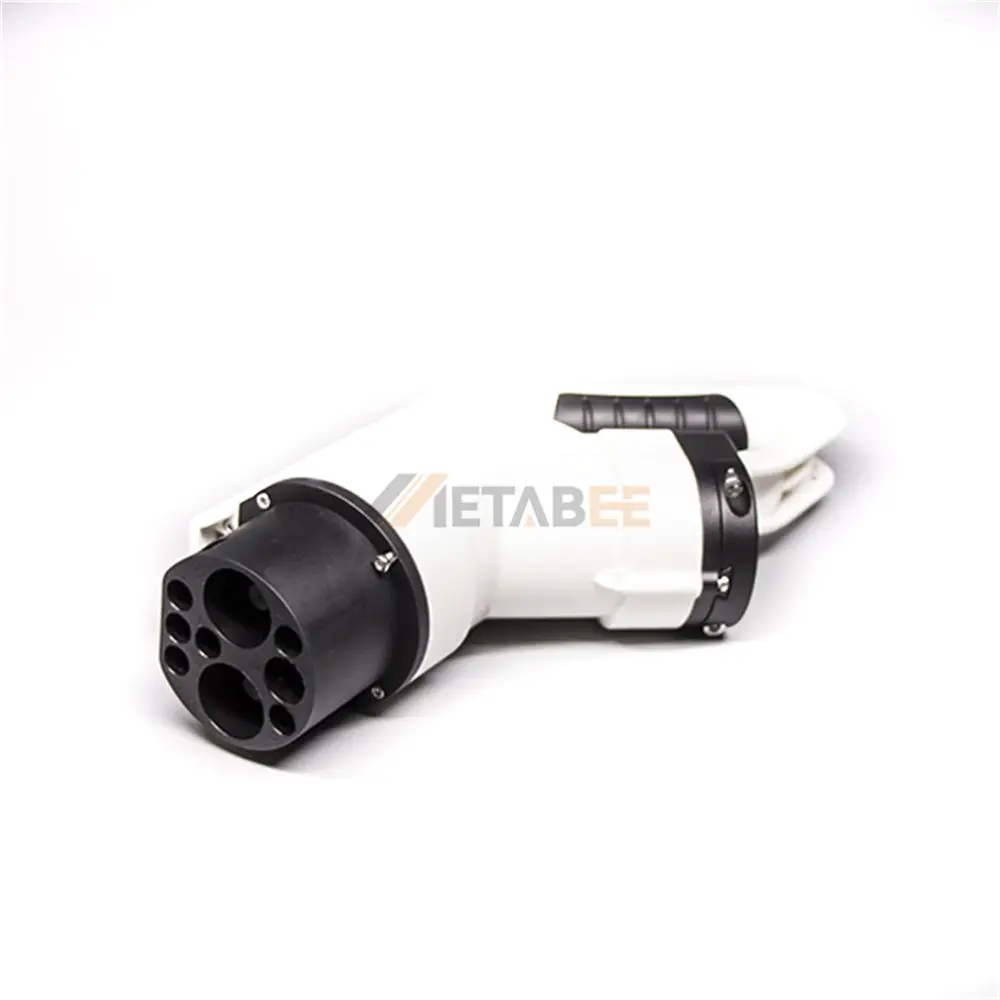

GB/T DC Charger for EV, Plug, Single Phase, 750V, 250A
Introduction
Engineered for maximum power and efficiency, this GB/T DC EV Charging Plug is the premier choice for ultra-fast, single-phase DC charging applications. Fully compliant with the GB/T 20234.2-2015 standard, it operates at an impressive 750V and 250A, capable of delivering a maximum charging power of 187kW. This capability significantly accelerates charging times for compatible electric vehicles, offering superior performance and throughput for any DC fast-charging infrastructure.
Built for durability and operator safety, the plug features a high-grade thermoplastic shell for robust protection against physical stress and environmental factors. The silver-plated copper alloy contacts ensure optimal electrical conductivity and minimal thermal resistance during high-power sessions. With a comprehensive IP65 rating, it is sealed against dust and water jets, while the UL94V-0 flame retardant classification provides critical fire safety. The plug maintains peak performance across a wide operational temperature range from -30°C to 50°C and accommodates a wire gauge of 3x16mm²+3x16mm²+2P(3x16mm²)+2P(3x16mm²).
Key Features:
- Ultra-Fast Charging: Delivers up to 187kW for dramatic reductions in charging time.
- GB/T Standard Compliance: Guarantees full compatibility with GB/T 20234.2-2015 infrastructure.
- High-Conductivity Contacts: Silver-plated copper alloy for maximum efficiency and power transfer.
- Rugged Construction: Impact-resistant thermoplastic housing ensures long service life.
- All-Environment Reliability: IP65 weatherproof and UL94V-0 flame retardant for safe operation.
- Wide Temperature Range: Performs consistently in ambient temperatures from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | NV3-YC-EV250P | |
| Product Series: | GB Standards DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 2x35mm²+1x16mm²+2x4mm²+2P(3x16mm²)+2P(3x16mm²) | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 750V | |
| Rated Current: | 250A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 187kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
AC charging Type of GB standards
GB Standards DC Charging Connector
GB Standards DC Charging Connector Drawing
Applications of this GB/T DC Charger for EV:
The GB Standards DC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
