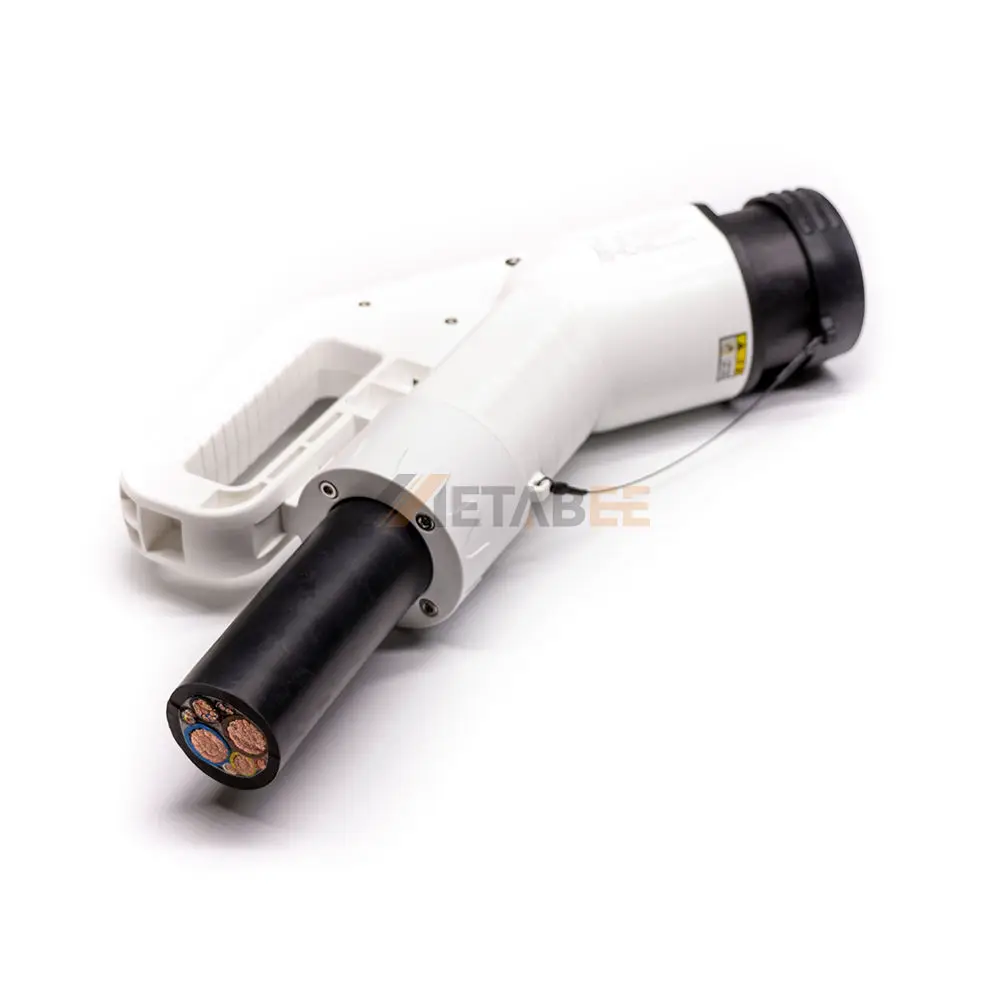

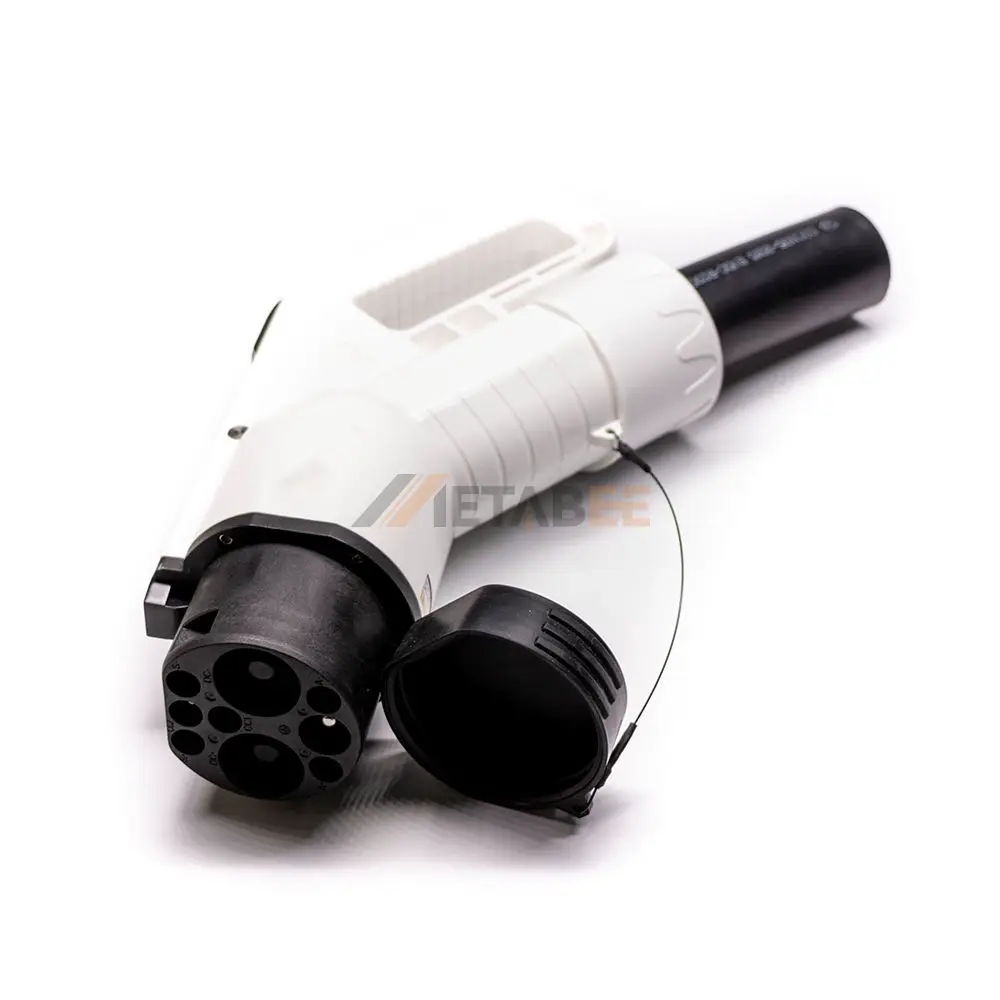

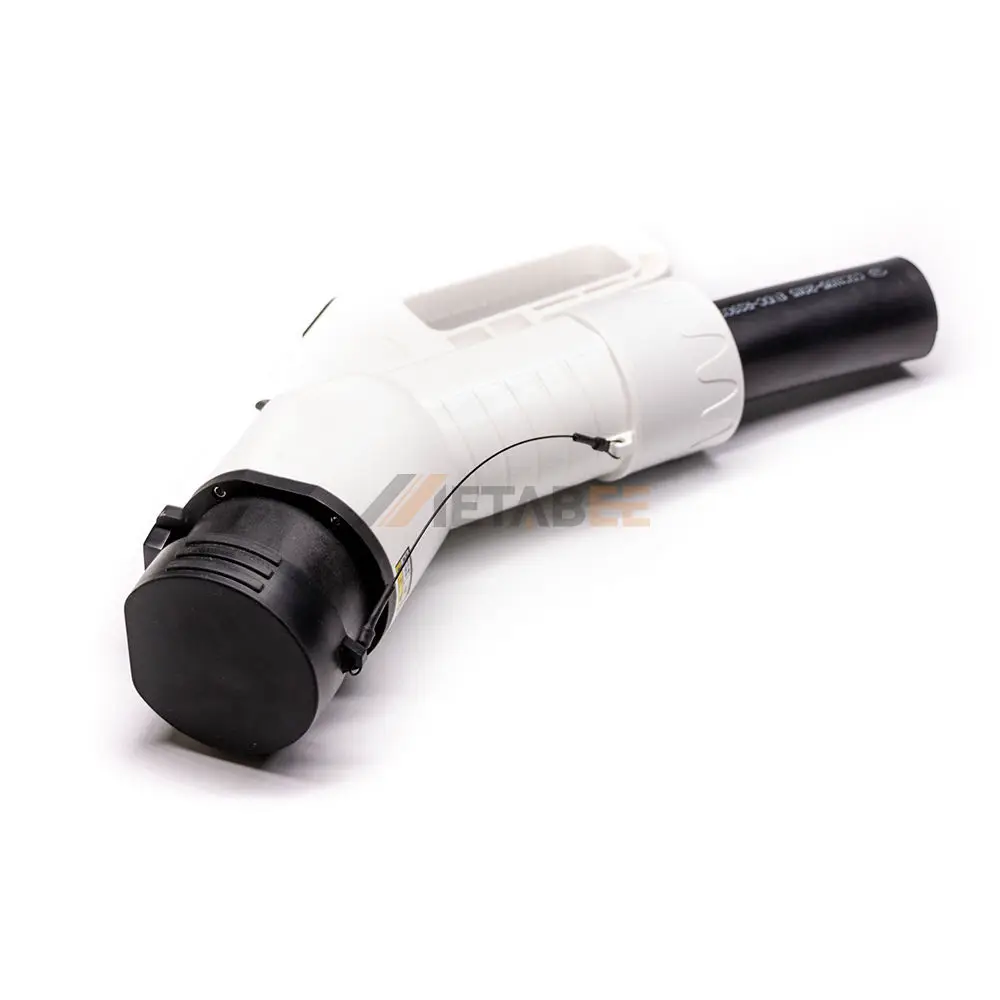

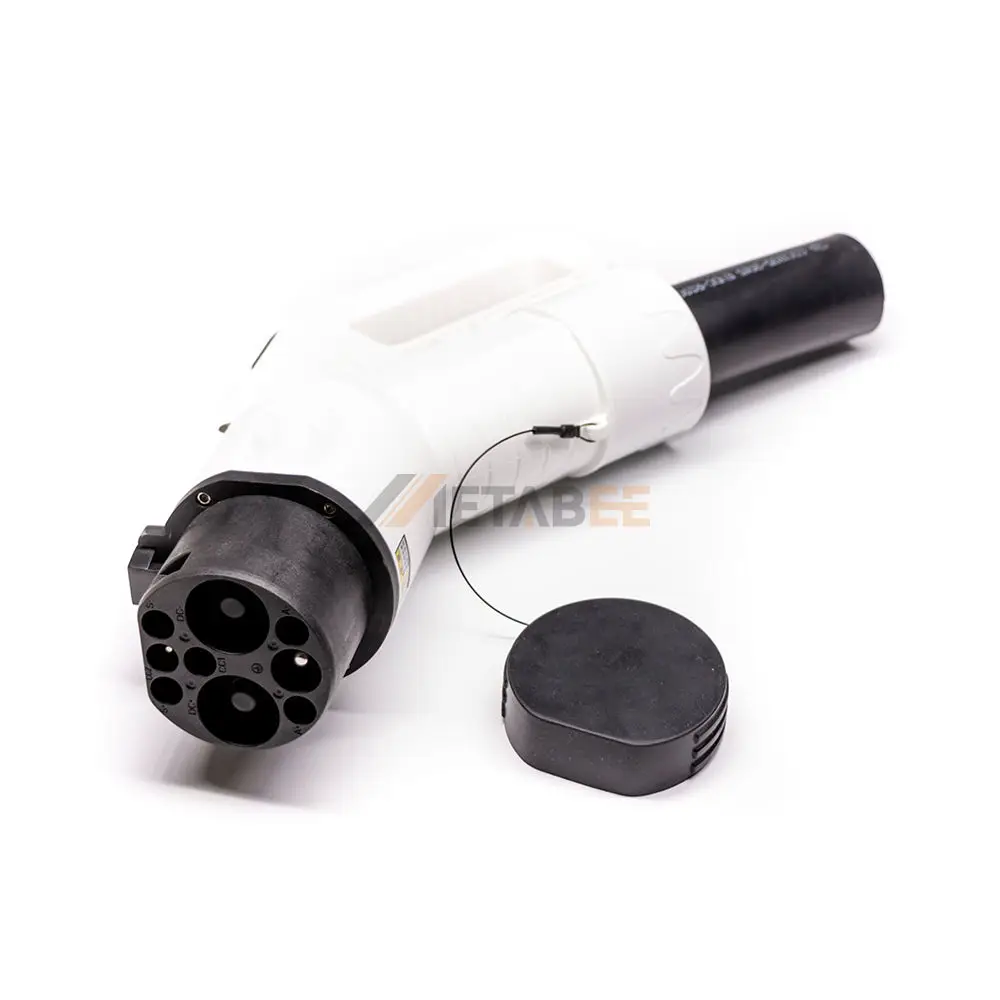

GB/T DC Charger for EV, Plug, Single Phase, 750V, 80A
Introduction
Experience efficient and reliable charging for your electric vehicle with our high-performance GB/T DC Charger Plug. Engineered to meet the GB/T 20234.2-2015 standard, this single-phase plug is designed for fast and safe DC power delivery. With a rated voltage of 750V and a current of 80A, it supports a maximum charging power of up to 60kW, significantly reducing your vehicle’s charging time and getting you back on the road faster.
Built for durability and safety, the connector features a rugged Thermoplastic shell that provides excellent protection and longevity. The high-quality Copper Alloy contacts are silver-plated to ensure superior conductivity and a stable connection for every charge. This plug is designed to withstand various environmental conditions, boasting an IP65 rating for protection against dust and water, a UL94V-0 flammability rating for enhanced safety, and a wide operating temperature range from -30°C to 50°C.
Key Features:
- Fast DC Charging: Delivers up to 60kW of power for rapid and efficient charging sessions.
- GB/T Standard Compliant: Fully adheres to the GB/T 20234.2-2015 standard for guaranteed compatibility and safety.
- Robust Construction: Features a durable Thermoplastic housing and a heavy-duty cable (3x16mm²+2P+2×0.75mm²) for long-lasting performance.
- Superior Conductivity: Silver-plated Copper Alloy contacts provide a reliable and highly conductive connection.
- All-Weather Performance: An IP65 rating ensures protection against dust and water, suitable for various conditions.
- Enhanced Safety: Certified with a UL94V-0 flame retardant rating and designed to operate safely in temperatures from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | NV3-YC-EV80P | |
| Product Series: | GB Standards DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3x16mm²+3x16mm²+2P(3x16mm²)+2P(3x16mm²) | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 750V | |
| Rated Current: | 80A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 60kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
AC charging Type of GB standards
GB Standards DC Charging Connector
GB Standards DC Charging Connector Drawing
Applications of this GB/T DC Charger for EV:
The GB Standards DC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
