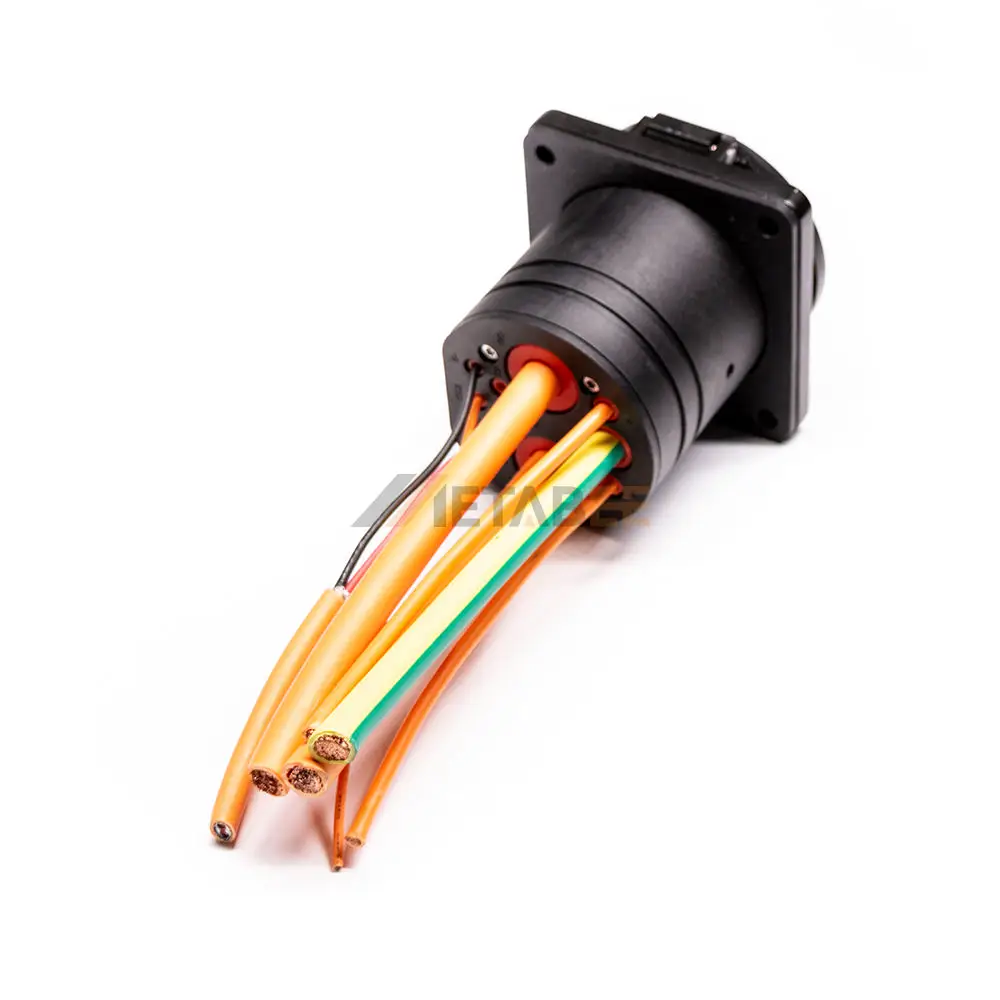

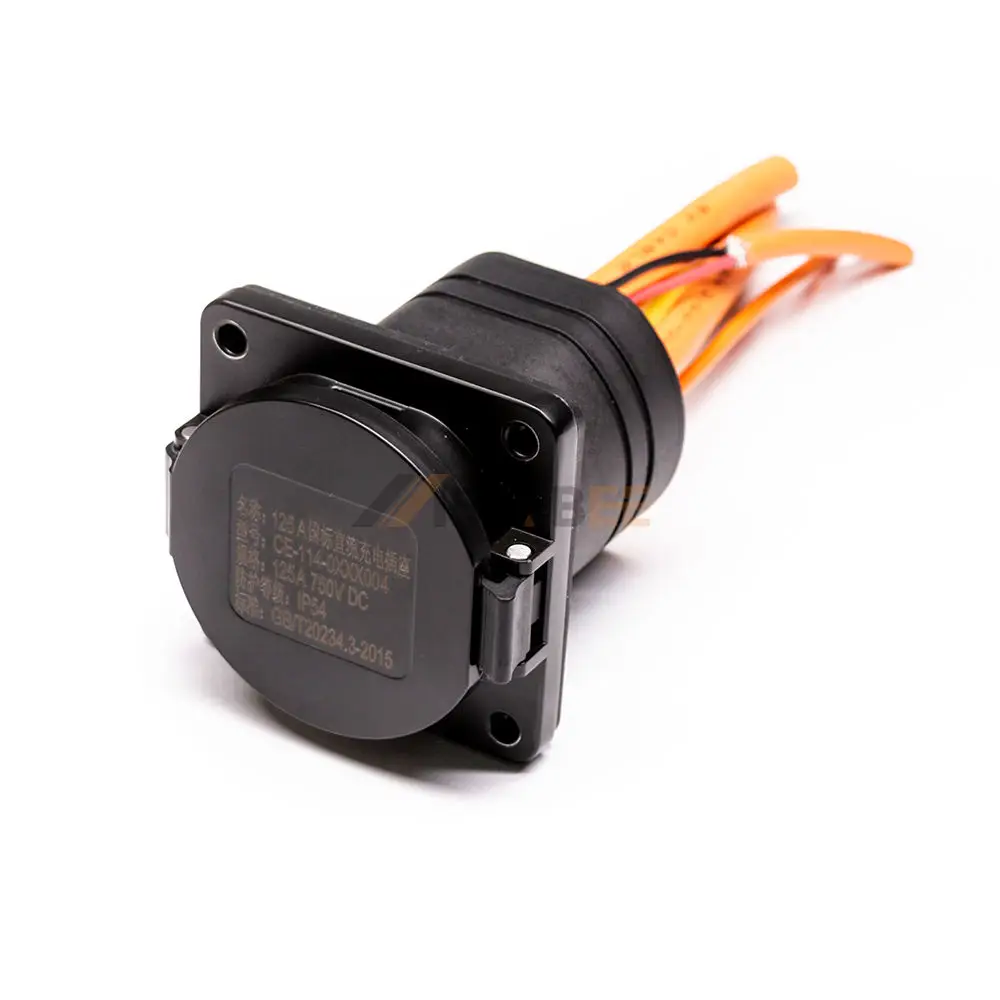

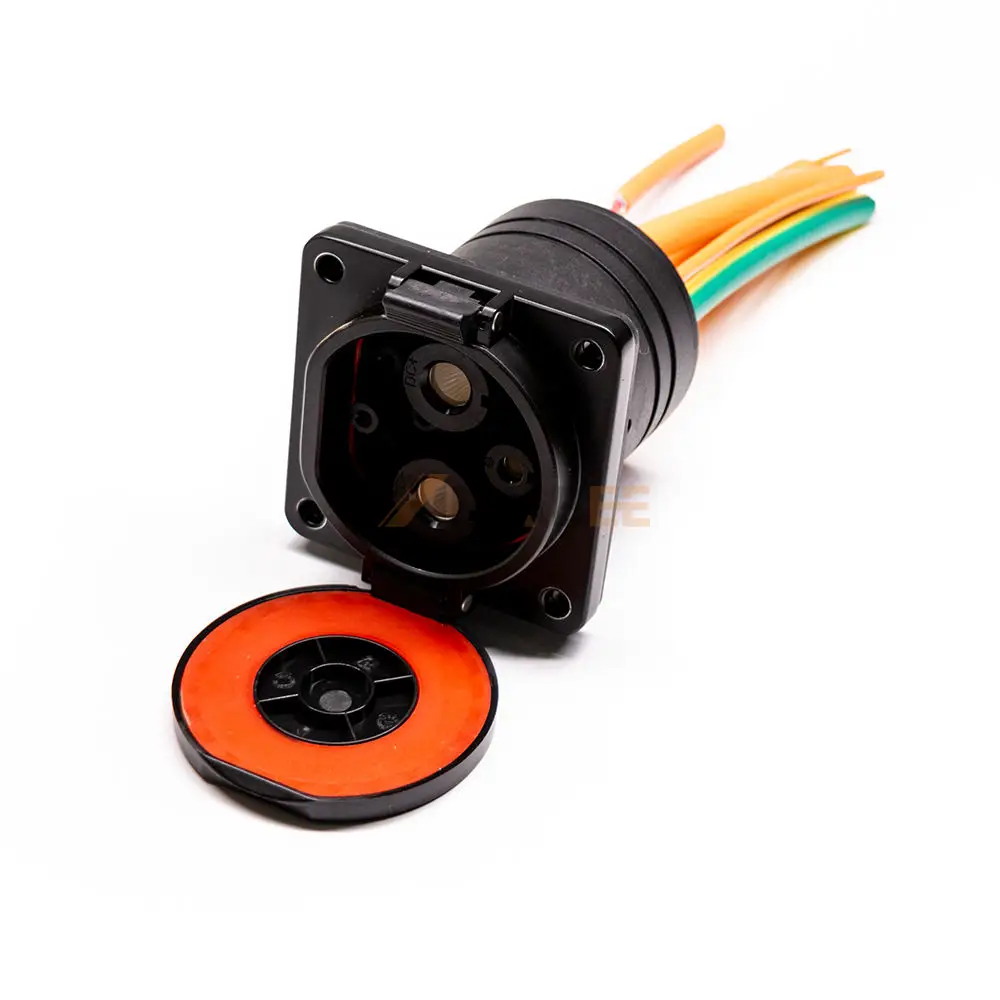

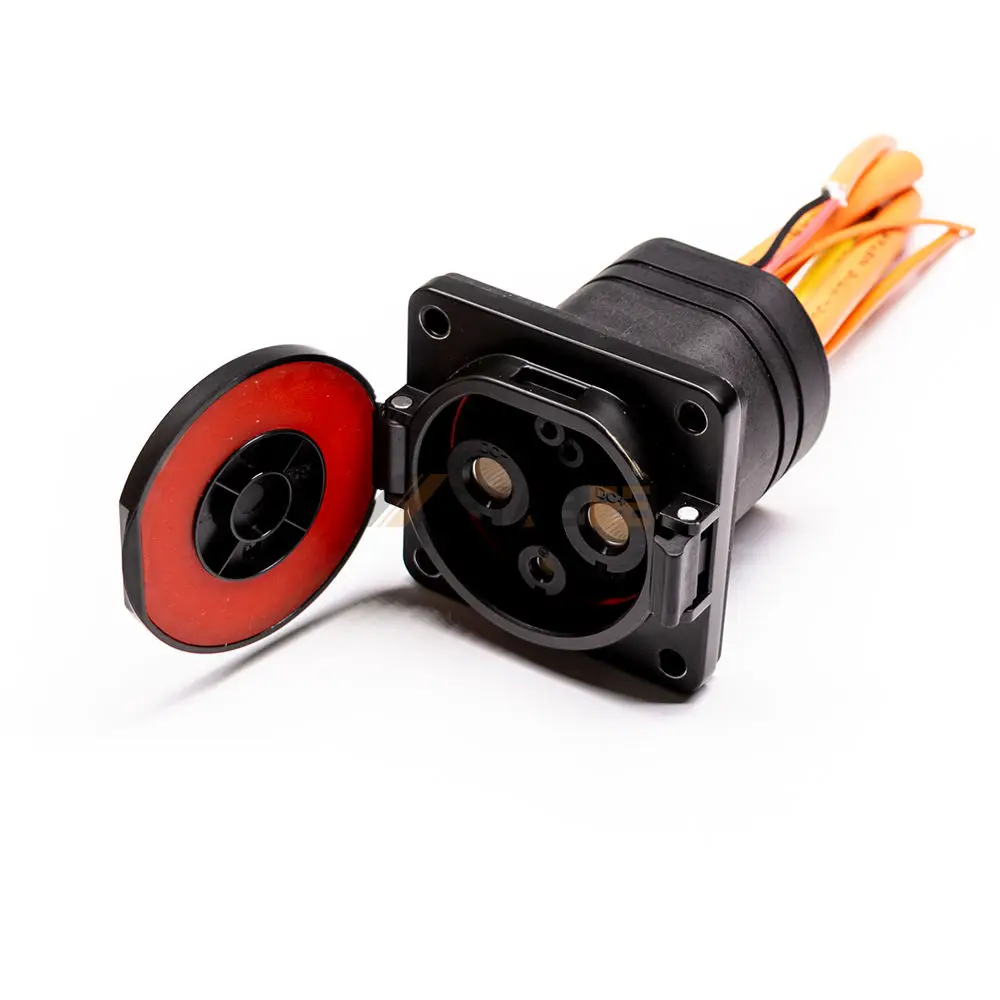

GB/T DC Fast Charger for EV, Socket, Single Phase, 750V, 250A
Introduction
The GB/T DC Fast charger is engineered for high-power direct current charging applications, fully compliant with GB/T 20234.2-2015. Designed as a DC socket connector, it supports single-phase DC charging with a rated voltage of 750V and a high current capacity of 250A, enabling a maximum charging power of up to 187kW. This makes it ideal for fast-charging stations requiring stable, efficient, and continuous energy delivery.
The connector features a high-strength thermoplastic housing combined with silver-plated copper alloy contacts, ensuring excellent electrical conductivity, low contact resistance, and long-term durability under high current loads. With an IP65 protection rating and UL94 V-0 flame-retardant level, the socket is well-suited for demanding outdoor and industrial environments, offering reliable performance against dust, moisture, and heat. Optimized for professional EV charging infrastructure, the connector supports a wide operating temperature range from -30°C to +50°C and is compatible with heavy-duty cable configurations, including 2×35mm² + 1×16mm² + 2×4mm² + 2P(3×16mm²) wiring. Its robust mechanical and electrical design ensures safe, stable, and high-efficiency DC fast charging across commercial and public charging applications.
Key Features:
- Compliant with GB/T 20234.2-2015 DC charging standard
- 750V / 250A rating with up to 187kW charging power
- Silver-plated copper alloy contacts for low resistance
- IP65 protection for outdoor fast-charging environments
- UL94 V-0 flame-retardant thermoplastic housing
- Wide operating temperature range: -30°C to +50°C
Main Specifications:
General Information:
| Part No.: | NV3-YC-EV250P | |
| Product Series: | GB Standards DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 2x35mm²+1x16mm²+2x4mm²+2P(3x16mm²)+2P(3x16mm²) | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 750V | |
| Rated Current: | 250A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 187kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
AC charging Type of GB standards
GB Standards DC Charging Connector
GB Standards DC Charging Connector Drawing
Applications of this GB/T DC Fast Charger for EV:
The GB Standards DC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
