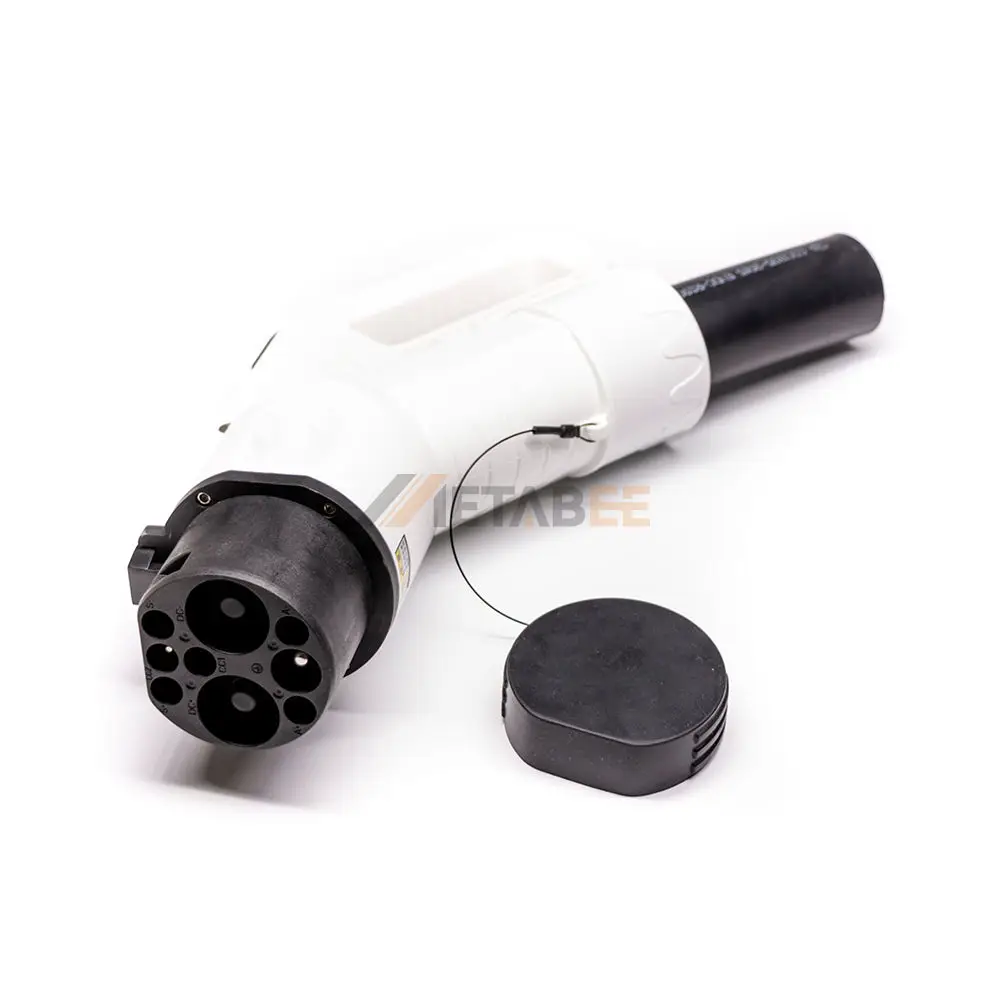

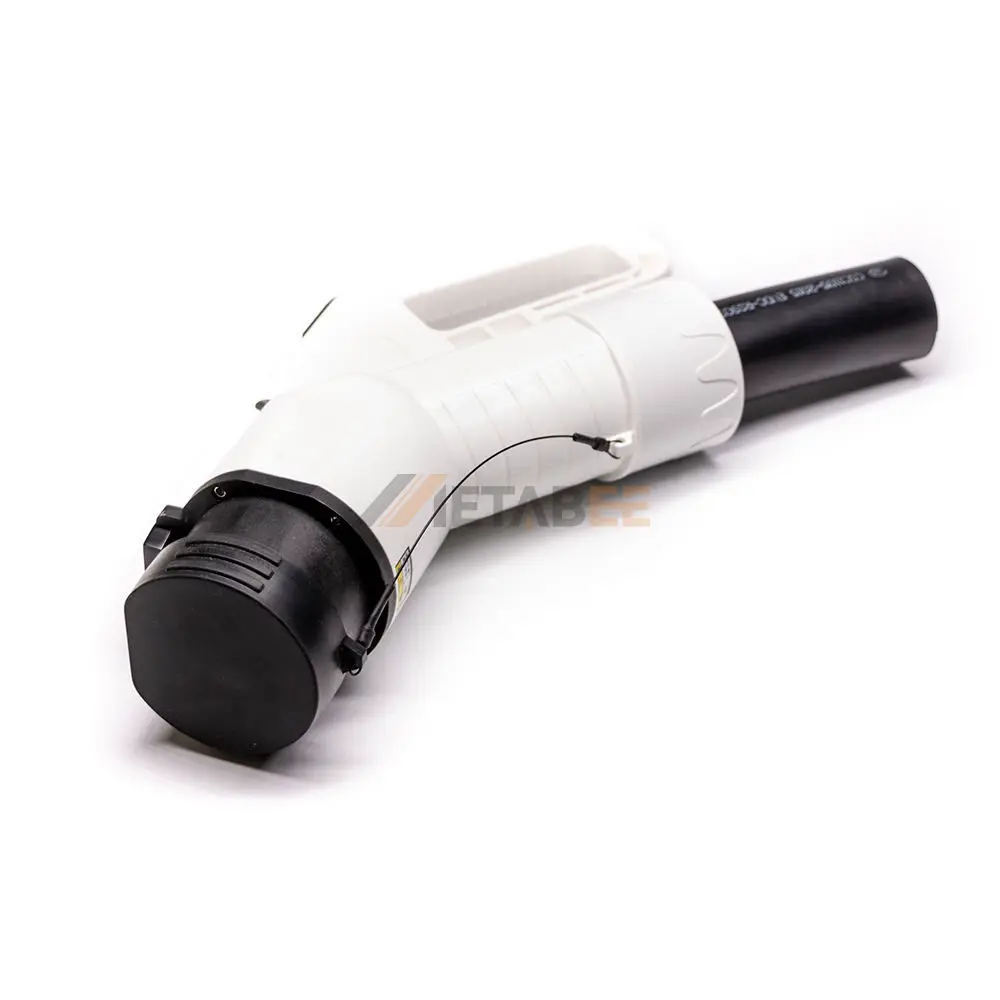

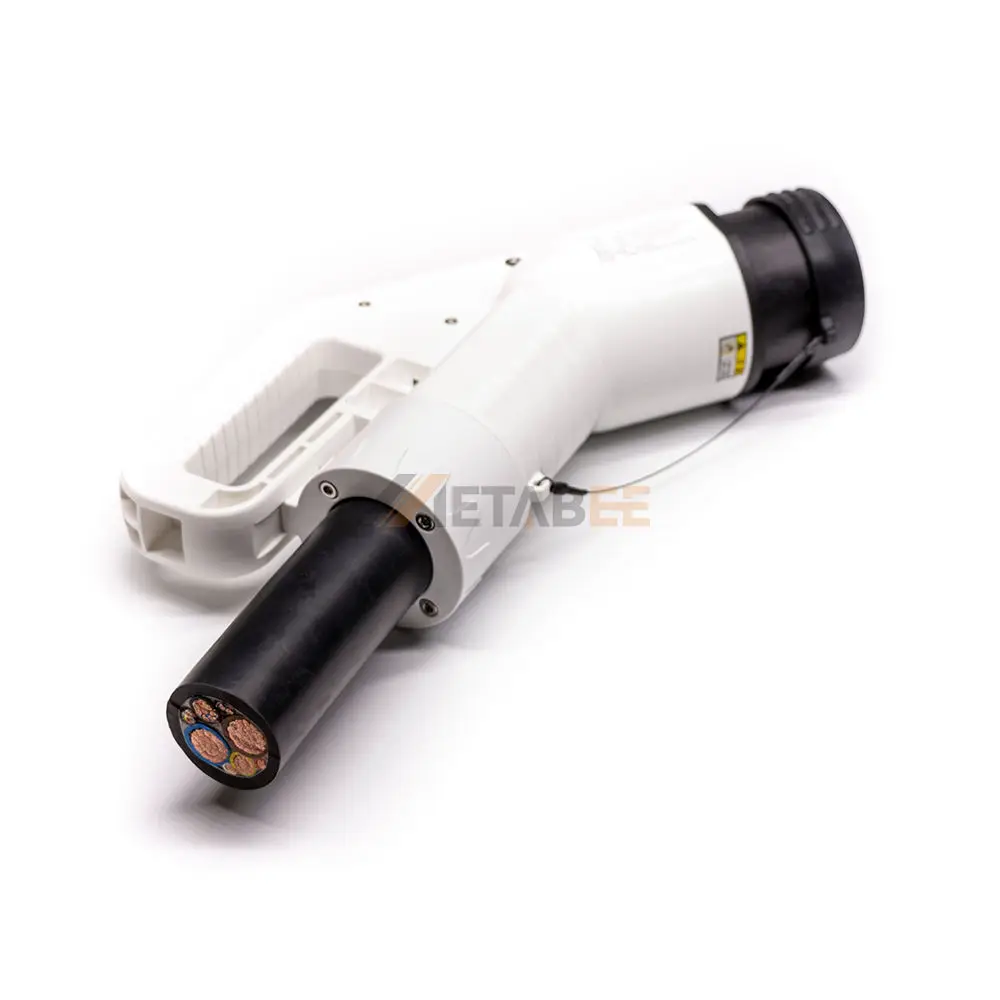

GB/T DC Electric Vehicle Charging Plug, Single Phase, 750V, 200A
Introduction
Engineered for superior performance and rapid power delivery, this GB/T DC Electric Vehicle Charging Plug is the definitive solution for high-speed, single-phase DC charging. Compliant with the GB/T 20234.2-2015 standard, it operates at a formidable 750V and 200A, delivering a maximum charging power of up to 150kW. This ensures significantly reduced charging times for compatible electric vehicles, providing unparalleled efficiency and convenience for any DC fast-charging station.
The plug’s robust construction guarantees reliability and safety in all operating conditions. Its durable thermoplastic shell provides excellent protection, while the copper alloy contacts, finished with a silver plating, ensure maximum conductivity and minimal power loss. With an IP65 rating, it is fully protected against dust and water ingress, and the UL94V-0 flame retardant rating offers the highest degree of fire safety. The plug is designed to perform flawlessly in a wide temperature range from -30°C to 50°C, making it a dependable choice for any environment. The specified wire gauge is 3x16mm²+3x16mm²+2P(3x16mm²)+2P(3x16mm²).
Key Features:
- High-Power DC Charging: Delivers up to 150kW for rapid vehicle charging.
- GB/T Standard Compliant: Fully adheres to GB/T 20234.2-2015 for guaranteed compatibility.
- Superior Conductivity: Silver-plated copper alloy contacts for efficient power transfer.
- Durable Construction: Thermoplastic housing provides exceptional impact and wear resistance.
- All-Weather Performance: IP65 rated for dust and water protection, with a -30°C to 50°C operating range.
- Certified Safety: Features a UL94V-0 flame retardant rating for maximum safety.
Main Specifications:
General Information:
| Part No.: | NV3-YC-EV200P | |
| Product Series: | GB Standards DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 2x35mm²+1x16mm²+2x4mm²+2P(3x16mm²)+2P(3x16mm²) | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 750V | |
| Rated Current: | 200A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 150kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
AC charging Type of GB standards
GB Standards DC Charging Connector
GB Standards DC Charging Connector Drawing
Applications of this GB/T DC Electric Vehicle Charging Plug:
The GB Standards DC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
Factory pricing and exceptional product quality. Get a free quote now!
