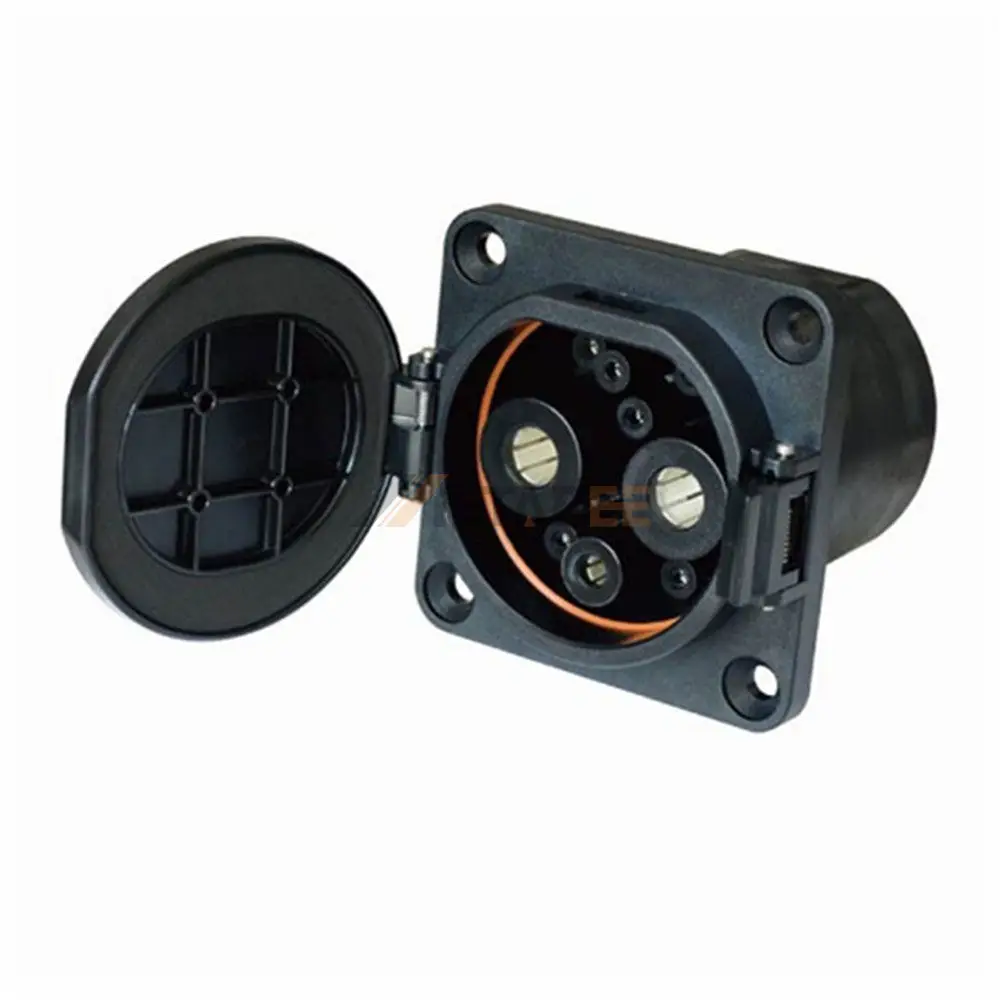

GB/T DC Electric Vehicle Charging Socket, Single Phase, 750V, 80A
Introduction
Experience efficient and safe charging for your electric vehicle with our GB/T DC Electric Vehicle Charging Socket. Engineered to meet the rigorous GB/T 20234.2-2015 standard, this single-phase DC charging socket delivers a powerful 80A current at 750V, providing a maximum charging power of 60kW. Its robust construction features a durable thermoplastic housing and high-conductivity copper alloy contacts with a silver-plated finish, ensuring a reliable and long-lasting connection for your EV.
Built to withstand the elements, this charging socket boasts an IP65 waterproof rating, making it suitable for both indoor and outdoor installations. The UL94V-0 flame-retardant rating provides an extra layer of safety and peace of mind. Designed for a wide range of environments, it operates effectively in temperatures from -30°C to 50°C. The socket is compatible with a 3x16mm²+3x16mm²+2P(3x16mm²)+2P(3x16mm²) wire gauge, offering flexibility for various installation requirements.
Key Features:
- High-Power Charging: Delivers up to 60kW of charging power for rapid and efficient charging.
- Certified Safety: Compliant with the GB/T 20234.2-2015 charging standard for guaranteed safety and compatibility.
- Durable Construction: Features a tough thermoplastic shell and silver-plated copper alloy contacts for superior durability and conductivity.
- All-Weather Performance: An IP65 rating ensures protection against dust and water, making it suitable for any environment.
- Enhanced Safety: UL94V-0 flame-retardant rating for added protection and peace of mind.
- Wide Operating Range: Functions reliably in temperatures ranging from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | NV2-YC-G-EV80S | |
| Product Series: | GB Standards DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3x16mm²+3x16mm²+2P(3x16mm²)+2P(3x16mm²) | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 750V | |
| Rated Current: | 80A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 60kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |

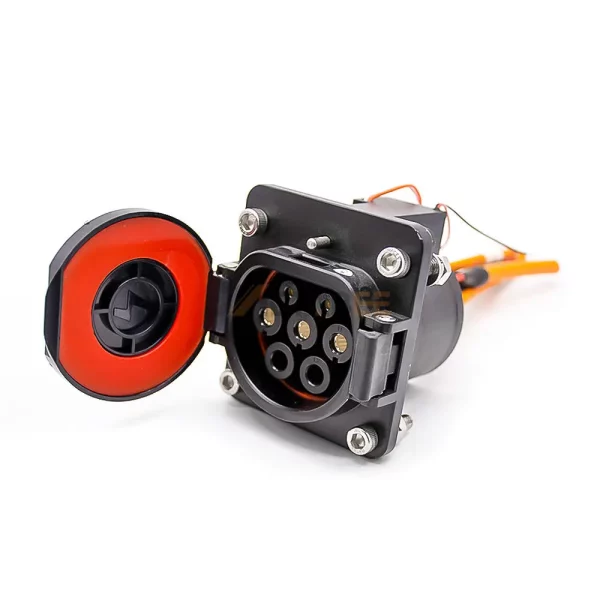

AC charging Type of GB standards
GB Standards DC Charging Connector
GB Standards DC Charging Connector Drawing
Applications of this GB/T DC Electric Vehicle Charging Socket:
The GB Standards DC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
