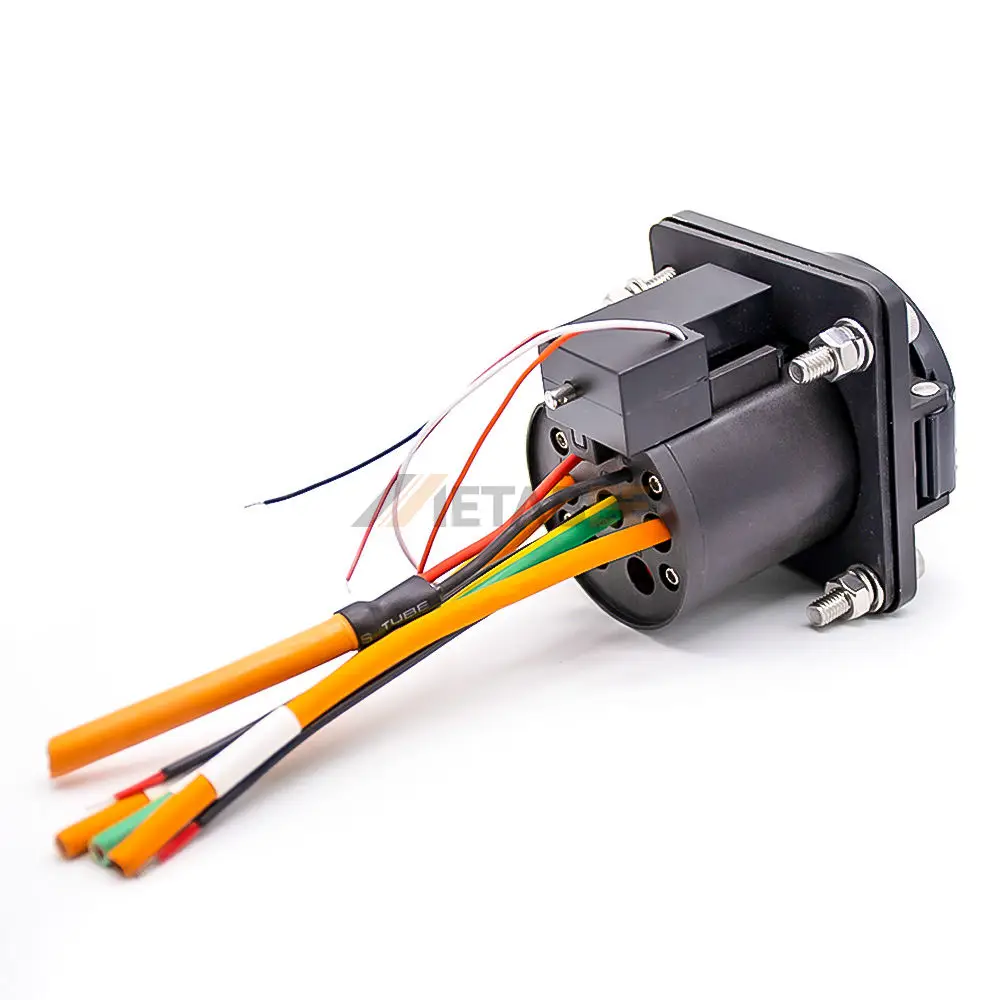

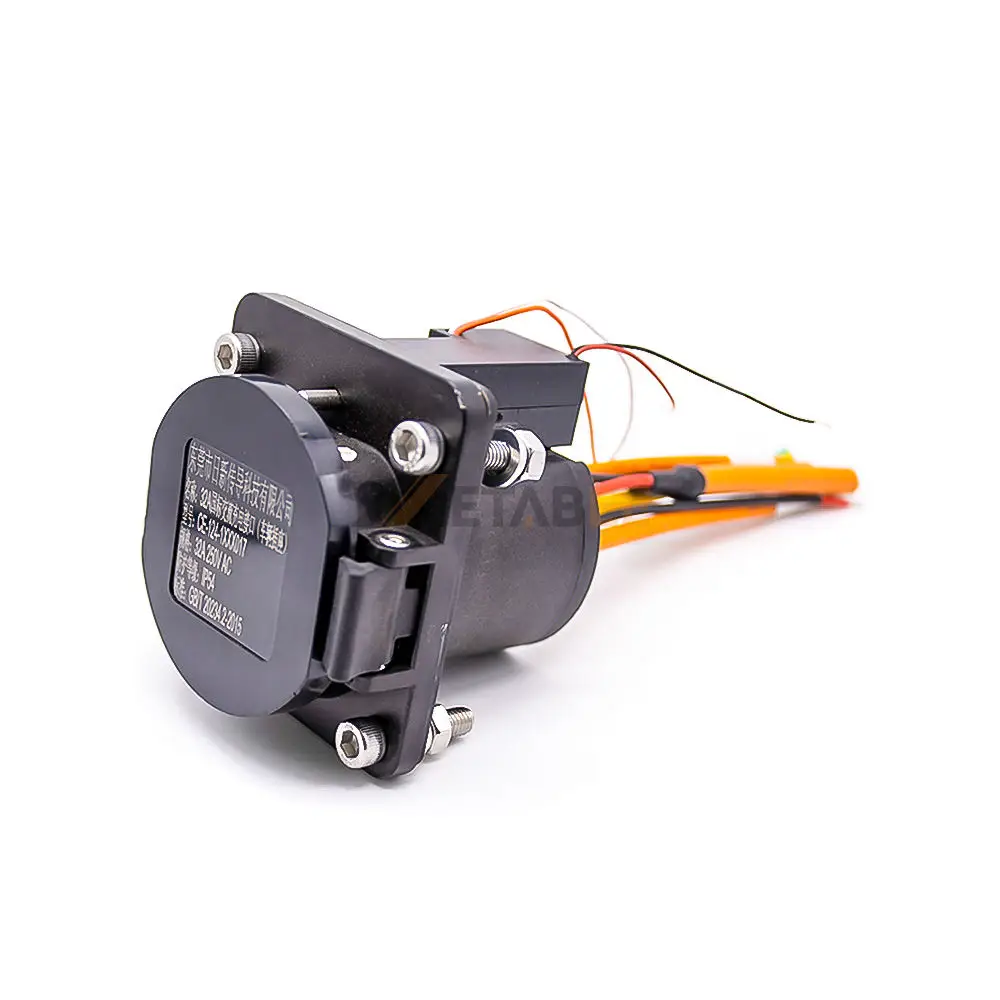

GB/T AC EV Charging Station Connector, Socket, Single Phase, 440V, 32A
Introduction
Discover superior performance with our GB/T AC EV Charging Station Connector, a robust and reliable solution designed for single-phase electric vehicle charging. Engineered to meet the rigorous GB/T 20234.2-2015 standard, this socket connector ensures a secure and efficient connection for your EV charging station. It is built to deliver consistent power and withstand the demands of daily use, making it an ideal choice for both commercial and residential charging applications.
Constructed from high-quality materials, the connector features a durable thermoplastic housing and silver-plated copper alloy contacts, guaranteeing excellent conductivity and longevity. It supports a rated voltage of 440V and a current of 32A, enabling a maximum charging power of up to 14kW for faster charging times. With an IP65 rating for dust and water resistance and a top-tier UL94V-0 flame retardant rating, this connector is built for safety and reliability in all conditions. Its ability to operate in temperatures ranging from -30°C to 50°C ensures dependable performance year-round.
Key Features:
- GB/T Standard Compliant: Fully adheres to the GB/T 20234.2-2015 standard for safe and reliable AC charging.
- High-Power Charging: Delivers up to 14kW with a 440V rated voltage and 32A rated current for efficient single-phase charging.
- Durable Materials: Features a rugged thermoplastic shell and silver-plated copper alloy contacts for enhanced durability and performance.
- Enhanced Safety: Achieves a UL94V-0 flammability rating and an IP65 ingress protection rating for maximum safety.
- Wide Temperature Range: Operates reliably in extreme weather conditions, from -30°C to 50°C.
- Secure Socket Connection: Designed as a socket-type connector to provide a stable and secure link for your charging needs.
Main Specifications:
General Information:
| Part No.: | NV3C-YC-G-EV32S | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X6mm²+ 2X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 440V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 14kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC EV Charging Station Connector:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
