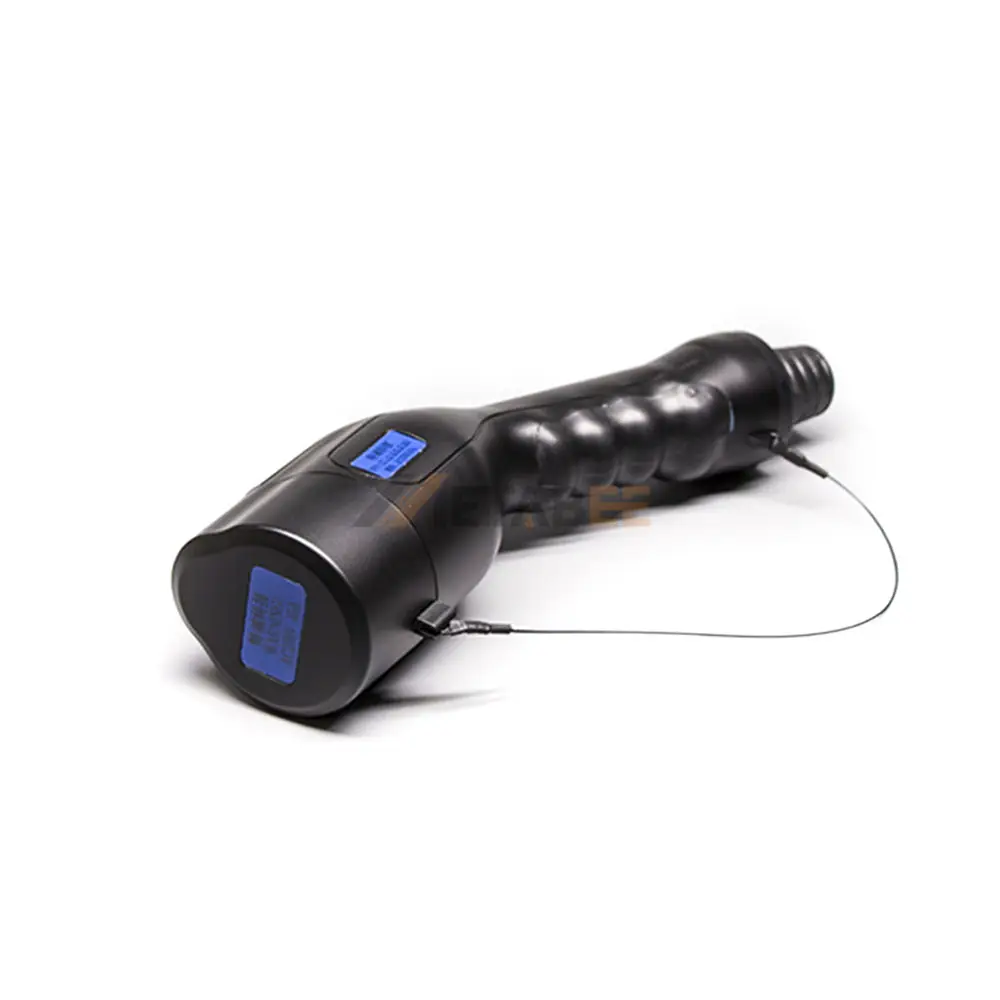

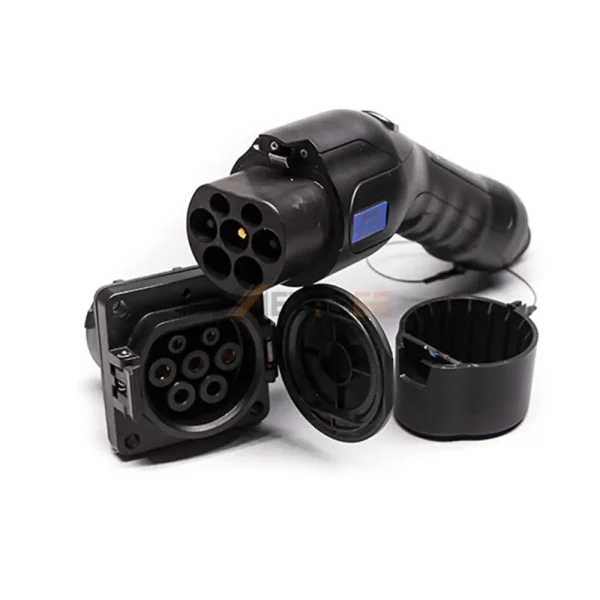

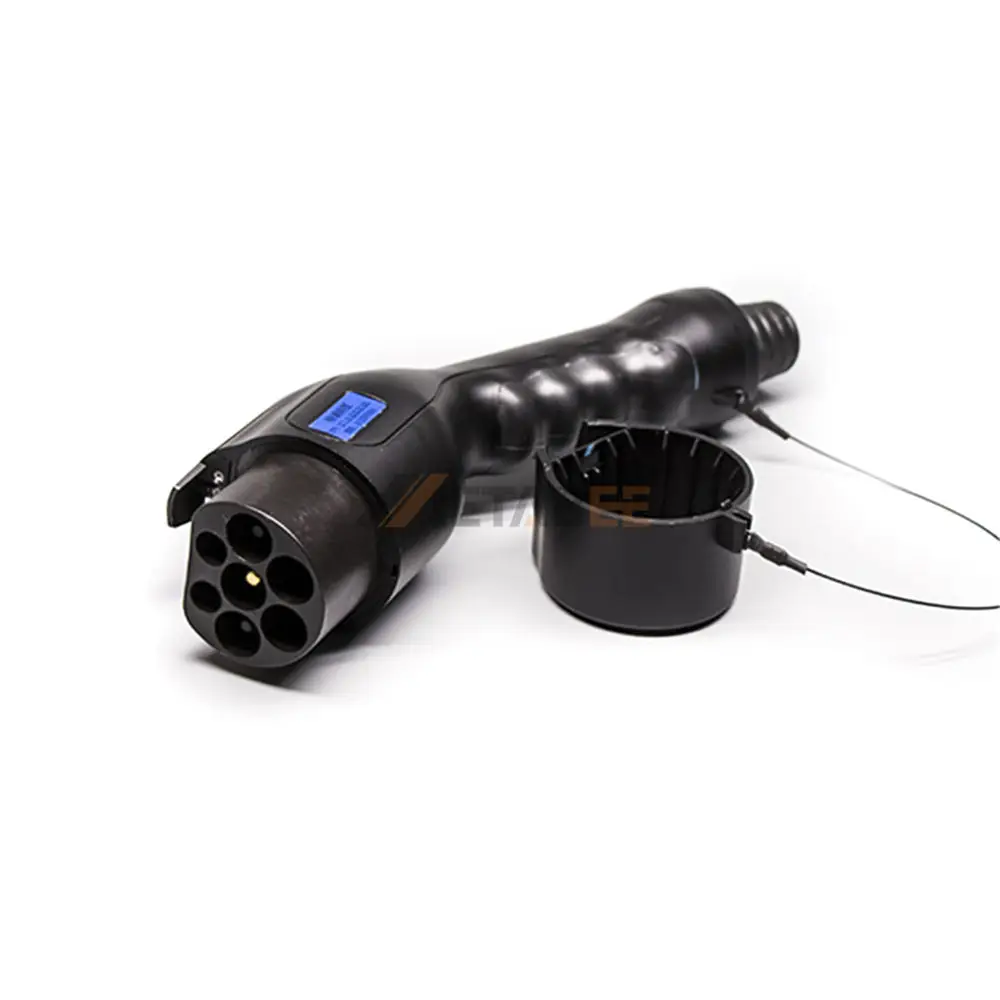

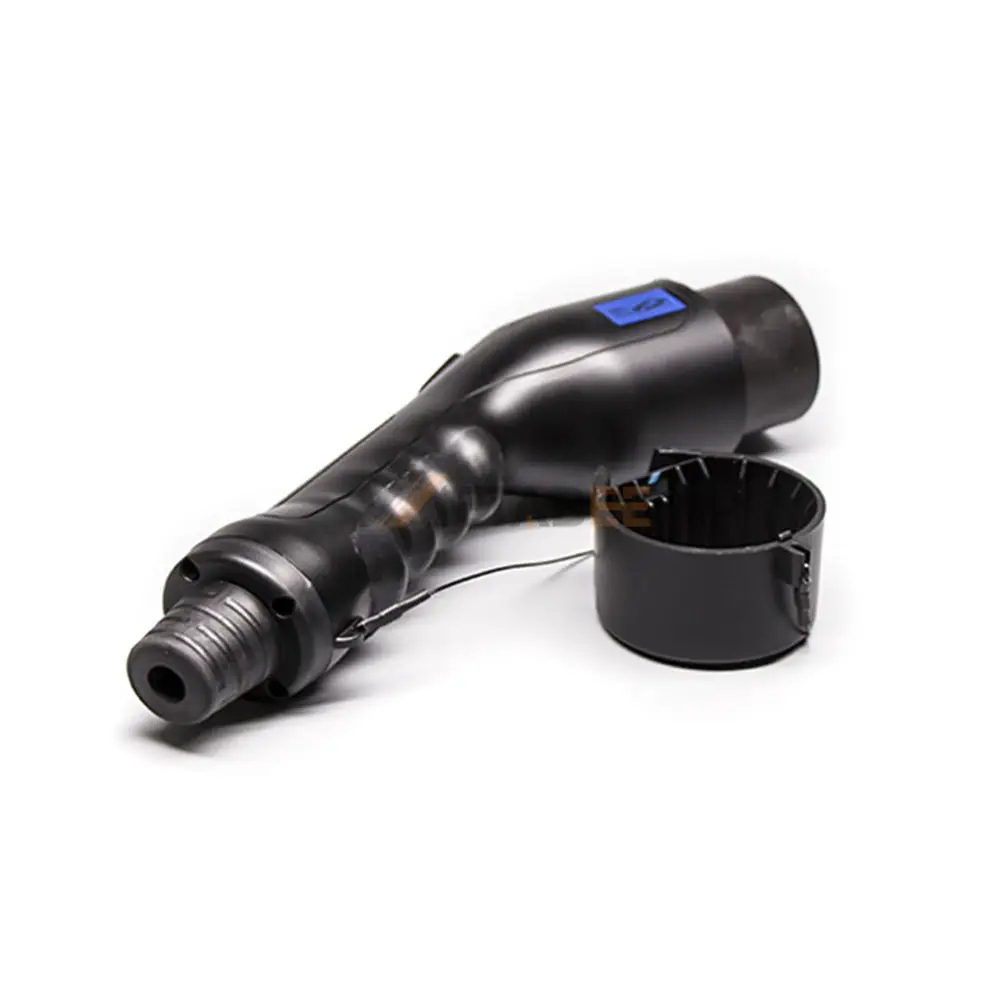

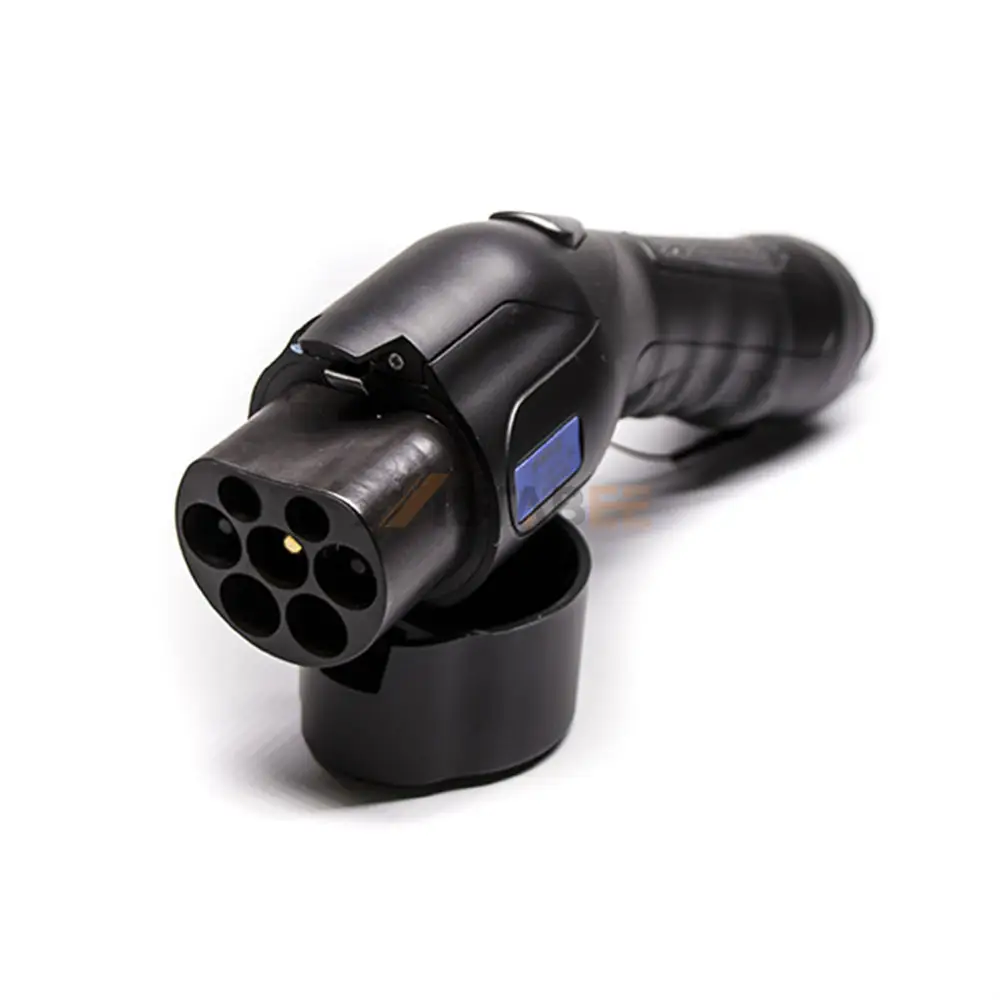

GB/T AC Charger for Electric Car, Plug, Single Phase, 440V, 32A
Introduction
This GB/T AC charger is a high-performance, single-phase connector designed for reliable electric vehicle charging. Fully compliant with the GB/T 20234.2-2015 standard, it is engineered for durability and safety in diverse conditions. The connector features a robust thermoplastic housing and copper alloy contacts with a silver-plated coating, ensuring excellent conductivity, corrosion resistance, and a long service life. It is rated for 440V and 32A, delivering a maximum charging power of 14kW for efficient charging sessions.
Built to withstand demanding environments, this plug boasts an IP65 rating for dust and water resistance, along with a UL94V-0 flame-retardant certification. It operates reliably across a wide temperature range from -30°C to 50°C. The integrated cable follows the specification 3X6mm² + 2X0.75mm², providing secure and stable power and signal transmission. This makes it an ideal and trustworthy component for various AC electric vehicle charging applications.
Key Features:
- GB/T 20234.2-2015 Standard, Single-Phase AC Plug
- Rated at 440V / 32A with 14kW Max Charging Power
- Thermoplastic Housing & Silver-Plated Copper Alloy Contacts
- IP65 Rated for Dust and Water Protection
- UL94V-0 Flame-Retardant Material
- Wide Operating Temperature: -30°C to 50°C
Main Specifications:
General Information:
| Part No.: | NV3C-YC-EV32P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X6mm²+ 2X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 440V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 14kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Charger for Electric Car:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
