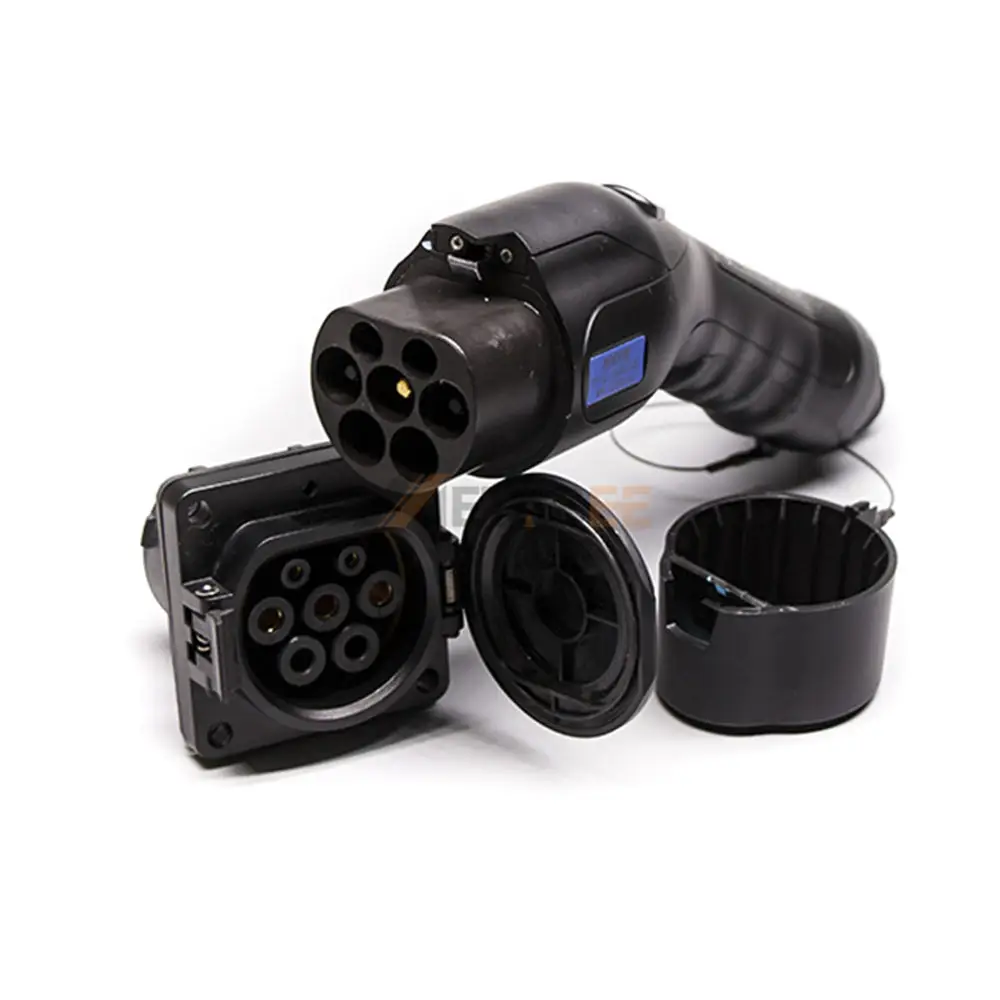

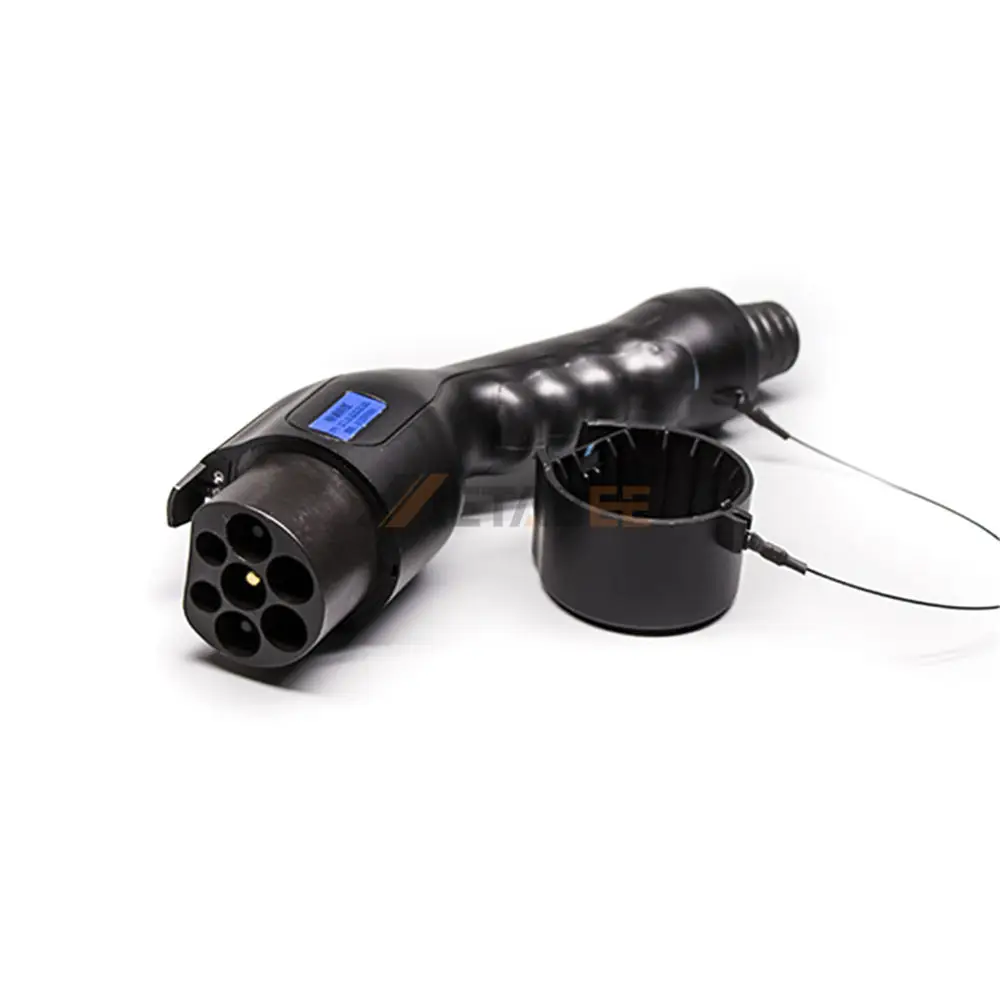

GB/T AC Charging Plug for Electric Vehicle, Single Phase, 250V, 10A
Introduction
The GB/T AC Charger is engineered to deliver safe, stable, and efficient AC charging for EV applications. Designed according to GB/T 20234.2-2015, this plug supports single-phase charging with a maximum power output of 2.5 kW, making it ideal for residential and light-duty commercial charging environments.
Constructed with a thermoplastic housing and copper alloy contacts, the plug ensures long-term electrical reliability, while the silver-plated contact surface enhances conductivity and reduces heat generation during operation. The connector provides robust environmental protection with an IP65 rating, ensuring resistance to dust and water ingress. It also meets UL94V-0 flame-retardant standards, delivering superior safety performance. The plug supports a wire gauge configuration of 3×2.5 mm² + 2×0.75 mm² and operates reliably across a wide temperature range from –30°C to 50°C, addressing the demands of various climates and installation environments.
Key Features:
- Compliant with GB/T 20234.2-2015 single-phase AC EV charging standard.
- Rated 250V, 10A, supporting up to 2.5 kW charging power.
- Thermoplastic housing with UL94V-0 flame-retardant performance.
- Copper alloy contacts with a silver-plated finish for optimized conductivity.
- IP65 protection level for outdoor and harsh-environment durability.
- Wide operating temperature range: –30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | NV3C-YC-EV10P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+ 2X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 10A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 2.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Charging Plug for Electric Vehicle:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
