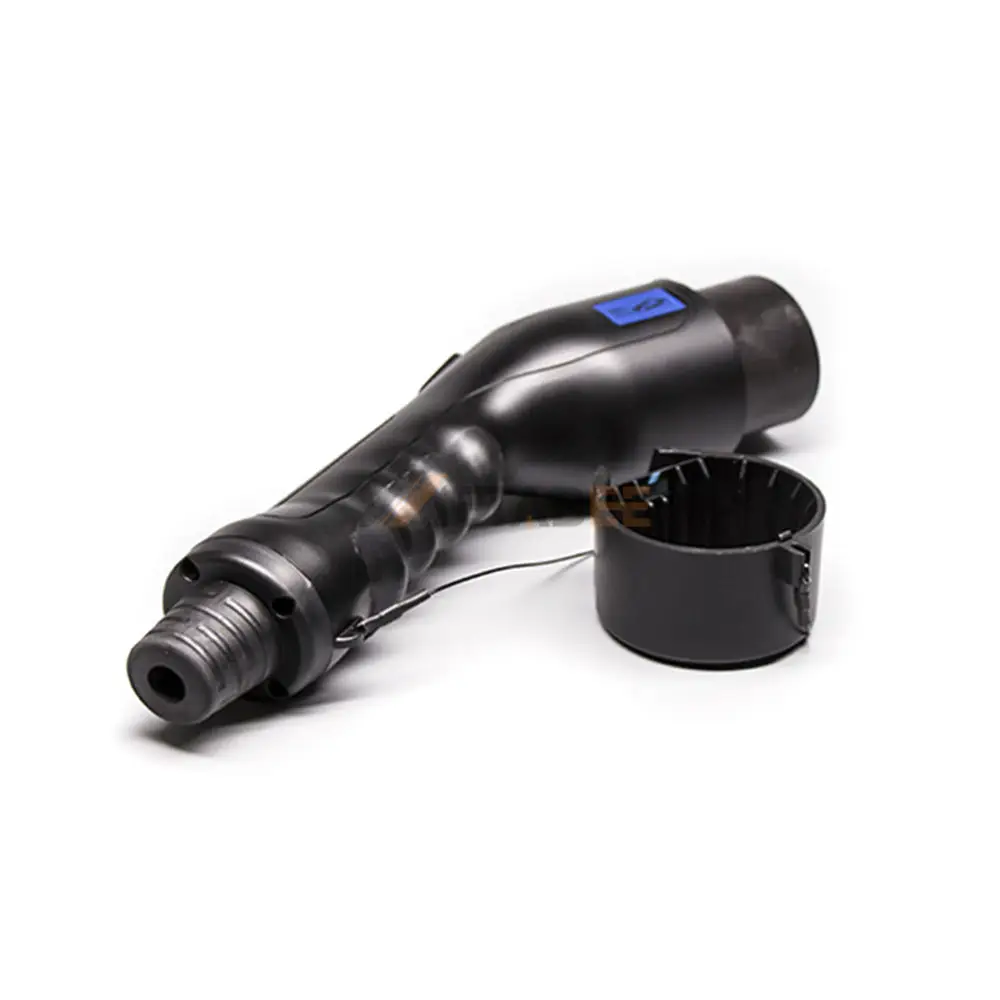

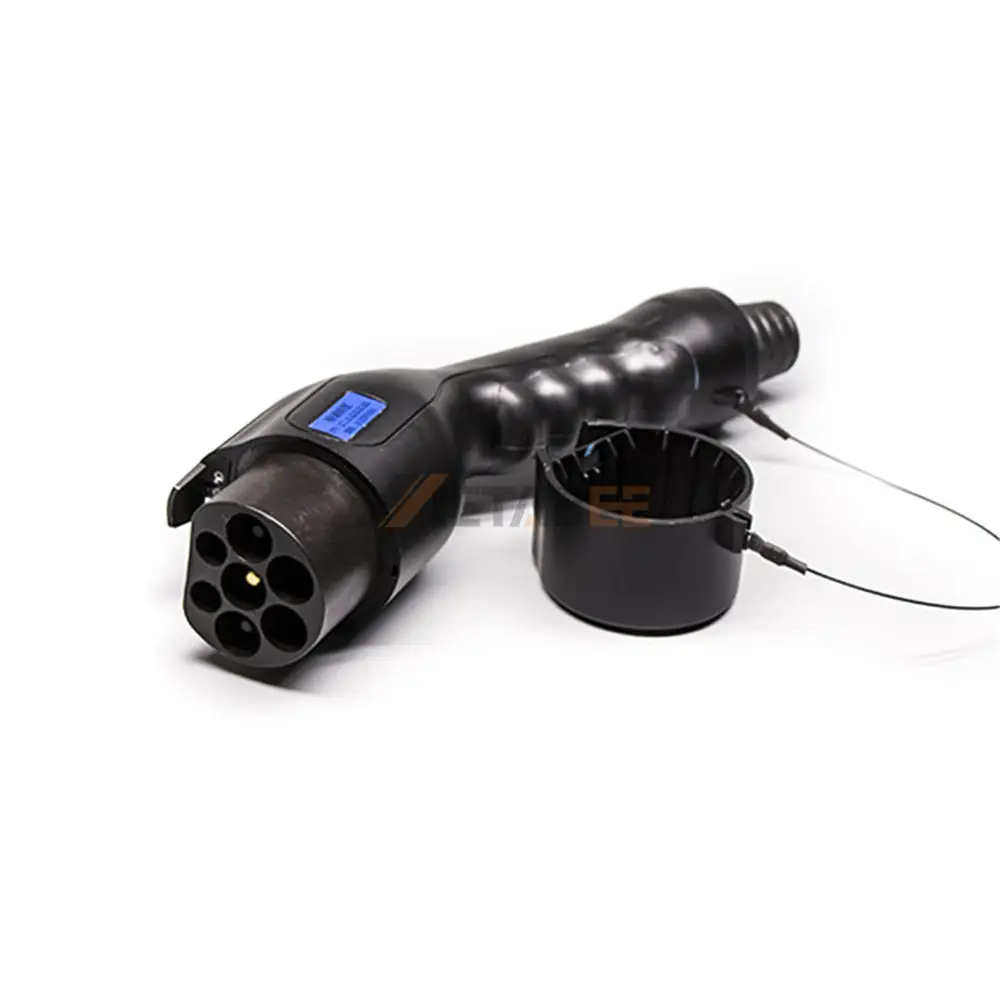

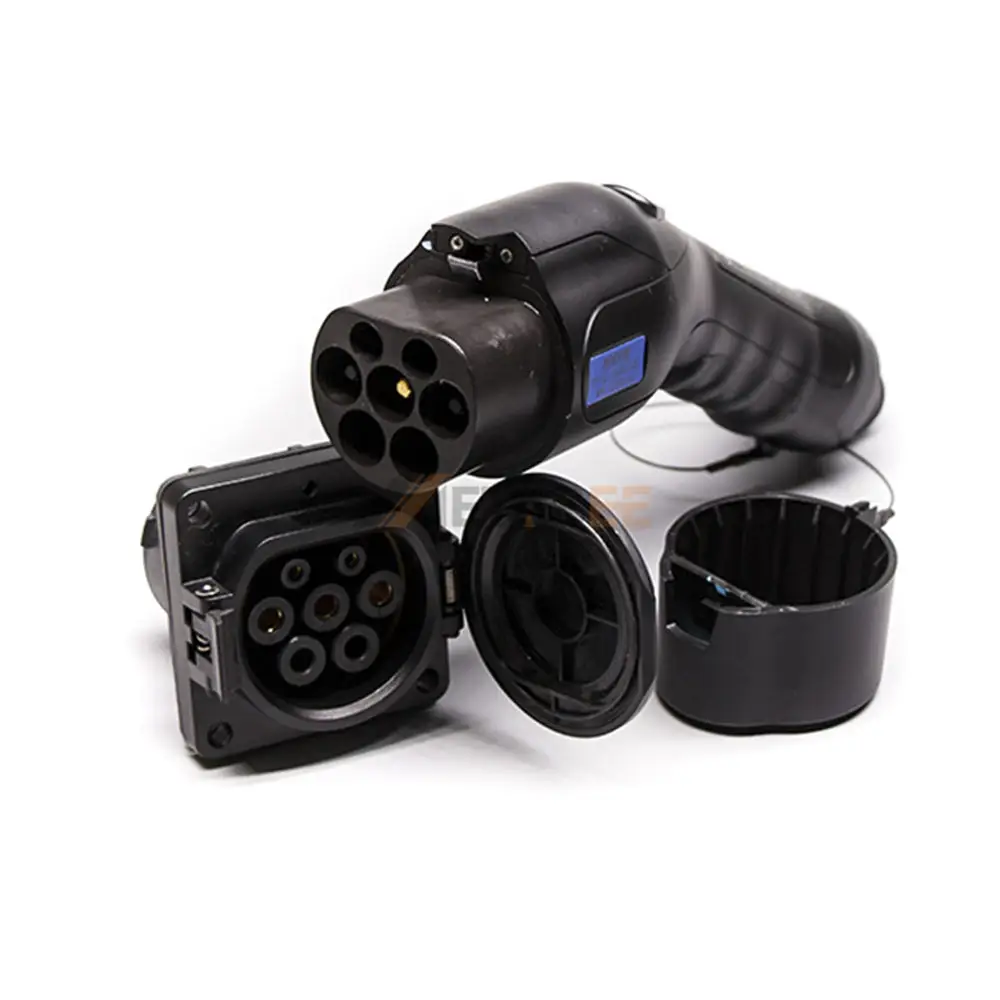

GB/T AC Electric Vehicle Charging Plug, Single Phase, 250V, 16A
Introduction
This GB/T AC Electric Vehicle Charging Plug is a high-quality, single-phase connector designed for reliable and safe charging of electric vehicles in the Chinese market. Fully compliant with the GB/T 20234.2-2015 standard, it is engineered for durability and optimal electrical performance. The plug features a robust thermoplastic housing and copper alloy contacts with a silver-plated coating, ensuring excellent conductivity, corrosion resistance, and long-term reliability.
Rated for 250V and 16A, this plug supports a maximum charging power of 4kW, making it ideal for standard AC charging applications. It boasts an IP65 protection rating for complete dust ingress protection and resistance to low-pressure water jets, alongside a UL94 V-0 flammability rating for superior safety. Built to withstand challenging environments, it operates reliably in temperatures from -30°C to 50°C and accommodates a wire gauge of 3X2.5mm² + 2X0.75mm².
Key Features:
- Standard Compliant: Meets GB/T 20234.2-2015 for single-phase AC charging.
- Robust Construction: Thermoplastic housing with durable copper alloy, silver-plated contacts.
- High Safety Ratings: Features IP65 waterproof/dustproof rating and UL94 V-0 flame retardancy.
- Stable Performance: Rated at 250V/16A (4kW max) for reliable charging.
- Wide Temperature Range: Operates effectively from -30°C to 50°C.
- Compatible Wiring: Designed for 3X2.5mm² + 2X0.75mm² cable configuration.
Main Specifications:
General Information:
| Part No.: | NV3C-YC-EV16P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+ 2X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |

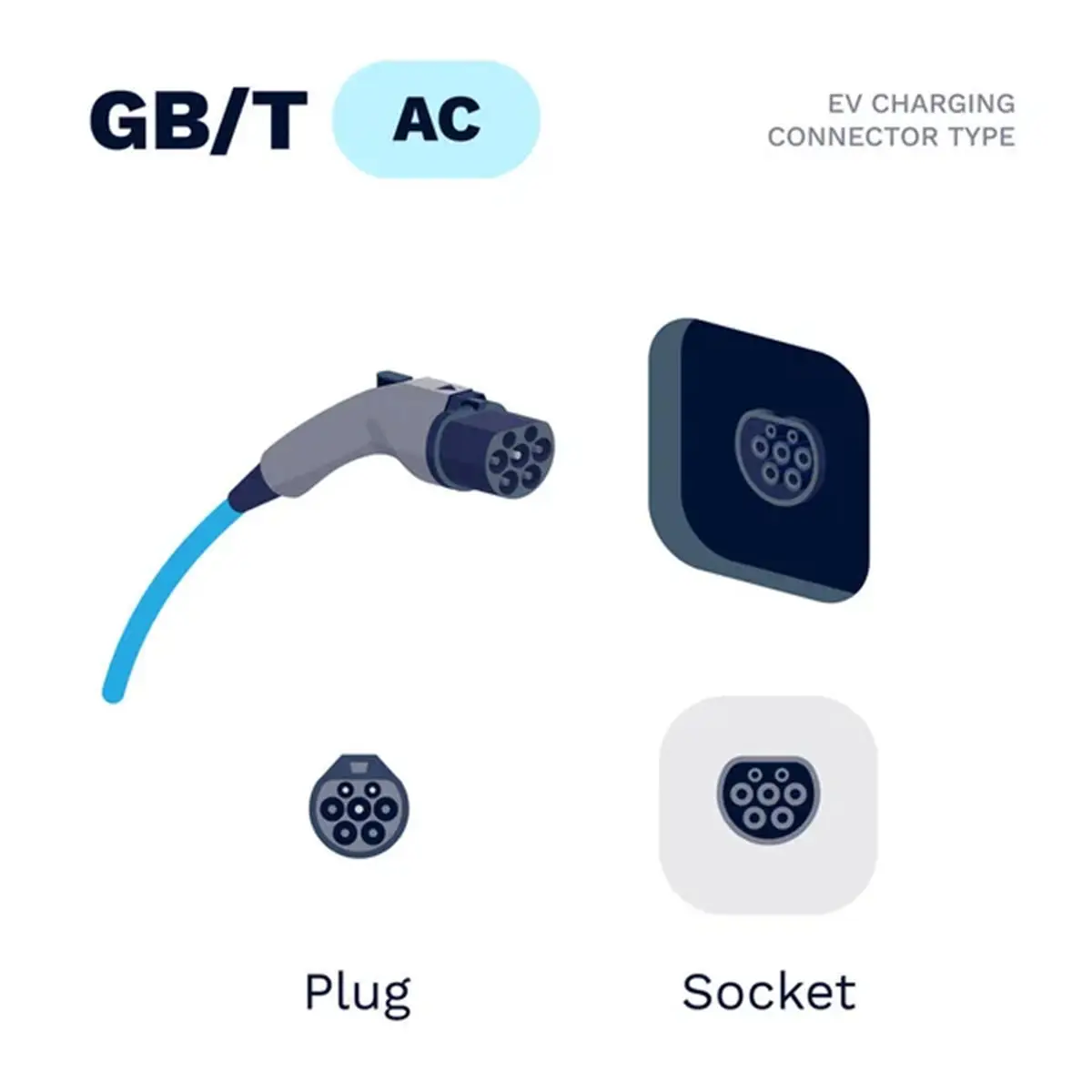

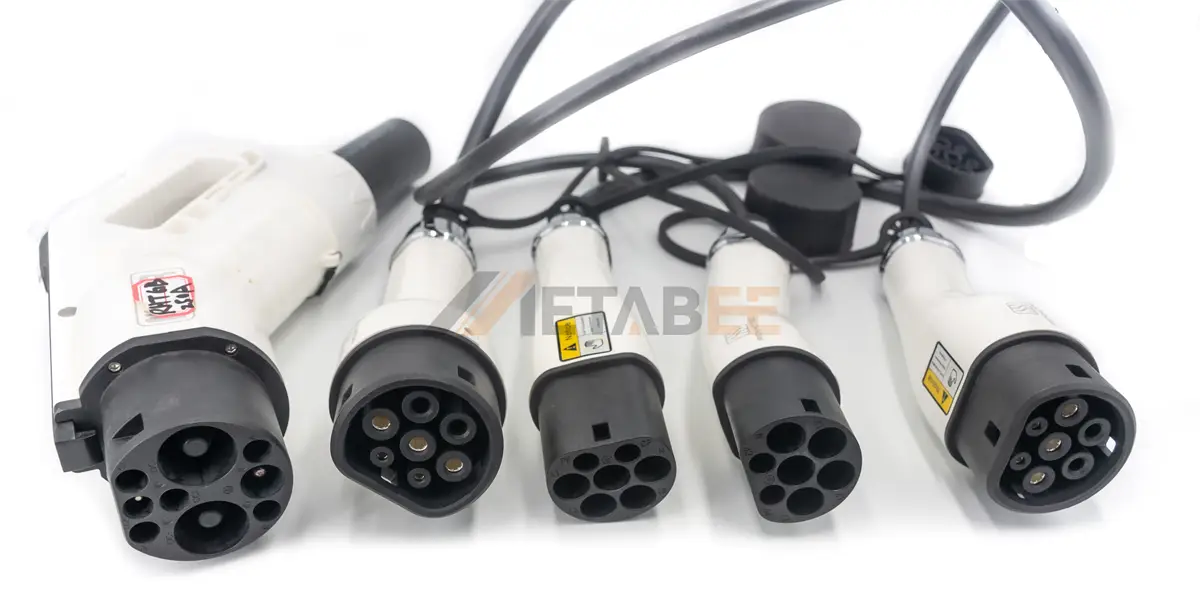

GB standard AC charging Type
Applications of this GB/T AC Electric Vehicle Charging Plug:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
Factory pricing and exceptional product quality. Get a free quote now!
