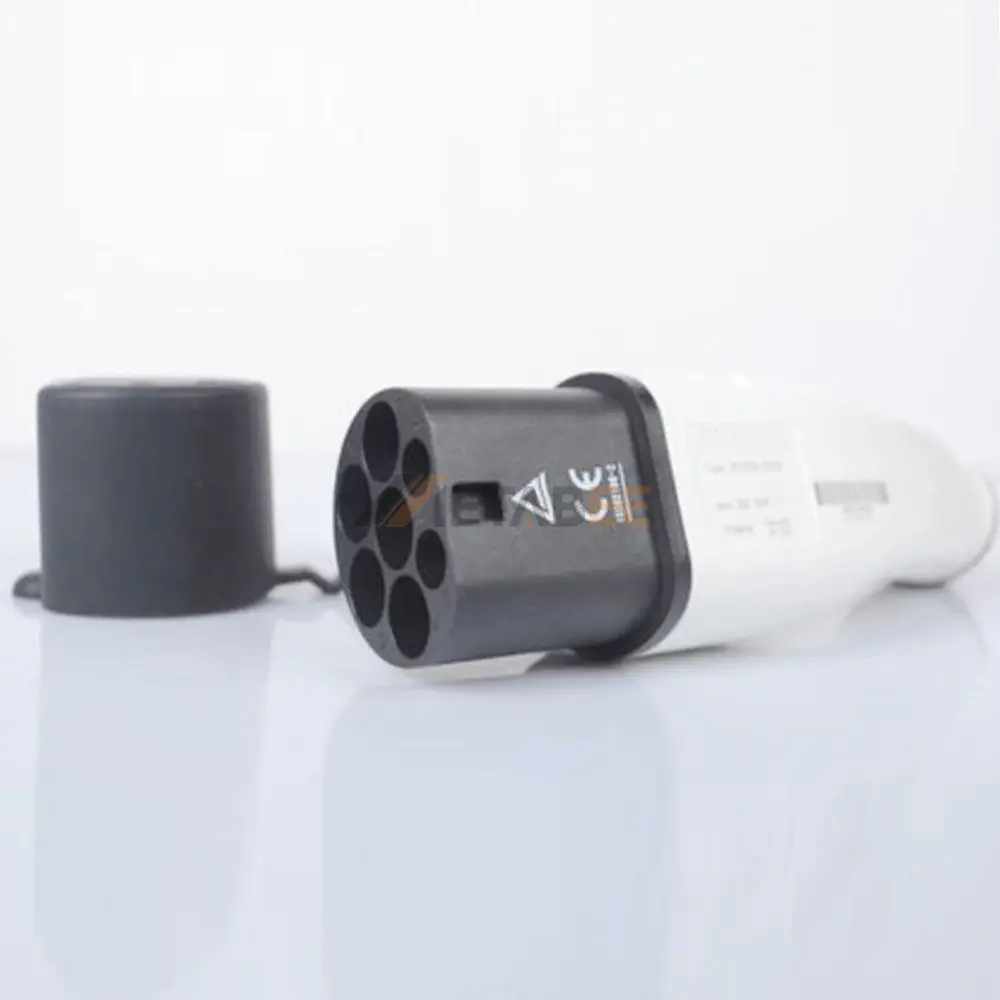

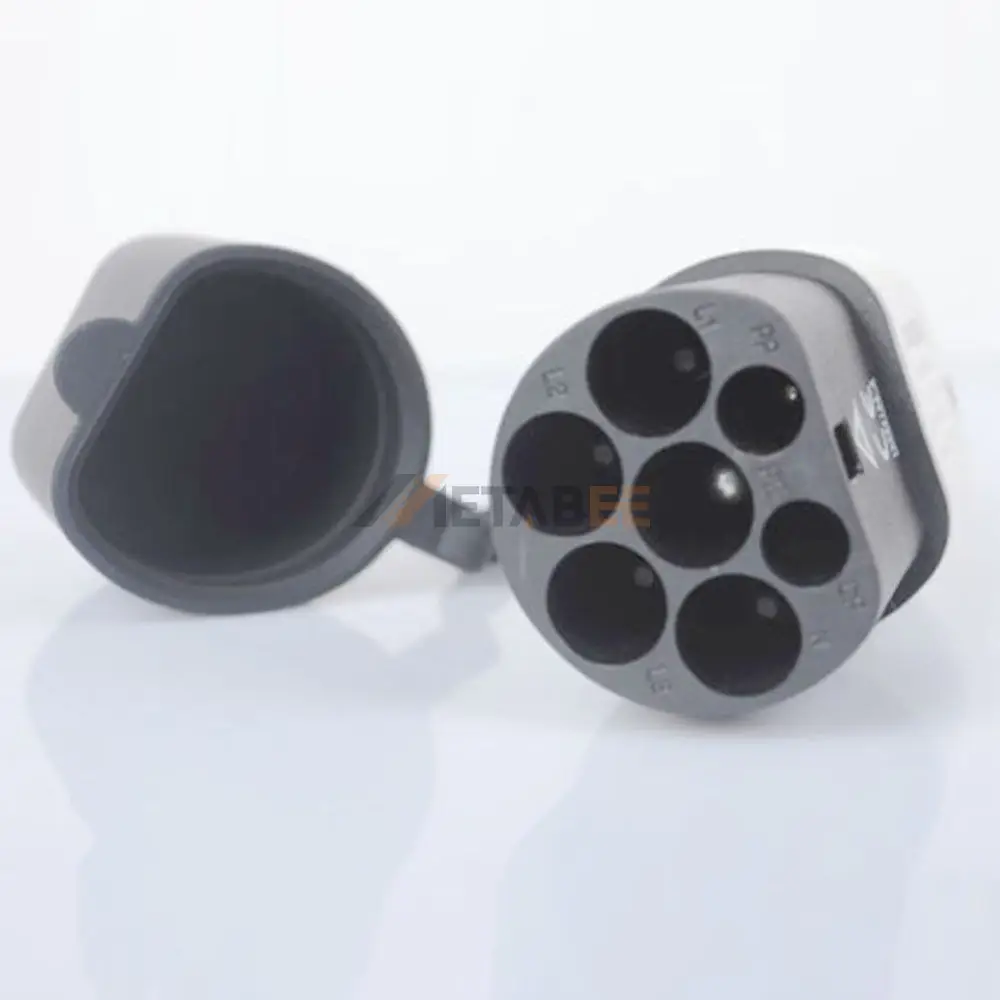

GB/T AC Charger for EV, Plug, Single Phase, 250V, 16A
Introduction
The GB/T AC charger is engineered to deliver safe and stable AC charging performance for electric vehicles. Built according to GB/T 20234.2-2015, it supports single-phase AC charging with a maximum power output of 4 kW, providing reliable efficiency for residential and commercial charging environments.
Constructed with a durable thermoplastic housing and silver-plated copper alloy contacts, this plug ensures excellent conductivity, long-term stability, and reduced heat generation during continuous operation. Its IP65 protection rating safeguards against dust and water ingress, while the UL94V-0 flame-retardant material enhances safety in demanding conditions. The connector operates within a wide temperature range from -30°C to 50°C, and supports a wire gauge specification of 3×2.5 mm² + 2×0.75 mm² for optimal power transmission.
Designed for dependable daily use, this GB/T AC plug delivers consistent performance, robust mechanical strength, and high electrical reliability, making it an ideal choice for various EV charging applications.
Key Features:
- Compliant with GB/T 20234.2-2015 single-phase AC charging standard.
- 250V, 16A, up to 4 kW charging power output.
- Thermoplastic shell with UL94V-0 flame-retardant rating.
- Silver-plated copper alloy contacts for superior conductivity.
- IP65 protection for outdoor and harsh-environment use.
- Wide -30°C to 50°C operating temperature range.
Main Specifications:
General Information:
| Part No.: | NV3C-YC-EV16P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+ 2X0.75mm² | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Charger for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
