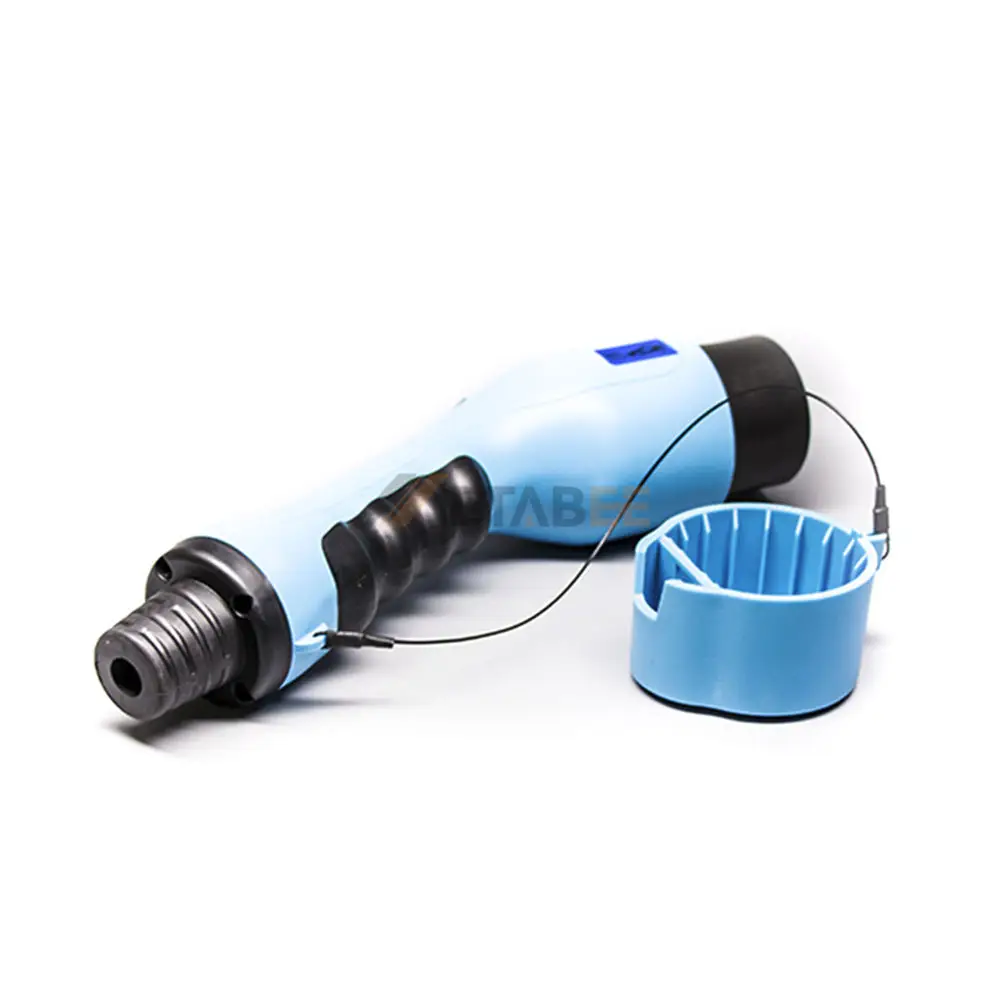

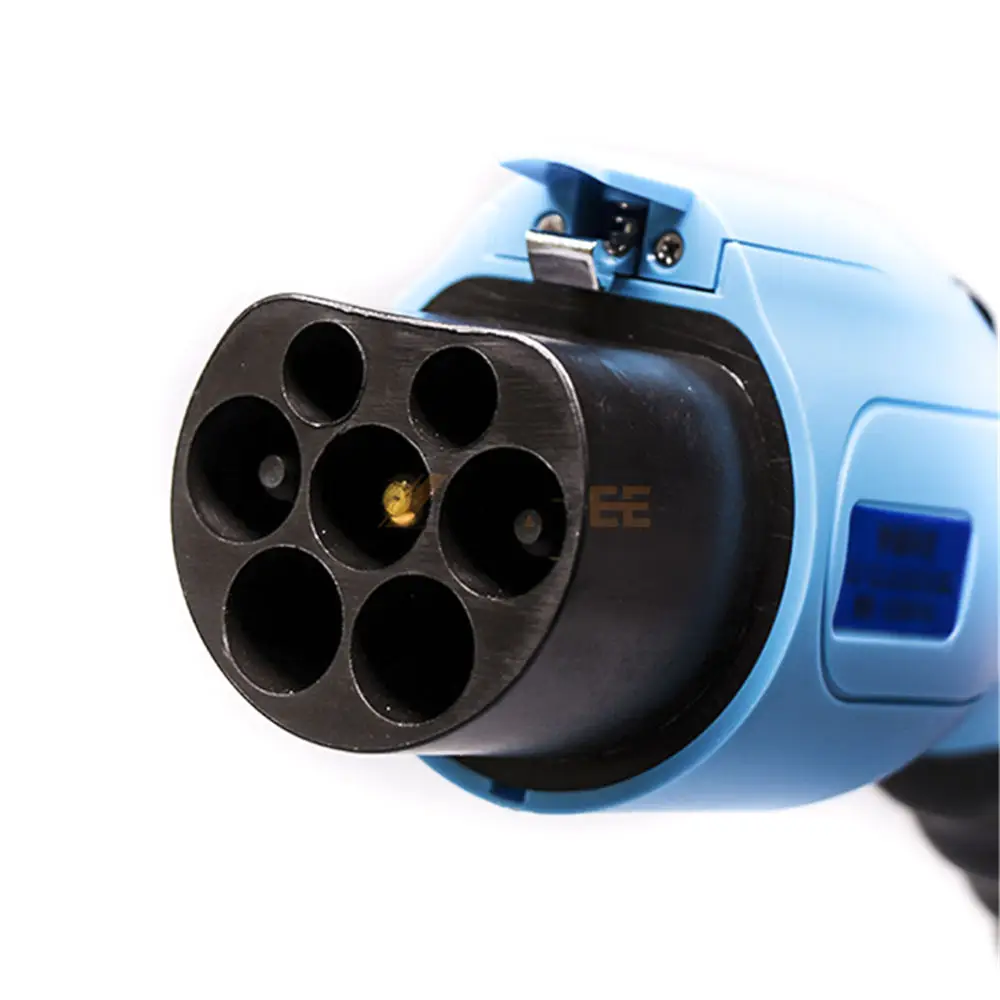

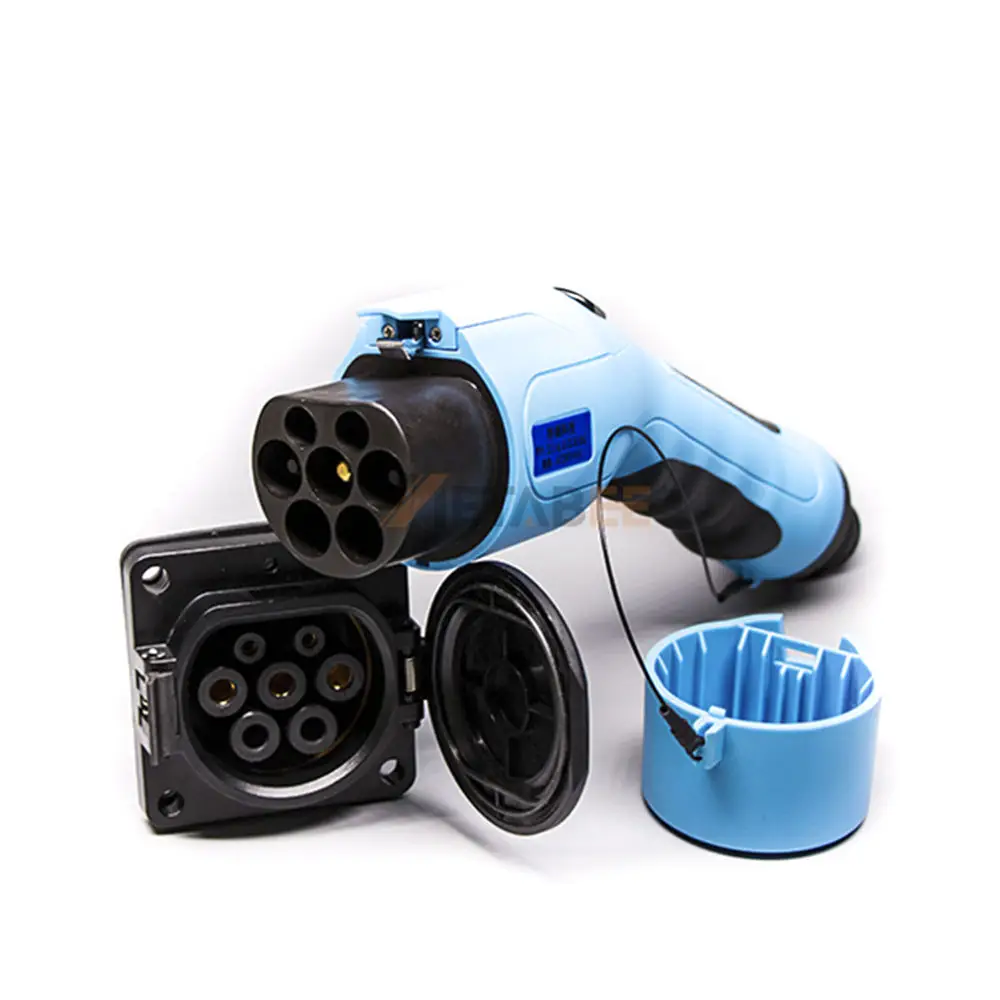

GB/T AC Charger for Electric Vehicle, Plug, Single Phase, 250V, 16A
Introduction
This GB/T AC Charger is designed for safe and reliable single-phase electric vehicle charging in compliance with the GB/T 20234.2-2015 standard. Engineered for durability, its connector features a robust thermoplastic housing and high-conductivity silver-plated copper alloy contacts, ensuring excellent performance and corrosion resistance. Rated at 250V and 16A with a maximum power output of 4kW, it is built for daily charging applications.
The connector guarantees operation in diverse conditions with an IP65 rating for dust and water resistance and a UL94V-0 flammability classification. It supports a wide operating temperature range from -30°C to 50°C and comes with a standardized wire configuration of 3X2.5mm² + 2X0.75mm² for secure and stable electrical connections.
Key Features:
- Compliant with GB/T 20234.2-2015 Standard
- Single Phase, 250V / 16A, up to 4kW Power
- IP65 Rated & UL94V-0 Flame-Retardant Housing
- Silver-Plated Copper Alloy Contacts
- Wide Operating Temperature: -30°C to 50°C
- Wire Gauge: 3X2.5mm² + 2X0.75mm²
Main Specifications:
General Information:
| Part No.: | NV3C-YC-EV16P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+ 2X0.75mm² | |
| Color: | Blue | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Charger for Electric Vehicle:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
