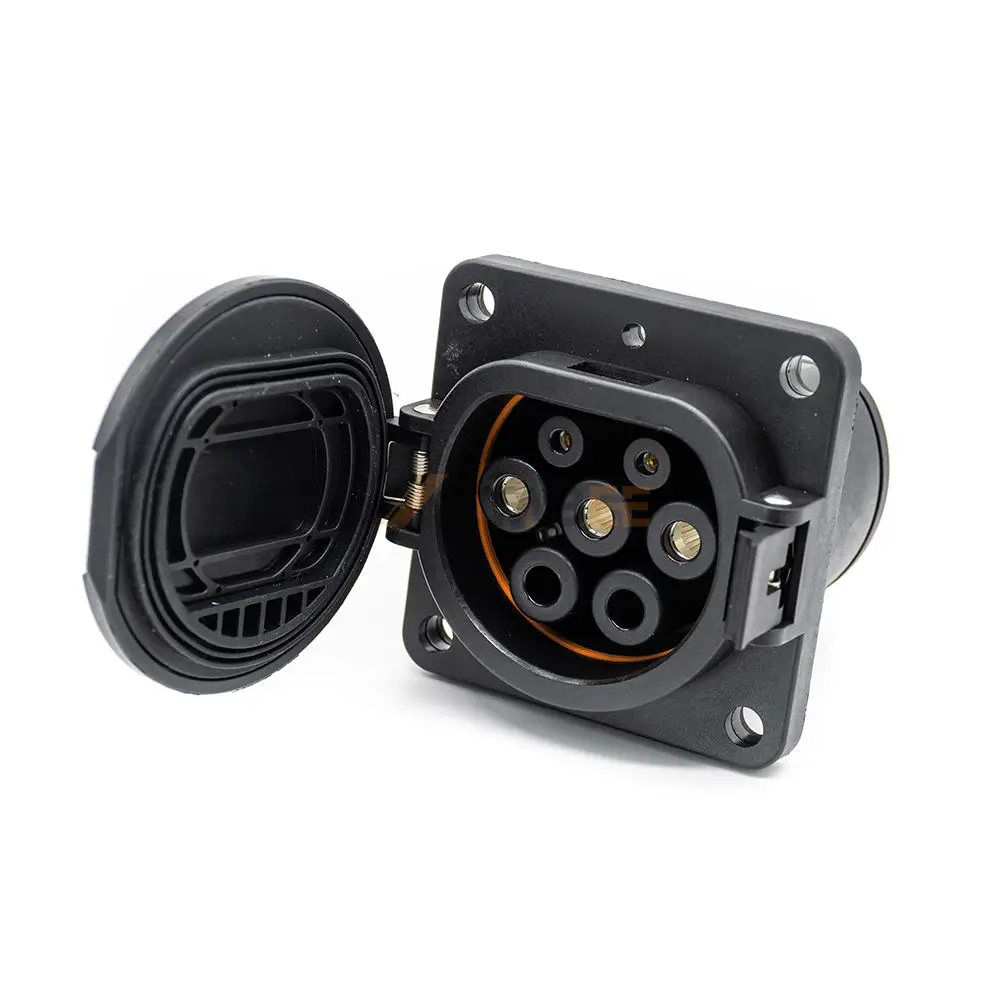

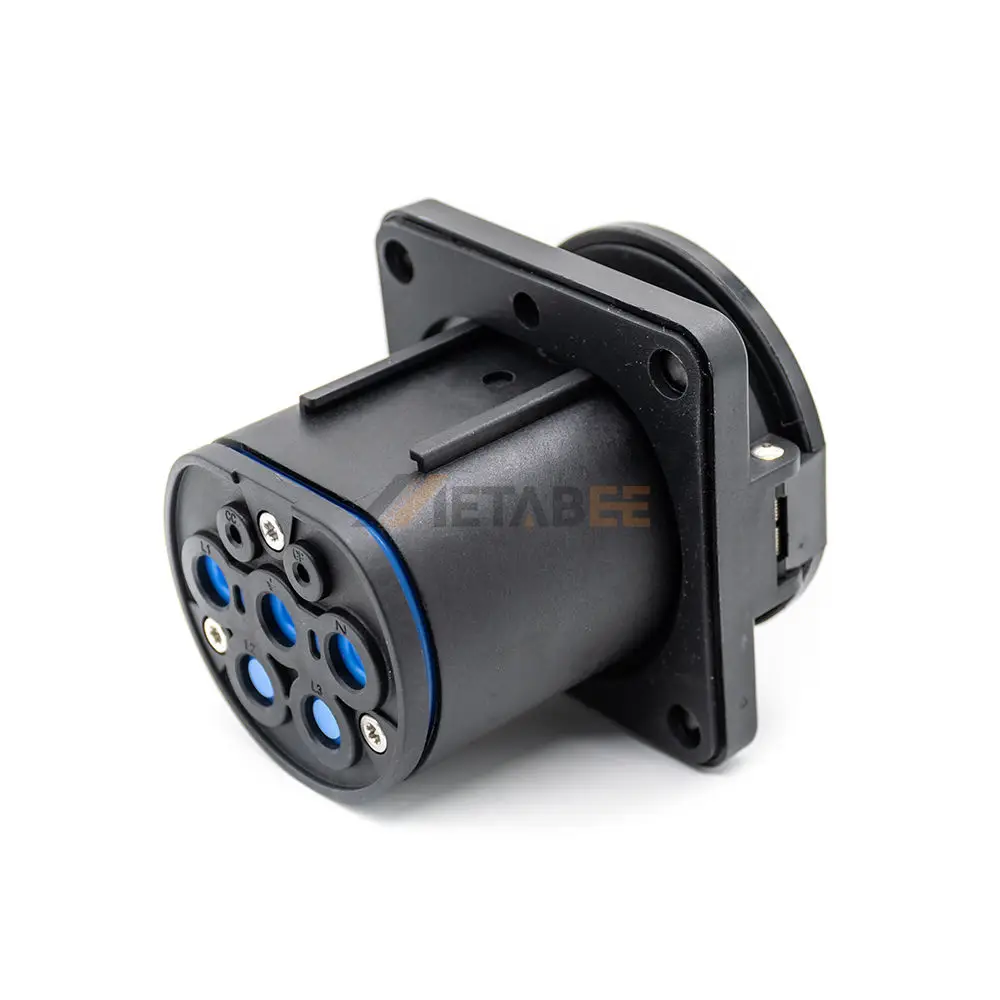

GB/T AC EV Charging Socket, Single Phase, 250V, 16A
Introduction
Engineered for exceptional performance and unwavering reliability, the GB/T AC EV Charging Socket is the definitive solution for single-phase electric vehicle charging infrastructure. This socket is meticulously designed to comply with the GB/T 20234.2-2015 standard, ensuring seamless compatibility and safety for all compliant vehicles. Delivering a steady 16A at 250V, it provides a maximum charging power of 4kW, making it an ideal component for residential and commercial charging stations where efficiency and consistency are paramount.
Constructed from superior materials for maximum durability and electrical efficiency, the socket features a rugged, high-grade Thermoplastic outer shell for outstanding impact resistance and longevity. The internal contact pins are crafted from a high-purity copper alloy and are silver-plated to ensure minimal electrical resistance, reduced heat generation, and superior corrosion resistance. With an IP65 rating, it is fully protected against dust and water ingress, while the UL94V-0 flame retardant classification guarantees the highest level of safety. The unit is designed to operate flawlessly across a wide temperature spectrum from -30°C to 50°C, ensuring dependable performance in any climate.
Key Features:
- GB/T Standard Compliant: Fully adheres to the GB/T 20234.2-2015 standard for guaranteed vehicle compatibility and safety.
- Efficient Power Delivery: Provides up to 4kW of stable AC power (250V, 16A) for effective single-phase charging.
- Superior Conductivity: Features silver-plated copper alloy contacts for optimal electrical performance and minimal power loss.
- All-Weather Durability: An IP65-rated enclosure ensures complete protection against dust and water, making it suitable for outdoor installation.
- Enhanced Safety: Constructed with UL94V-0 flame-retardant materials for maximum fire safety and peace of mind.
- Wide Operating Temperature: Engineered to function reliably in extreme environmental conditions, from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | NV3C-YC-G-EV16S | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+ 2X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T AC Charger for Electric Car:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
