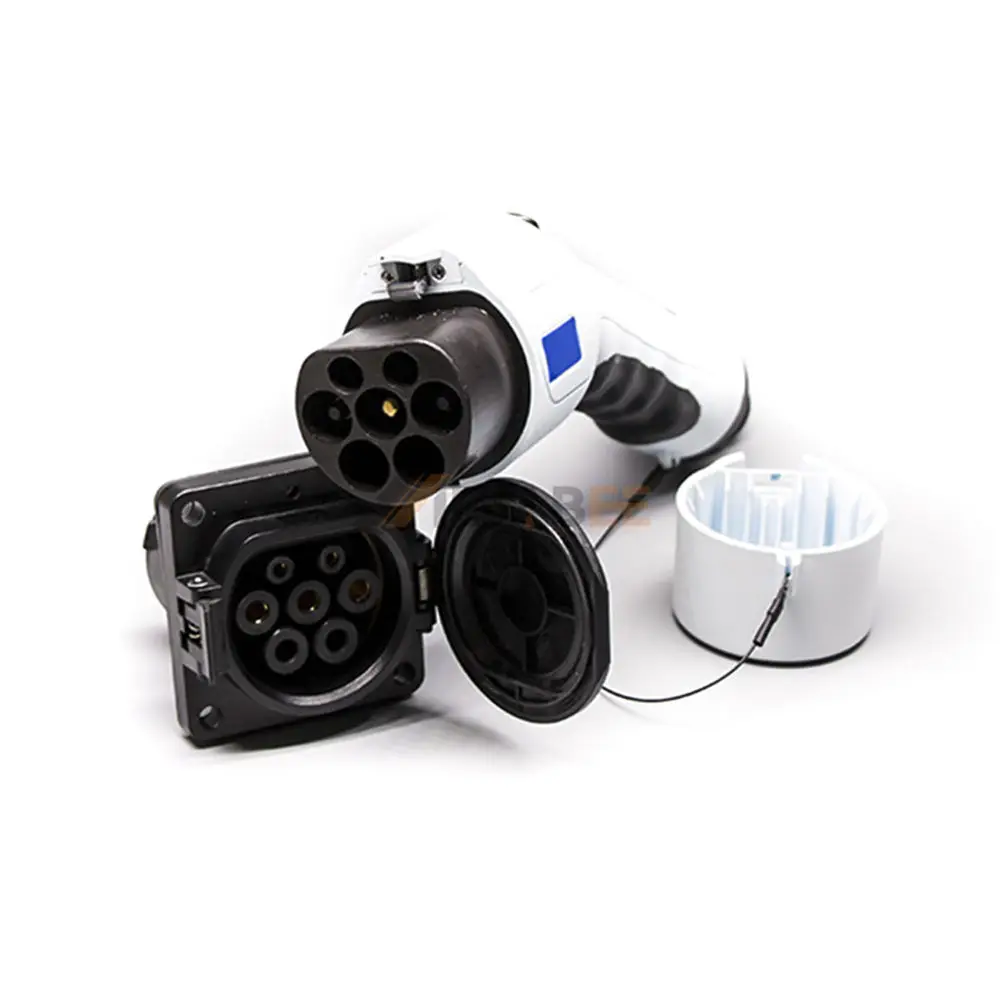

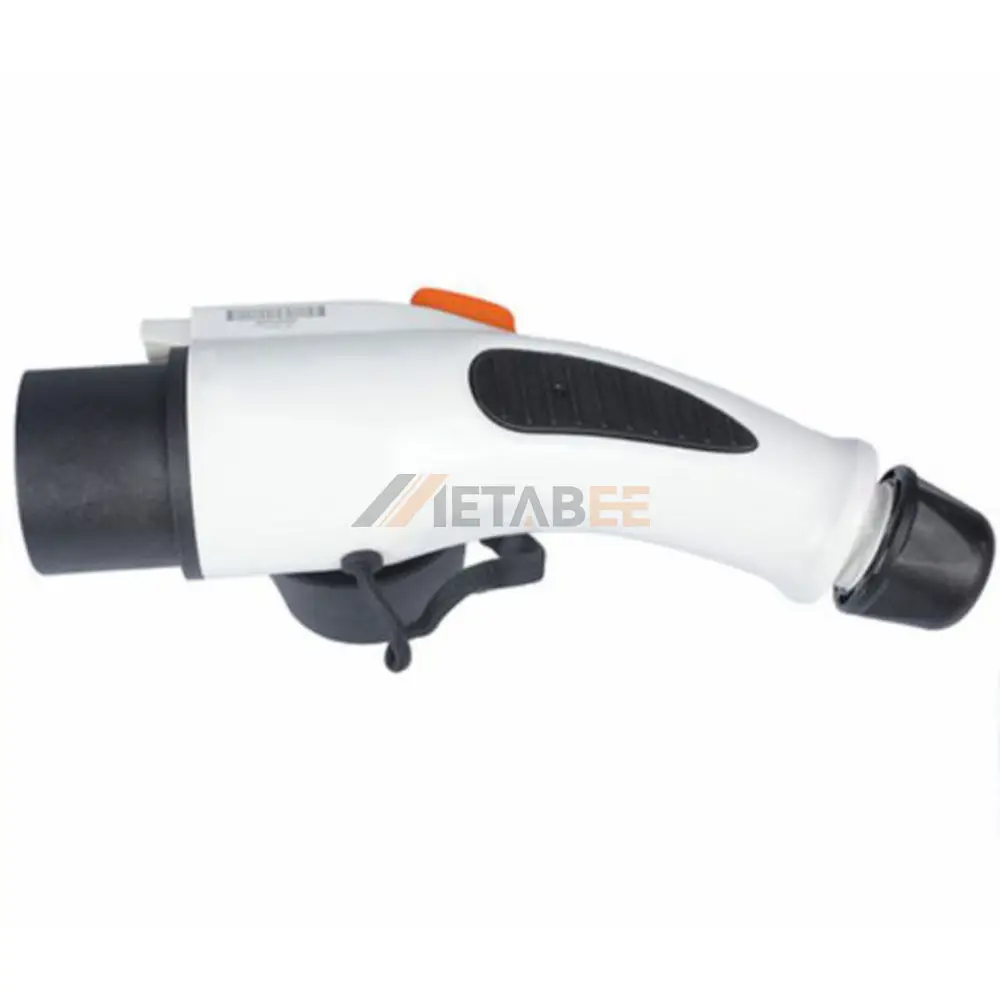

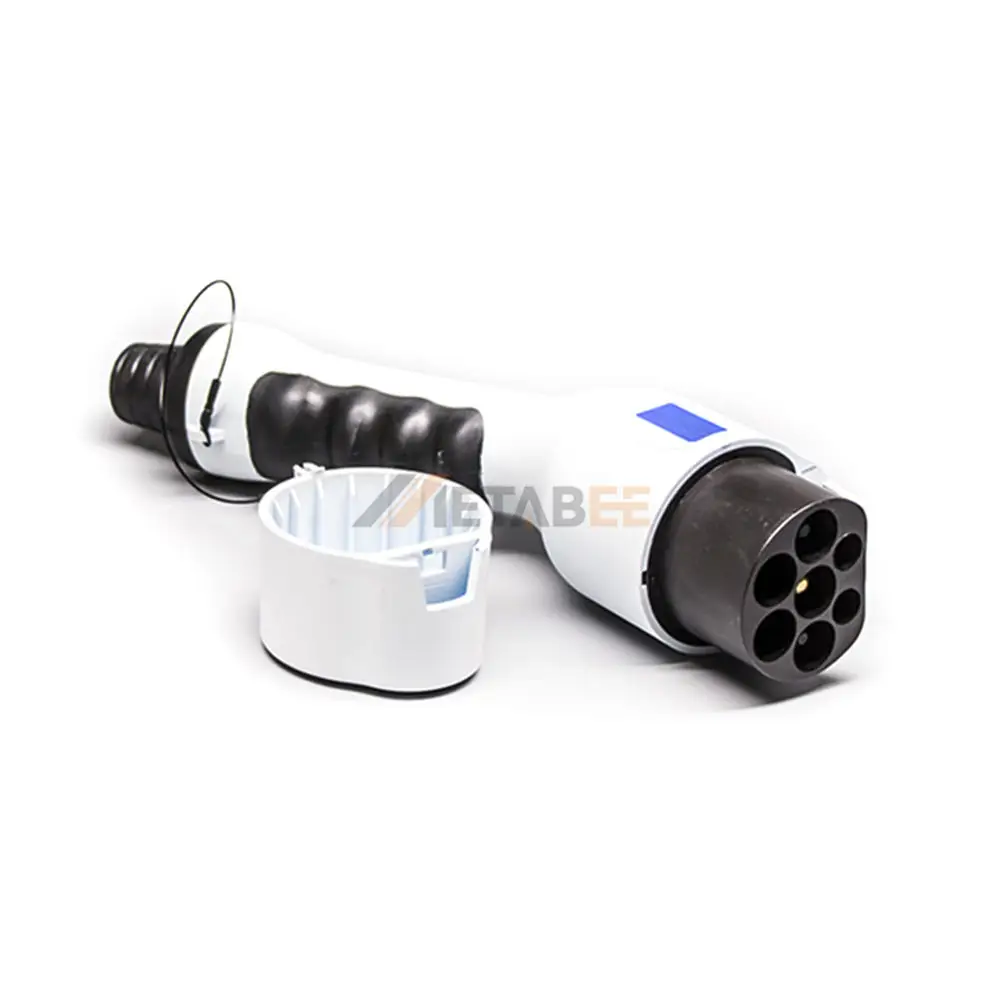

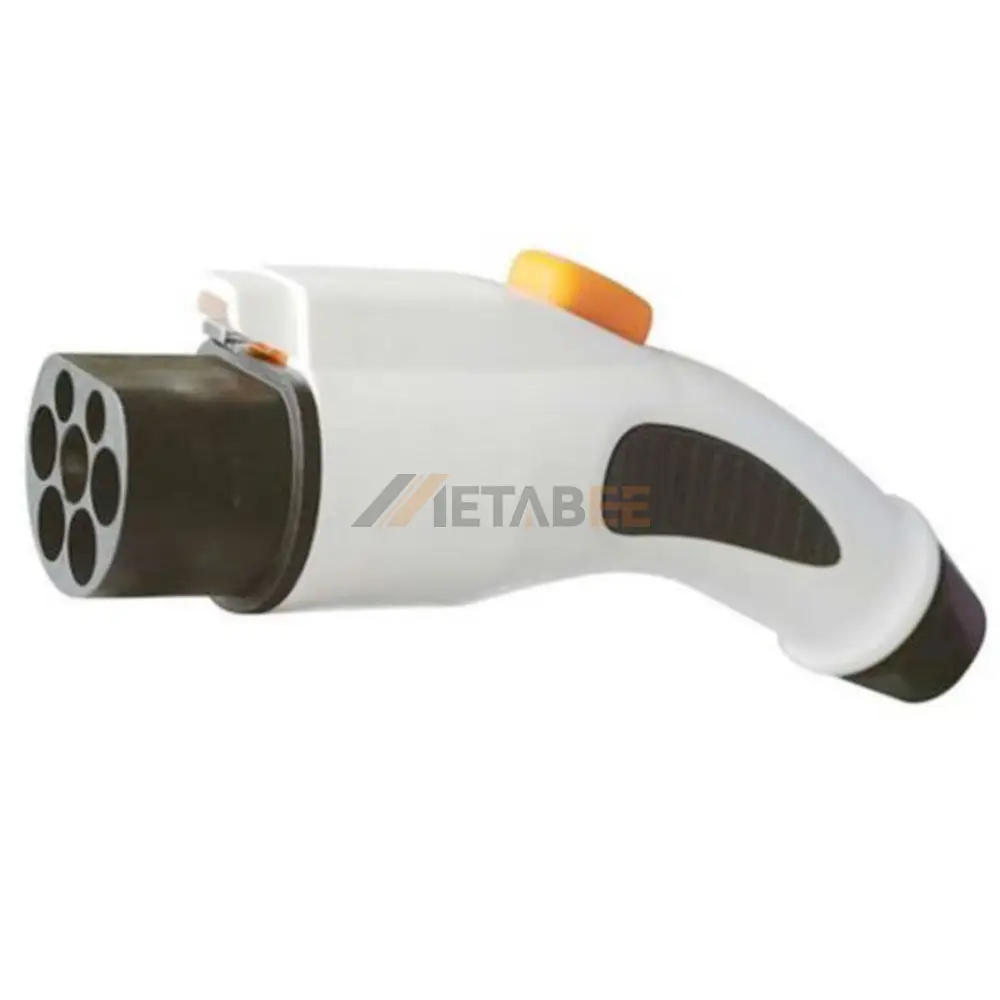

GB/T Standard AC Electric Vehicle Charging Plug, Single Phase, 440V, 32A
Introduction
The GB/T Standard AC charging is engineered for robust, high-efficiency AC charging in compliance with GB/T 20234.2-2015. Designed for reliable single-phase power delivery, it supports a maximum charging output of 14 kW, making it ideal for residential and commercial EV charging applications requiring consistent performance and long-term durability.
Constructed with a high-strength thermoplastic housing and silver-plated copper alloy contacts, the plug ensures superior conductivity, reduced heat generation, and extended service life. It features an IP65 protection rating, delivering solid resistance against dust, water, and harsh outdoor environments. The UL94V-0 flame-retardant rating further enhances safety in demanding operating conditions.
Engineered for stable operation within –30°C to 50°C, the connector accommodates 3×6 mm² + 2×0.75 mm² wiring, ensuring compatibility with high-current AC charging systems. This GB/T plug provides dependable mechanical strength, electrical reliability, and consistent charging performance for all GB/T-compliant EVs.
Key Features:
- Compliant with GB/T 20234.2-2015 AC charging standard.
- Supports 440V, 32A, and up to 14 kW charging power.
- Thermoplastic housing with silver-plated copper alloy contacts.
- Rated IP65 for dust and water protection.
- Flame-retardant design with UL94V-0 certification.
- Wide operating temperature range: –30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | NV3C-YC-EV32P | |
| Product Series: | GB Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X6mm²+ 2X0.75mm² | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 440V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 14kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
GB standard AC charging Type
Applications of this GB/T Standard AC Electric Vehicle Charging Plug:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
