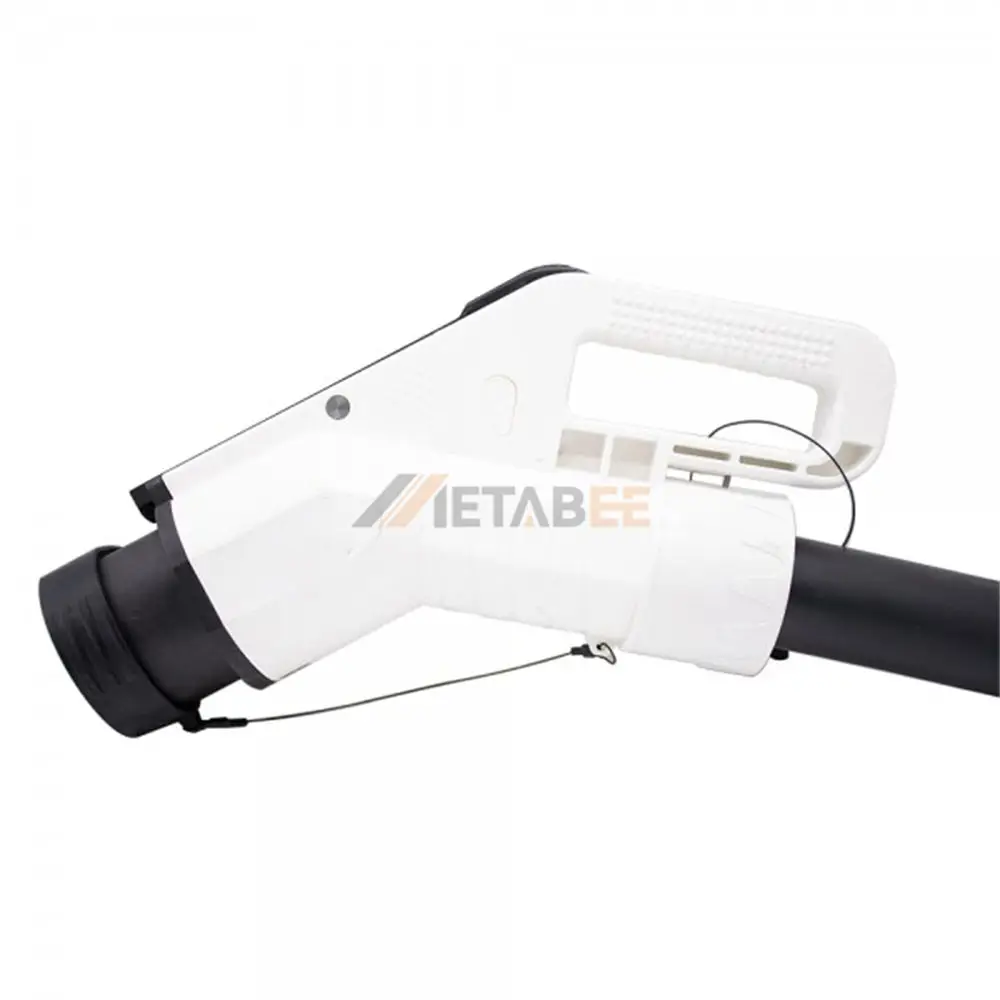

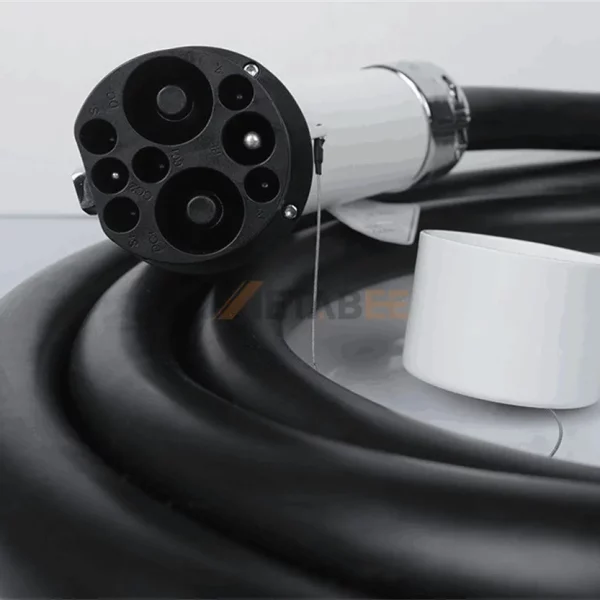

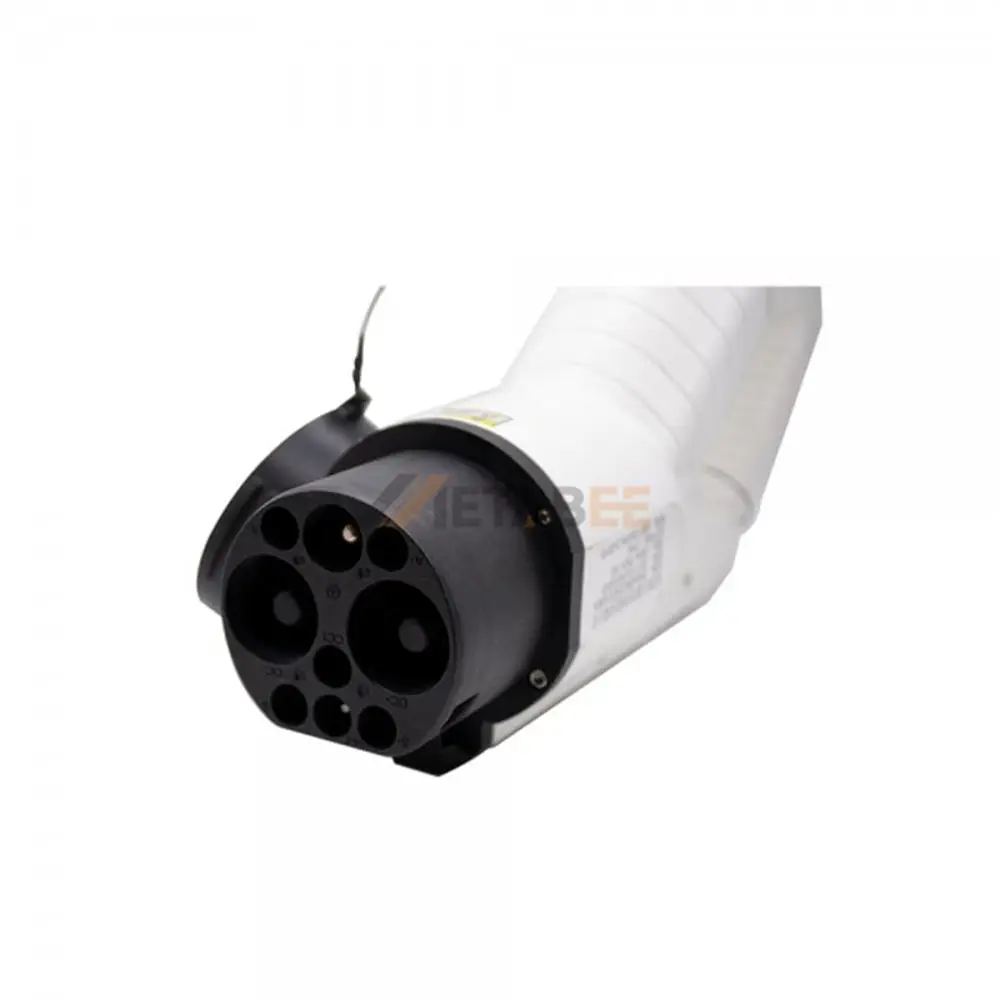

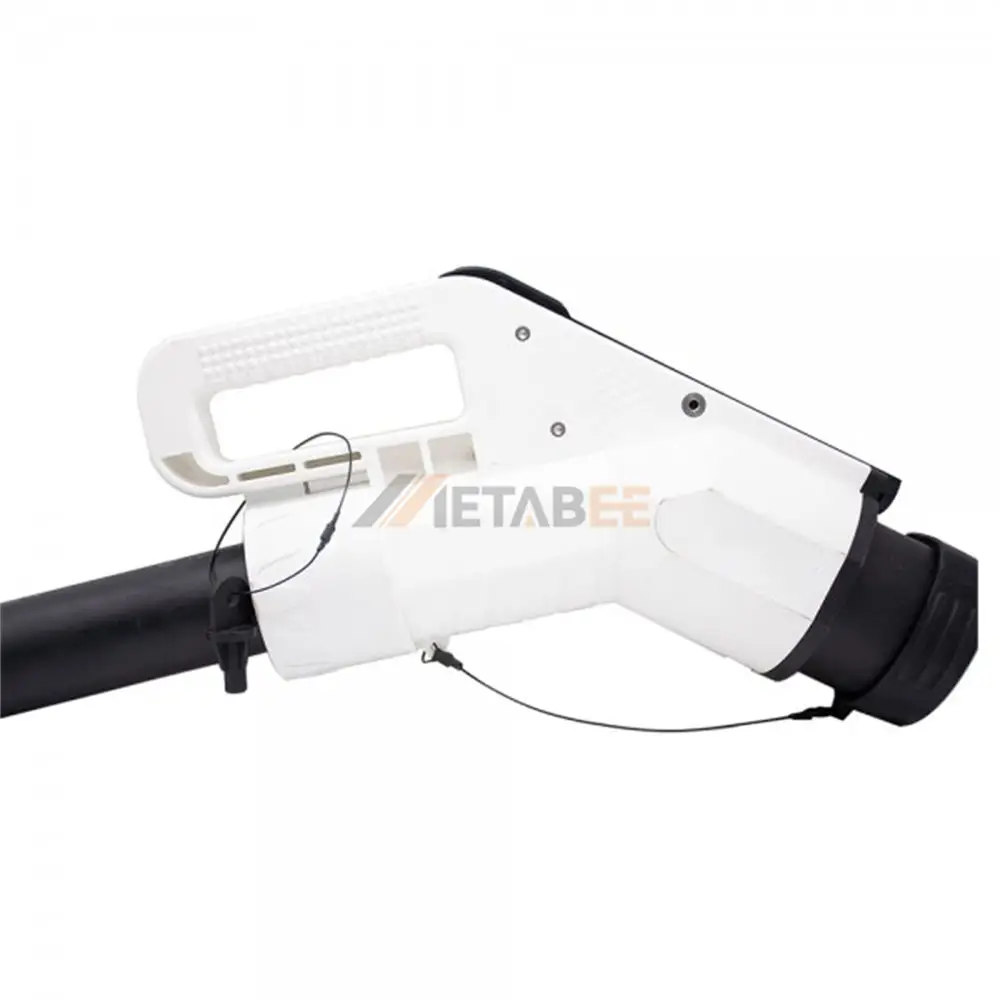

GB/T DC Charging Plug for Electric Vehicle, Single Phase, 750V, 125A
Introduction
This GB/T DC Charging Plug is engineered for high-efficiency power transmission for electric vehicles. Compliant with the GB/T 20234.2-2015 standard, this single-phase plug is designed for rapid DC charging applications, delivering a maximum power of 90kW. Its robust design ensures a secure and reliable connection, facilitating quick and safe power delivery to get your EV back on the road with minimal downtime. The 750V voltage and 125A current ratings make it a powerful solution for demanding charging requirements.
Constructed for durability and safety, the connector features a rugged thermoplastic shell that provides excellent protection and longevity. The internal contact pins are made from a high-grade copper alloy and are silver-plated to ensure superior conductivity and minimal power loss. With an IP65 rating, it is protected against dust and water ingress, while the UL94V-0 flammability rating guarantees the highest level of fire safety. This plug is built to perform reliably in extreme conditions, operating flawlessly in temperatures ranging from -30°C to 50°C.
Key Features:
- High-Power Charging: Delivers up to 90kW for rapid DC charging.
- Superior Conductivity: Silver-plated copper alloy contacts for maximum efficiency.
- Robust Construction: Durable thermoplastic housing with a UL94V-0 flame retardant rating.
- All-Weather Performance: IP65 rated for dust and water protection, with a -30°C to 50°C operating range.
- High Voltage/Current: Rated for 750V and 125A to handle powerful charging sessions.
- Certified Standard: Fully compliant with GB/T 20234.2-2015 regulations.
Main Specifications:
General Information:
| Part No.: | NV3-YC-EV125P | |
| Product Series: | GB Standards DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 2x35mm²+1x16mm²+2x4mm²+2P(3x16mm²)+2P(3x16mm²) | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 750V | |
| Rated Current: | 125A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 90kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
AC charging Type of GB standards
GB Standards DC Charging Connector

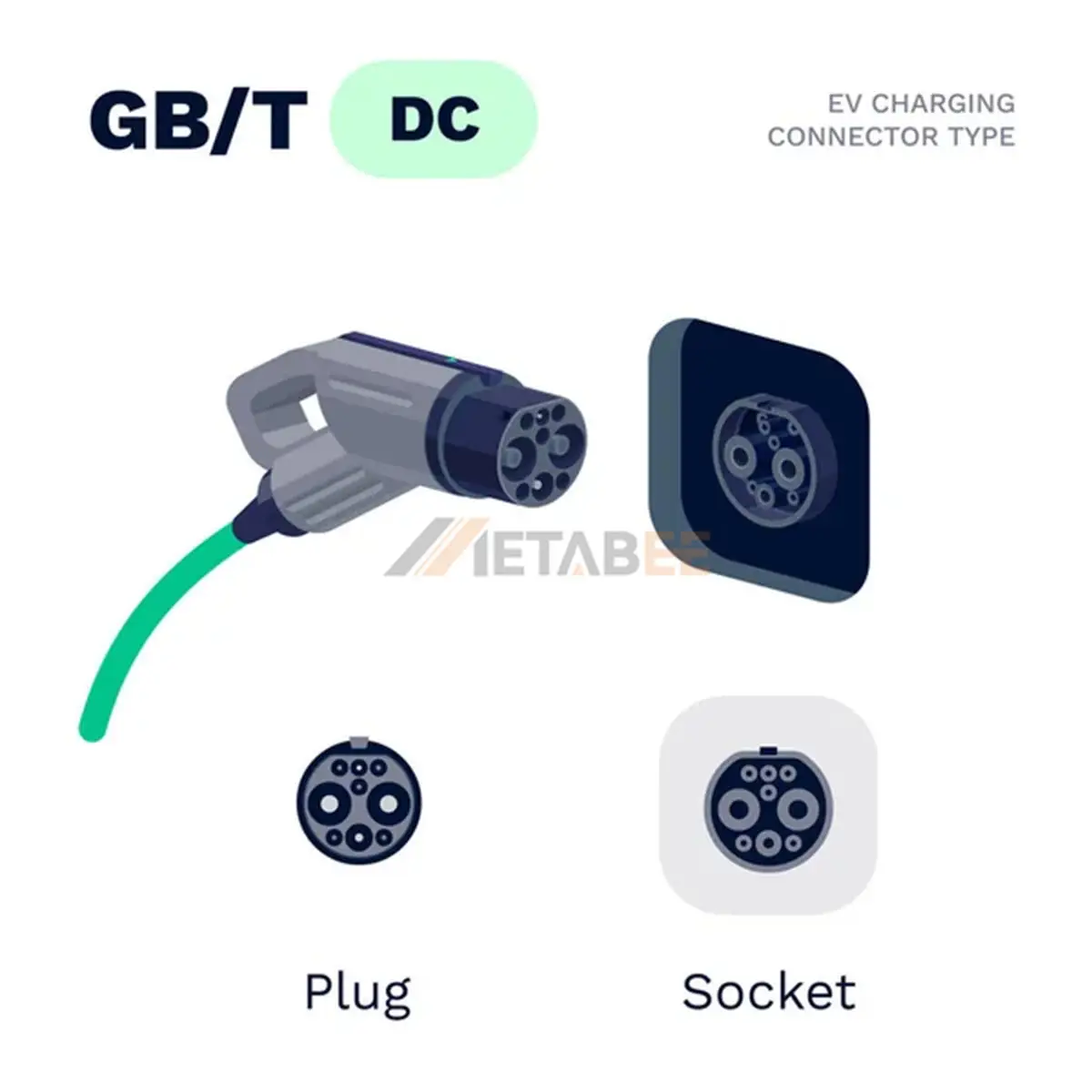

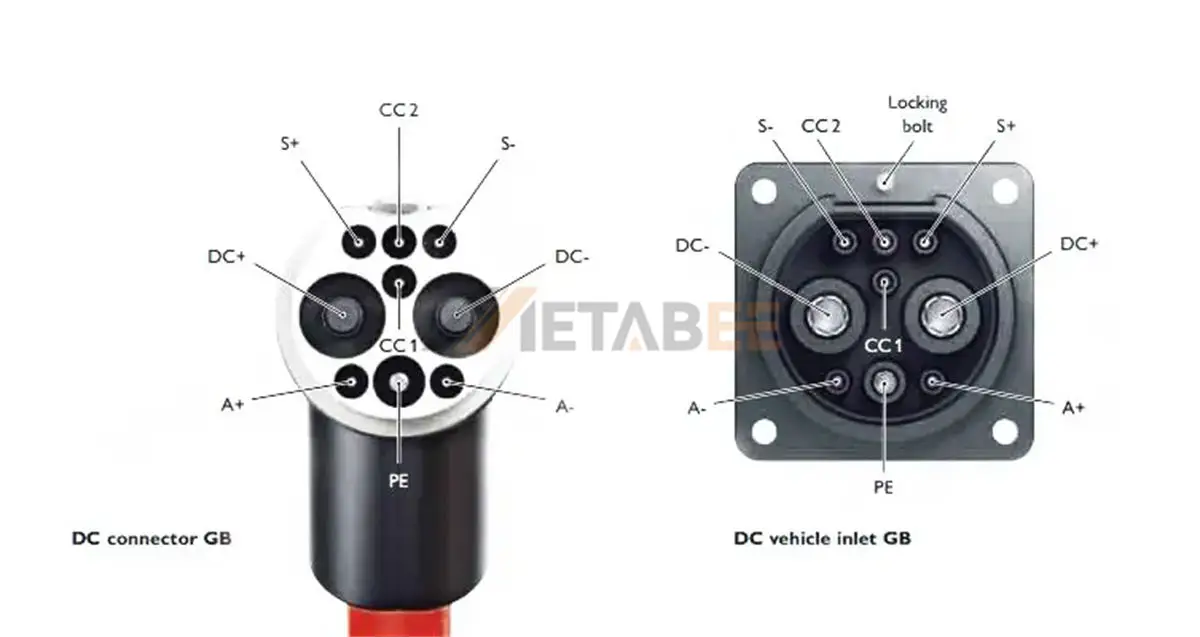

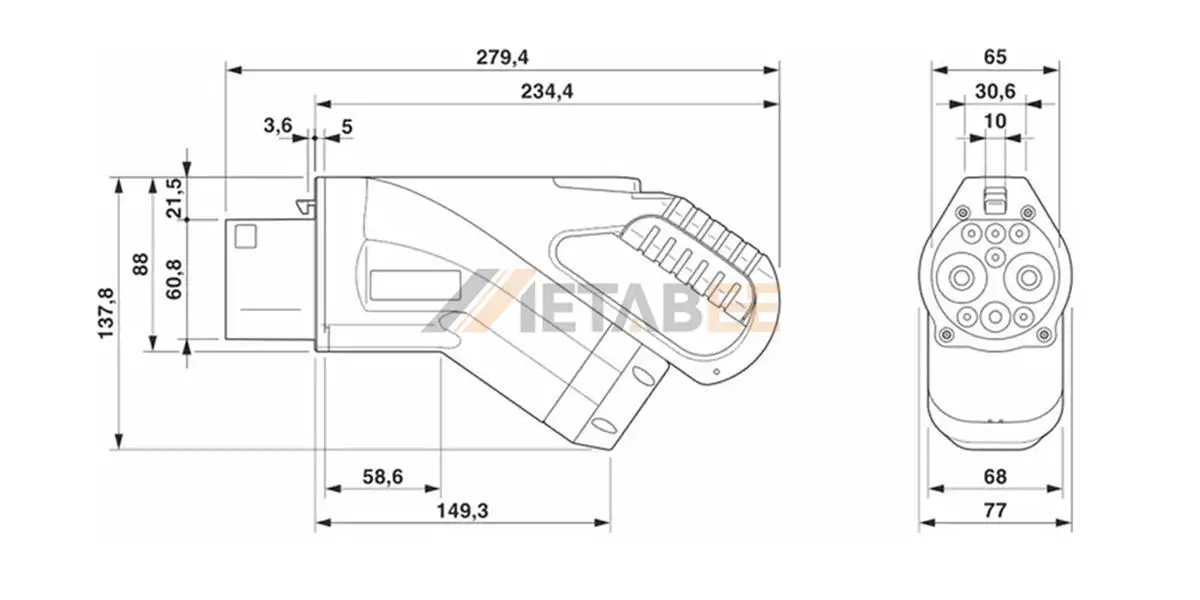

GB Standards DC Charging Connector Drawing
Applications of this GB/T DC Charging Plug for Electric Vehicle:
The GB Standards DC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
Factory pricing and exceptional product quality. Get a free quote now!
