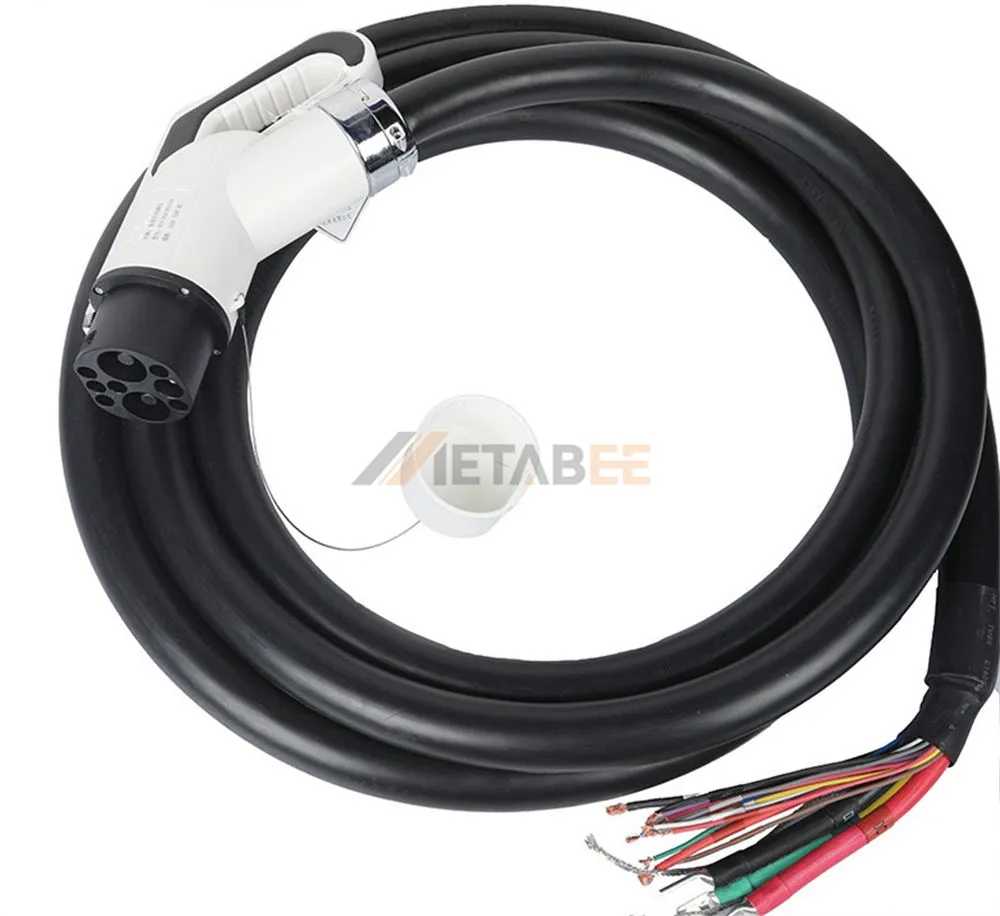

GB/T DC EV Charging Cable, Plug, Single Phase, 125A, 750V
Introduction
This GB/T DC EV charging cable delivers robust and efficient power for your electric vehicle. Compliant with the GB/T 20234.2-2015 standard, this single-phase DC plug is expertly engineered to ensure superior performance and a secure connection for your EV.

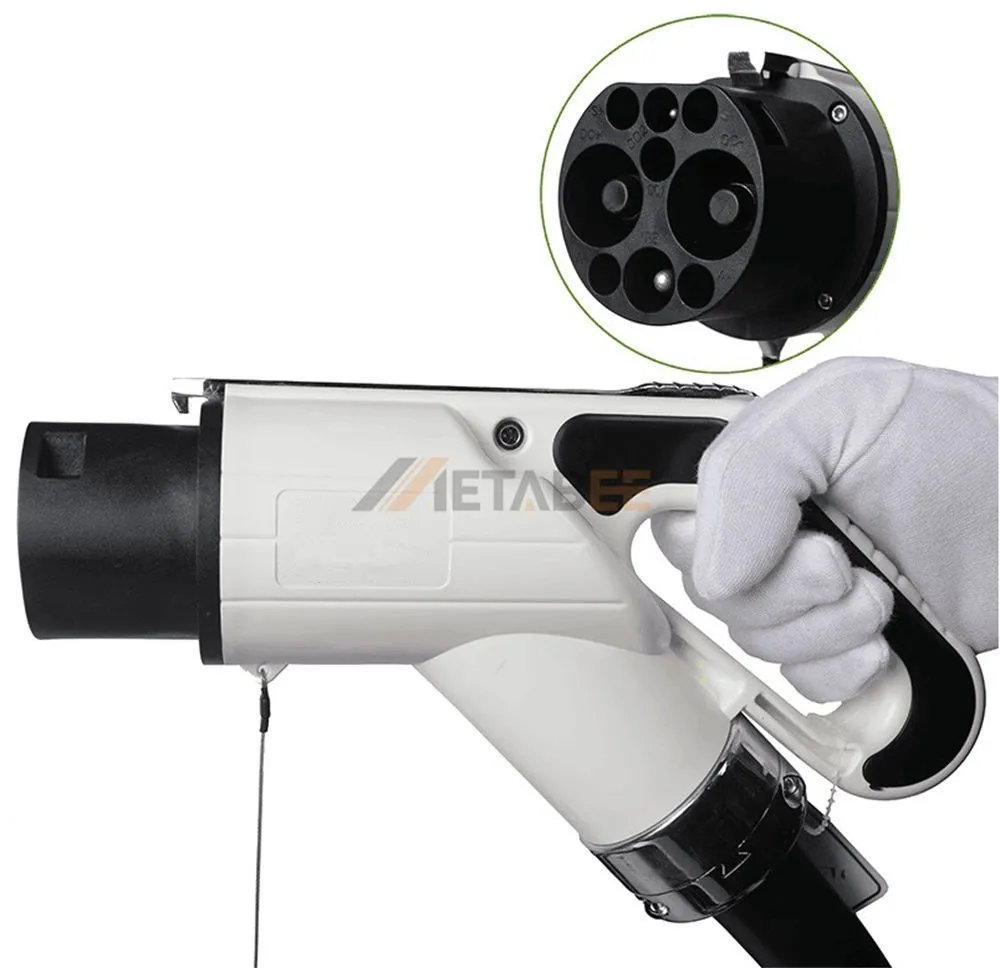

Designed for resilience and safety, the cable features a durable thermoplastic housing, silver-plated copper alloy contacts, and an IP65 protection rating. It supports a 750V rated voltage and 125A current, providing a powerful 93kW maximum charging output. With a UL94V-0 flame-retardant grade and an operating temperature range of -30°C to 50°C, it’s built to withstand diverse environmental conditions.
Key Features:
- GB/T Standard: Adheres to GB/T 20234.2-2015 for reliable DC charging.
- High Power Delivery: Up to 93kW charging with 750V and 125A ratings.
- Durable Design: The thermoplastic housing and IP65 rating ensure longevity.
- Optimal Conductivity: Silver-plated copper alloy contacts reduce resistance.
- Advanced Safety: UL94V-0 flame retardant for fire resistance.
- Wide Temperature Range: Operates effectively over a temperature range of -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | NV3-YC-EV125P-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 750V | |
| Rated Current: | 125A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 93kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this GB/T DC EV Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
