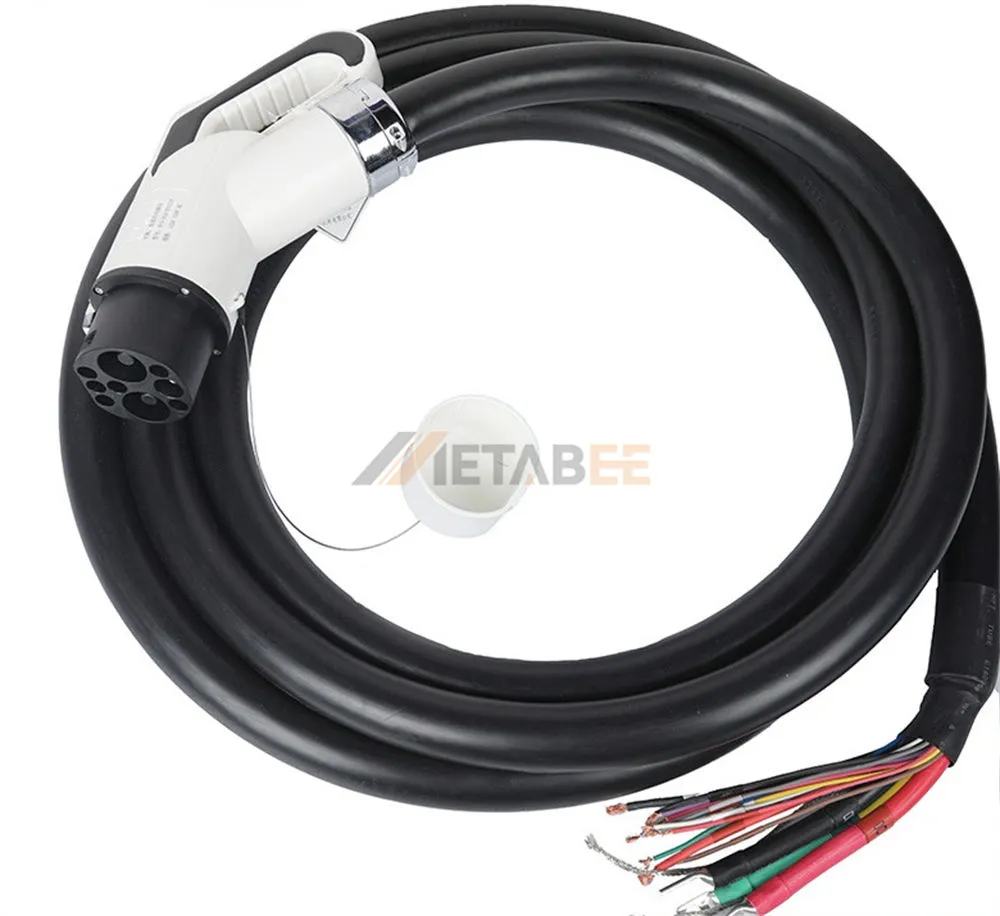

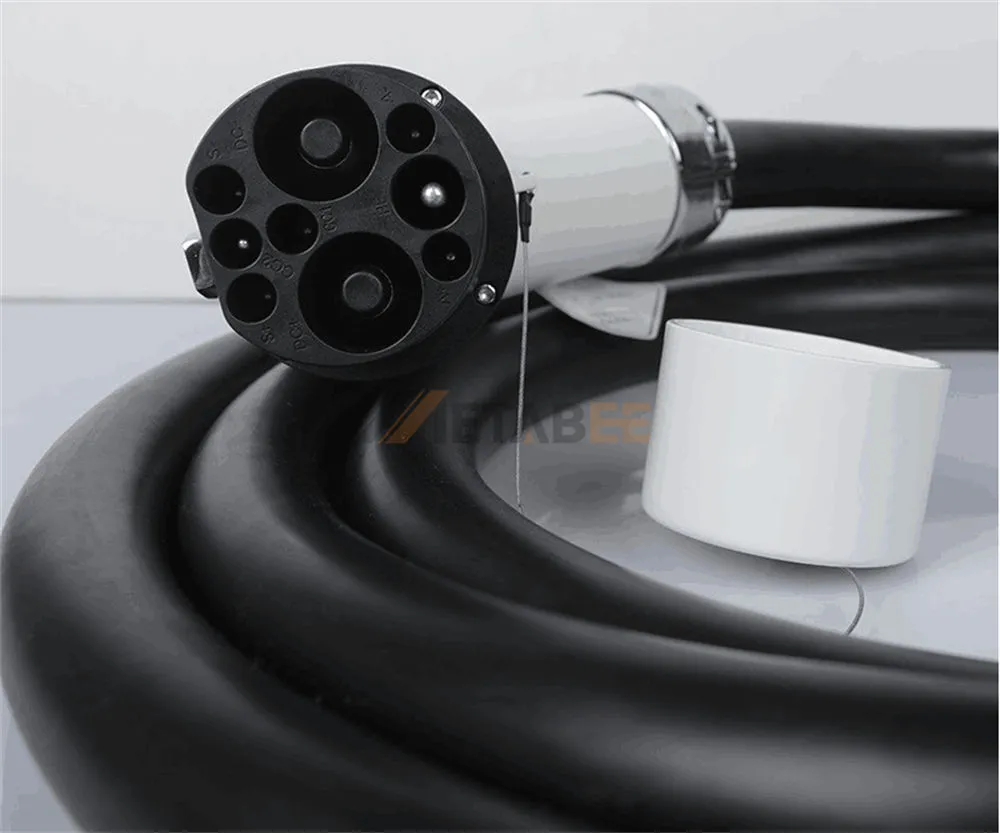

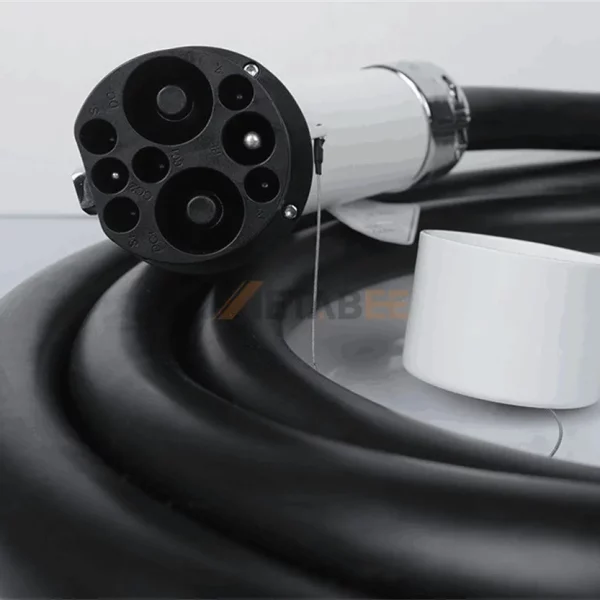

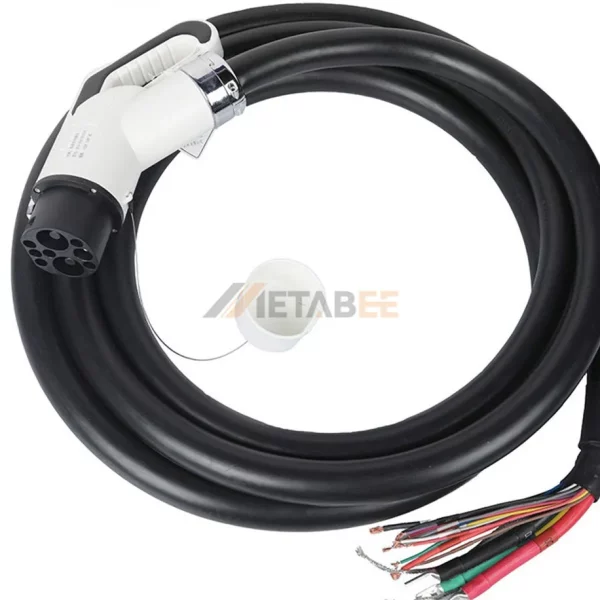

GB/T DC EV Fast Charging Cable, Plug, Single Phase, 200A, 750V
Introduction
This GB/T DC EV fast charging cable provides exceptionally quick and reliable power for your electric vehicle. Adhering to the stringent GB/T 20234.2-2015 standard, this single-phase DC plug is meticulously engineered to ensure optimal performance and a consistently secure connection for high-speed EV charging.
Built for maximum durability and safety, the cable features a robust thermoplastic housing, superior silver-plated copper alloy contacts, and an IP65 protection rating. It supports a high 750V rated voltage and 200A current, delivering an impressive 150kW of maximum charging power. With a UL94V-0 flame-retardant grade and a wide operating temperature range of -30°C to 50°C, this cable is designed for reliable use in diverse conditions.
Key Features:
- GB/T Compliant: Meets GB/T 20234.2-2015 standard for fast and safe DC charging.
- Rapid Charging: Delivers up to 150kW with 750V and 200A ratings.
- Robust Durability: Features thermoplastic housing and IP65 protection for longevity.
- Superior Conductivity: Utilizes silver-plated copper alloy contacts for efficient power transfer.
- Enhanced Safety: Equipped with UL94V-0 flame-retardant materials for fire protection.
- Versatile Performance: Reliable operation across a broad -30°C to 50°C temperature range.
Main Specifications:
General Information:
| Part No.: | NV3-YC-EV200P-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 750V | |
| Rated Current: | 200A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 150kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this GB/T DC EV Fast Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
