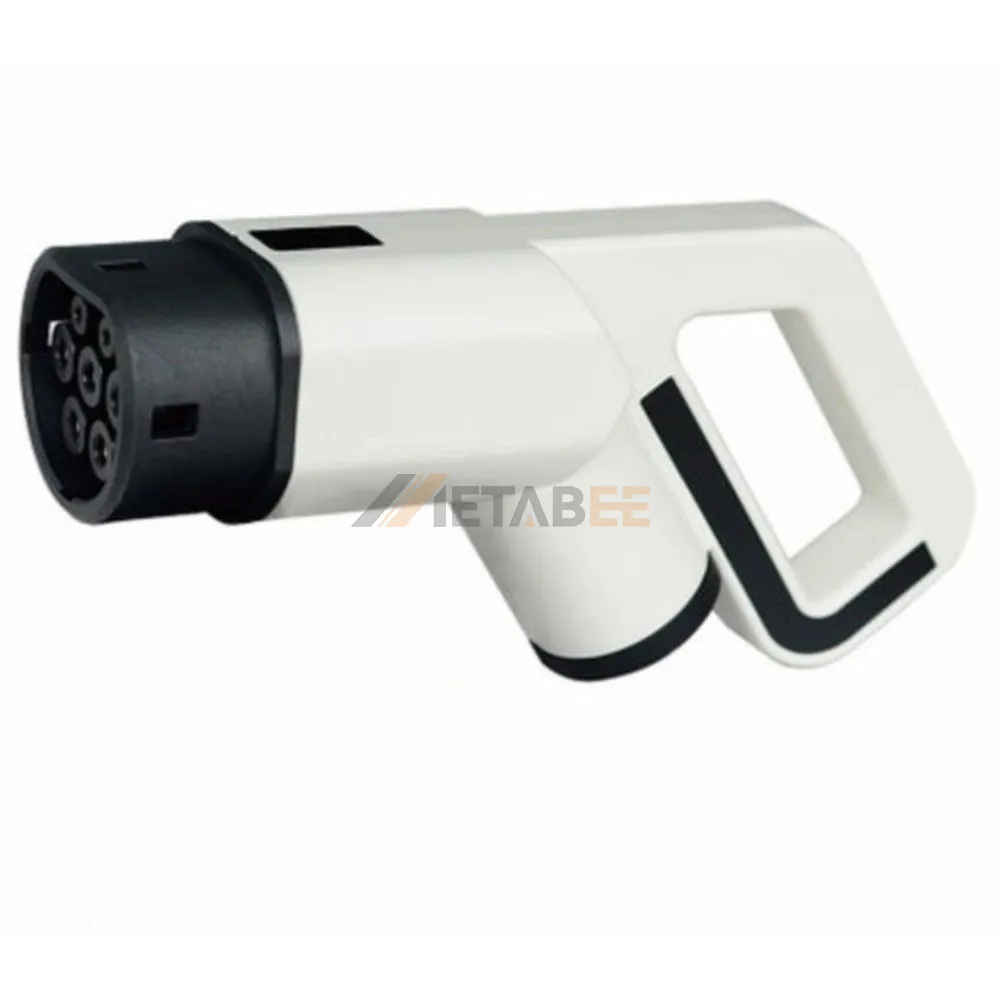

GB/T AC EV Charging Plug Cable, Single Phase, 32A, 415V
Introduction
This GB/T AC EV Charging Plug Cable is designed for reliable and safe single-phase AC electric vehicle charging. Fully compliant with the GB/T 20234.2-2015 standard, it features a robust thermoplastic plug housing and silver-plated copper alloy contacts for superior conductivity and durability. Engineered for demanding environments, it offers excellent performance with an IP65 rating for dust and water resistance and a UL94V-0 flame-retardant casing.
The cable operates at a rated 32A and 415V, delivering a maximum charging power of 13kW. It ensures consistent operation across a wide temperature range from -30°C to 50°C, making it a dependable solution for various charging settings.
Key Features:
- Compliant with GB/T 20234.2-2015 Standard
- Rated at 32A / 415V & Max. 13kW Power
- Single-Phase AC Charging Plug
- IP65 Rated & UL94V-0 Flame Retardant
- Silver-Plated Copper Alloy Contacts
- Operating Temperature: -30°C to 50°C
Main Specifications:
General Information:
| Part No.: | YC-1180-16-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 415V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 13kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this GB/T AC EV Charging Plug Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
