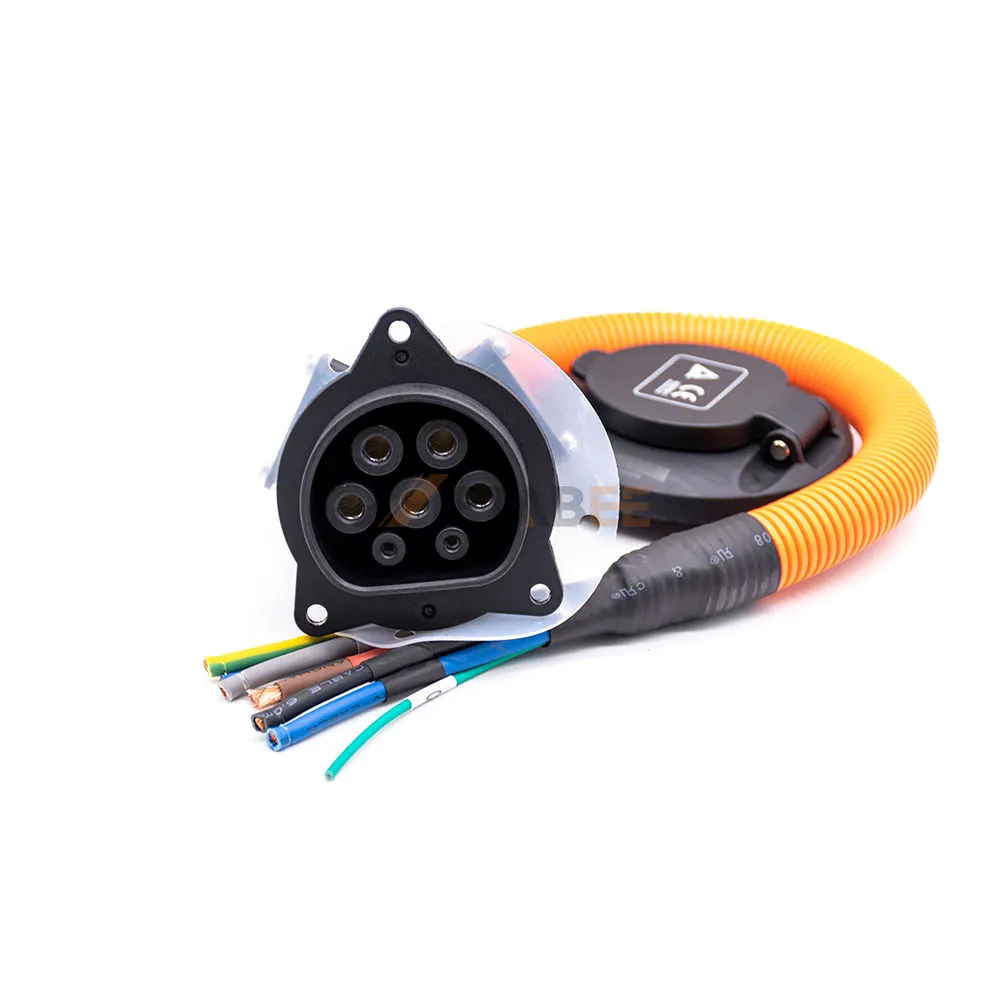

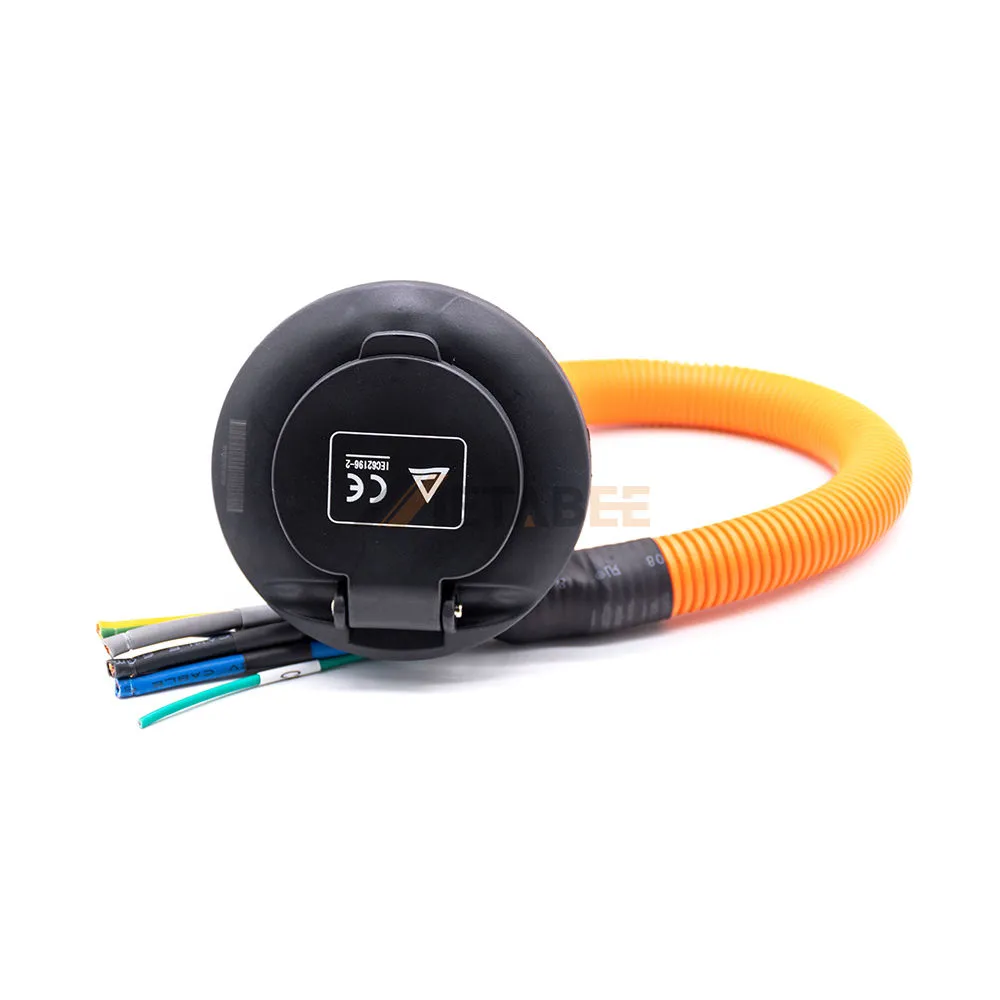

GB/T AC EV Charging Connector Cable, Socket, Single Phase, 16A, 250V
Introduction
This premium GB/T 20234.2-2015 compliant socket is designed for high-efficiency single-phase AC charging stations. Built with a durable thermoplastic shell and silver-plated copper alloy contacts, it ensures minimal resistance and stable power transmission. The UL94V-0 flame-retardant housing and IP65 protection provide ultimate safety for both indoor and outdoor installations.
Supporting a maximum output of 4kW at 16A/250V, this socket is engineered for reliability in diverse climates, operating from -30°C to 50°C. It is the ideal solution for manufacturers seeking a high-quality, long-lasting connection point for GB/T standard electric vehicle infrastructure.
Key Features:
- Standard: Compliant with GB/T 20234.2-2015.
- Capacity: 16A rated current with up to 4kW power.
- Conductivity: Premium silver-plated copper alloy contacts.
- Safety: UL94V-0 certified flame-retardant materials.
- Durability: IP65 rated against dust and water ingress.
- Climate-Ready: Performs reliably from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | NV4C-YC-G-EV16S-0.5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this GB/T AC EV Charging Connector Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
