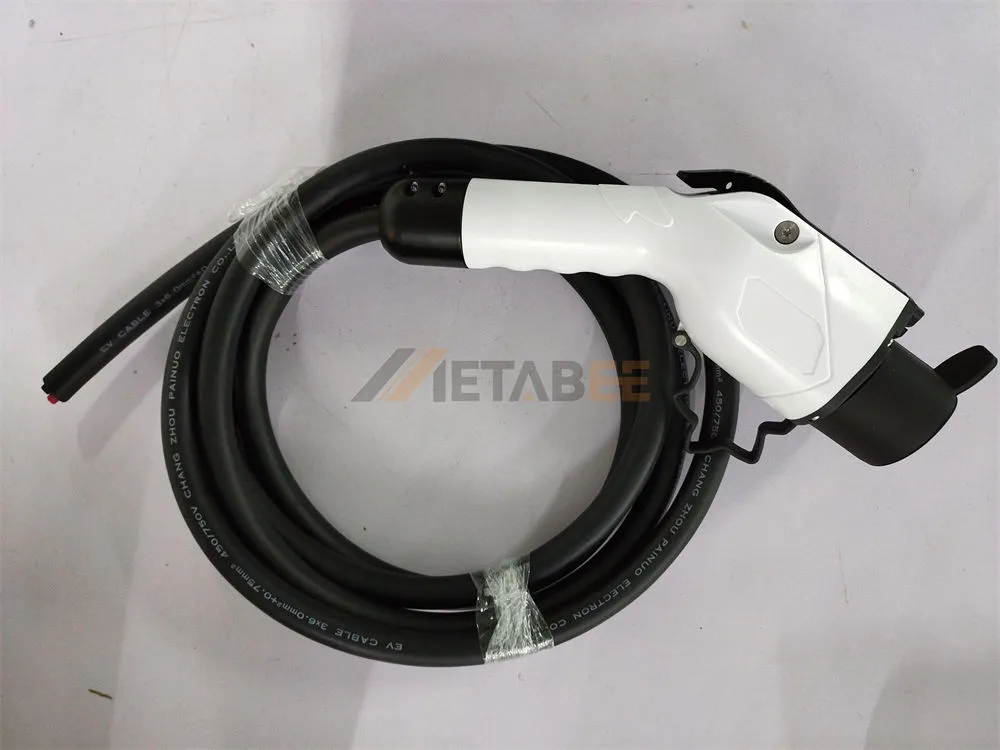

GB/T AC EV Charging Cable, Plug, Single Phase, 16A, 250V
Introduction

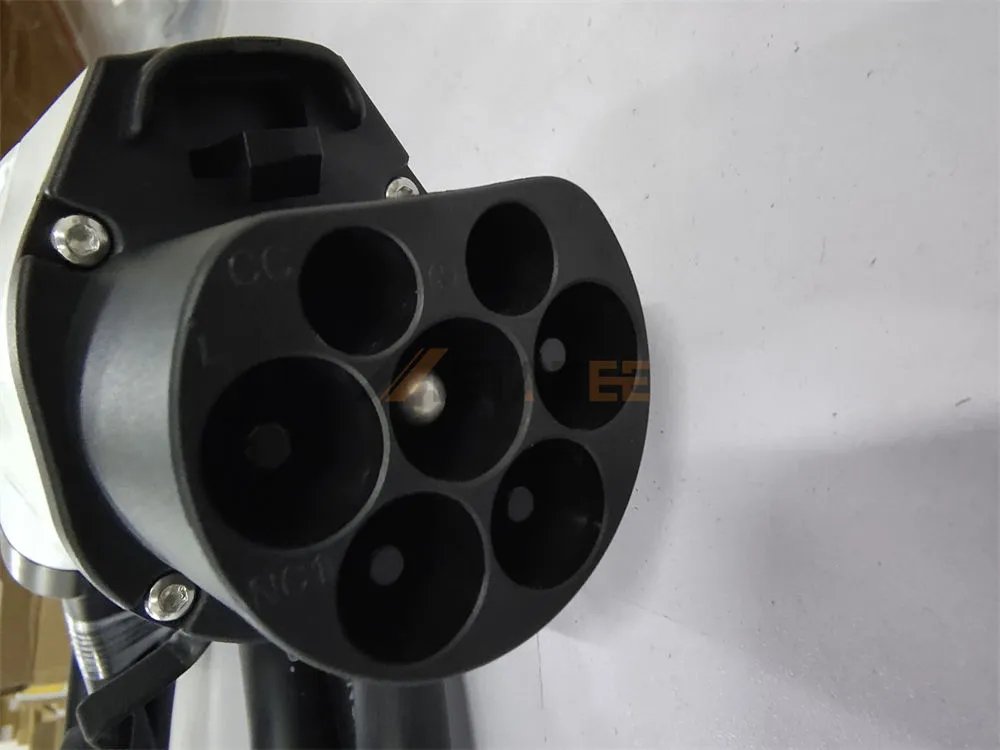

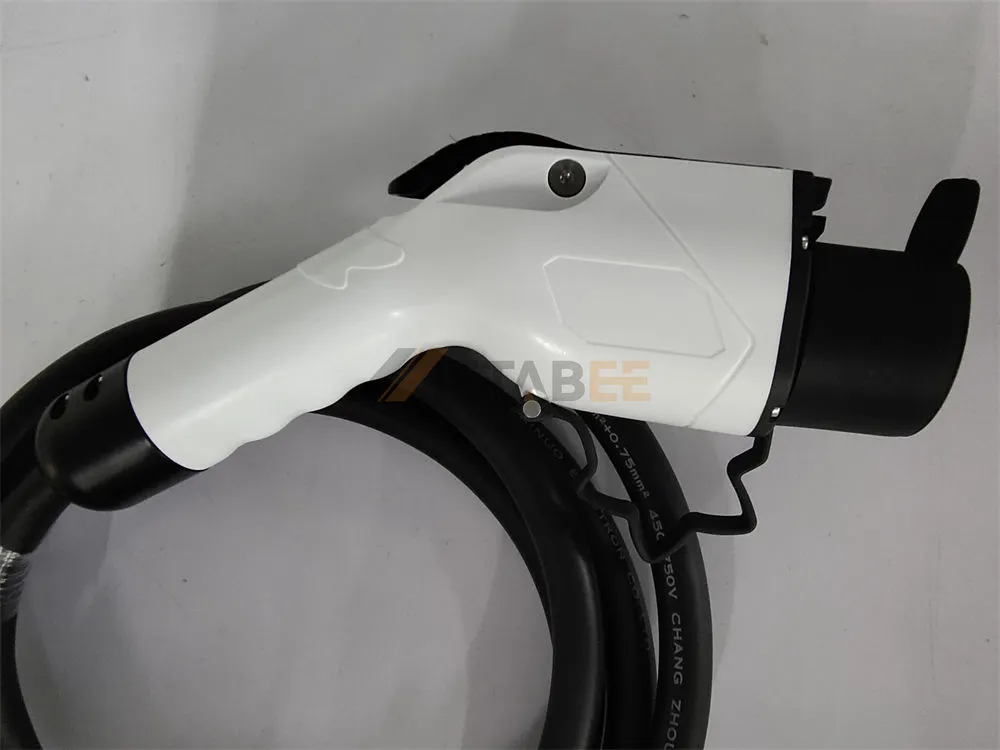

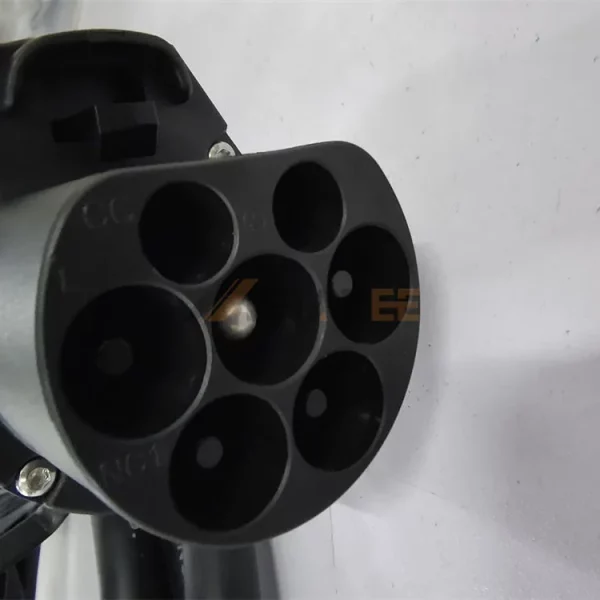

This high-performance GB/T 20234.2-2015 compliant AC charging plug is engineered for reliable Single Phase electric vehicle charging. Featuring a robust thermoplastic shell and silver-plated copper alloy contacts, it ensures superior conductivity and long-term durability. With an IP65 rating and UL94V-0 flame retardancy, it provides maximum safety and weather resistance for various charging environments.
Optimized for efficiency, this 16A connector supports up to 4kW of power at 250V. It is built to withstand extreme conditions, operating seamlessly between -30°C and 50°C. Whether for home or public charging stations, this plug offers a secure, high-quality connection for all GB/T compatible EVs.
Key Features:
- Standard: Fully compliant with GB/T 20234.2-2015.
- Performance: 16A rated current with 4kW maximum power.
- Durability: Silver-plated copper contacts for optimal conductivity.
- Safety: UL94V-0 flame-retardant thermoplastic housing.
- Protection: IP65 rated for excellent water and dust resistance.
- Resilience: Stable operation from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-1180-16-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this GB/T AC EV Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
