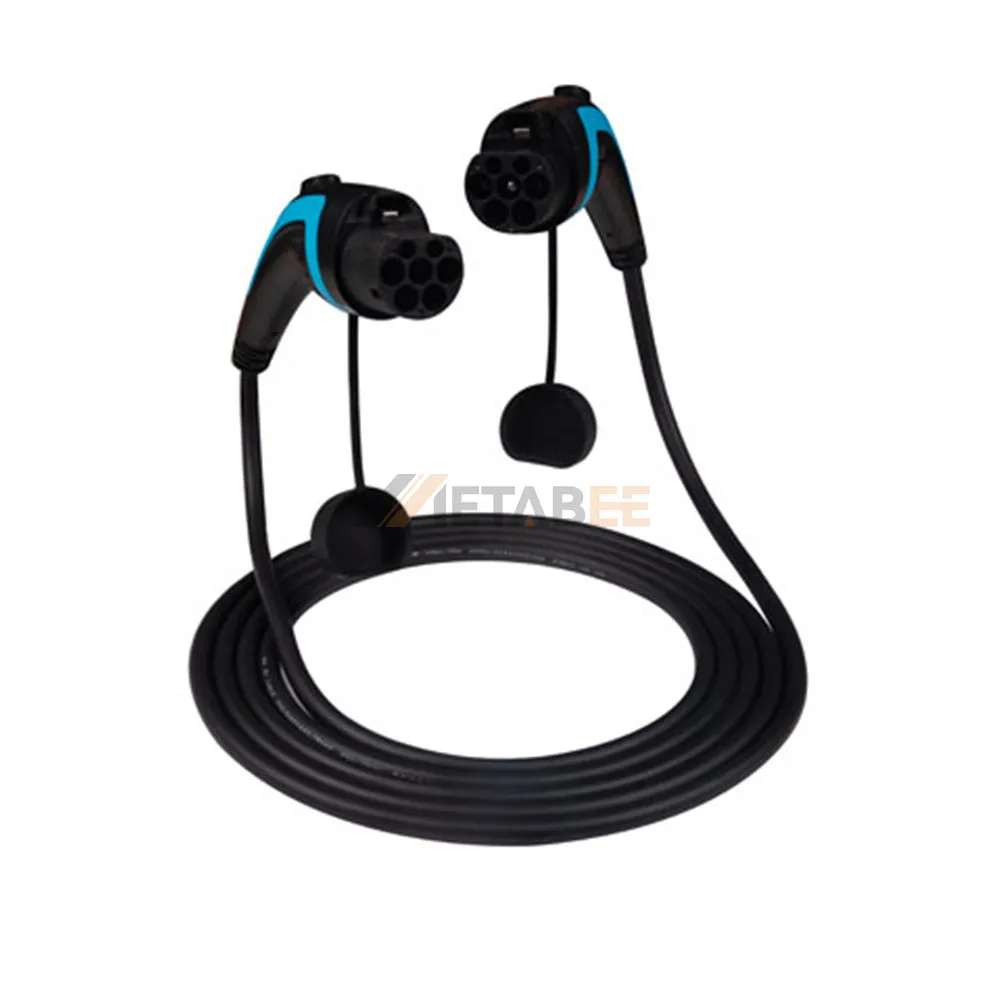

GB/T AC EV Charger Cable, Plug, Single Phase, 32A, 250V
Introduction

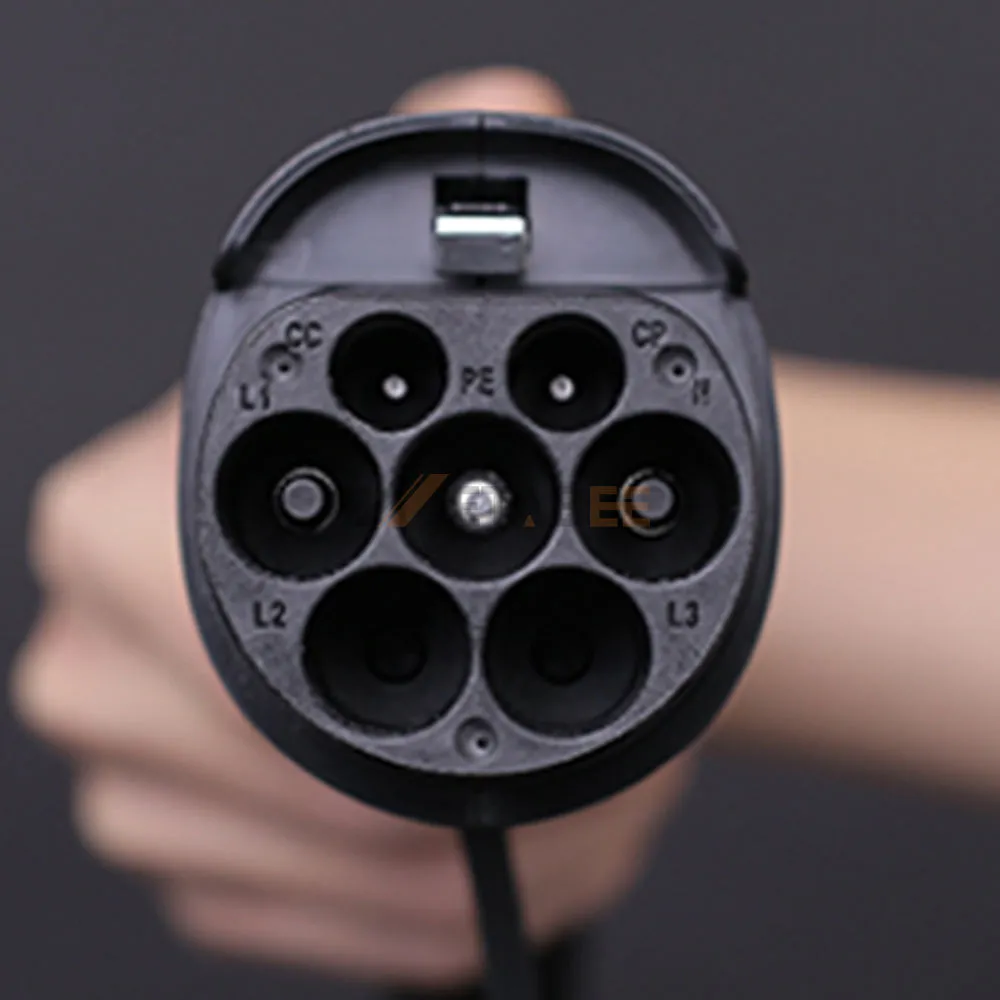

This GB/T AC EV charger cable is designed for safe and reliable single-phase AC charging, fully compliant with the GB/T 20234.2-2015 standard. It features a durable plug connector with a thermoplastic shell and high-conductivity, silver-plated copper alloy contacts, ensuring excellent electrical performance and corrosion resistance. Rated for 250V, 32A, and up to 8kW of power, it is built for resilience with an IP65 waterproof/dustproof rating, UL94V-0 flame-retardant certification, and a wide operating temperature range from -30°C to 50°C.
Key Features:
- Compliant with GB/T 20234.2-2015 Standard
- Single-Phase, 32A/250V, Max 8kW Power
- Robust Thermoplastic Shell & IP65 Rated
- Silver-Plated Copper Alloy Contacts
- UL94V-0 Flame-Retardant Certified
- Wide Operating Temp: -30°C to 50°C
Main Specifications:
General Information:
| Part No.: | YC-1180-1190-32-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this GB/T AC EV Charger Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
