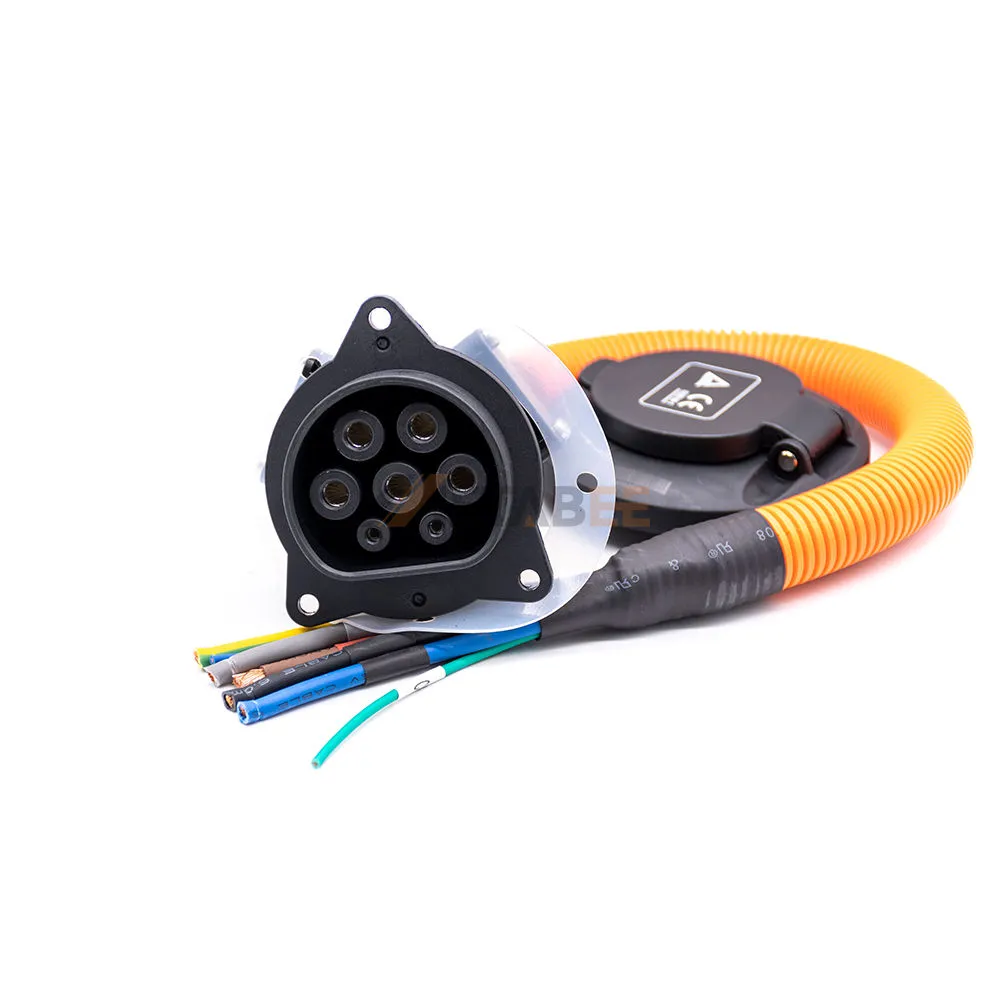

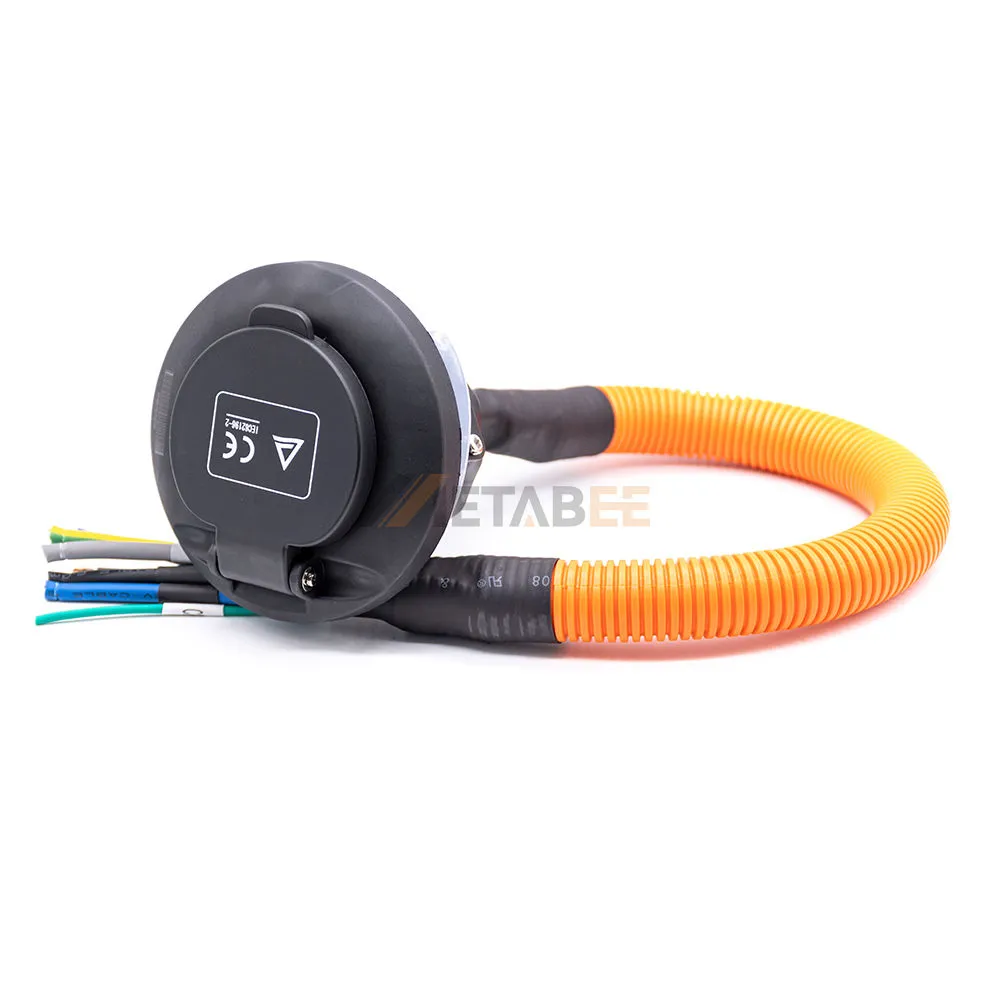

GB/T AC Electric Vehicle Charging Cable, Socket, Single Phase, 32A, 440V
Introduction
The GB/T AC Electric Vehicle Charging Cable (Socket, Single Phase, 32A, 440V) is engineered for reliable AC charging applications compliant with GB/T 20234.2-2015. Designed for single-phase power delivery, this EV charging socket ensures stable electrical performance with a rated current of 32A and voltage up to 440V, supporting a maximum charging power of 14kW.
The connector features a robust thermoplastic housing combined with silver-plated copper alloy contacts, delivering excellent conductivity, low contact resistance, and long-term durability. With an IP65 protection rating and UL94 V-0 flame-retardant construction, it is well suited for both indoor and outdoor EV charging environments, even under harsh operating conditions ranging from -30°C to +50°C.
Key Features:
- GB/T 20234.2-2015 compliant
- Single-phase AC charging, socket type
- Rated 32A, 440V, up to 14kW output
- Silver-plated copper alloy contacts
- IP65 protection & UL94 V-0 flame retardant
- Wide operating temperature: -30°C to +50°C
Main Specifications:
General Information:
| Part No.: | NV4C-YC-G-EV32S-0.5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 440V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 14kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this GB/T AC Electric Vehicle Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
