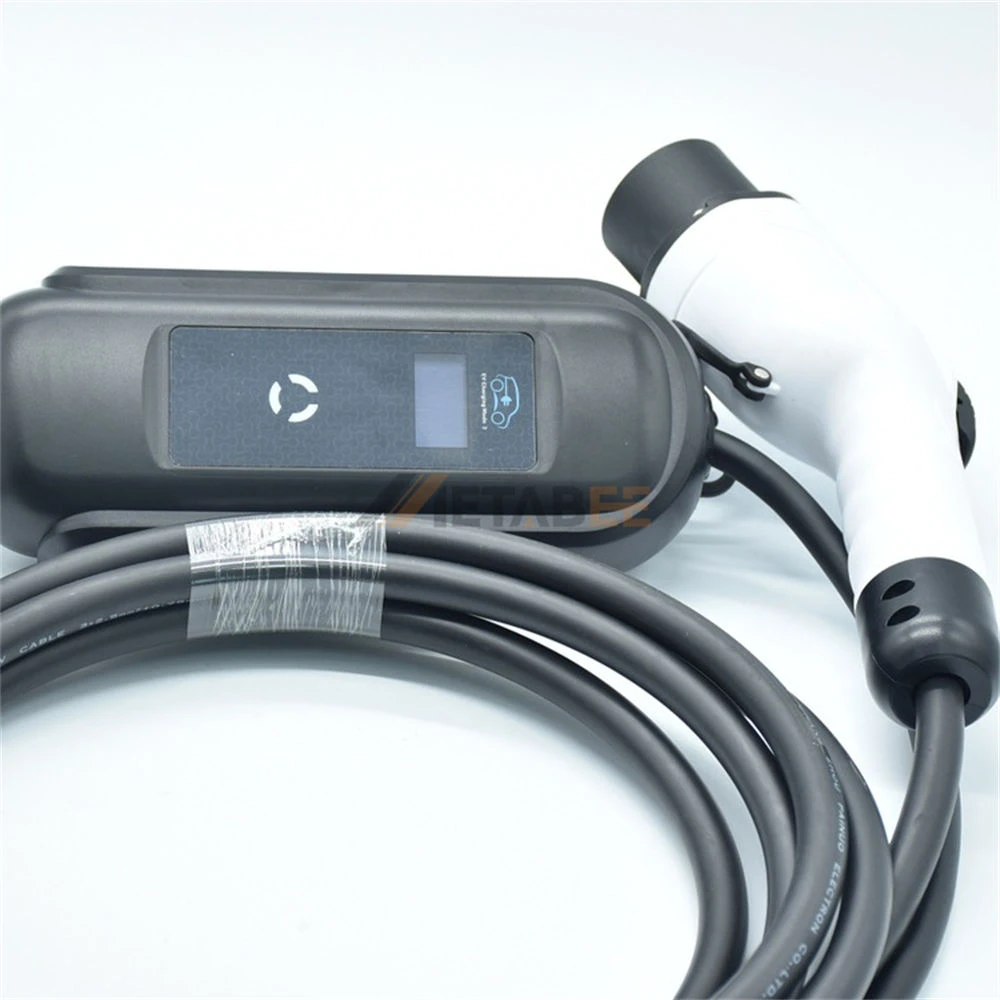

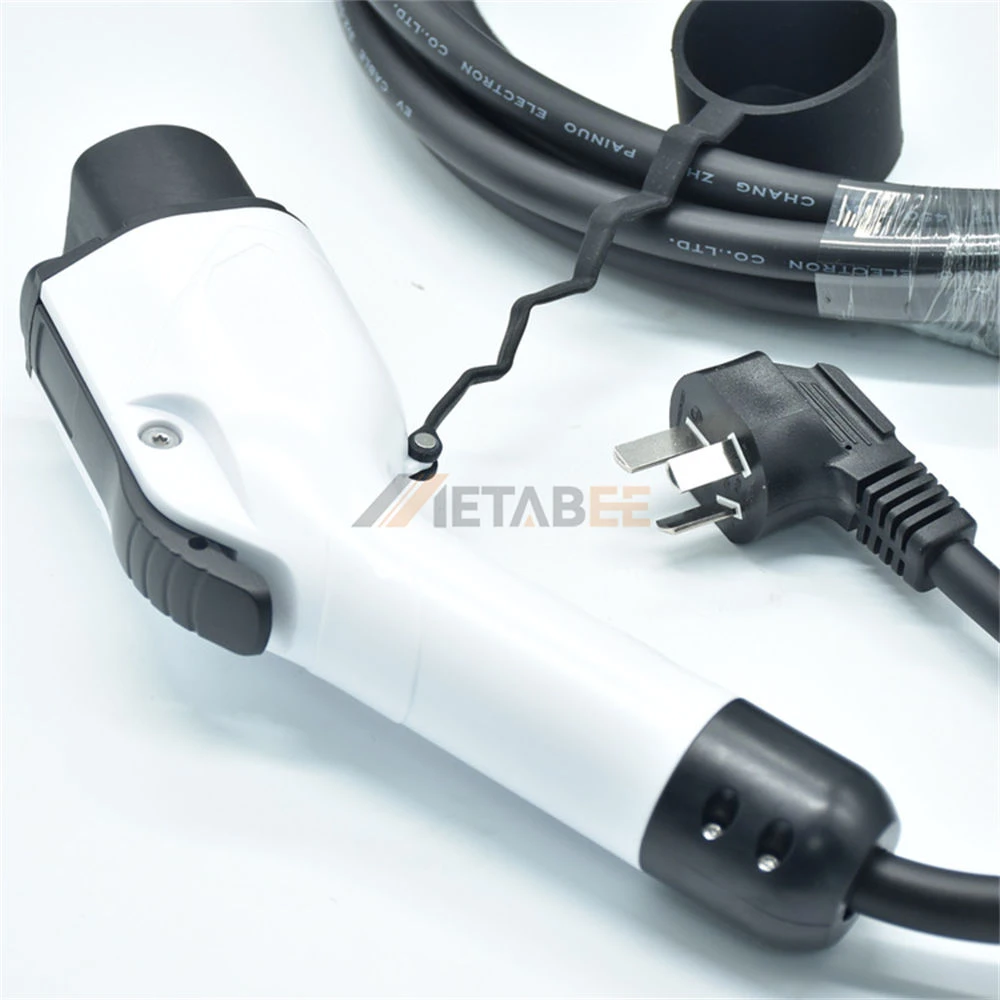

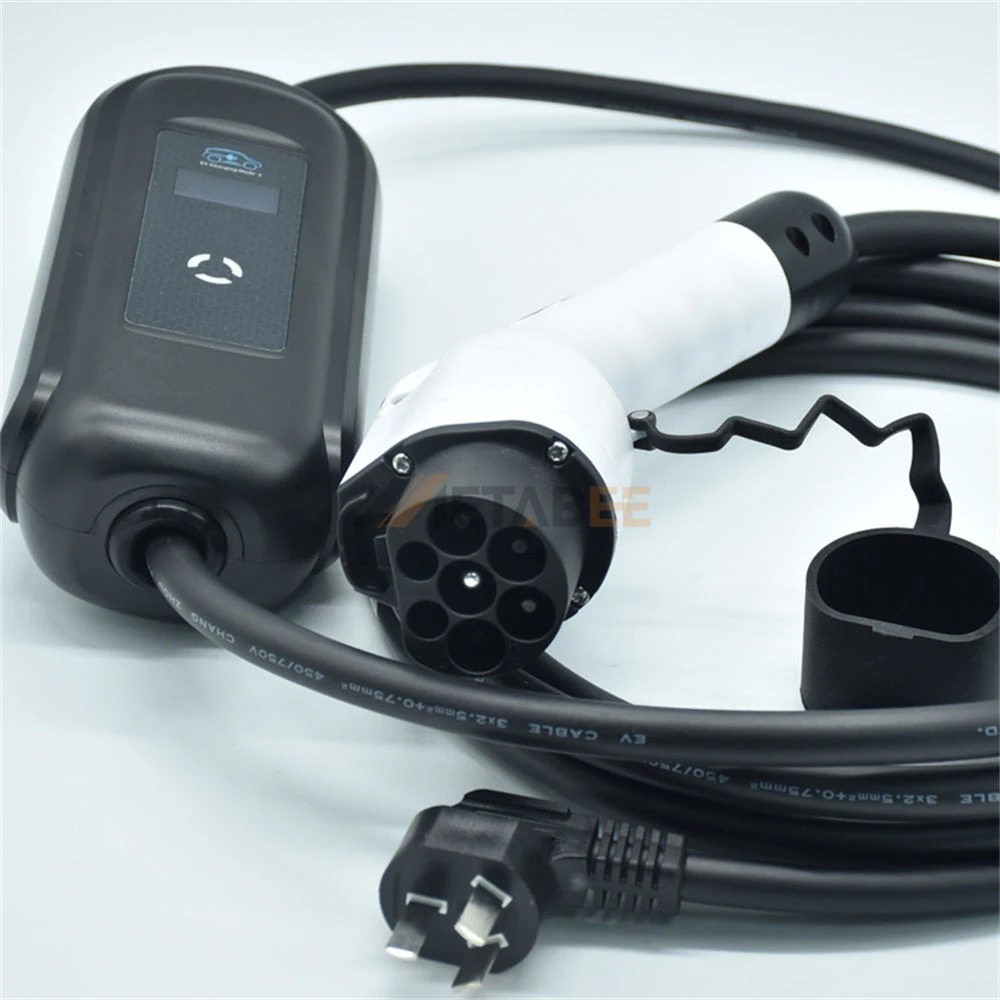

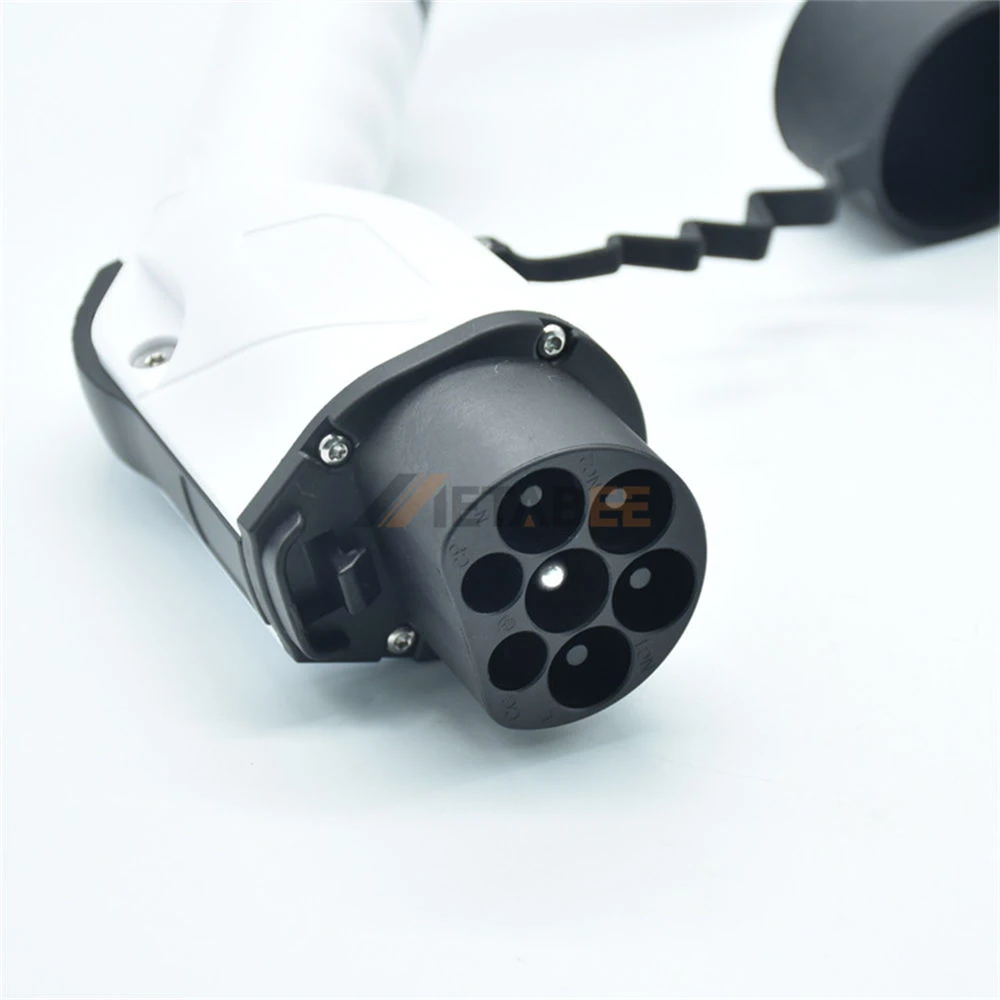

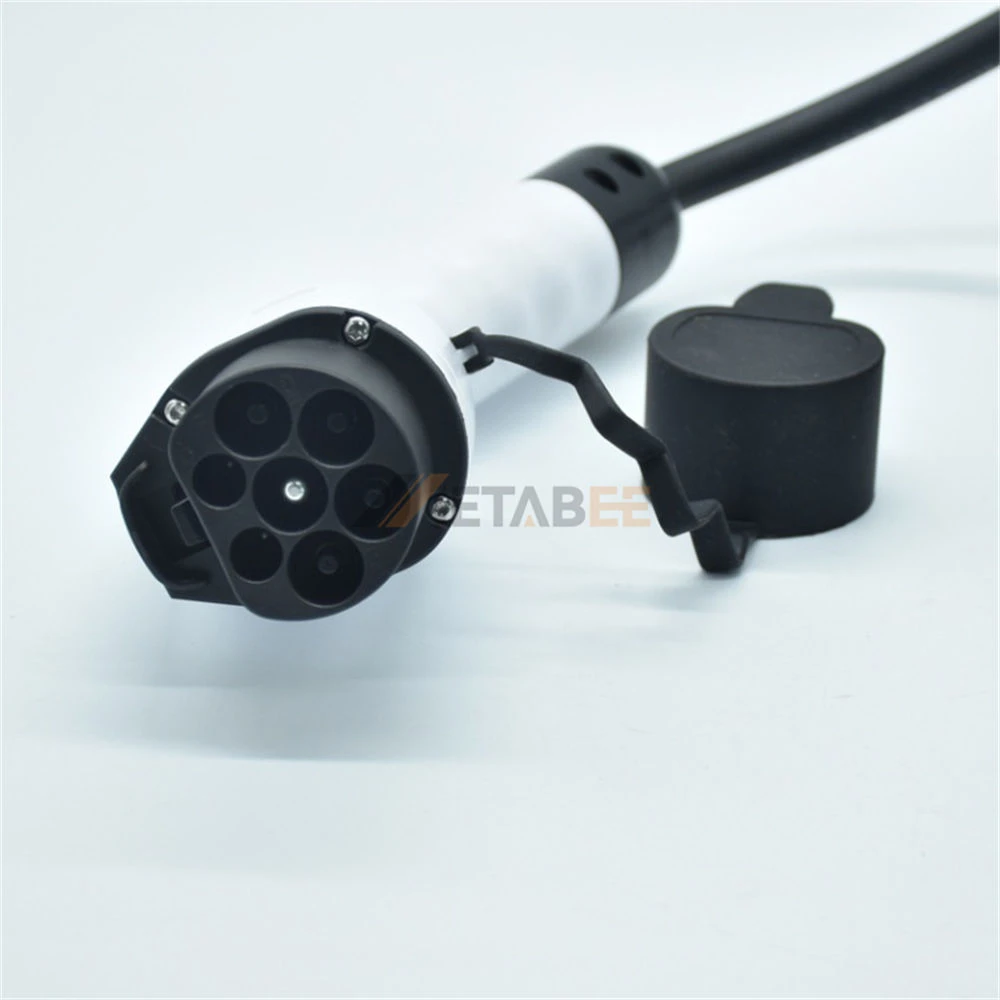

GB/T AC Charging Cable, Plug for EV, Single Phase, 16A, 220V
Introduction
The GB/T AC charging cable is engineered for reliable single-phase AC charging applications compliant with GB/T 20234.2-2015. Designed for EV infrastructure and portable charging solutions, this plug delivers stable performance at 220V / 16A, supporting a maximum charging power of 3.5 kW. Its plug-type connector ensures secure mating and consistent electrical contact during operation.
Manufactured with a high-strength thermoplastic housing and silver-plated copper alloy contacts, the connector offers low contact resistance, excellent conductivity, and long service life. The robust construction meets IP65 ingress protection and UL94 V-0 flame-retardant requirements, ensuring safe operation in demanding environments.
With a wide operating temperature range from -30°C to +50°C, this GB/T AC charging plug is suitable for both indoor and outdoor EV charging scenarios, making it an ideal choice for OEMs, charging station integrators, and EV cable assemblies.
Key Features:
- GB/T 20234.2-2015 compliant AC charging plug
- Single-phase AC, 220V / 16A, up to 3.5 kW
- Plug connector, silver-plated copper alloy contacts
- Durable thermoplastic housing
- IP65 protection, UL94 V-0 flame retardant
- Operating temperature: -30°C to +50°C
Main Specifications:
General Information:
| Part No.: | YC-1180-PSE-16-5C-NS | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 220V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 3.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this GB/T AC Charging Cable:
The GB standards AC charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
