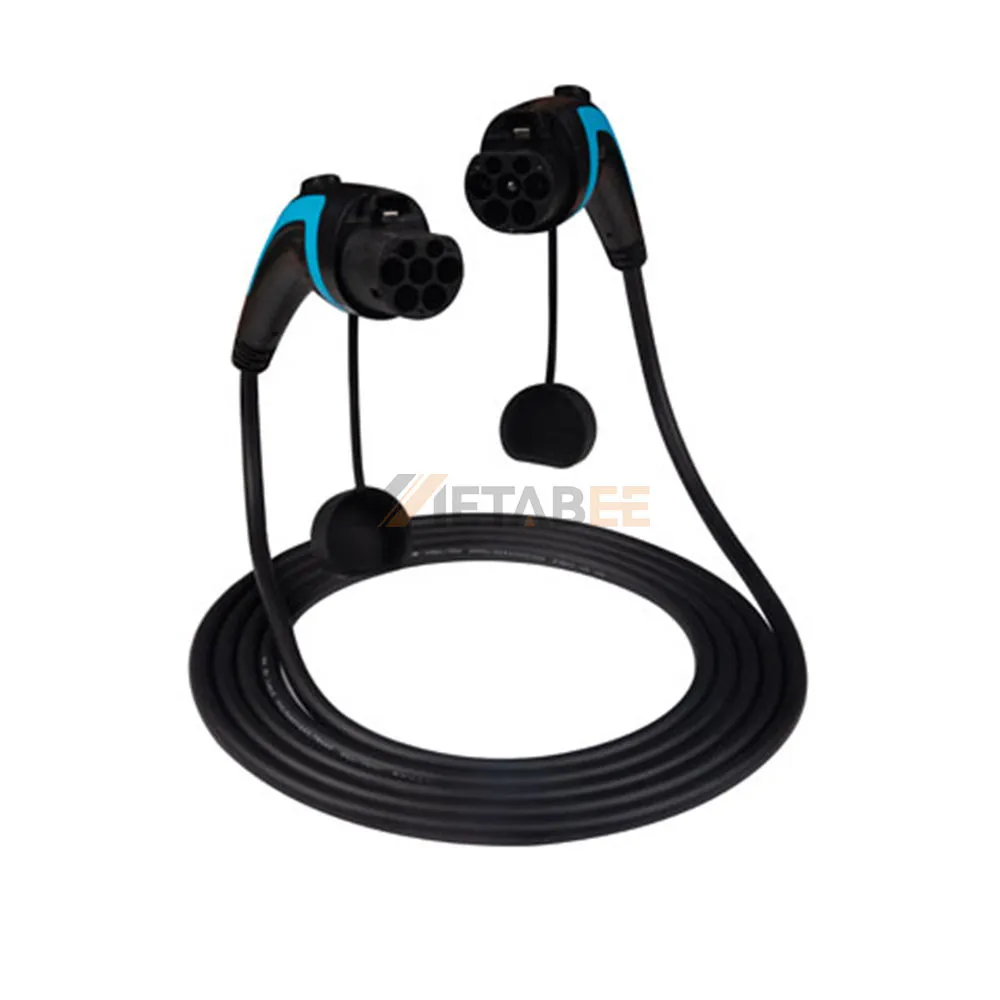

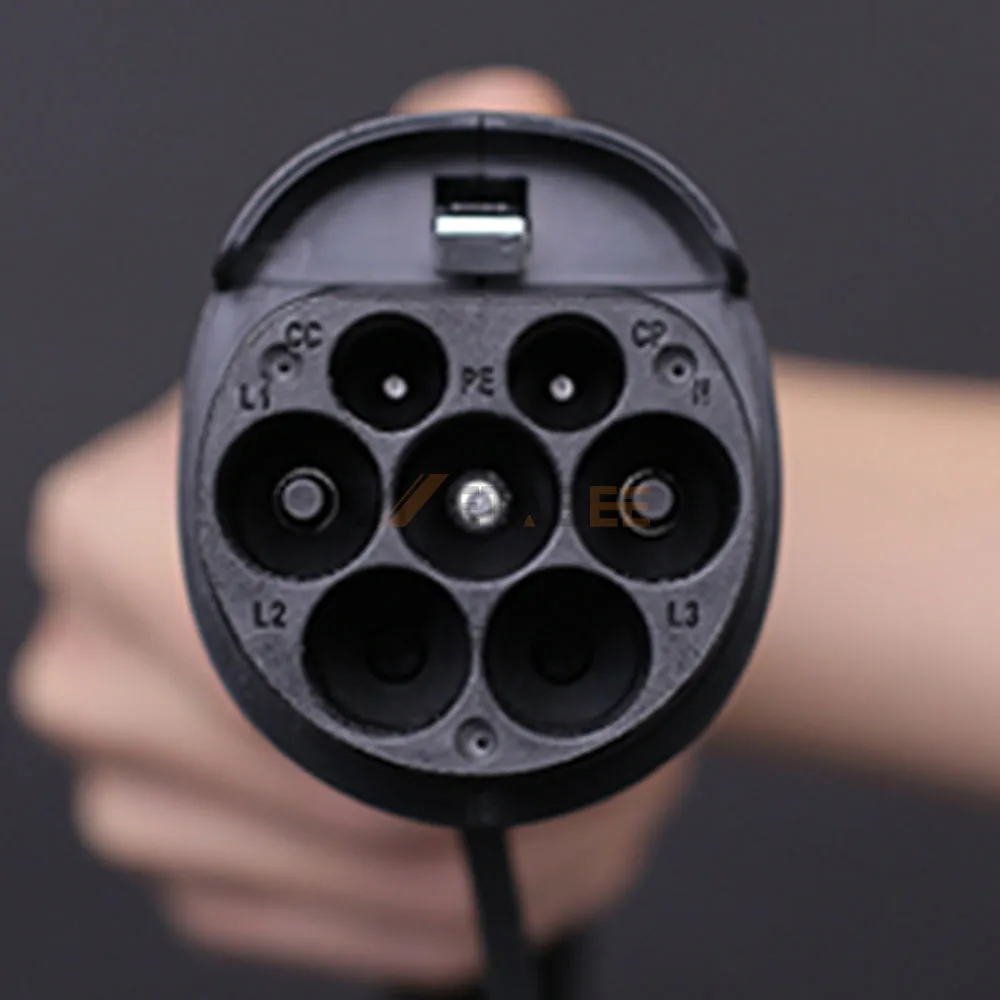

GB/T AC Charging Cable for EV, Plug, Single Phase, 16A, 250V
Introduction
The GB/T AC charging cable is engineered for reliable single-phase AC charging under the GB/T 20234.2-2015 standard. Designed with a plug-type connector, it supports stable 250V voltage and 16A current, delivering up to 4kW charging power for daily EV charging needs.
The connector housing is manufactured from high-strength thermoplastic, while silver-plated copper alloy contacts ensure low resistance, high conductivity, and long service life. With IP65 protection and UL94 V-0 flame-retardant rating, the cable performs safely in demanding environments.
Built for durability, this EV charging cable operates reliably within a wide temperature range from -30°C to 50°C, making it suitable for both indoor and outdoor charging applications.
Key Features:
- GB/T 20234.2-2015 compliant
- Single-phase AC charging, plug connector
- Rated 250V / 16A, up to 4kW output
- Silver-plated copper alloy contacts
- IP65 protection, UL94 V-0 flame retardant
- Operating temperature: -30°C to +50°C
Main Specifications:
General Information:
| Part No.: | YC-1180-1190-16-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this GB/T AC Charging Cable for EV:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
