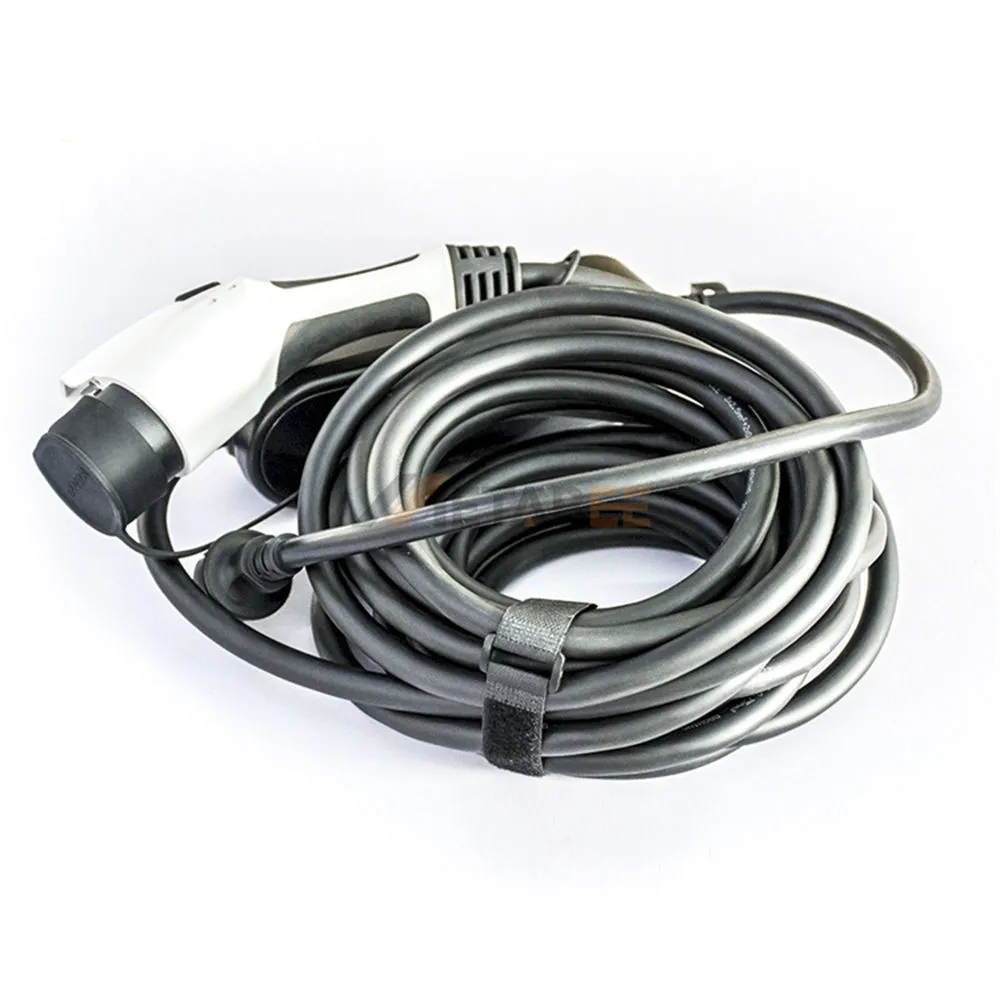

GB/T AC Charging Cable, EV Plug, Single Phase, 16A, 250V
Introduction
The GB/T AC Charging Cable, EV Plug, Single Phase, 16A, 250V is engineered for reliable and safe AC charging in accordance with GB/T 20234.2-2015. Designed for single-phase power delivery, it supports a rated current of 16A at 250V, providing up to 4 kW of stable charging performance for compatible electric vehicles.

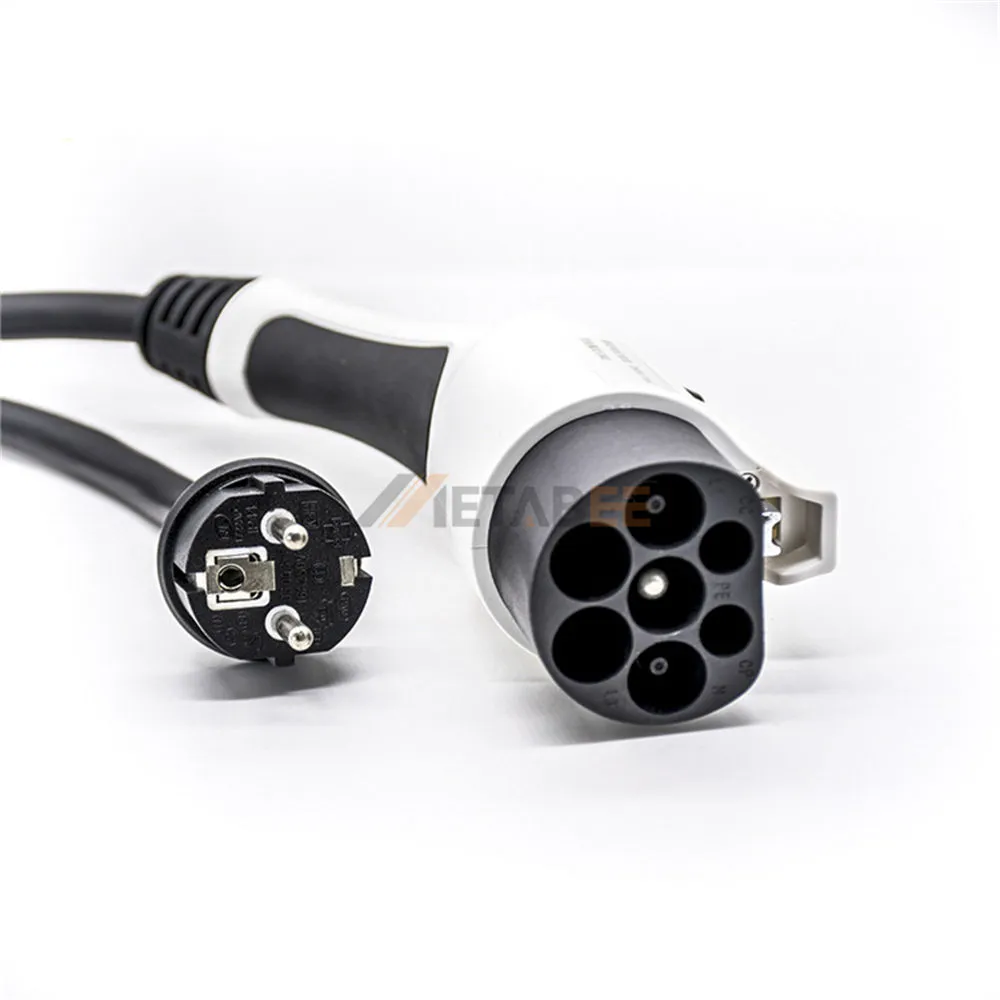

The plug features a robust thermoplastic housing combined with silver-plated copper alloy contacts, ensuring excellent conductivity, reduced contact resistance, and long service life. With an IP65 protection rating and UL94 V-0 flame-retardant design, the connector performs reliably in harsh outdoor and industrial environments. Built to operate in temperatures from -30°C to +50°C, this GB/T EV charging plug is ideal for residential, commercial, and fleet charging applications where durability and compliance are critical.
Key Features:
- GB/T 20234.2-2015 compliant
- Single-phase AC chargingRated 16A, 250V, up to 4 kW
- Silver-plated copper alloy contacts
- IP65 waterproof and dustproof
- UL94 V-0 flame-retardant housing
Main Specifications:
General Information:
| Part No.: | YC-1180-16-5C-ES | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this GB/T AC Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
