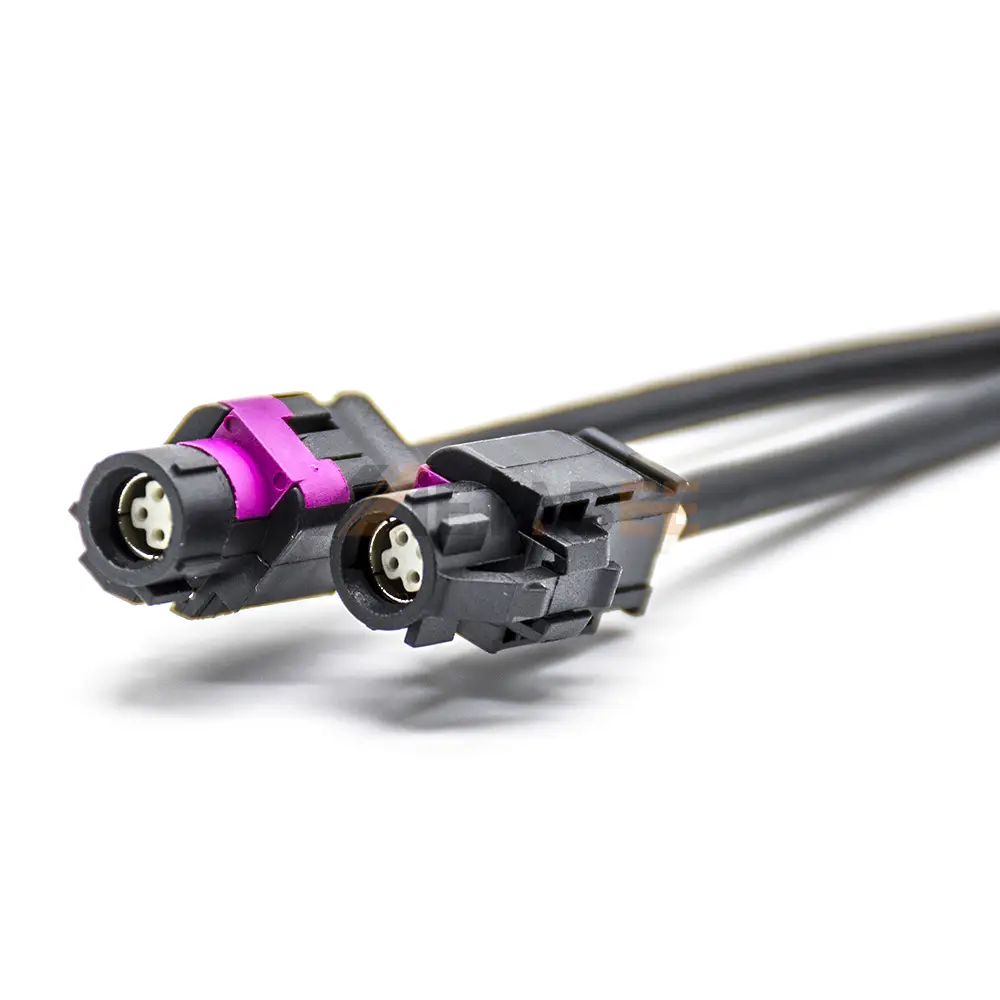

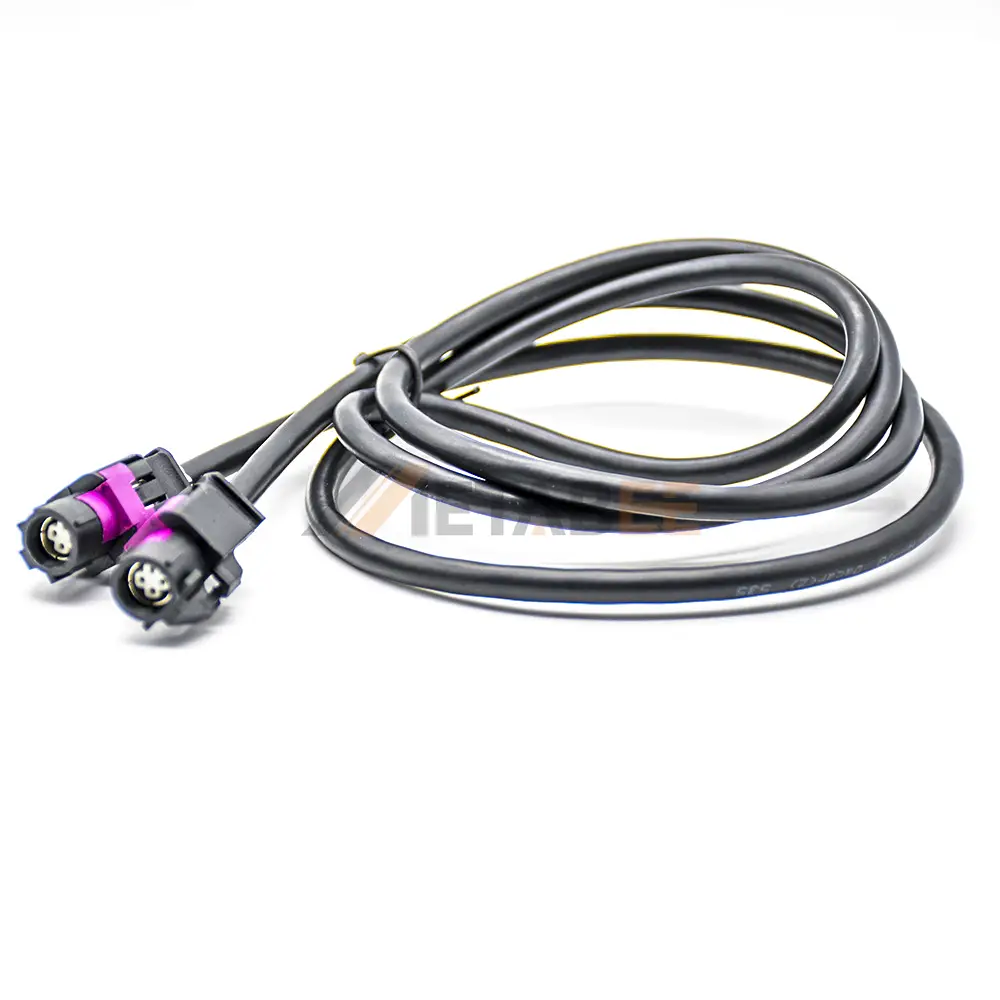

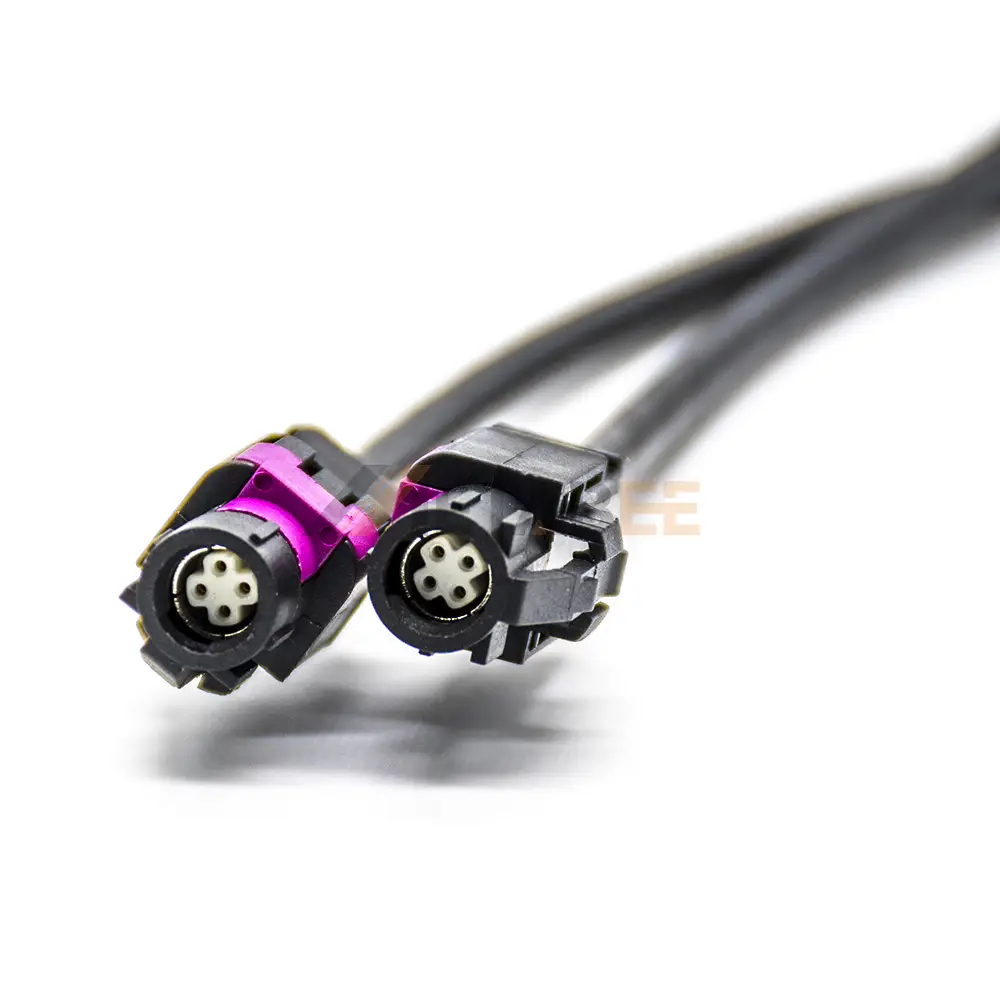

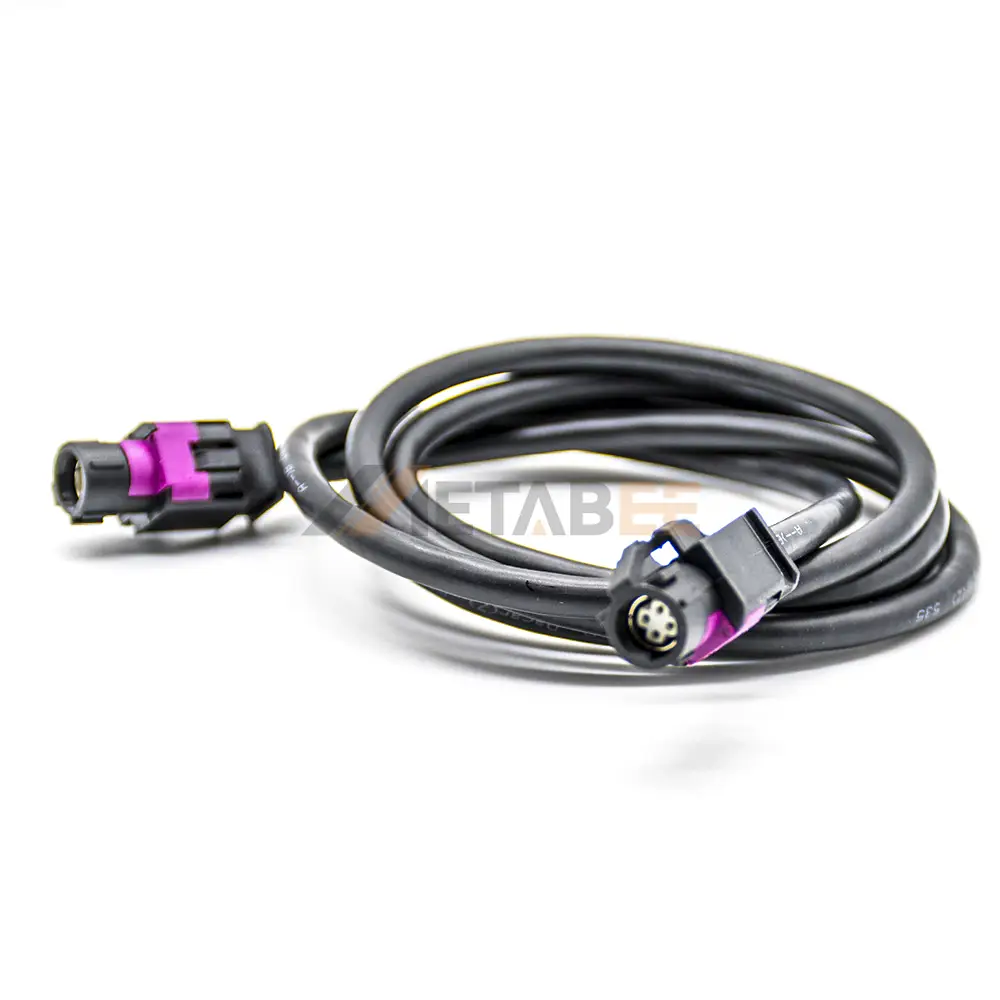

Fakra HSD A-Coded 4 Pin Jack to Jack Cable Assembly
Introduction
The Fakra HSD cable assembly is designed for high-speed data transmission in automotive and industrial applications. Featuring a reliable HSD-to-HSD configuration, this assembly ensures secure connectivity and low signal loss.
Each end of the cable is equipped with a straight HSD jack connector, A-coded with 4 pins, ensuring compatibility with standardized HSD interfaces. Built with 50-ohm impedance, it delivers stable performance and excellent shielding against electromagnetic interference. The assembly is engineered to operate under harsh conditions, withstanding temperatures ranging from -40°C to +105°C, ensuring long-term durability in demanding environments. This cable assembly combines precision design with robust materials to deliver consistent performance.
Key Features:
- Fakra HSD A-coded 4-pin jack-to-jack design
- Straight connector orientation on both ends
- 50-ohm contact impedance for stable signal integrity
- Wide operating temperature: -40°C to +105°C
- Reliable HSD-to-HSD high-speed data connectivity
Main Specifications:
| Part No.: | 102-11-100016 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | A-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | A-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this Fakra HSD A-Coded 4 Pin Jack to Jack Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
