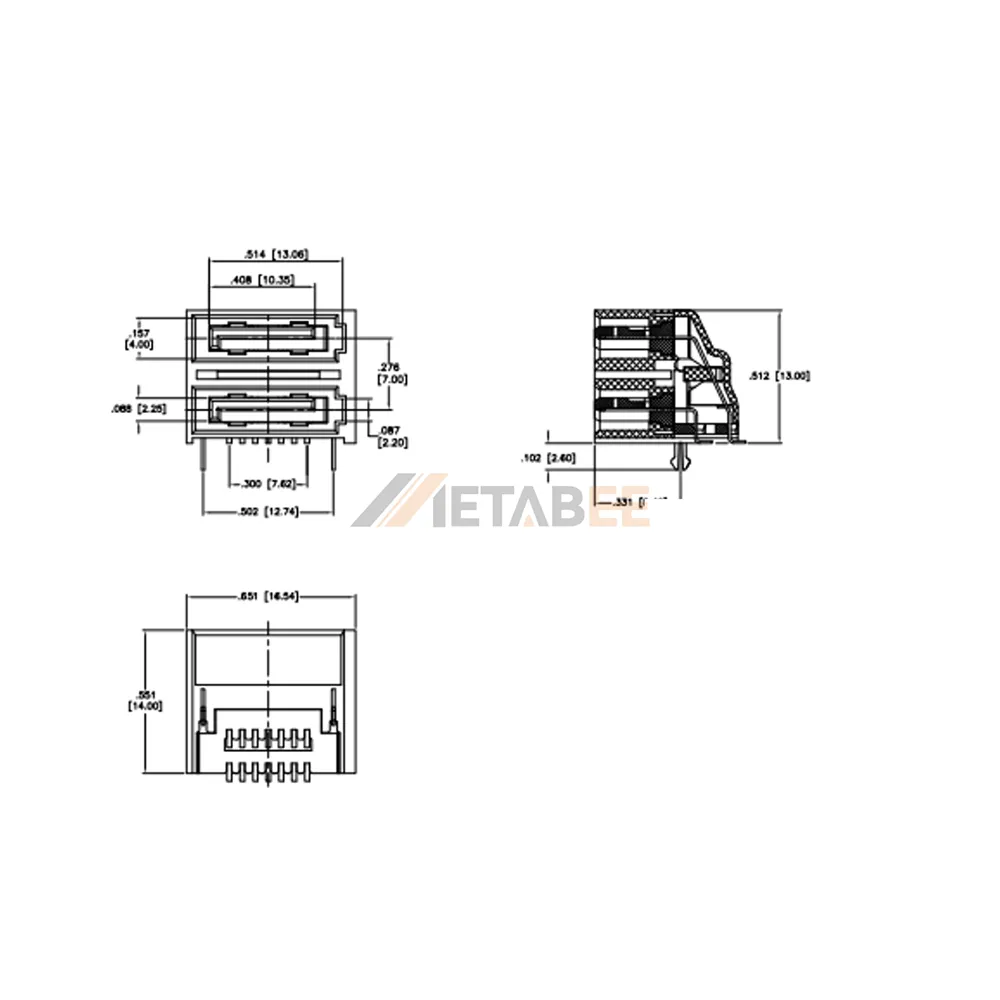

Dual Port SATA 7+7 14-Pin Female Connector for PCB, SMT, R/A
Introduction:
The dual port sata 7+7 14-pin female connector is designed for reliable data connectivity in storage devices, servers, computers, and other high-speed data applications. Featuring a right-angle configuration and surface mount design, it provides efficient pcb integration and helps optimize board-level space.
Built for stable electrical performance, this sata connector supports a rated current of 1.5a, with contact resistance of 30 mOhms max and insulation resistance of 1,000 mOhms min. It also provides 500 vac dielectric withstanding voltage and reliable operation across a temperature range of -55°c to +85°c.
Key Features
- Dual port, 7+7 14-pin female configuration
- Right-angle mounting orientation
- Surface mount pcb installation
- 1.5a rated current
- 500 vac dielectric withstanding voltage
- Ul94v-0 flame-retardant housing
Main Specifications:
General Information:
| Product No.: | SATA-D-PL-SMT-S-K | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+7 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
