DP Input Receptacle Connector, 20 Pin, SMT, Right Angle, Peg & Board Locks
Introduction:
This DP input receptacle connector provides a 20-pin, right-angle interface tailored for surface-mount PCB termination. To withstand repeated mating cycles, it combines PCB alignment pegs with soldered board locks to absorb mechanical stress and maintain terminal alignment. The body uses UL 94V-0 high-temperature thermoplastic to prevent warping during reflow soldering, operating reliably from -40°C to +85°C. Furthermore, brass contacts with 30µ” gold plating over nickel prevent oxidation and keep contact resistance below 30 mohms at 40 VAC. This receptacle is widely used in high-resolution computer monitors, commercial digital signage, medical endoscopy displays, and broadcast receivers.
Key Features
- 30µ” Gold Plating: Provides superior wear resistance and long-term conductivity.
- Peg & Board Locks: Absorbs mating strain to protect SMT joints.
- Right Angle SMT Design: Optimizes board layout in low-profile enclosures.
- UL 94V-0 Housing: Withstands high reflow temperatures without thermal warping.

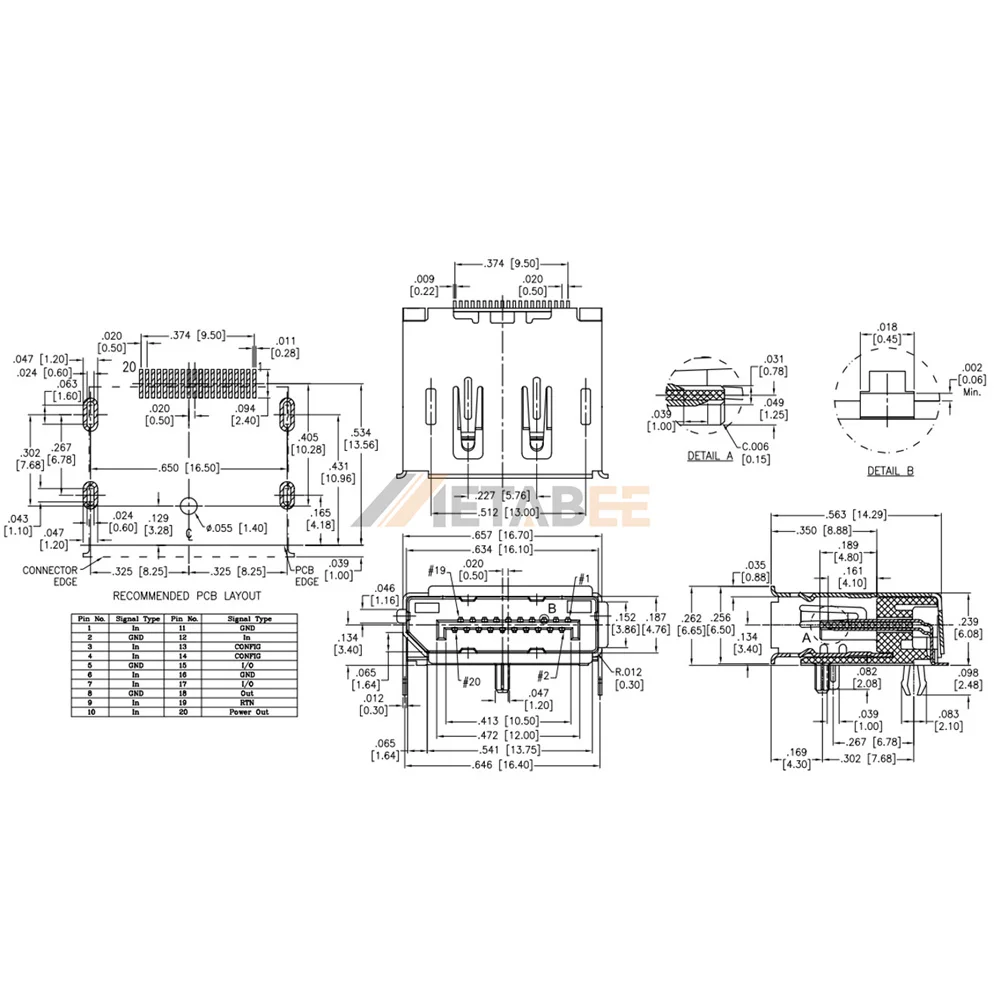

Main Specifications:
General Information:
| Product No.: | DPC-F-S-RA-SMT-P-BL-30 | |
| Product Type: | DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Surface Mount | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | Peg & Board Locks | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Brass | |
| Contact Plating: | 30 µ” (0.38 µm) Gold over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
