DP Female Connector, 20 Pin, SMT, Right Angle, Board Locks, Tape & Reel
Introduction:
This DP female connector is a 20 pin surface mount receptacle configured for horizontal edge mounting on system boards. Supplied on tape & reel, it integrates seamlessly into high-speed automated SMD feeders for high-volume manufacturing. The assembly features mechanical board locks that resist mating forces, protecting SMT solder pads from peel stress during repeated cable insertions. Its brass contacts have 15µ” gold plating over nickel, keeping contact resistance below 30 mohms under a 0.5 A current rating. This connector is commonly deployed in industrial automation controllers, compact GPU cards, mini-ITX mainboards, and digital signage players.
Key Features
- Tape & Reel Packaging: Accelerates automated high-speed SMD assembly lines.
- 15µ” Gold Plating: Provides corrosion resistance and reliable electrical contact.
- Integrated Board Locks:Prevents PCB pad peel during cable pull.
- Right Angle Surface Mount: Optimizes component density on low-profile boards.

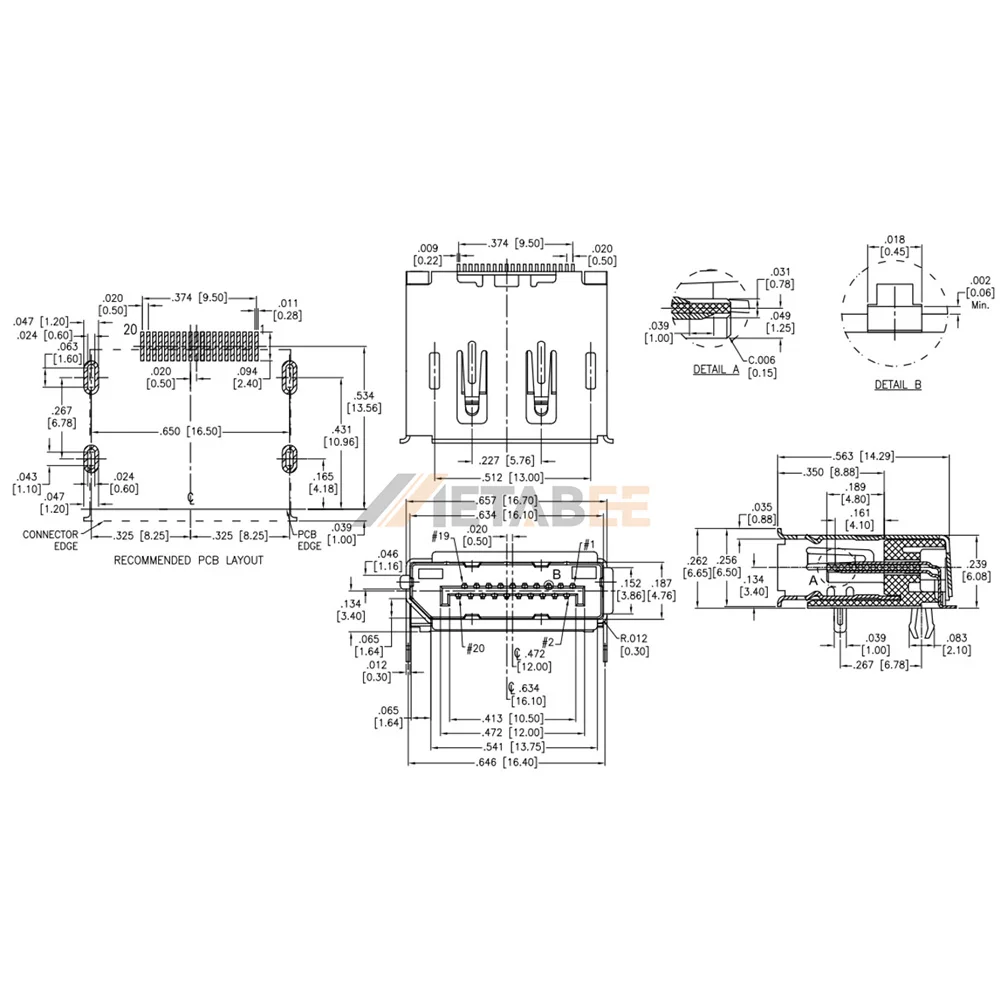

Main Specifications:
General Information:
| Product No.: | DPC-F-S-RA-SMT-BL-15-TR | |
| Product Type: | DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Surface Mount | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | Board Locks | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tape & Reel / TR |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Brass | |
| Contact Plating: | 15 µ” (0.38 µm) Gold over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
