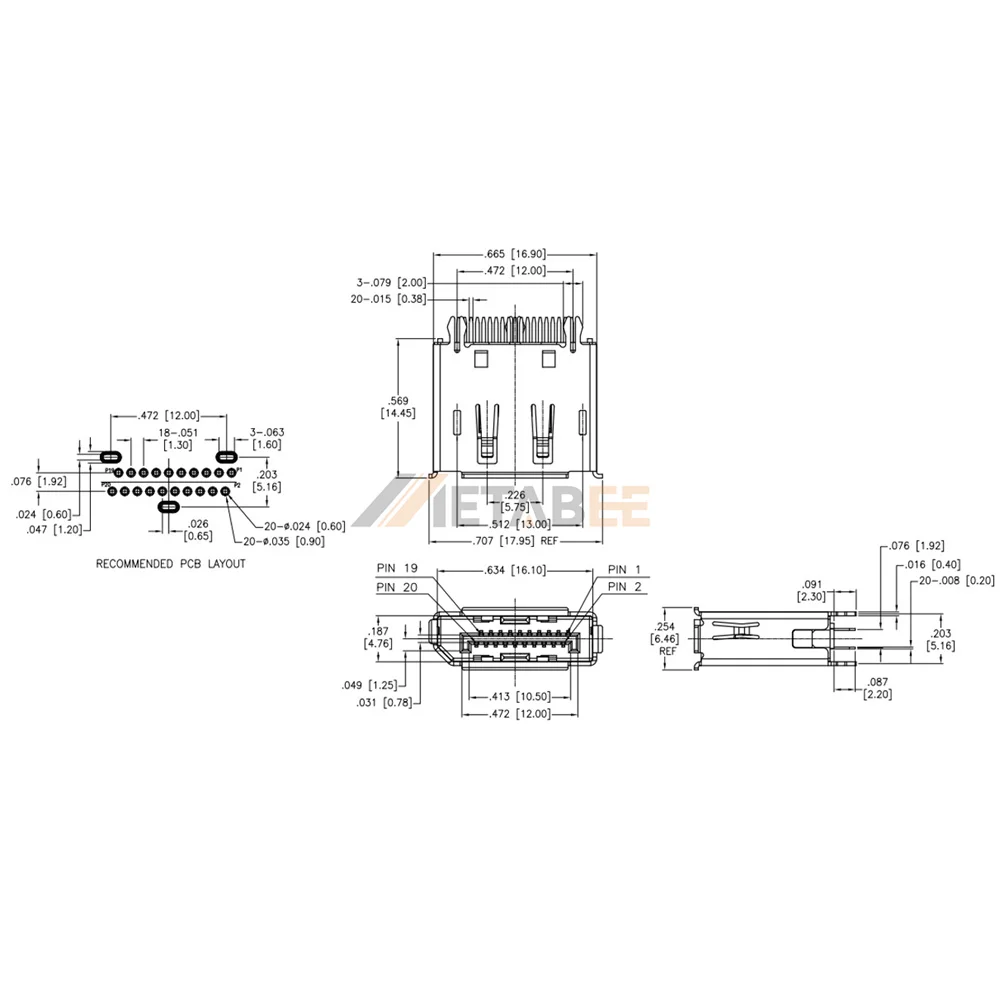

DP Display Receptacle Connector, 20 Pin, Vertical, PCB-THT, CS1 Shell
Introduction:
This DP display receptacle connector provides a 20-pin vertical interface designed for through-hole PCB termination. The straight top-entry orientation allows vertical cable insertion, saving valuable horizontal board space. Built with a nickel-plated brass CS1 shell, it provides sturdy mechanical protection and blocks electromagnetic interference. The housing uses UL 94V-0 high-temperature thermoplastic to withstand wave soldering heat, functioning reliably from -55°C to +85°C. Additionally, copper alloy contacts feature a heavy 30µ” gold-over-nickel plating to prevent wear and maintain contact resistance below 30 mohms at 40 VAC. This vertical receptacle suits vertical docking ports, medical test equipment, industrial motherboards, and computer display hubs.
Key Features
- 30µ” Gold Plating: Provides thick coating for superior wear resistance and stable conductivity.
- Vertical Through-Hole: Enables top-entry cable mating to save horizontal board space.
- CS1 Shielded Shell: Nickel-plated brass construction blocks electromagnetic interference.
- Wide Temperature Range: Operates reliably in harsh environments from -55°C to +85°C.
Main Specifications:
General Information:
| Product No.: | DPC-F-S-VT-CS1-30 | |
| Product Type: | DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Through Hole | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | CS2 Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Thermal Plastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | 30 µ” (0.38 µm) Gold over Nickel underplate |
Environmental:
| Operating Temperature: | -55°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
