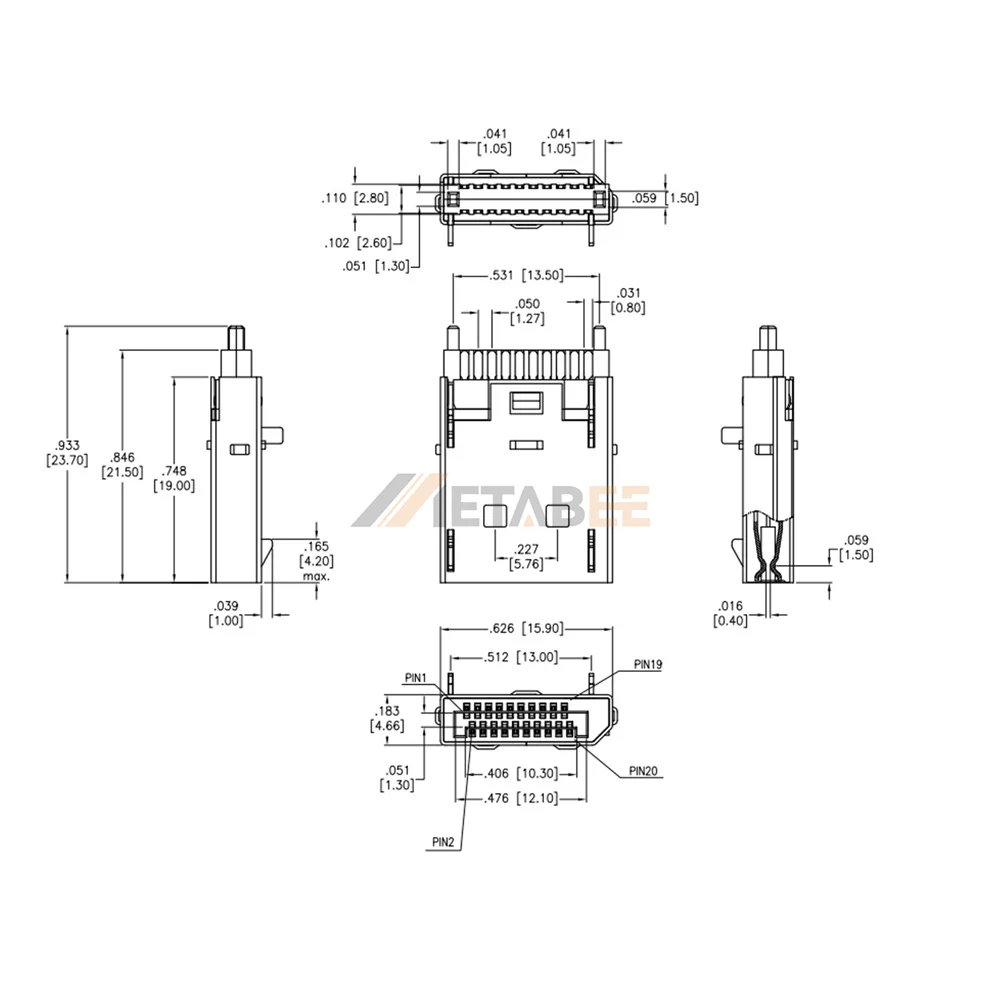

DisplayPort Male Plug Connector, 20 Pin, Surface Mount, R/A, Friction Lock, CS1 Shell
Introduction:
This DisplayPort male plug connector provides a 20-pin, right-angle interface designed for direct surface-mount PCB termination. Featuring a friction lock mechanism, it ensures smooth manual insertion and extraction without mechanical latch wear. The nickel-plated SPCC steel CS1 shell delivers robust structural rigidity and shields internal high-speed video lines from electromagnetic noise. Its UL 94V-0 high-temperature thermoplastic body withstands surface-mount reflow processes, functioning reliably from -25°C to +85°C. In addition, gold flash plated brass contacts keep contact resistance below 60 mohms at 40 VAC. This plug connector commonly serves video dongles, compact display adapters, modular cable test fixtures, and board-to-board interconnect modules.
Key Features
- Friction Lock Design: Enables smooth manual mating without latch wear.
- SPCC CS1 Steel Shell: Provides rugged mechanical shielding against EMI.
- Right-Angle Surface Mount: Saves vertical space on compact adapter boards.
- Gold Flash Contacts: Ensures consistent conductivity up to 60 mohms max.
Main Specifications:
General Information:
| Product No.: | DPC-M-SD-CS1 | |
| Product Type: | DisplayPort | |
| Gender: | Plug | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Surface Mount | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Friction Lock | |
| Shell Design: | CS1 Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 60 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Thermal Plastic, UL 94V-0 | |
| Shell Material: | SPCC, Nickel plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -25°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
