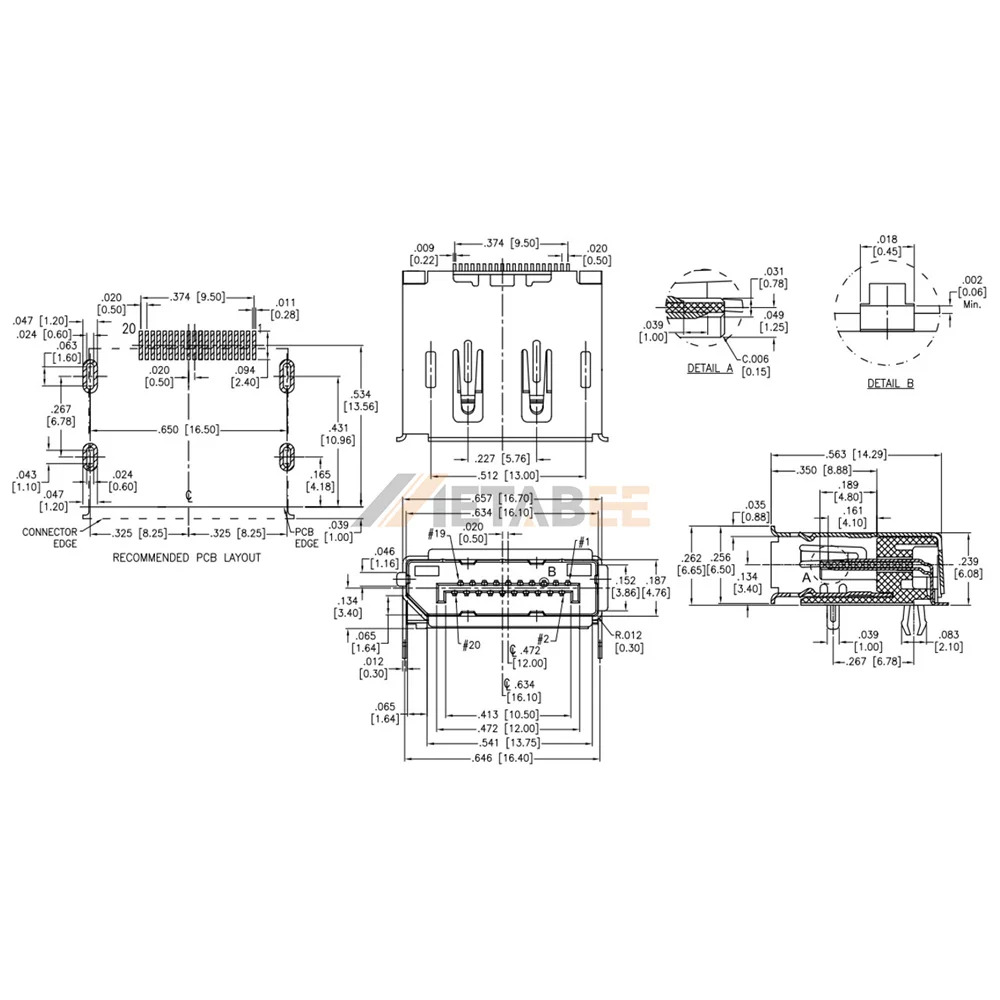

DisplayPort Female Receptacle Connector, PCB-SMT, Right Angle, 20 Position, Peg & Board Locks
Introduction:
This DisplayPort female receptacle connector features a right-angle PCB-SMT design with a 20 position interface. Dual mechanical features, including alignment pegs and soldered board locks, hold the connector tightly in place to prevent PCB trace tear-off from cable leverage. The high-temperature thermoplastic body meets UL 94V-0 flammability standards, safely passing through automated reflow lines and functioning from -40°C to +85°C. In addition, gold flash plated contacts deliver a 30 mohms maximum contact resistance under 40 VAC. Engineers select this connector for edge-mount video processing cards, rackmount server motherboards, industrial automation HMIs, and compact embedded box PCs.
Key Features
- Peg & Board Locks: Prevents solder pad lift from insertion stress.
- PCB-SMT Right Angle: Conserves vertical clearance on dense circuit boards.
- UL 94V-0 Thermoplastic: Survives surface mount reflow across wide temperatures.
- Gold Flash Contacts: Ensures reliable low-resistance signal continuity across pins.
Main Specifications:
General Information:
| Product No.: | DPC-F-S-RA-SMT-BL-TR | |
| Product Type: | DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Surface Mount | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | Board Locks | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tape & Reel / TR |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
