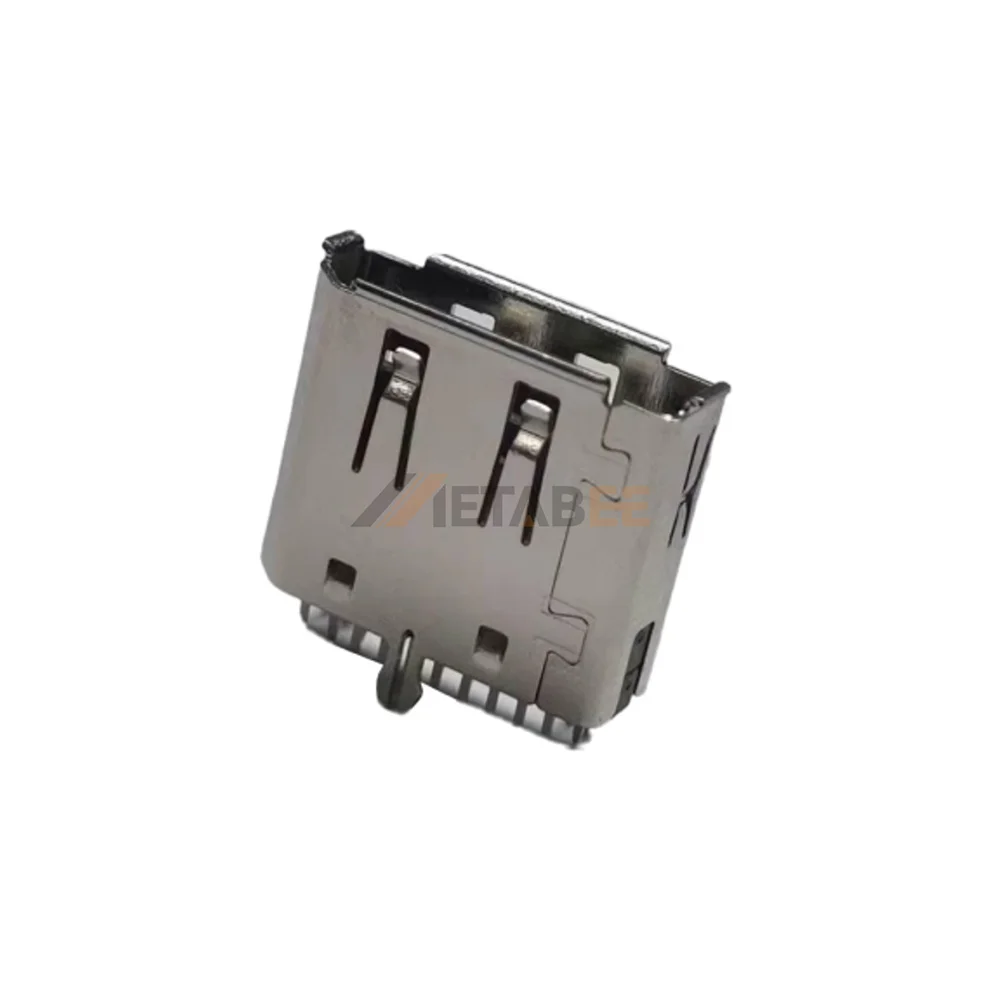

DIP DisplayPort Receptacle, 20 Pin, Vertical, PCB-Through Hole, CS1 Shell
Introduction:
This DIP DisplayPort receptacle is a 20-pin vertical connector engineered for through-hole PCB termination. The straight vertical orientation allows top-entry cable mating, saving horizontal circuit real estate. Its nickel-plated brass CS1 shell provides structural rigidity and protects against electromagnetic interference. Built with UL 94V-0 high-temperature thermoplastic, the connector operates reliably across an extended temperature range from -55°C to +85°C. In addition, gold flash plated copper alloy contacts keep contact resistance below 30 mohms for stable video transmission. This vertical receptacle suits docking stations, medical imaging equipment, test instruments, and industrial panel-mount PCs.
Key Features
- Vertical Through-Hole Mount: Enables top-entry mating to save board space.
- Wide Temperature Range: Operates reliably from -55°C to +85°C environments.
- CS1 Shielded Shell: Nickel-plated brass structure prevents signal interference.
- Gold Flash Contacts: Maintains low resistance for continuous video streams.
Main Specifications:
General Information:
| Product No.: | DPC-F-S-VT-CS1 | |
| Product Type: | DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Through Hole | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | CS2 Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Thermal Plastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -55°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
