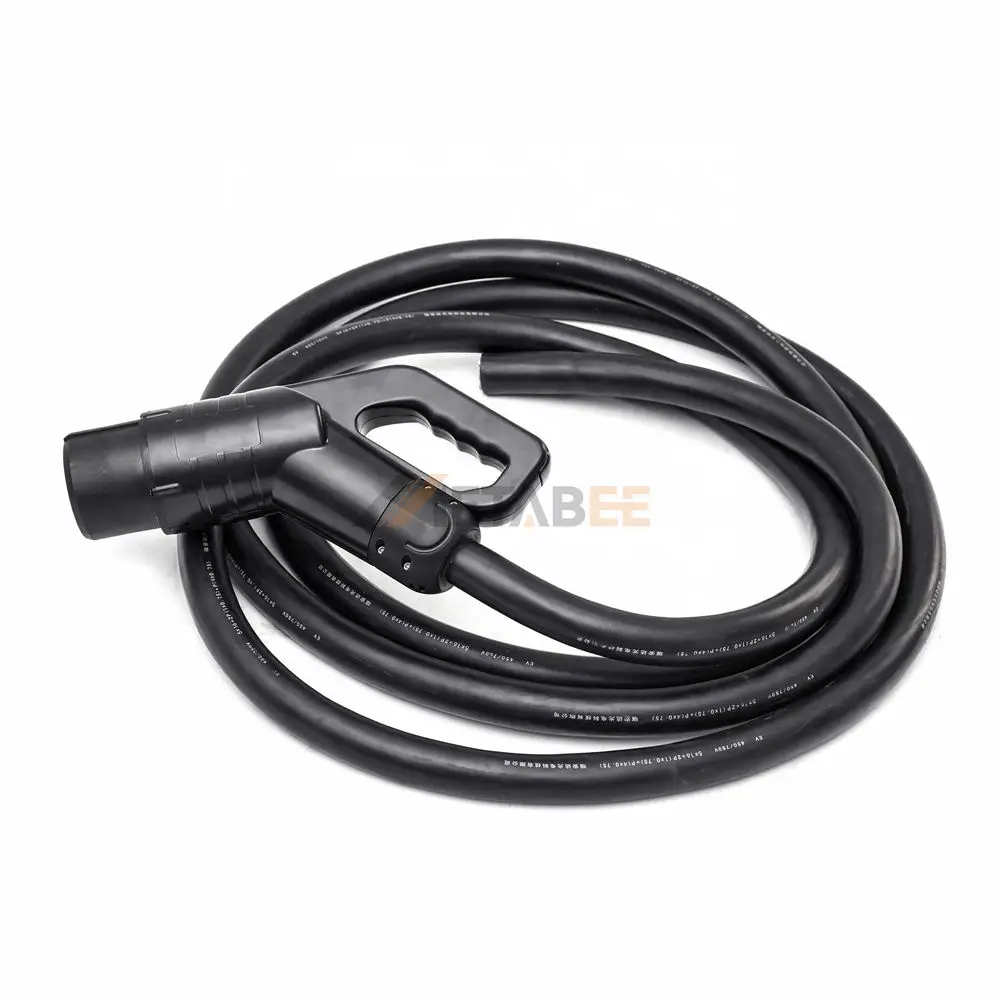

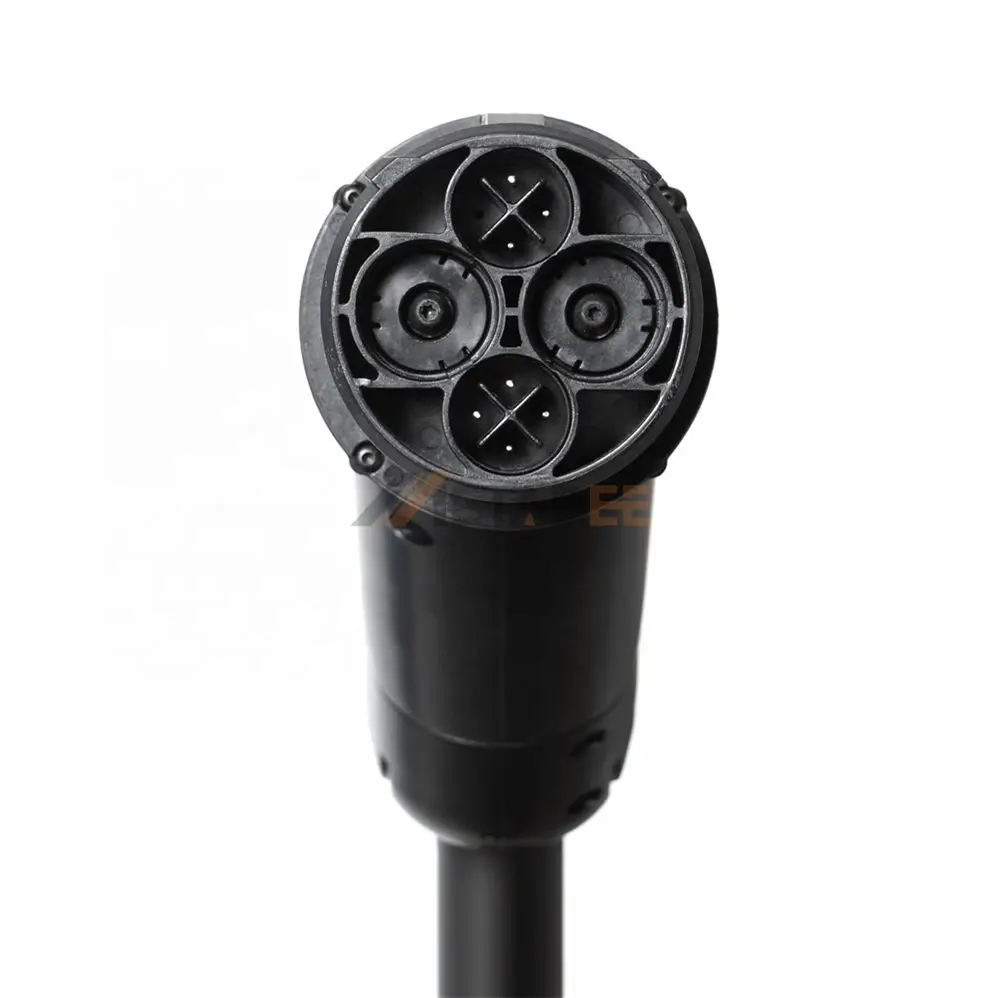

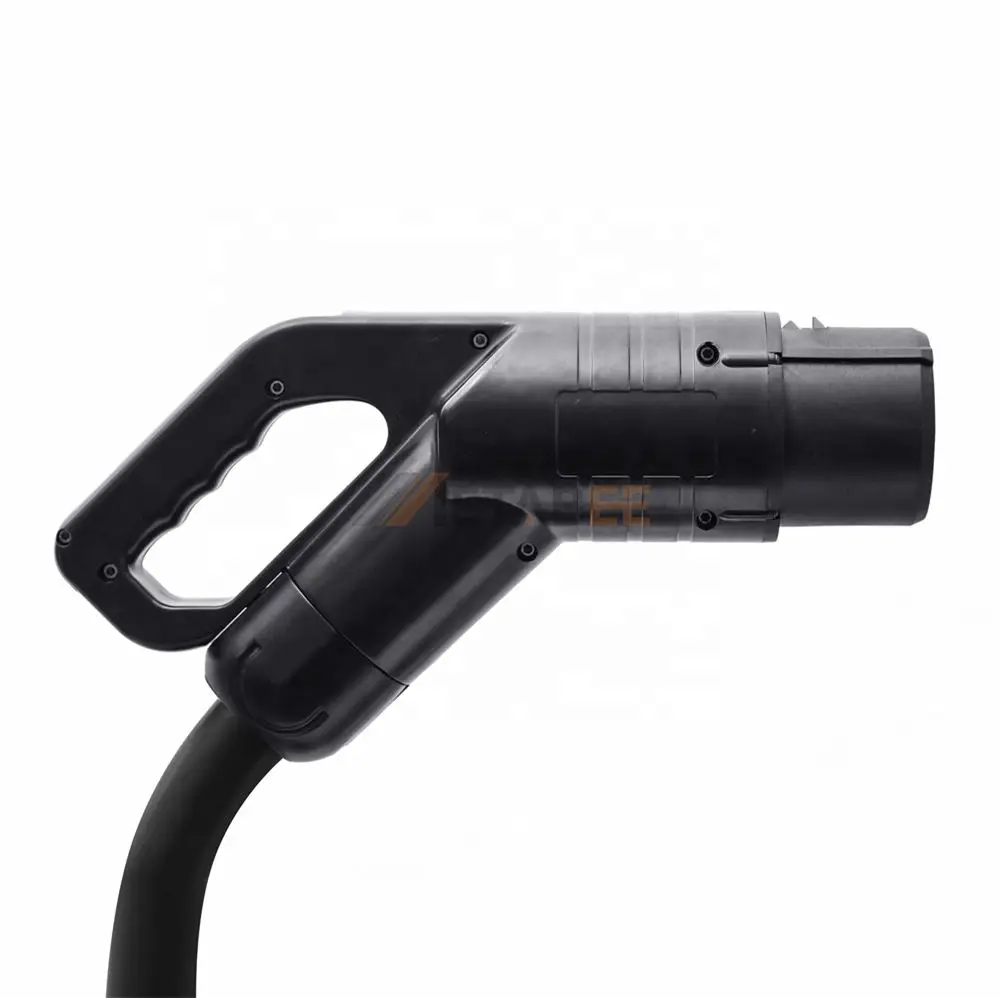

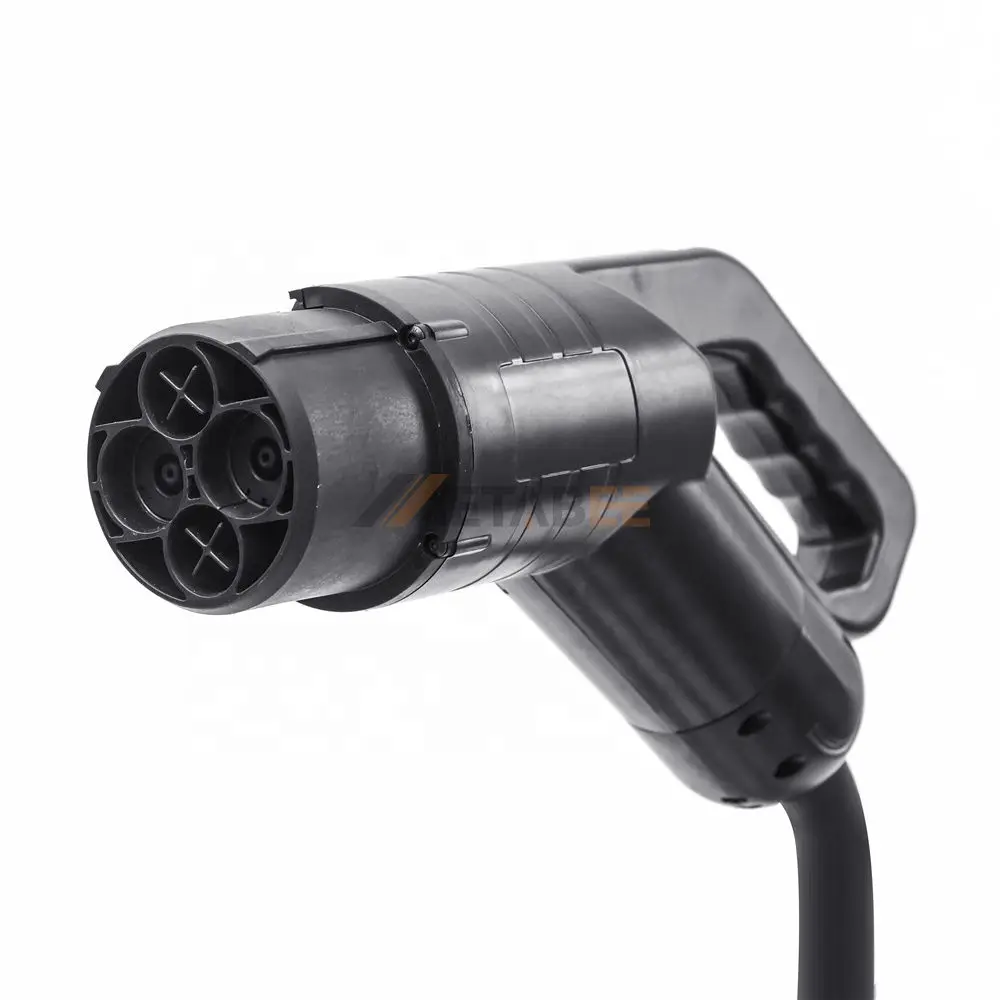

CHAdeMO DC Fast Charger for EV, Plug, Single Phase, 1000V, 125A
Introduction
Experience high-efficiency electric vehicle charging with our premium CHAdeMO Standard DC Fast Charging Connector. Engineered for durability and performance, this single-phase DC plug is designed to meet the rigorous demands of modern EV infrastructure. The connector features a high-grade thermoplastic shell and silver-plated copper alloy contacts, ensuring superior electrical conductivity and thermal stability during high-power sessions.
Built to withstand harsh environments, this plug boasts an IP65 weatherproof rating and a UL94V-0 flame-retardant housing. With a maximum charging capacity of 65kW, it provides a reliable and safe connection for rapid energy transfer. Whether for public charging stations or private fleet use, this connector ensures consistent performance across a wide temperature range of -30°C to 50°C.
Key Features:
- High Power Output: Supports up to 1000V and 125A for a 65kW max charging rate.
- CHAdeMO Standard: Fully compliant with global DC fast-charging protocols.
- Premium Contacts: Silver-plated copper alloy for minimal resistance and maximum life.
- Rugged Durability: IP65-rated protection against dust and high-pressure water jets.
- Enhanced Safety: UL94V-0 certified flame-retardant thermoplastic materials.
- Extreme Resilience: Operates reliably in temperatures from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-CHA-EV125P | |
| Product Series: | CHAdeMO Standards DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | CHAdeMO | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 2*70mm²+9*0.5mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 125A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 65kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
CHAdeMO Standards DC
CHAdeMO Standards DC Charging Connectors:
Applications of this CHAdeMO DC Fast Charger for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
