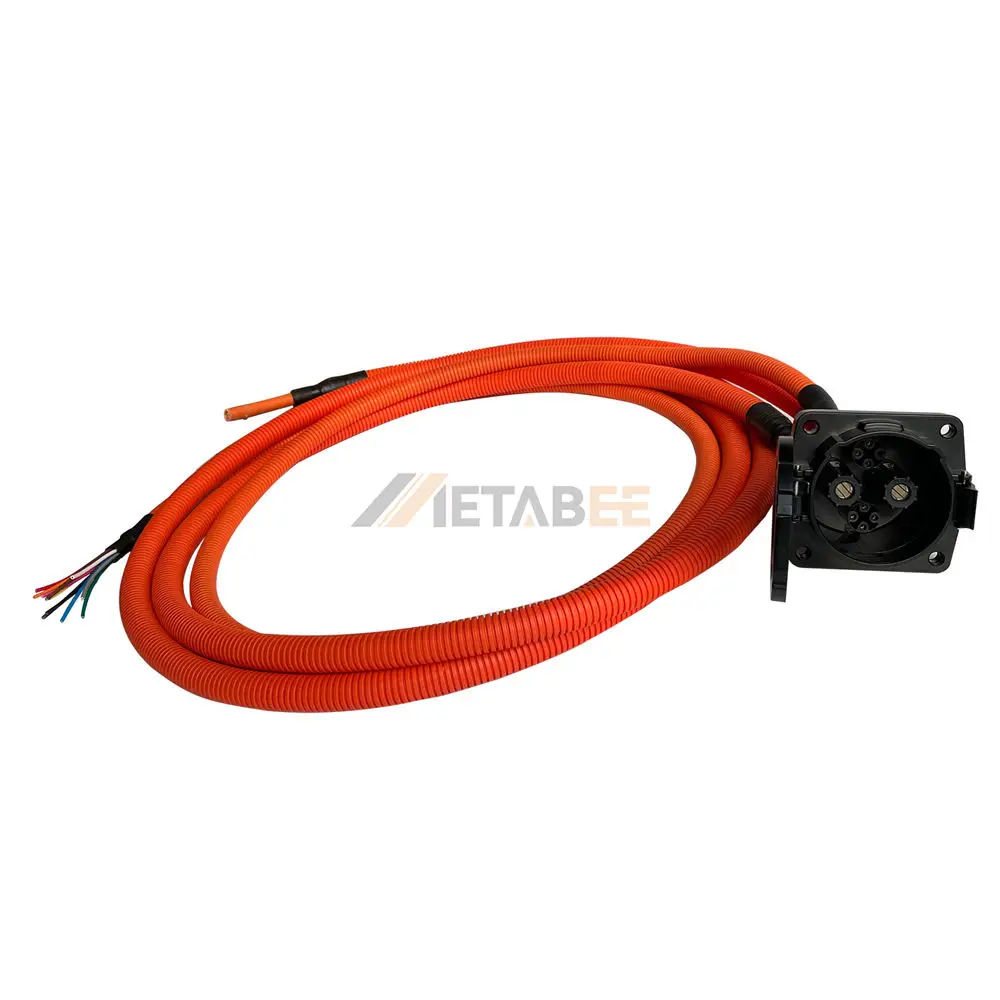

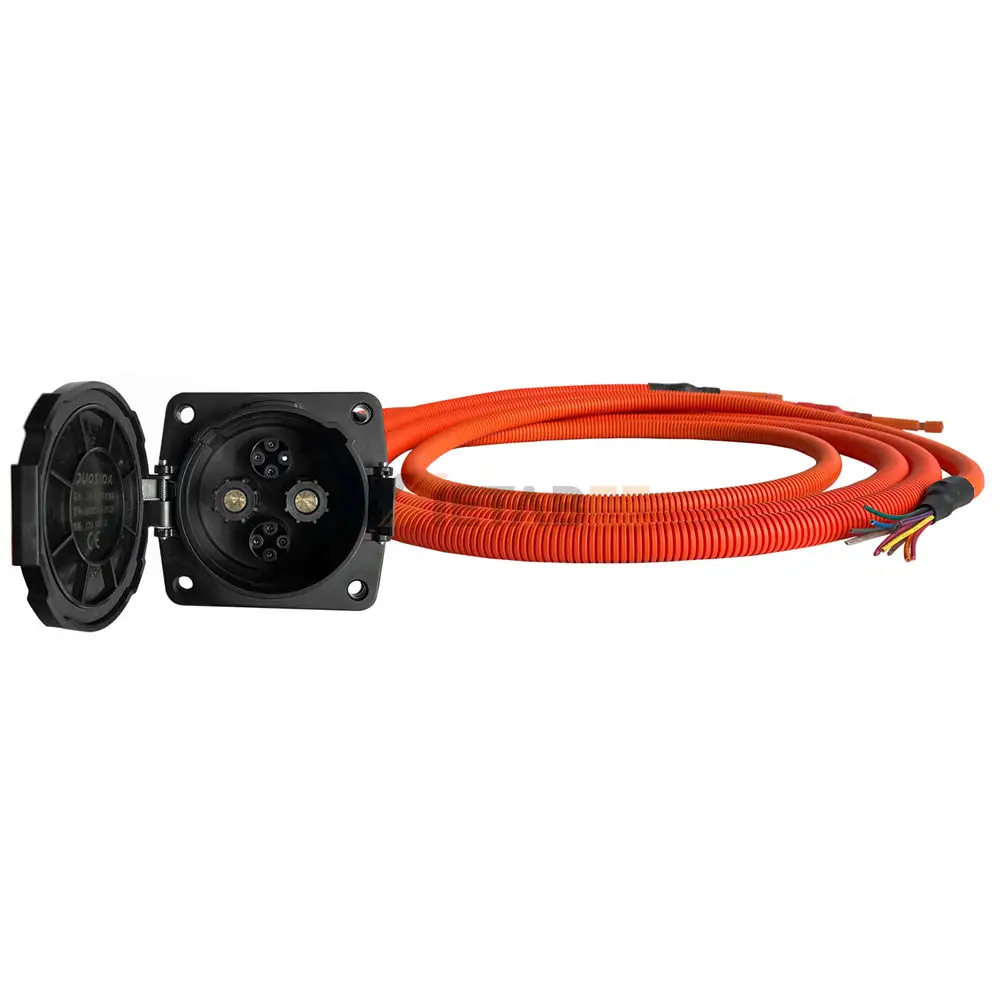

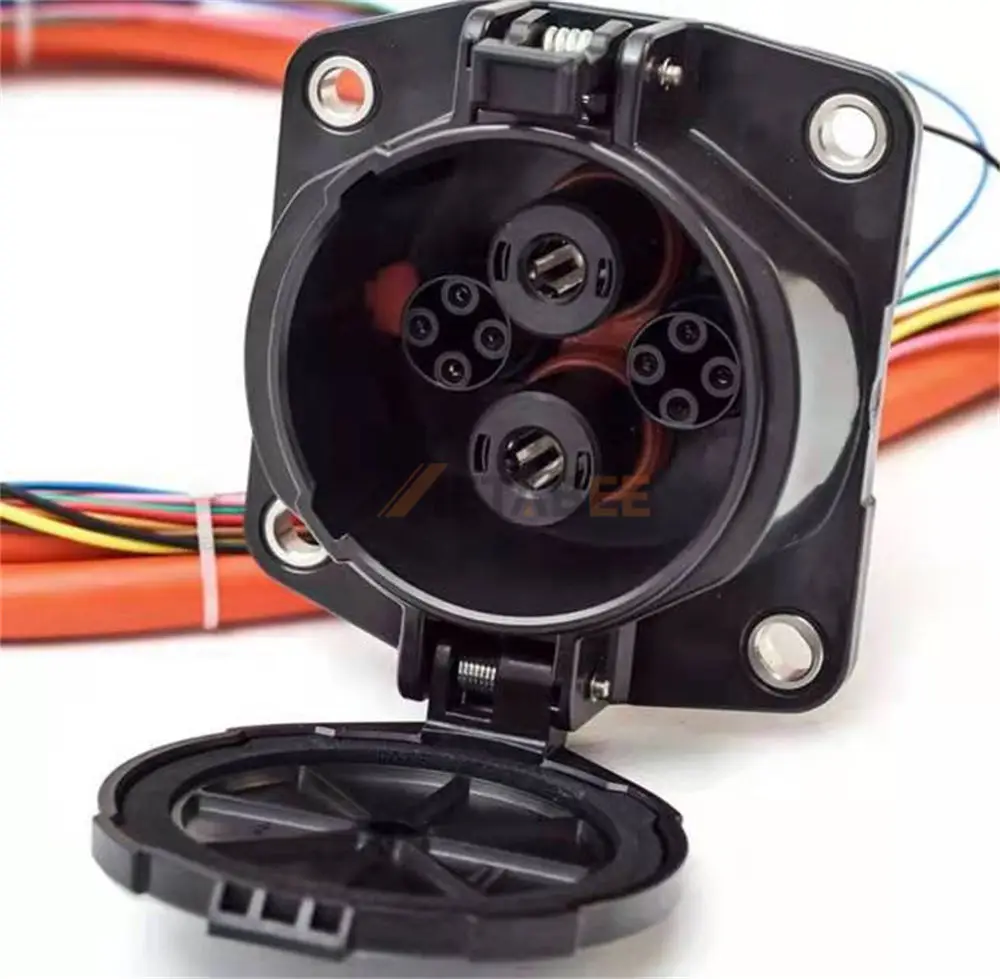

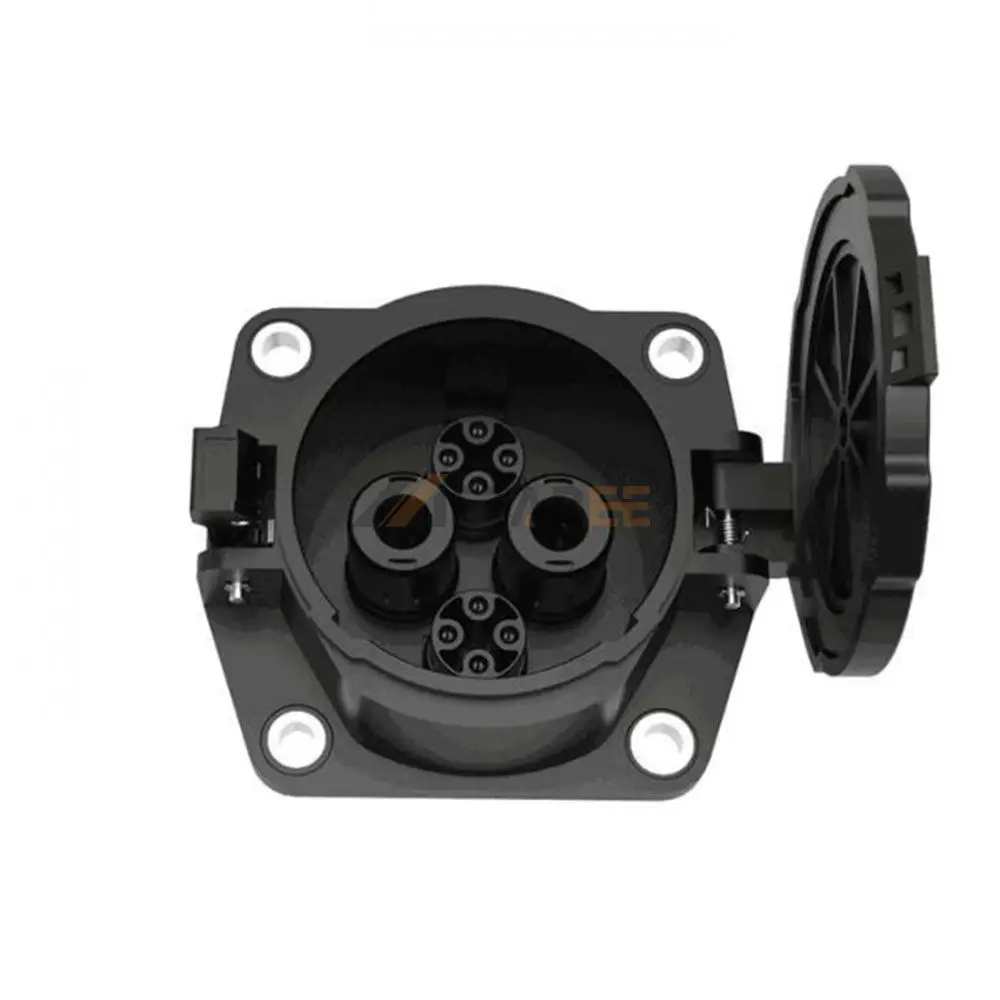

CHAdeMO DC Fast Charging Socket for Electric Vehicle, Single Phase, 1000V, 125A
Introduction
This CHAdeMO DC fast charging socket is engineered for high-performance electric vehicle charging applications requiring reliability, safety, and global compatibility. Designed in compliance with CHAdeMO standards, it supports single-phase DC charging up to 1000V and 125A, delivering a maximum charging power of 65 kW. The socket configuration ensures secure mating and stable current transmission in demanding fast-charge environments.
The connector housing is manufactured from high-strength thermoplastic, providing excellent mechanical durability and thermal stability. Copper alloy contacts with silver-plated surfaces reduce contact resistance, enhance conductivity, and ensure long service life under high current loads. With an IP65 protection rating and UL94 V-0 flame retardancy, this connector is suitable for outdoor and commercial EV charging infrastructure.
Designed to operate reliably in harsh conditions, the connector maintains stable performance across a wide temperature range from -30 °C to +50 °C, making it ideal for fast-charging stations, fleet depots, and public EV charging systems.
Key Features:
- CHAdeMO standard DC fast charging socket
- Rated voltage 1000V, rated current 125A
- Maximum charging power up to 65 kW
- Silver-plated copper alloy contacts for low resistance
- IP65 protection and UL94 V-0 flame retardant housing
- Operating temperature range: -30 °C to +50 °C
Main Specifications:
General Information:
| Part No.: | YC-CHA-EV125s | |
| Product Series: | CHAdeMO Standards DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | CHAdeMO | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 2*70mm²+9*0.5mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 125A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 65kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |

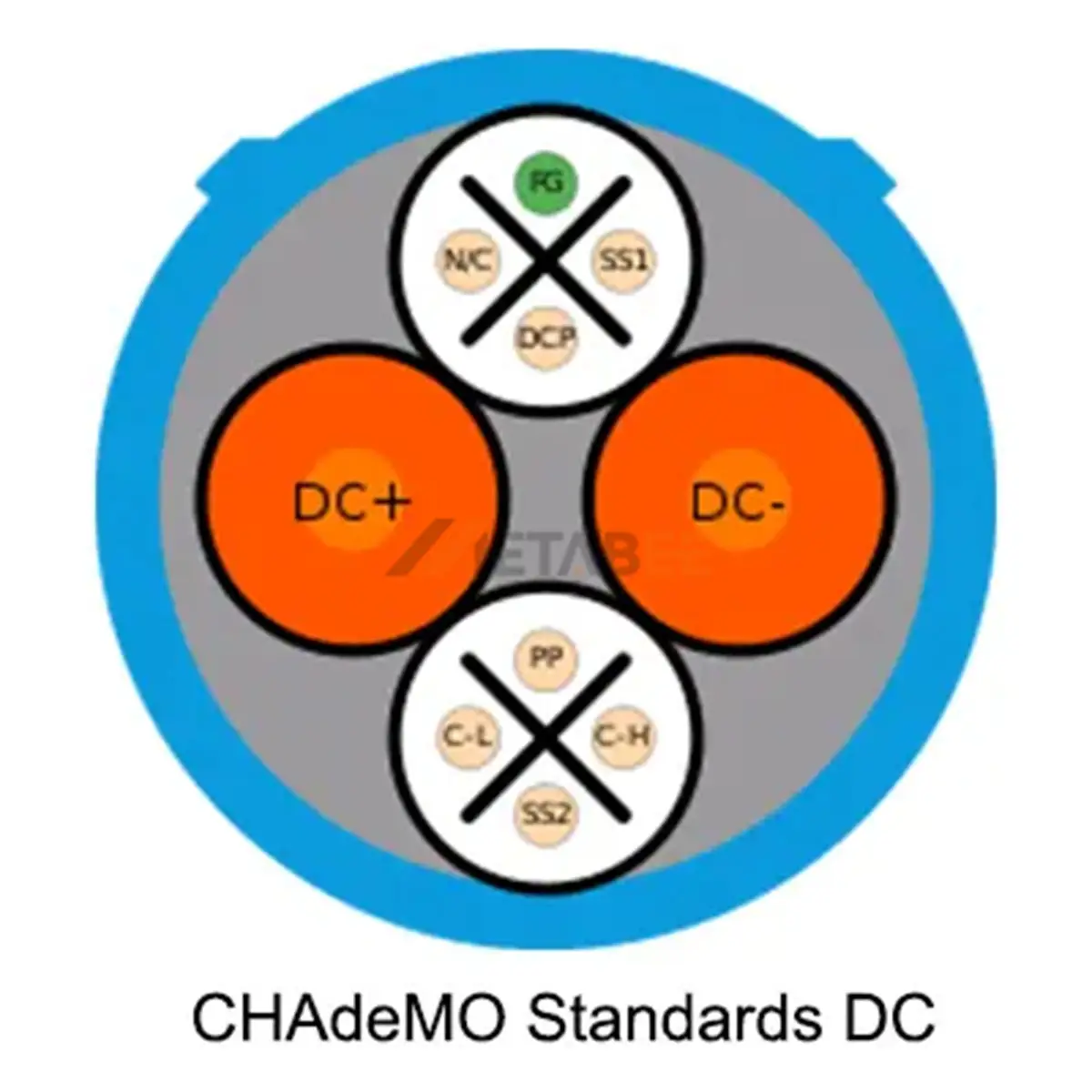

CHAdeMO Standards DC

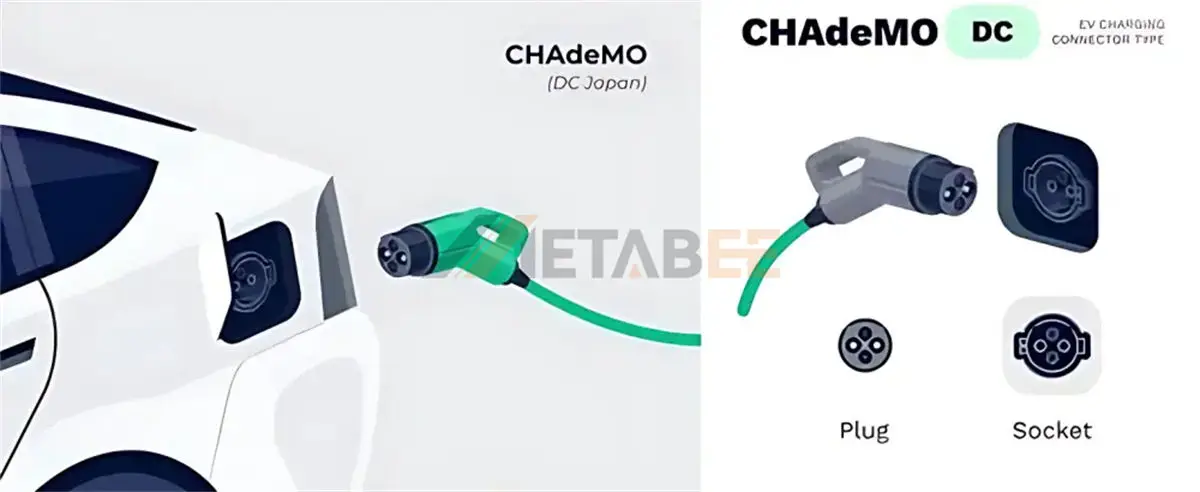

CHAdeMO Standards DC Charging Connectors:
Applications of this CHAdeMO DC Fast Charger for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
