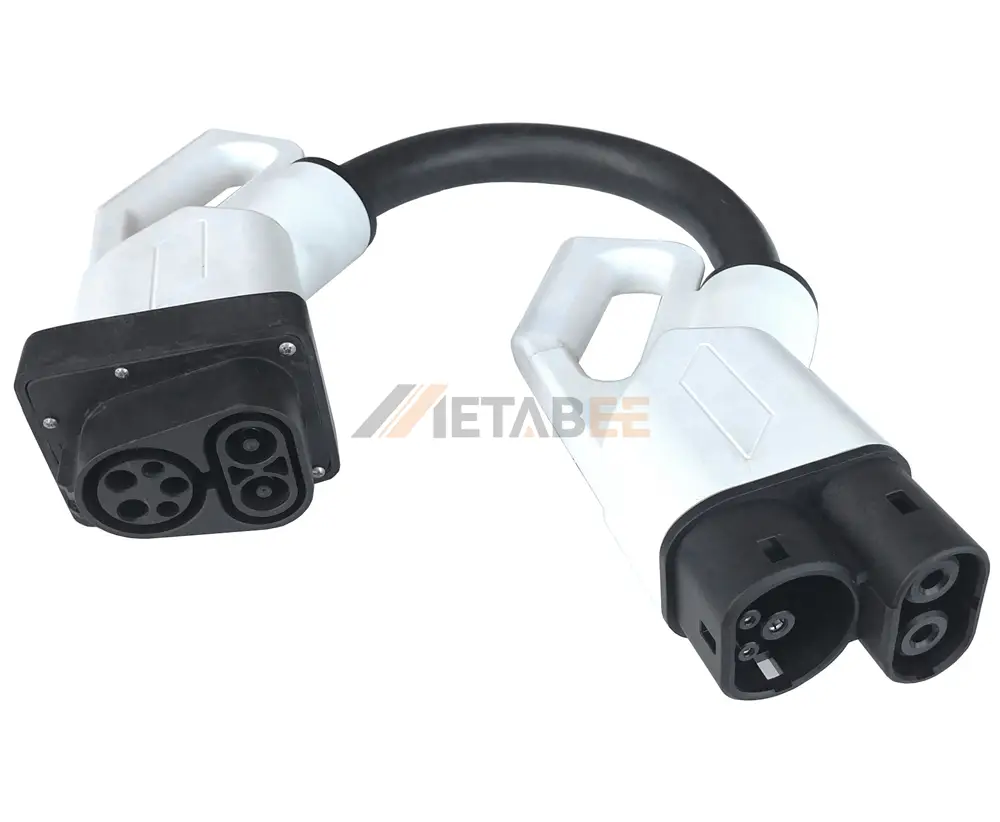

CCS COMBO 2 Plug to CCS COMBO 1 Socket DC Fast Adapter for EV, 1000V, 150A
Introduction
Break down charging barriers and expand your EV’s compatibility with this high-performance CCS adapter. Engineered to the IEC 62196-3 standard for single-phase DC charging, it allows vehicles with a CCS Combo 2 (CCS2) inlet to charge seamlessly at DC fast charging stations equipped with a CCS Combo 1 (CCS1) connector.
Built for robustness and safety, the adapter features a thermoplastic housing with IP65 dust and water resistance. Its silver-plated copper alloy contacts ensure optimal conductivity and minimal energy loss. Rated for 1000V, 150A, and a maximum power of 127.5kW, it operates reliably in temperatures from -30°C to 50°C. The construction meets the stringent UL94 V-0 flame-retardant rating.
Key Features:
- Converts CCS2 Plug to CCS1 Socket for DC Fast Charging
- IEC 62196-3 Compliant for Single-Phase DC Power
- High-Capacity 1000V / 150A, Max 127.5kW Rating
- Durable IP65-Rated Thermoplastic Housing
- Silver-Plated Copper Alloy Contacts for Efficiency
- Safe & Reliable: UL94 V-0 Flame-Retardant, -30°C to 50°C Operating Range
Main Specifications:
General Information:
| Part No.: | YC-CCS2P-CCS1S-150A-0.2C | |
| Product Series: | EV Charging Adapters | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 150A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 127.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Connector Adapter
There are currently four DC fast plugs: CHAdeMO, SAE Combo (CCS), GB (Guobiao from China), and the Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations.
Applications of this CCS COMBO 2 Plug to CCS COMBO 1 Socket DC Fast Adapter:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
