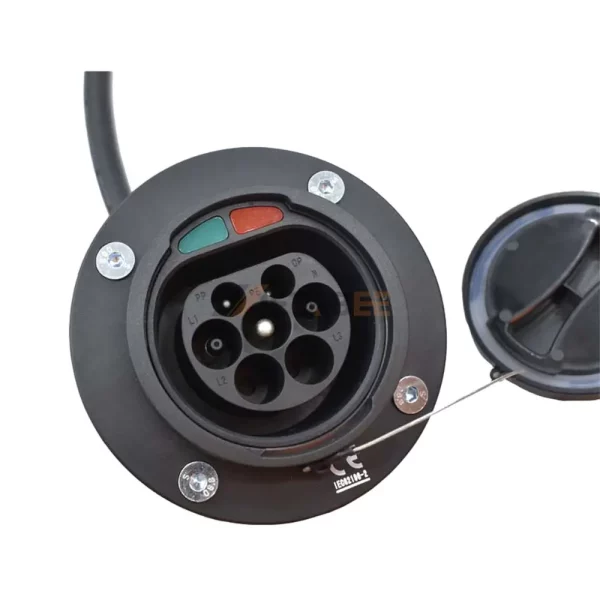

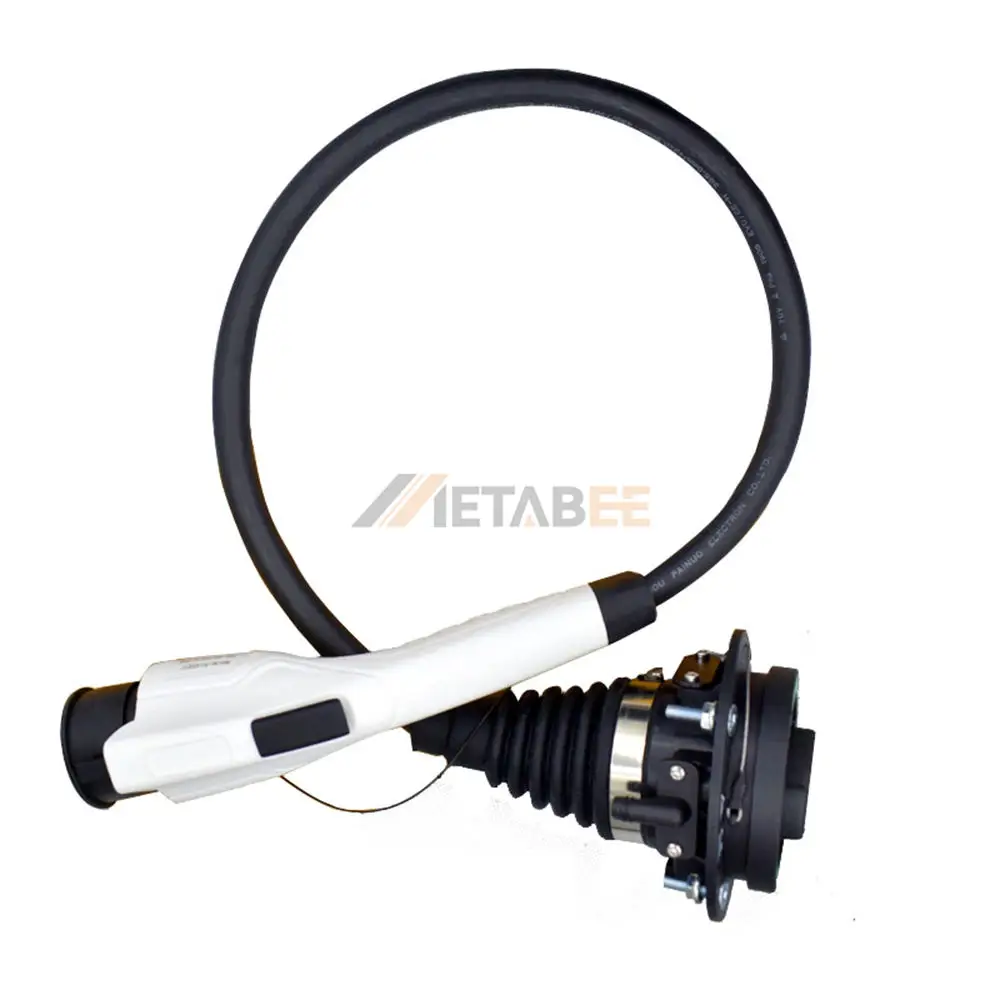

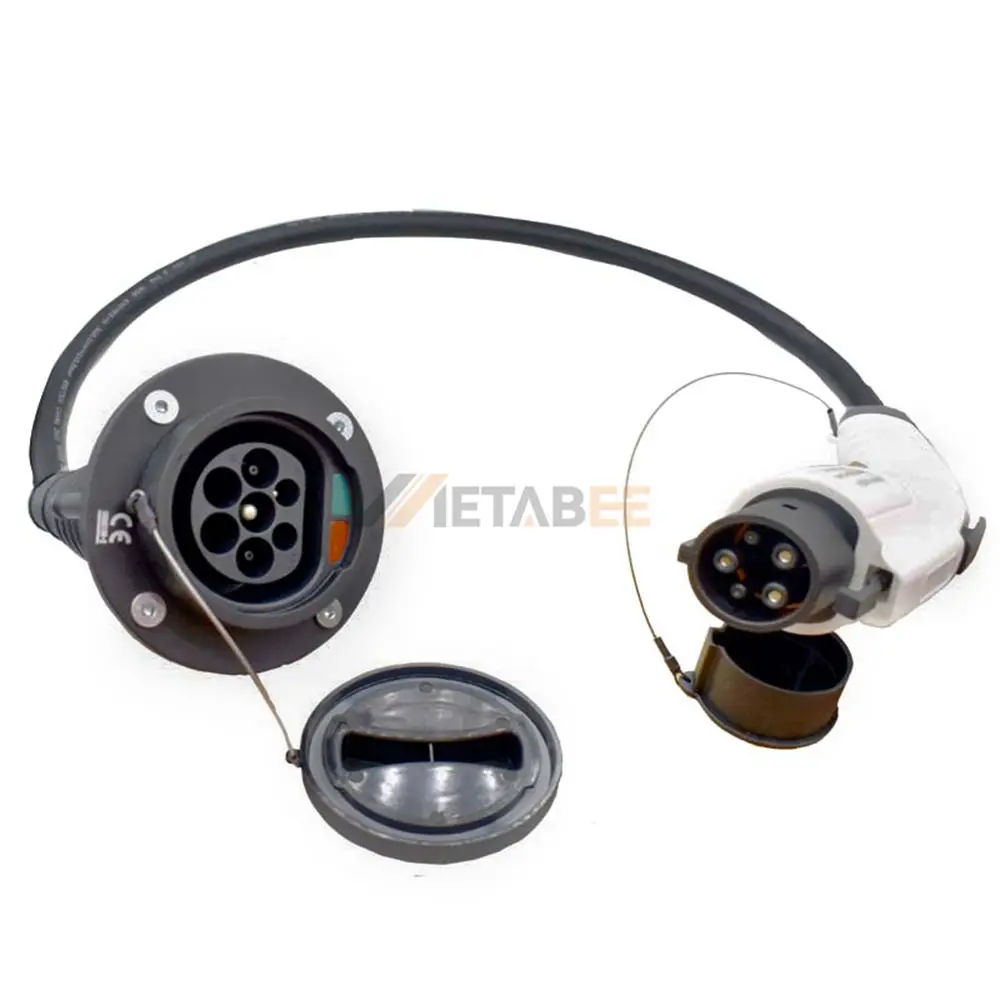

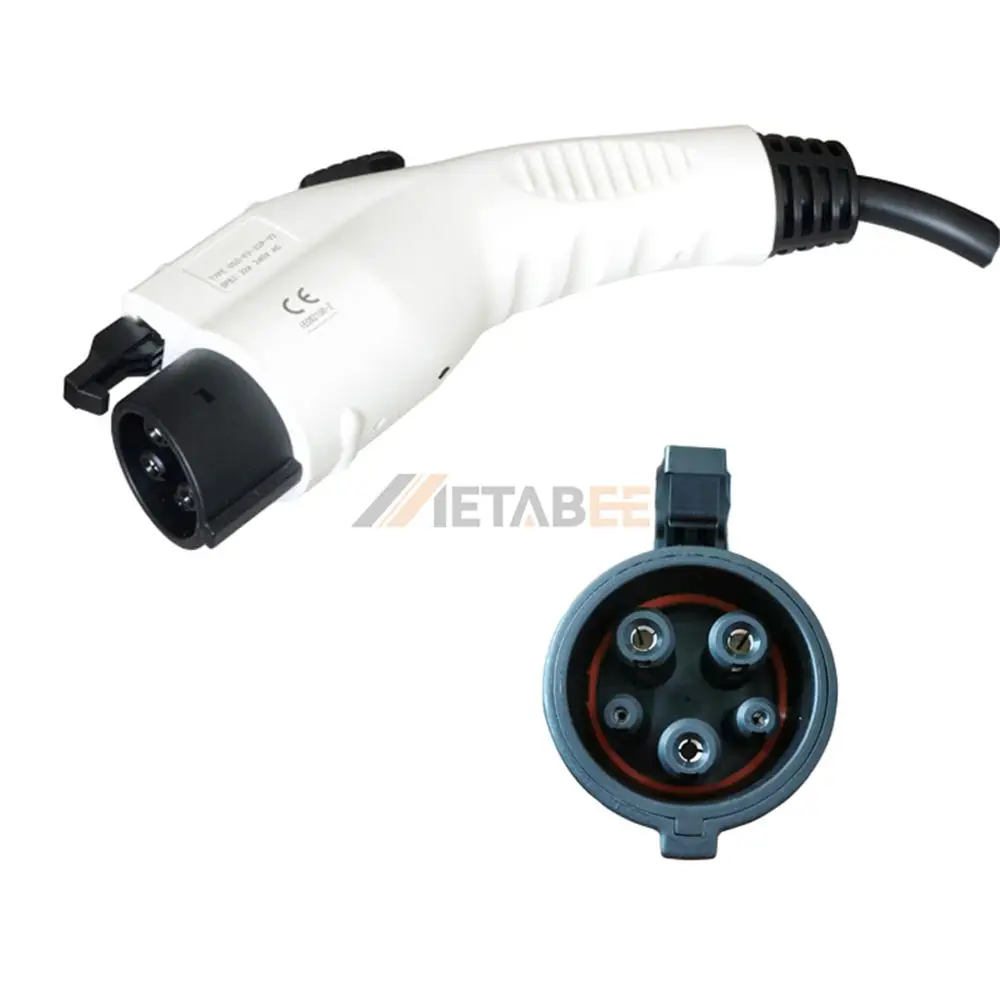

SAE J1772 Type 1 Plug to IEC 62196-2 Type 2 Socket AC EV Charging Adapter, 250V, 16A
Introduction
This SAE J1772 Type 1 Plug to IEC 62196-2 Type 2 Socket AC EV Charging Adapter is engineered to facilitate seamless compatibility between electric vehicles and charging infrastructure. Designed for single-phase AC charging, this adapter effectively bridges the gap between J1772 Type 1 inlets and IEC 62196-2 Type 2 charging points, ensuring broad accessibility for EV users. It is rated for 250V and 16A, providing a reliable and consistent power flow.
Constructed from a robust thermoplastic housing, this adapter features silver-plated copper alloy contacts to ensure optimal electrical conductivity and durability under various operating conditions. Compliant with both IEC 62196-3 and SAE J1772 charging standards, it supports a maximum charging power of 8 kW. The unit exhibits an IP65 protection rating against ingress, a UL94V-0 flame retardant classification for enhanced safety, and operates efficiently within a temperature range of -30°C to 50°C.
Key Features:
- Broad Compatibility: Connects J1772 Type 1 EVs to IEC 62196-2 Type 2 AC charging stations.
- Efficient AC Charging: Delivers consistent 250V, 16A power with an 8 kW maximum output.
- Dual Standard Compliance: Meets both IEC 62196-3 and SAE J1772 charging protocols.
- Durable Construction: Features thermoplastic housing and silver-plated copper alloy contacts for longevity.
- Environmental Resilience: IP65 rated for superior dust and water resistance.
- Certified Safety: UL94V-0 flame retardant for enhanced operational security.
Main Specifications:
General Information:
| Part No.: | YC-SAEP-IECS-16A-0.5C | |
| Product Series: | EV Charging Adapters | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 / SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Connector Adapter
There are currently four DC fast plugs: CHAdeMO, SAE Combo (CCS), GB (Guobiao from China), and the Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations.
Applications of this SAE J1772 Socket to IEC 62196-2 Plug AC Adapter, EV Charging, 250V, 32A:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
