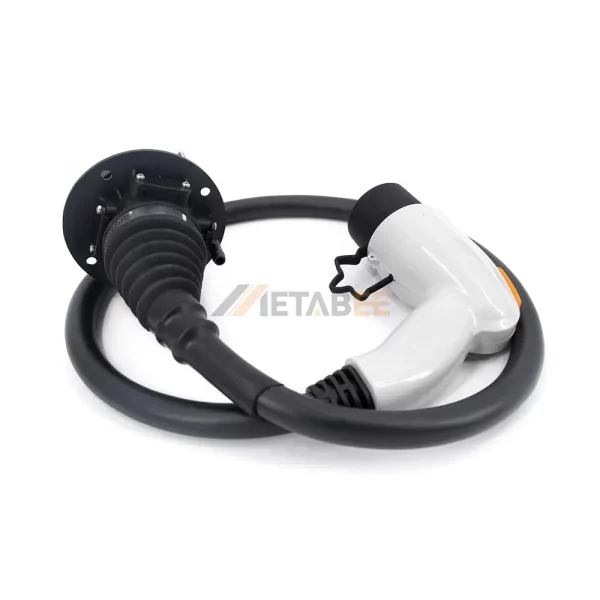

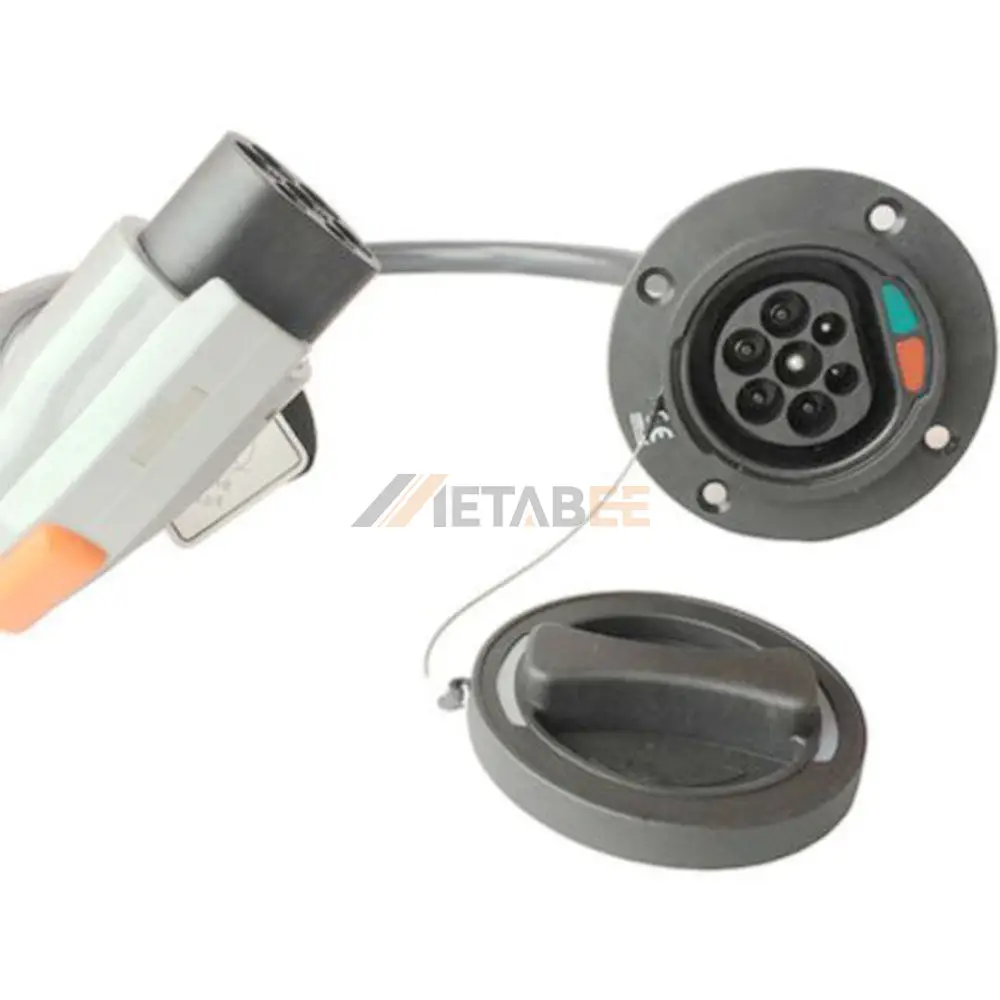

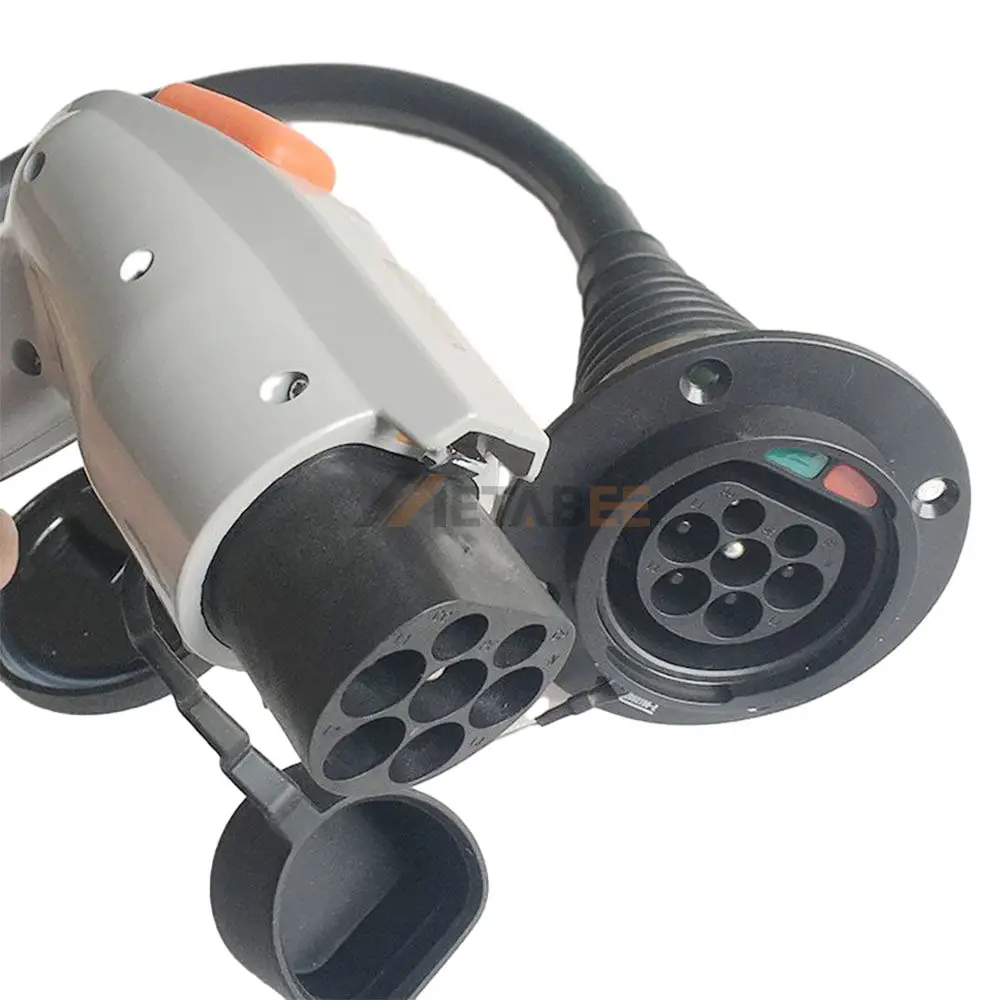

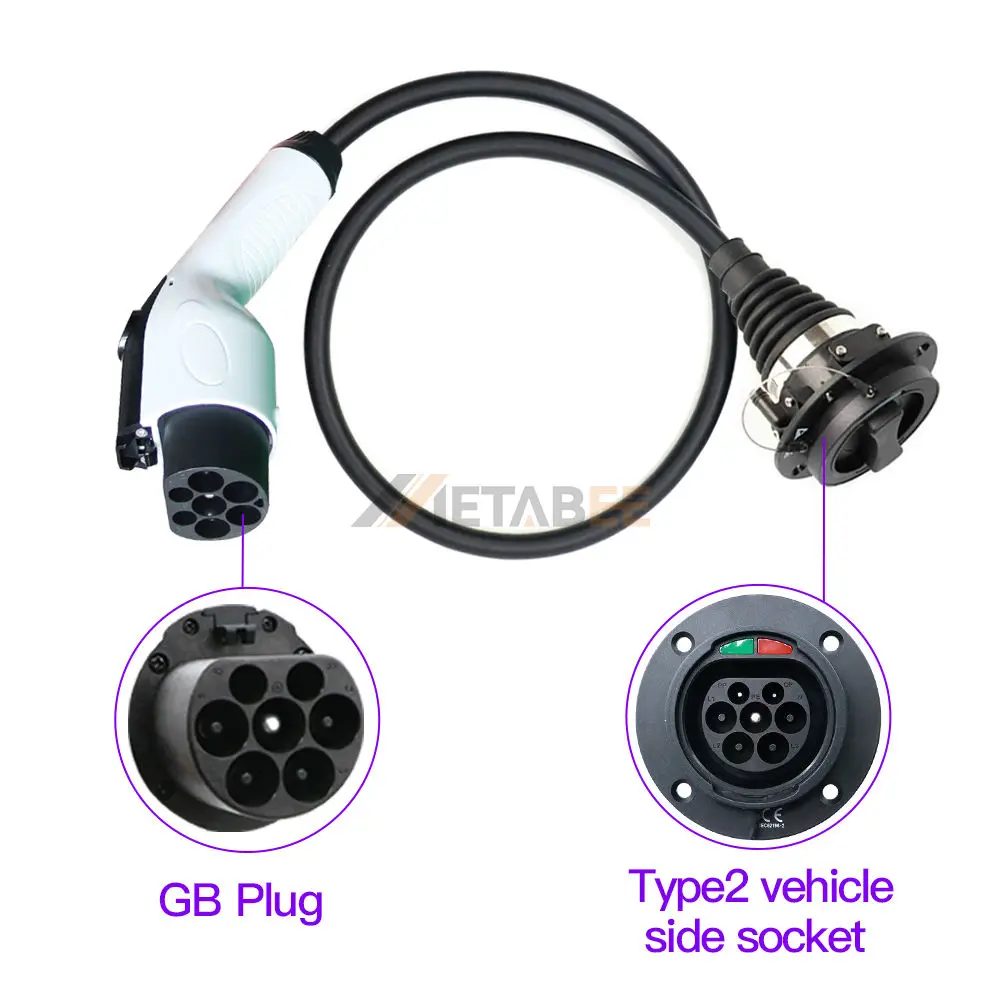

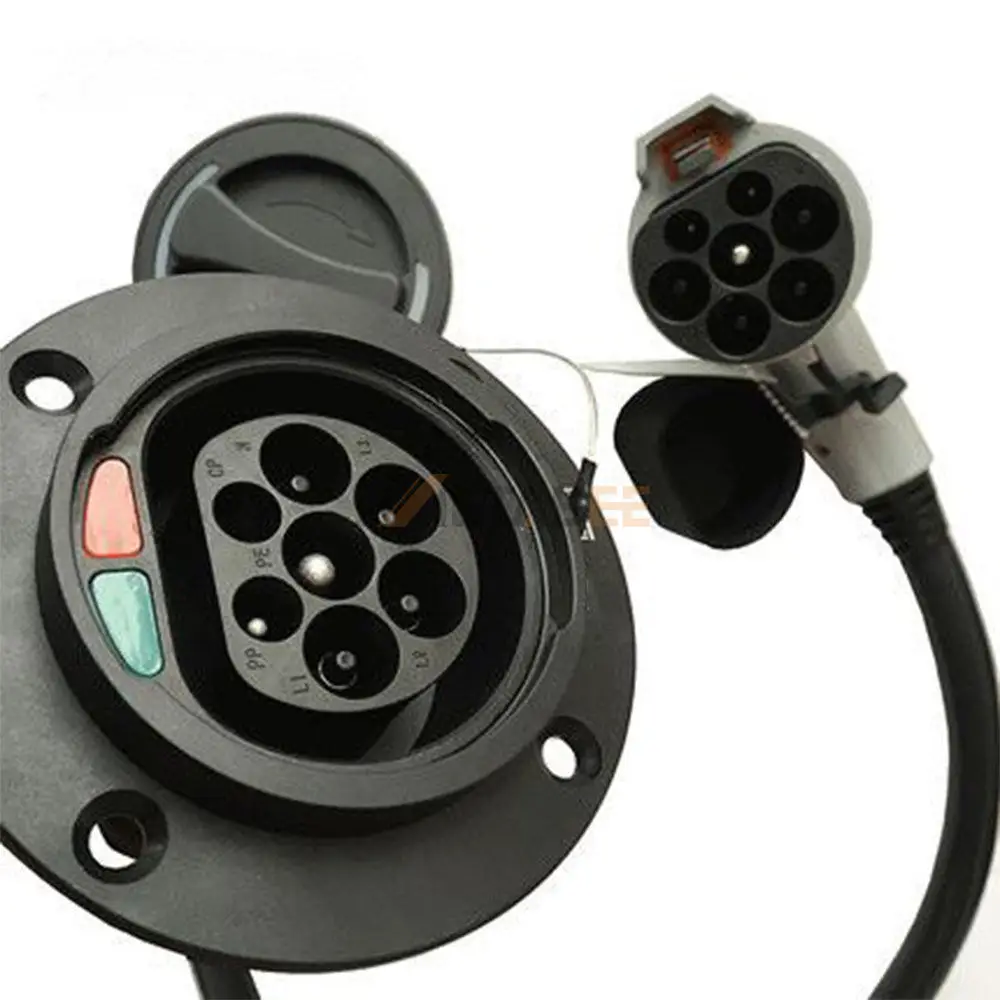

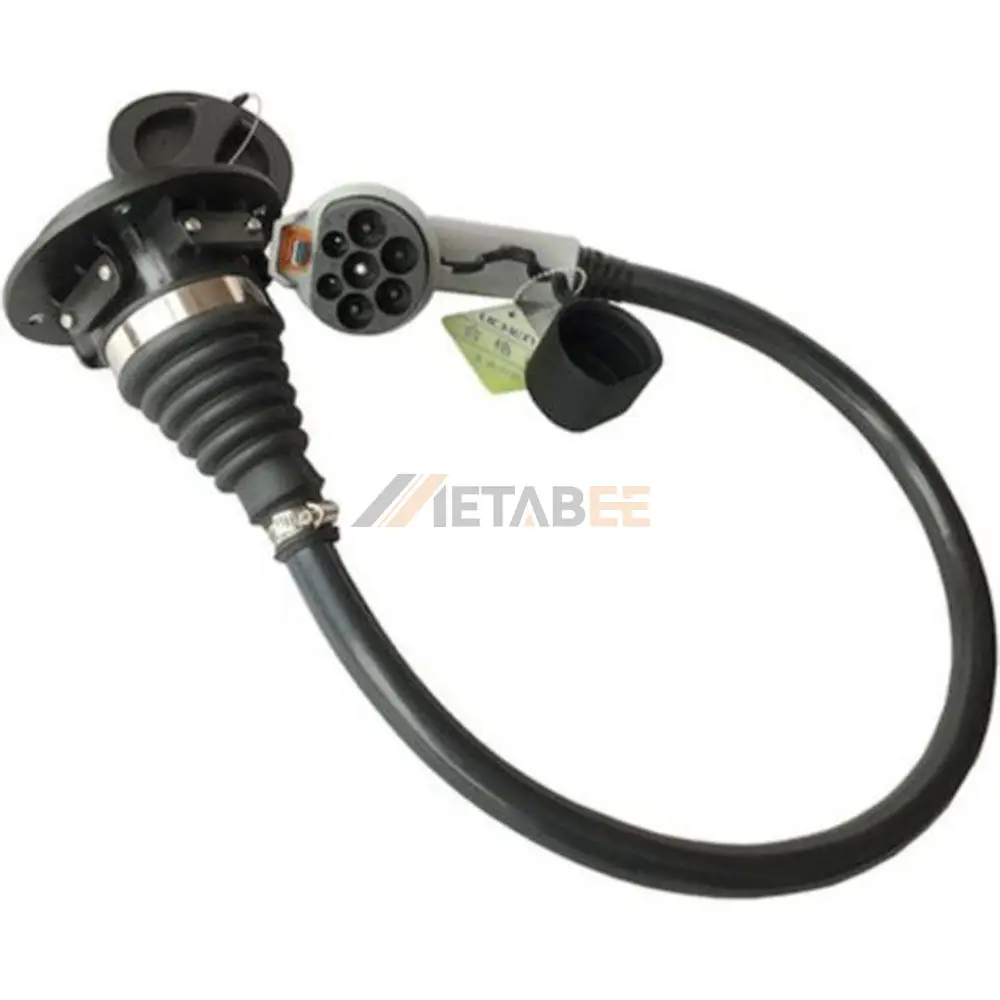

IEC 62196-2 Type 2 Socket to GB/T Plug AC Charging Adapter for EV, 250V, 32A
Introduction
Elevate your electric vehicle charging capabilities with our IEC 62196-2 Socket to GB/T Plug AC Charging Adapter. This essential accessory enables seamless interoperability, allowing vehicles equipped with GB/T charging ports to utilize IEC 62196-2 (Type 2) infrastructure. Engineered for efficient single-phase AC charging, the adapter handles a substantial 250V and 32A current, facilitating up to 8kW of power delivery to minimize charging times.
Constructed with a robust thermoplastic housing and utilizing silver-plated copper alloy contacts, this adapter guarantees superior conductivity and prolonged durability under rigorous use. Its design adheres to stringent safety standards, featuring an IP65 ingress protection rating for resistance against dust and water, and a UL94V-0 flammability rating. Reliable performance is maintained across a broad operational temperature range of -30°C to 50°C, ensuring consistent functionality in varied environmental conditions.
Key Features:
- Broad Compatibility: Connects IEC 62196-2 (Type 2) sockets to GB/T plugs.
- High Power Output: Delivers 250V, 32A, and up to 8kW for efficient AC charging.
- Premium Construction: Thermoplastic housing with silver-plated copper alloy contacts.
- Environmental Resilience: IP65 rating ensures dust and water resistance.
- Enhanced Safety: UL94V-0 flammability class for critical protection.
- Optimal Performance: Operates reliably from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-GBTP-IECS-32A-1C | |
| Product Series: | EV Charging Adapters | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 / GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Connector Adapter
There are currently four DC fast plugs: CHAdeMO, SAE Combo (CCS), GB (Guobiao from China), and the Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations.
Applications of this IEC 62196-2 Type 2 to GB/T AC Charging Adapter:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
