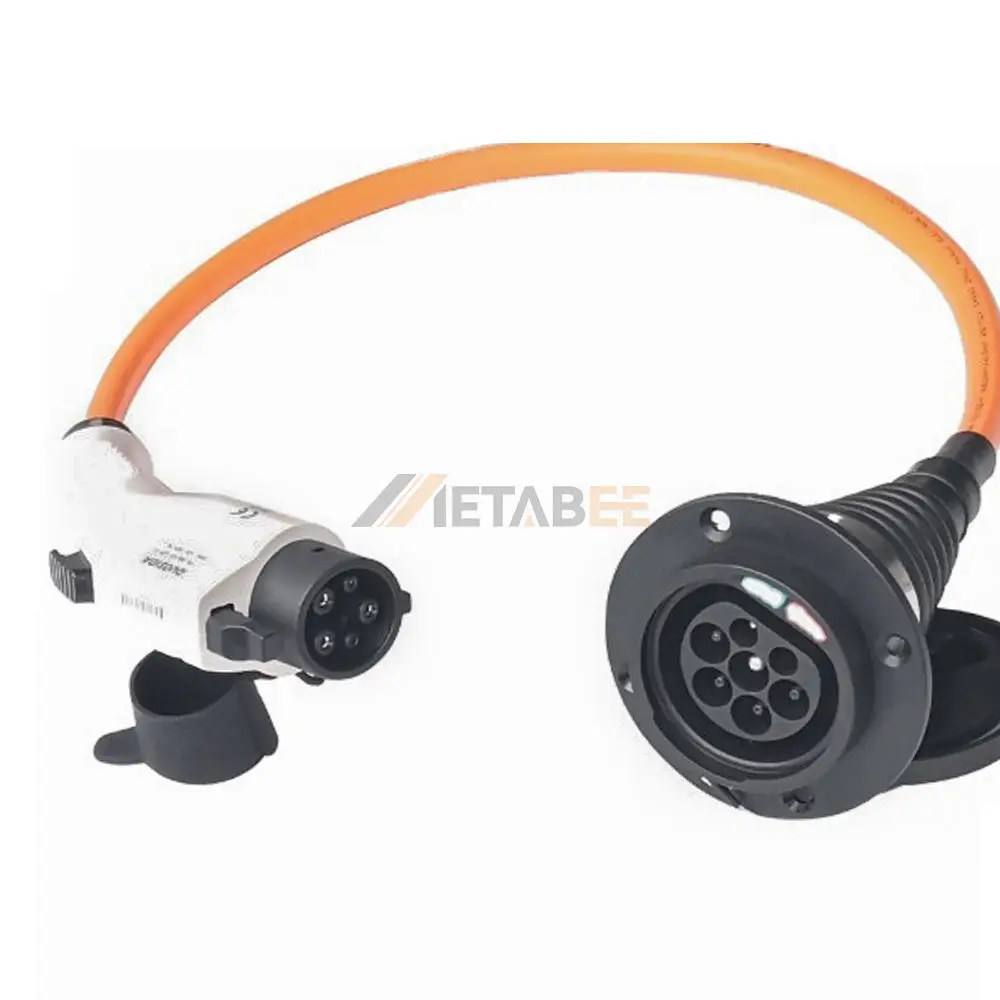

SAE J1772 Type 1 Plug to IEC 62196-2 Type 2 Socket EV Charger Adapter, AC Charging, 250V, 32A
Introduction
This SAE J1772 Type 1 Plug to IEC 62196-2 Type 2 Socket EV Charger Adapter is engineered to provide essential compatibility for electric vehicle charging infrastructure. Designed for single-phase alternating current (AC) charging, this adapter seamlessly connects vehicles equipped with a J1772 Type 1 inlet to charging stations featuring an IEC 62196-2 Type 2 outlet. It delivers a consistent 250V at 32A, ensuring efficient and reliable power transfer for AC charging requirements.
Constructed from a durable thermoplastic housing, the adapter utilizes silver-plated copper alloy contacts to ensure optimal electrical conductivity and resistance to corrosion, thus guaranteeing long-term performance and safety. Compliant with both IEC 62196-3 and SAE J1772 charging standards, it supports a maximum charging power of 8 kW. This unit is further enhanced with an IP65 protection rating for superior dust and water resistance, a UL94V-0 flame retardant classification, and operates reliably across an extensive temperature range from -30°C to 50°C.
Key Features:
- Universal AC Compatibility: Enables connection between SAE J1772 Type 1 EVs and IEC 62196-2 Type 2 charging points.
- High Current Capacity: Supports 250V at 32A, facilitating efficient AC charging up to 8 kW.
- Dual Standard Compliance: Adheres to both IEC 62196-3 and SAE J1772 charging protocols.
- Robust Material Construction: Features a thermoplastic housing and silver-plated copper alloy contacts for durability.
- Environmental Protection: IP65 rated, offering significant resistance to dust and water ingress.
- Advanced Safety Features: UL94V-0 flame retardant for enhanced operational security.
Main Specifications:
General Information:
| Part No.: | YC-SAEP-IECS-32A-0.5C | |
| Product Series: | EV Charging Adapters | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 / SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |

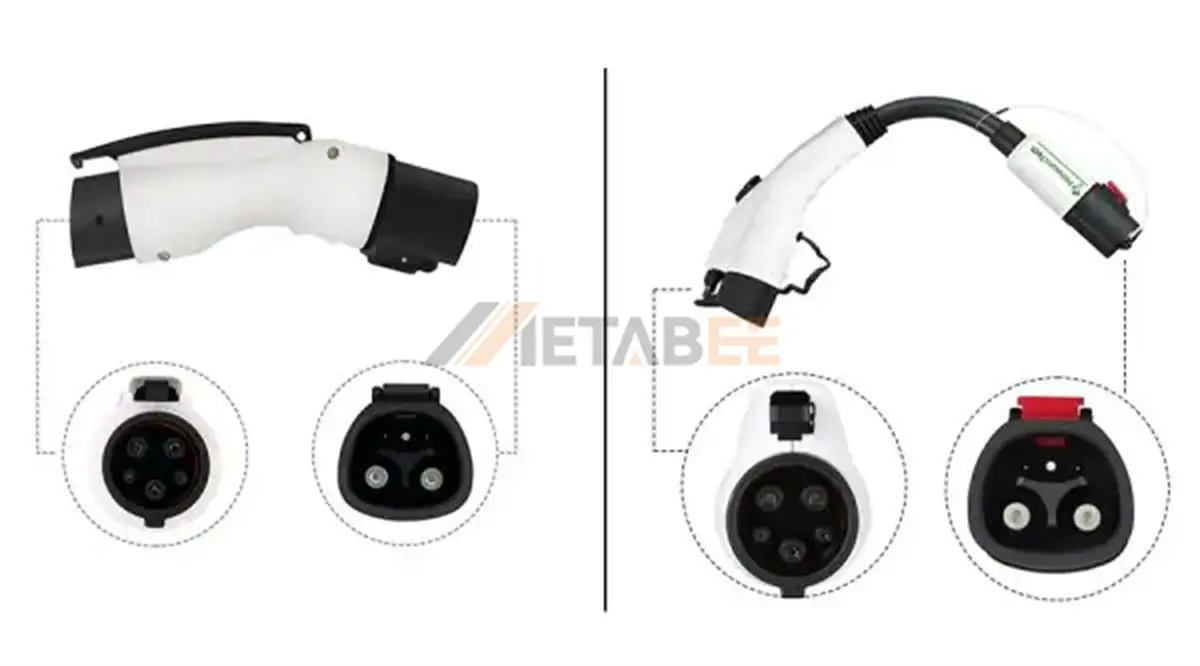

EV Charging Connector Adapter

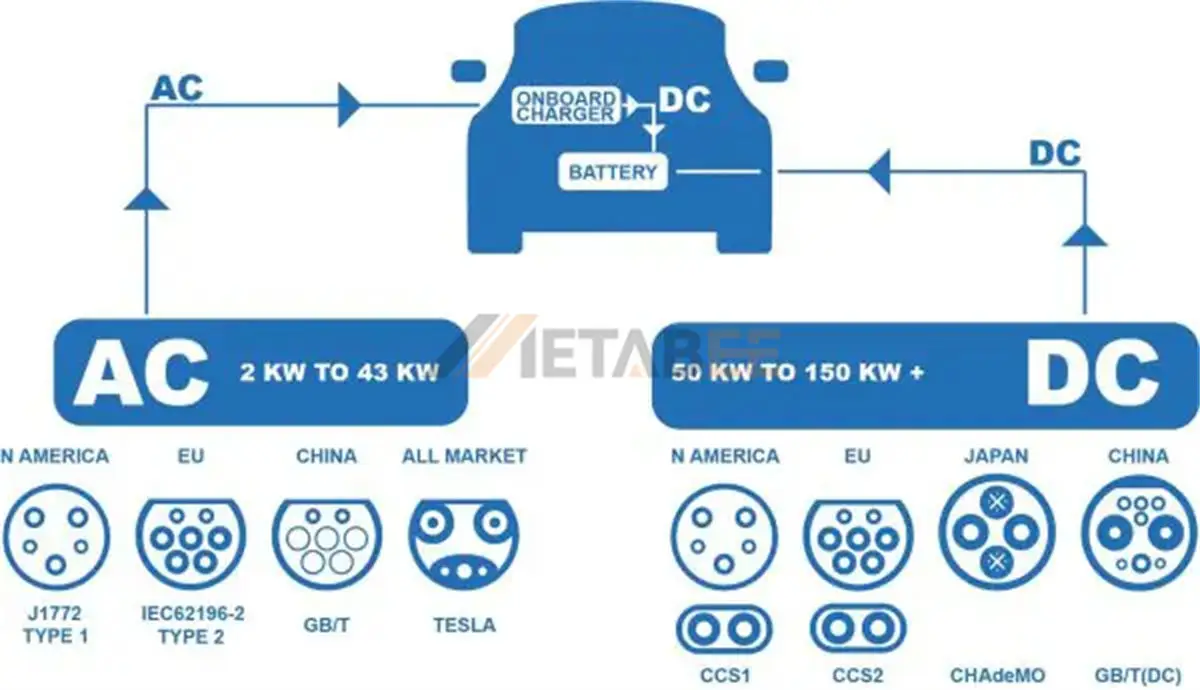

There are currently four DC fast plugs: CHAdeMO, SAE Combo (CCS), GB (Guobiao from China), and the Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations.
Applications of this SAE Type 1 Plug to IEC Type 2 Socket EV Charger Adapter:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
