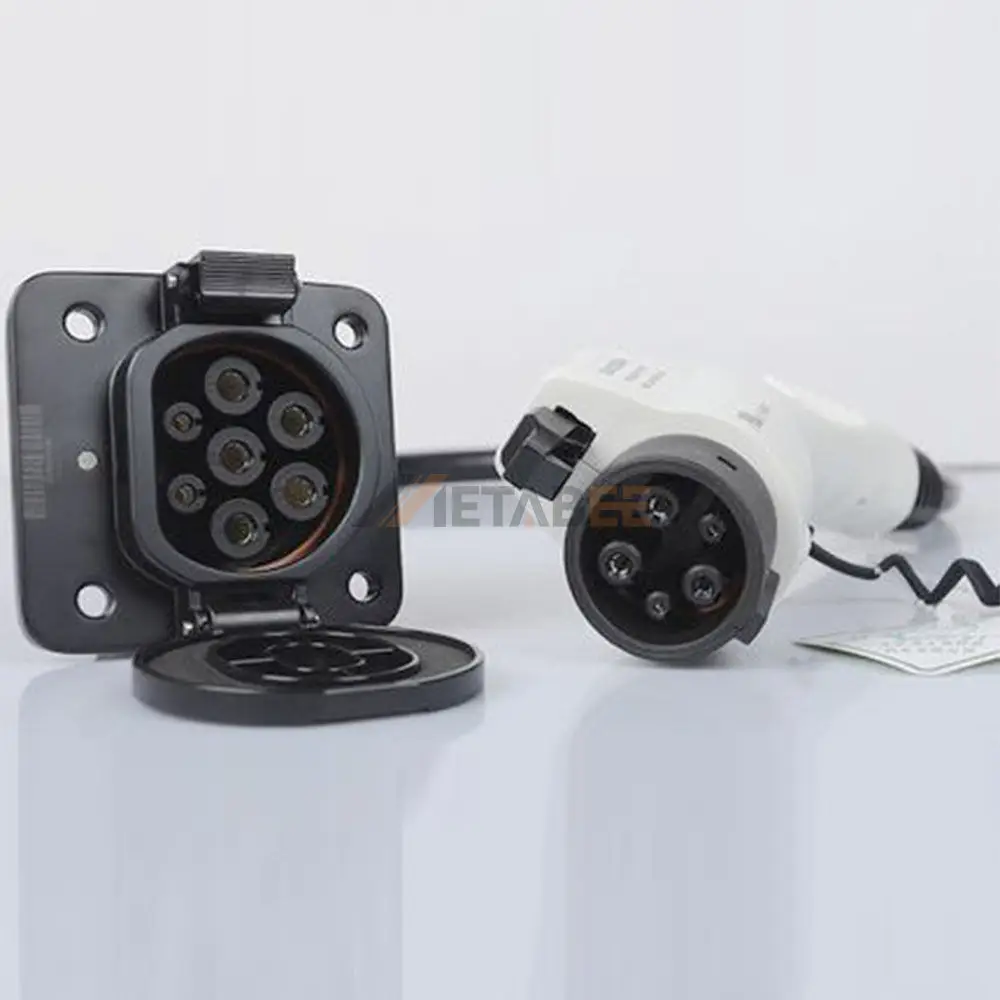

SAE J1772 Plug to GB/T Socket EV Charger Adapter, 250V, 32A
Introduction
Facilitate seamless electric vehicle charging with our SAE J1772 Plug to GB/T Socket EV Charger Adapter. Designed to bridge the SAE J1772 standard with the GB/T 20234.2-2015 standard, this adapter ensures compatibility for single-phase AC charging. It efficiently delivers 250V at 32A, providing a robust maximum charging power of 7kW, making it an indispensable accessory for diverse EV charging infrastructures.
Engineered for reliability and safety, the adapter features a durable thermoplastic connector shell and silver-plated copper alloy contacts, guaranteeing optimal conductivity and extended product life. It boasts an IP65 protection rating against dust and water ingress, alongside a UL94V-0 flammability rating for enhanced user safety. This adapter performs consistently across a wide operational temperature range, from -30°C to 50°C, ensuring dependable charging in varied environmental conditions.
Key Features:
- Enhanced Compatibility: Connects SAE J1772 plugs to GB/T sockets for versatile charging.
- High-Efficiency Charging: Supports 250V, 32A, and up to 7kW for rapid AC charging.
- Durable Construction: Features thermoplastic housing and silver-plated copper alloy contacts.
- Superior Protection: IP65 rated for excellent resistance to environmental elements.
- Advanced Safety Standards: UL94V-0 flammability rating ensures operational security.
- Wide Temperature Tolerance: Reliably operates from -30°C to 50°C.
Main Specifications:
General Information:
| Product Series: | EV Charging Adapters | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 / GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 7kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Connector Adapter
There are currently four DC fast plugs: CHAdeMO, SAE Combo (CCS), GB (Guobiao from China), and the Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations.
Applications of this SAE J1772 to GB/T EV Charger Adapter:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
