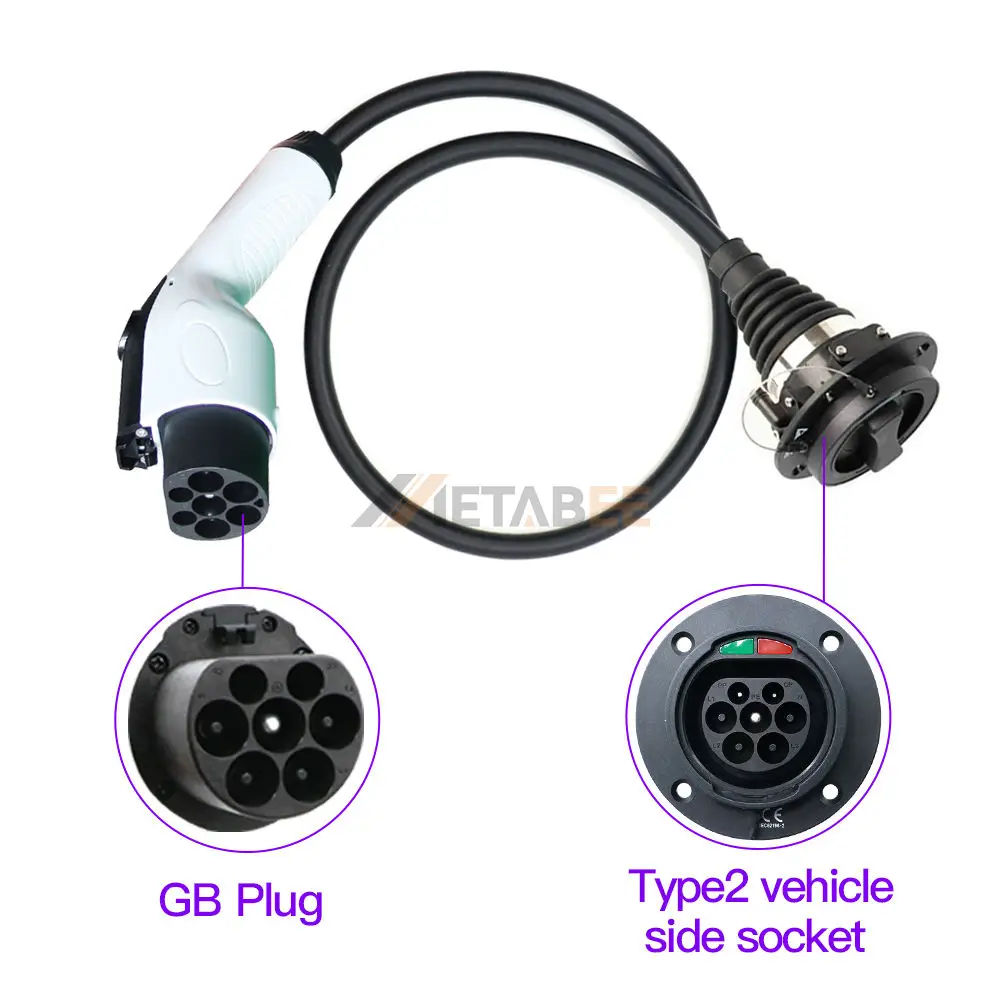

GB/T Plug to IEC 62196-2 Type 2 Socket AC Charging Adapter for EV, 250V, 16A
Introduction
Optimize your electric vehicle charging experience with our GB/T Plug to IEC 62196-2 Type 2 Socket AC Charging Adapter. Engineered for seamless compatibility, this adapter facilitates single-phase AC charging, bridging the GB/T 20234.2-2015 standard with the widely adopted IEC 62196-3/IEC 62196-2 Type 2 standard. Designed for robust performance, it supports a rated voltage of 250V and a current of 16A, delivering up to 8kW of charging power.
Constructed for durability and safety, the adapter features a thermoplastic housing and copper alloy contacts with silver plating, ensuring reliable conductivity and extended service life. With an IP65 protection rating and UL94V-0 flammability classification, it guarantees resilience in diverse environmental conditions, operating efficiently within a broad temperature range of -30°C to 50°C. This adapter is an essential component for EV owners requiring versatile and secure charging solutions.
Key Features:
- Universal Compatibility: GB/T to IEC 62196-2 (Type 2) for versatile EV charging.
- High Power Output: Supports 250V, 16A, and up to 8kW for efficient AC charging.
- Robust Construction: Thermoplastic housing and silver-plated copper alloy contacts ensure durability.
- Advanced Protection: IP65 rated for dust and water resistance.
- Enhanced Safety: UL94V-0 flammability rating.
- Wide Operating Range: Functions reliably from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-GBTP-IECS-16A-1C | |
| Product Series: | EV Charging Adapters | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 / GB/T 20234.2-2015 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Connector Adapter
There are currently four DC fast plugs: CHAdeMO, SAE Combo (CCS), GB (Guobiao from China), and the Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations.
Applications of this SAE J1772 Socket to IEC 62196-2 Plug AC Adapter, EV Charging, 250V, 32A:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
