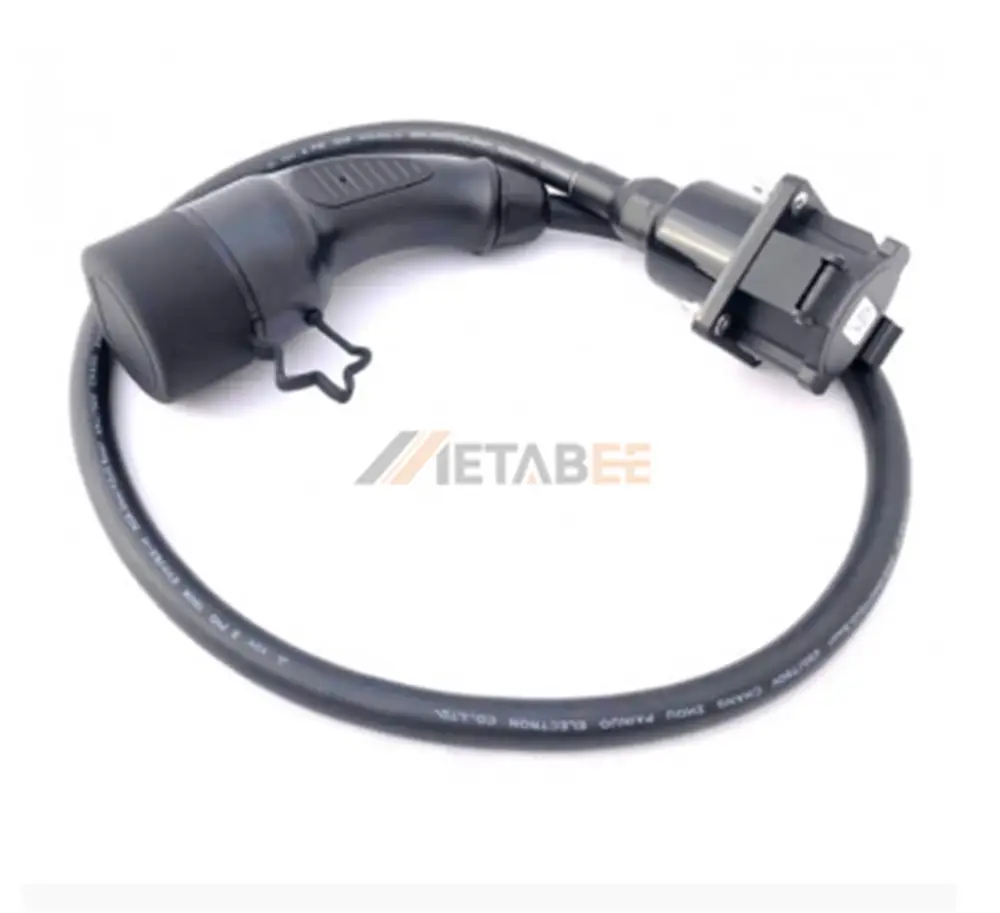

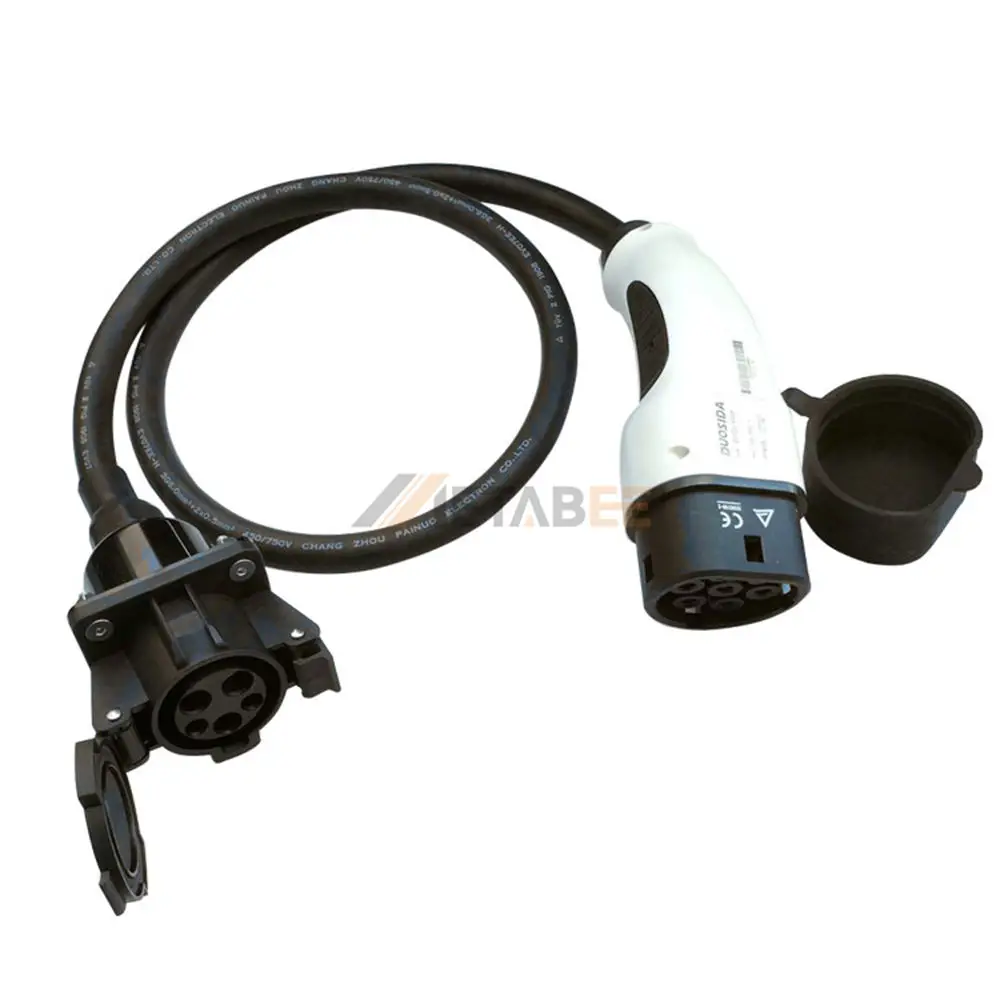

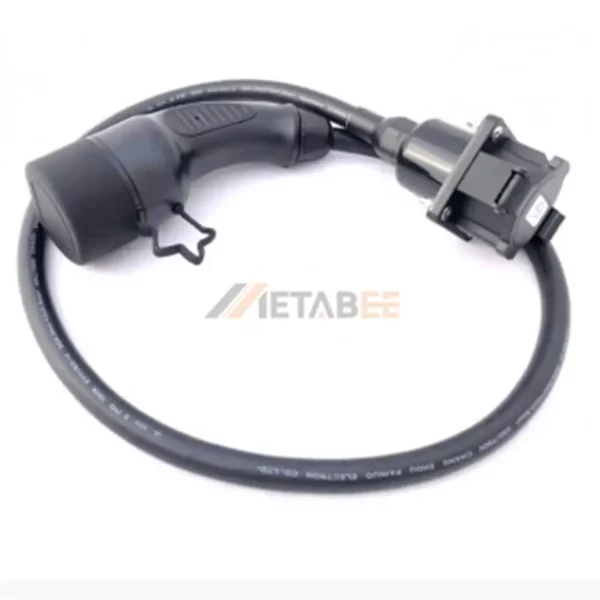

IEC 62196-2 Type 2 Plug to SAE J1772 Type 1 Socket AC Adapter, EV Charging, 250V, 16A
Introduction
Expand your charging options with our high-quality IEC 62196-2 Type 2 to SAE J1772 Type 1 Adapter. This essential bridge allows EVs with a Type 1 inlet to utilize European standard Type 2 charging points. Supporting single-phase AC charging at 250V and 16A, it delivers a stable and efficient power flow up to 4kW (optimized for 16A safety), making it perfect for daily home or public charging.
Crafted for long-term reliability, the adapter features a high-strength thermoplastic shell and silver-plated copper alloy contacts for superior conductivity. With an IP65 weatherproof rating and UL94V-0 flame-retardant housing, it ensures safe operation in diverse environments. Whether in freezing cold or high heat (-30°C to 50°C), this compact adapter provides a secure, plug-and-play solution for your electric vehicle.
Key Features:
- Cross-Regional Compatibility: Connects Type 2 charging stations to Type 1 (J1772) vehicles.
- Efficient AC Charging: Rated for 250V/16A to provide consistent single-phase power.
- Premium Build: Silver-plated copper contacts ensure low resistance and high durability.
- Weatherproof Rating: IP65 certification protects against dust and rain for outdoor use.
- Safety First: UL94V-0 flame-retardant materials prevent fire hazards during charging.
- Temperature Resistant: Engineered to operate reliably from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IECP-SAES-16A-0.5C | |
| Product Series: | EV Charging Adapters | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 / SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Connector Adapter
There are currently four DC fast plugs: CHAdeMO, SAE Combo (CCS), GB (Guobiao from China), and the Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations.
Applications of this IEC 62196-2 Type 2 Plug to SAE J1772 Type 1 Socket AC Adapter:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
