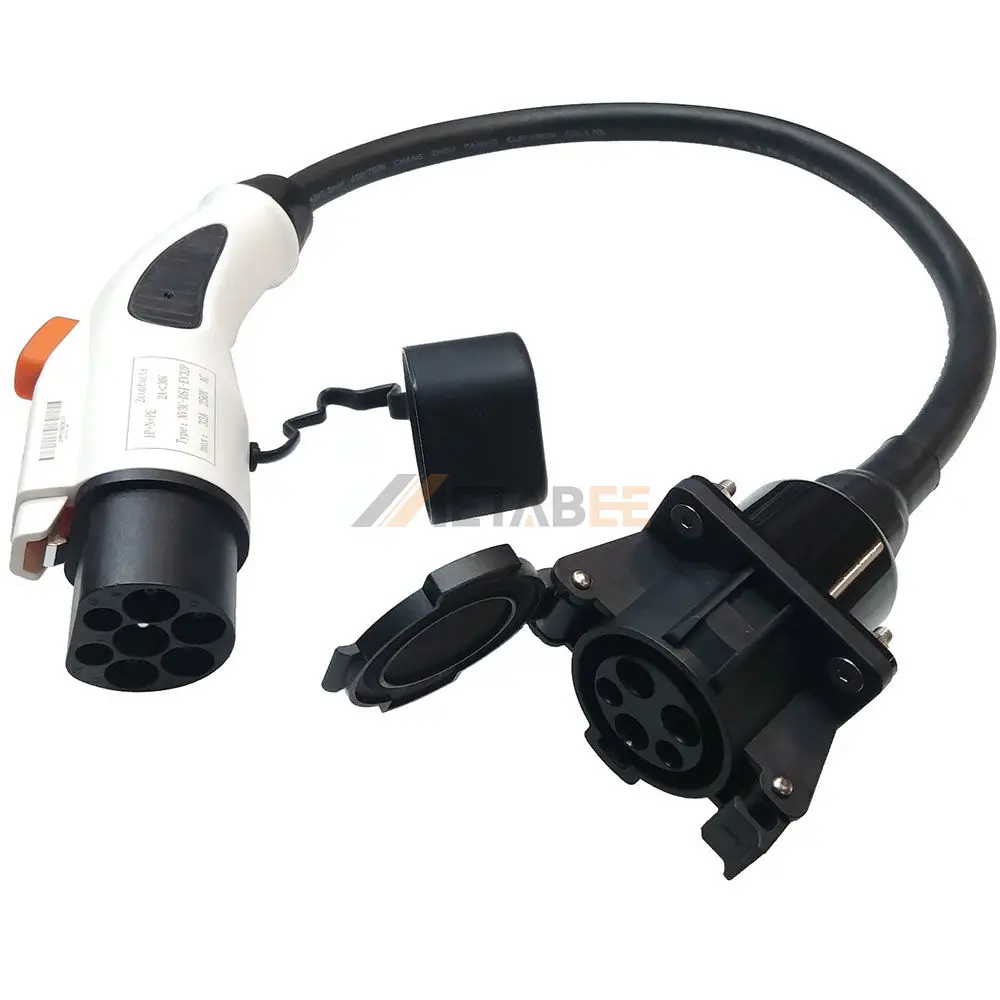

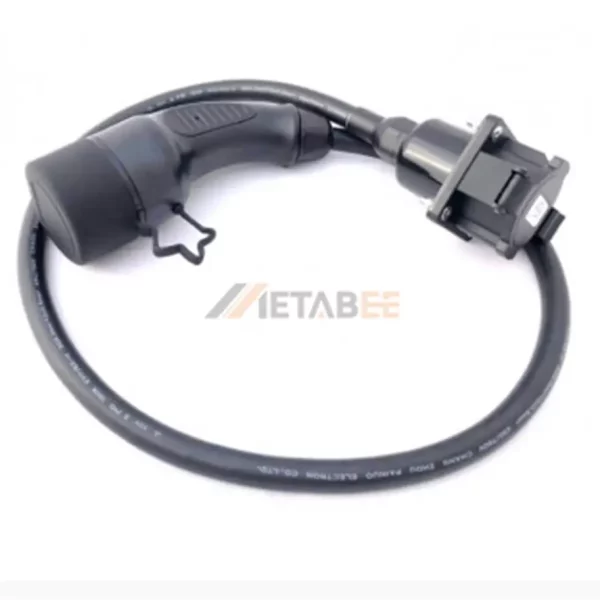

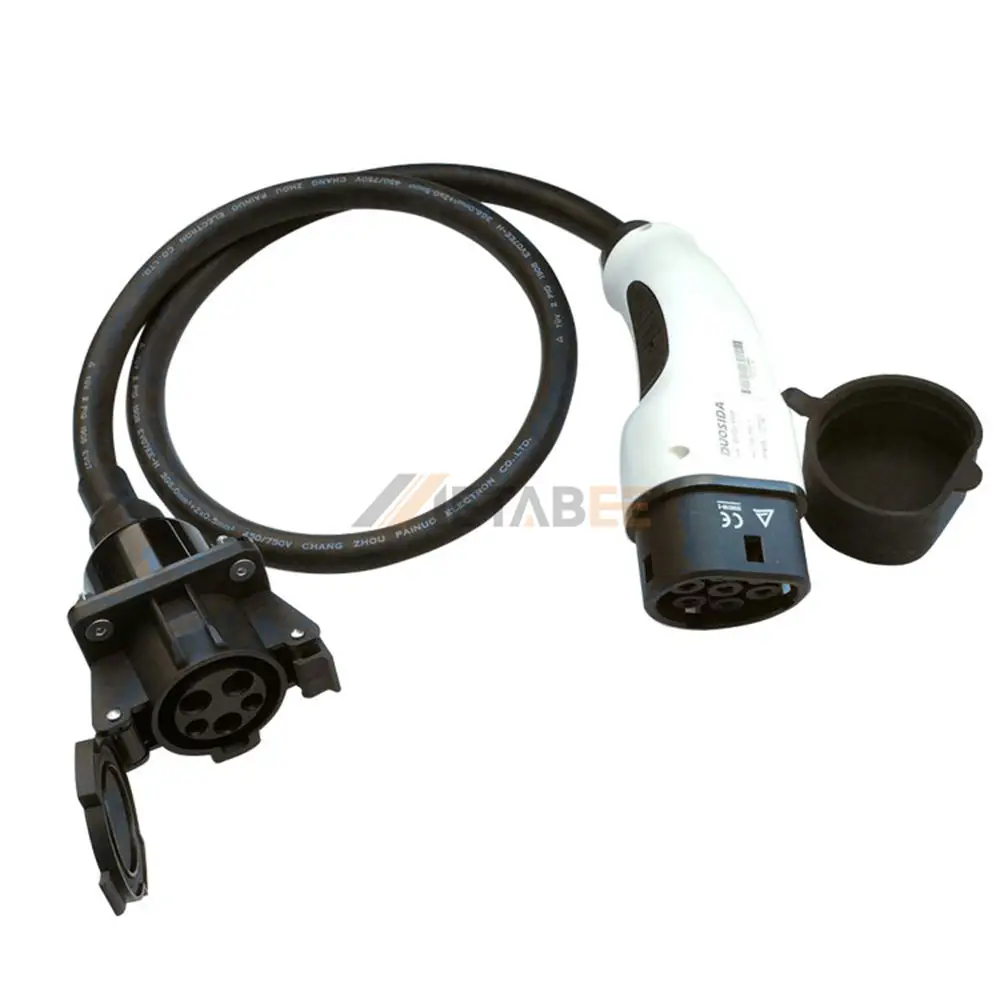

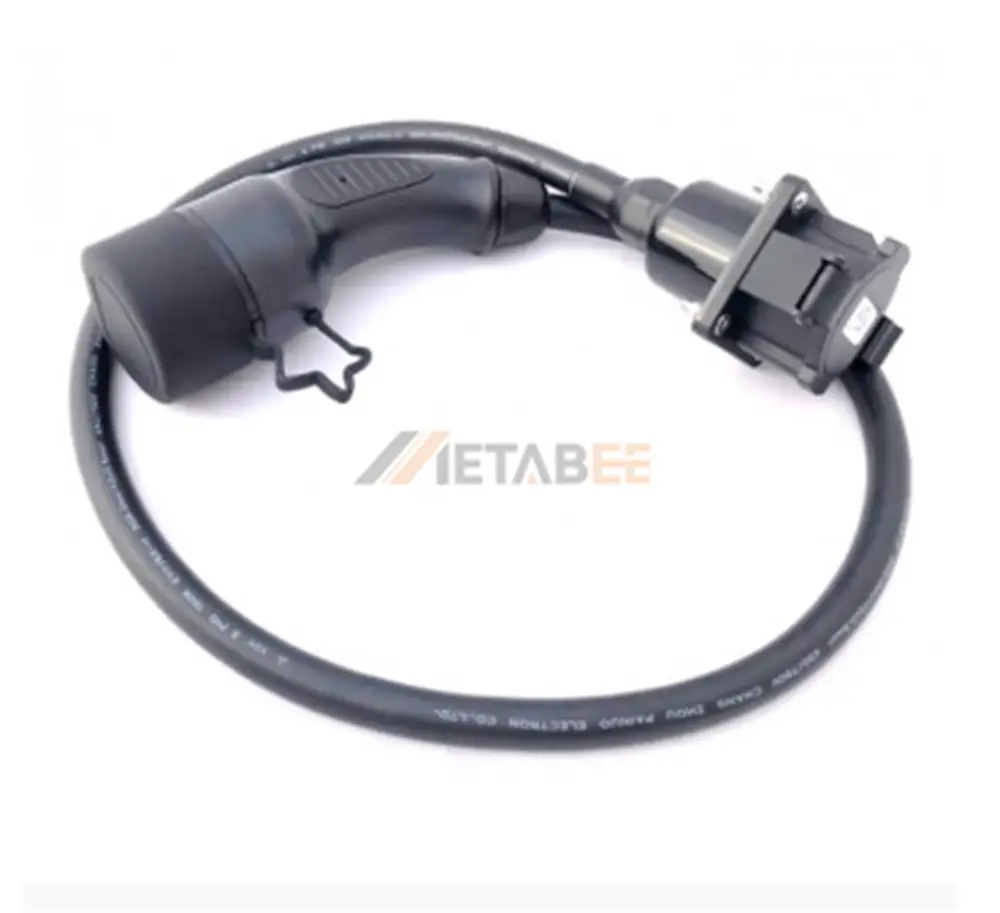

SAE J1772 Socket to IEC 62196-2 Plug AC Adapter, EV Charging, 250V, 32A
Introduction
Bridge the gap between different charging standards with our premium SAE J1772 Socket to IEC 62196-2 Plug Adapter. Designed for seamless single-phase AC charging, this adapter allows vehicles with a Type 2 inlet to utilize J1772 (Type 1) charging infrastructure. With a robust 32A current rating and 250V voltage capacity, it delivers up to 8kW of power, ensuring a fast and reliable charge for your electric vehicle.
Constructed for maximum durability, the adapter features a high-grade thermoplastic shell and silver-plated copper alloy contacts for superior electrical conductivity. It is engineered to perform in any environment, boasting an IP65 weatherproof rating and a UL94V-0 flame-retardant safety standard. Whether in extreme cold or heat, this adapter provides a secure connection across a temperature range of -30°C to 50°C.
Key Features:
- Universal Interface: Connects SAE J1772 (Type 1) chargers to IEC 62196-2 (Type 2) vehicles.
- High-Power Output: Supports up to 32A and 250V for efficient 8kW AC charging.
- Enhanced Conductivity: Silver-plated copper alloy contacts minimize energy loss.
- All-Weather Reliability: IP65-rated protection against water and dust ingress.
- Superior Safety: UL94V-0 certified flame-retardant housing for maximum protection.
- Extreme Resilience: Stable operation in temperatures ranging from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IECP-SAES-32A-0.5C | |
| Product Series: | EV Charging Adapters | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 / SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Connector Adapter
There are currently four DC fast plugs: CHAdeMO, SAE Combo (CCS), GB (Guobiao from China), and the Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations.
Applications of this SAE J1772 Socket to IEC 62196-2 Plug AC Adapter, EV Charging, 250V, 32A:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
