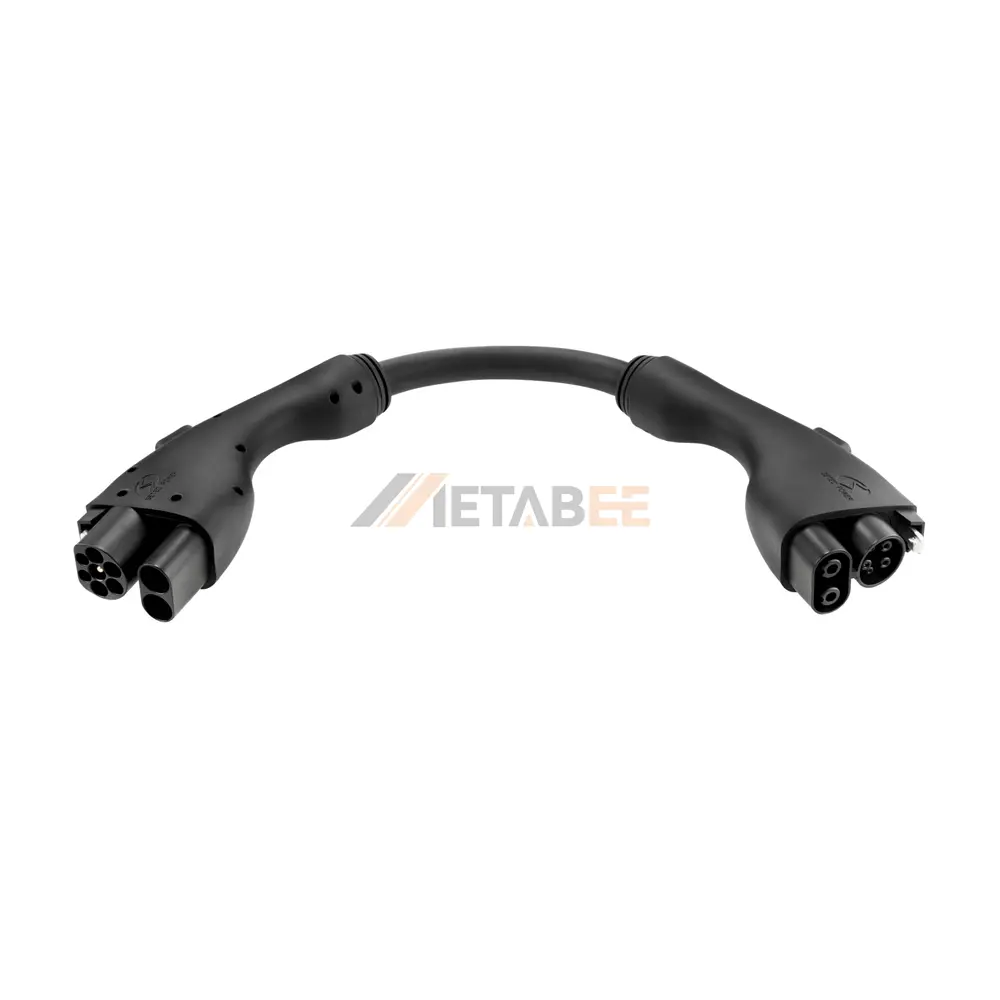

CCS 2 Socket to CCS 1 Plug DC Electric Vehicle Charging Adapter, 1000V, 150A
Introduction
This CCS 2 Socket to CCS 1 Plug DC Electric Vehicle Charging Adapter represents a critical advancement in EV charging flexibility, enabling seamless high-power direct current (DC) charging across diverse infrastructure. Engineered to bridge the compatibility gap between CCS 2 charging stations and CCS 1-equipped electric vehicles, this adapter facilitates robust power transfer, supporting an impressive 1000V and 150A to ensure efficient and rapid charging cycles.
Manufactured in compliance with the IEC 62196-3 charging standard for single-phase DC applications, the adapter incorporates premium materials for optimal performance and durability. Its housing is constructed from resilient thermoplastic, complemented by silver-plated copper alloy contacts that guarantee superior conductivity and exceptional corrosion resistance. This design supports a maximum charging power of 127.5 kW and boasts an IP65 protection rating for ingress protection, alongside a UL94V-0 flame retardant classification, ensuring reliable operation within a broad temperature spectrum ranging from -30°C to 50°C.
Key Features:
- Universal Compatibility: Facilitates DC fast charging from CCS 2 stations to CCS 1 vehicles.
- High-Power Capacity: Supports up to 1000V and 150A, achieving 127.5 kW max power.
- IEC 62196-3 Standard: Fully compliant with international DC charging protocols.
- Premium Construction: Features durable thermoplastic housing with silver-plated copper alloy contacts.
- Robust Protection: Rated IP65 for dust and water resistance, ensuring operational integrity.
- Safety Certified: UL94V-0 flame retardant for enhanced safety.
Main Specifications:
General Information:
| Part No.: | YC-CCS1P-CCS2S-150A-0.2C | |
| Product Series: | EV Charging Adapters | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 150A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 127.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Connector Adapter
There are currently four DC fast plugs: CHAdeMO, SAE Combo (CCS), GB (Guobiao from China), and the Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations.
Applications of this CCS 2 Socket to CCS 1 Plug Charging Adapter:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
