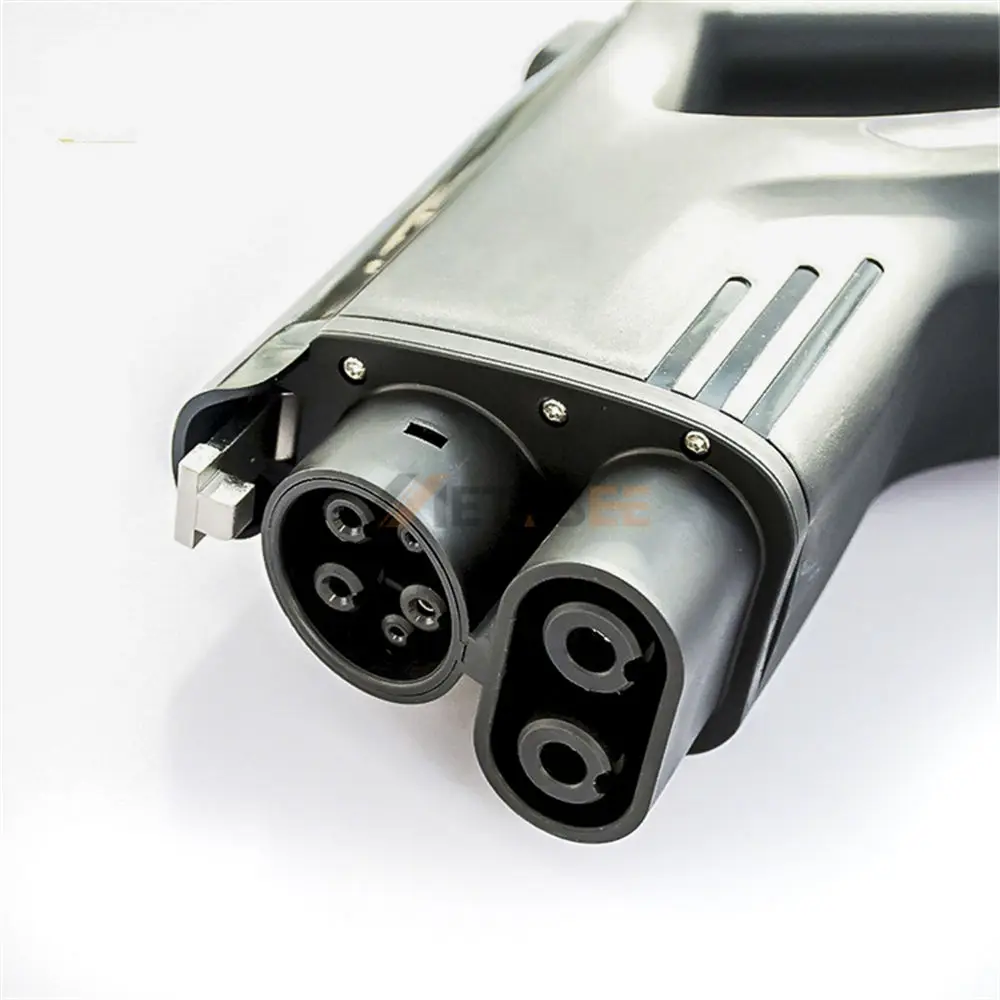

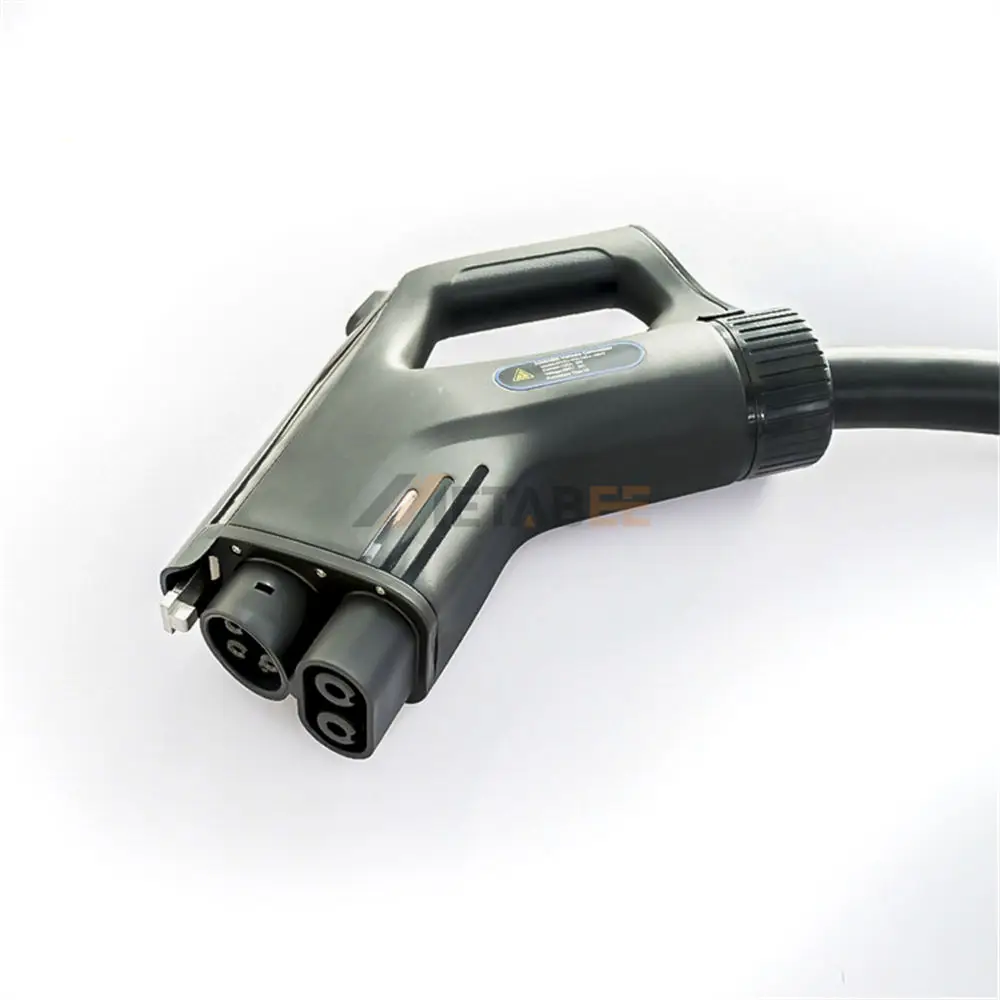

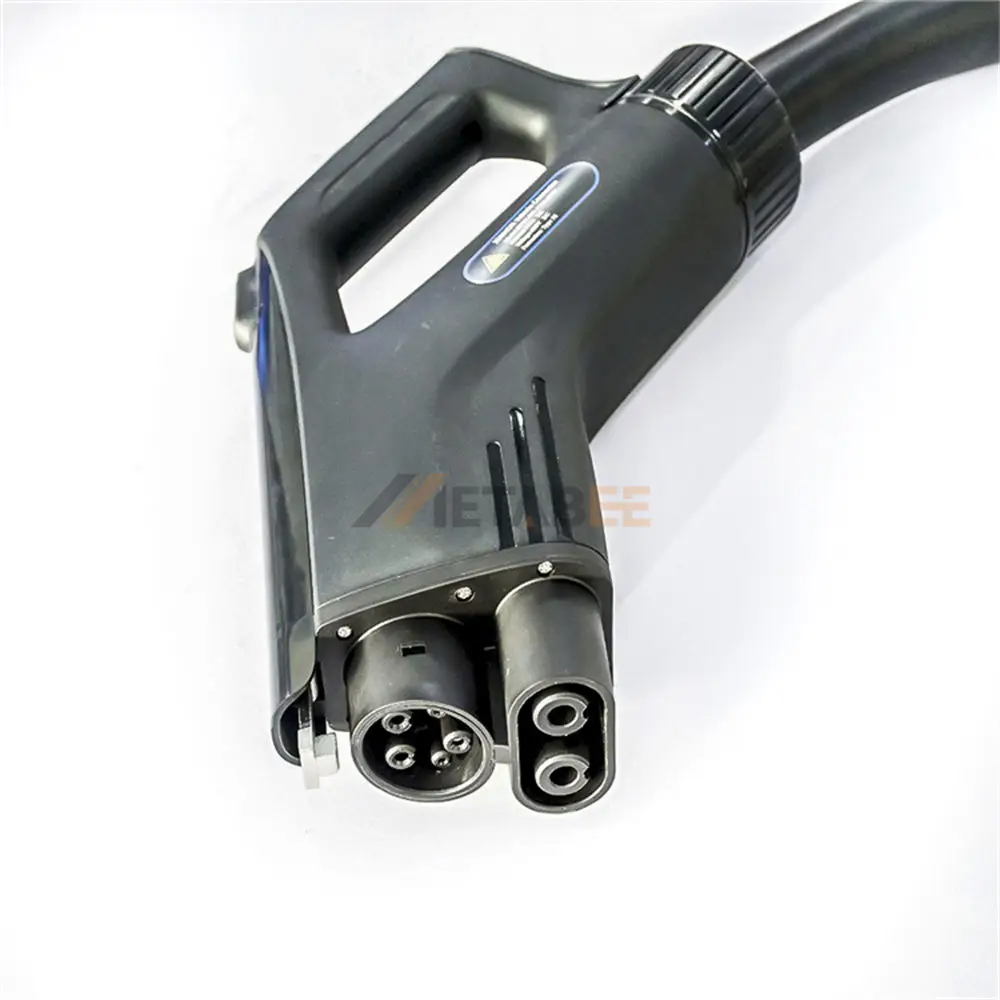

CCS COMBO 1 DC Charger, Plug for EV, Single Phase, 1000V, 150A
Introduction
Experience high-efficiency DC fast charging with our CCS Combo 1 Charging Plug, a core component of the CS COMBO DC Charging Connectors series. Engineered to meet the IEC 62196-3 standard, this plug delivers up to 90kW of power at a rated 1000V and 150A. It is the ideal solution for North American DC fast-charging infrastructure, providing a secure and high-speed connection for the latest generation of electric vehicles.
Built for industrial-grade reliability, the plug features a rugged thermoplastic housing and silver-plated copper alloy contacts to ensure maximum electrical conductivity and minimal heat buildup. With an IP65 weatherproof rating and a UL94V-0 flame-retardant classification, it guarantees uncompromising safety in demanding environments. Designed to withstand extreme climates, it operates flawlessly from -30°C to 50°C, ensuring consistent performance year-round.
Key Features:
- 90kW DC Fast Charging: High-power 1000V/150A delivery for significantly reduced charging times.
- IEC 62196-3 Standard Full compliance with the CCS Combo 1 protocol for seamless EV compatibility.
- All-Weather Protection: IP65-rated for superior resistance against dust and water ingress.
- Ultimate Safety: UL94V-0 flame-retardant materials for maximum fire protection.
- Superior Conductivity: Silver-plated copper alloy contacts for efficient power transfer.
- Wide Temperature Range: Reliable operation in extreme environments from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC3J-EV150P | |
| Product Series: | CCS COMBO DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 2X50mm²+1X6mm²+6X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 150A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 90kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
CCS Type:
CCS Drawing:
Applications of this CCS COMBO 1 DC Charger, Plug for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
