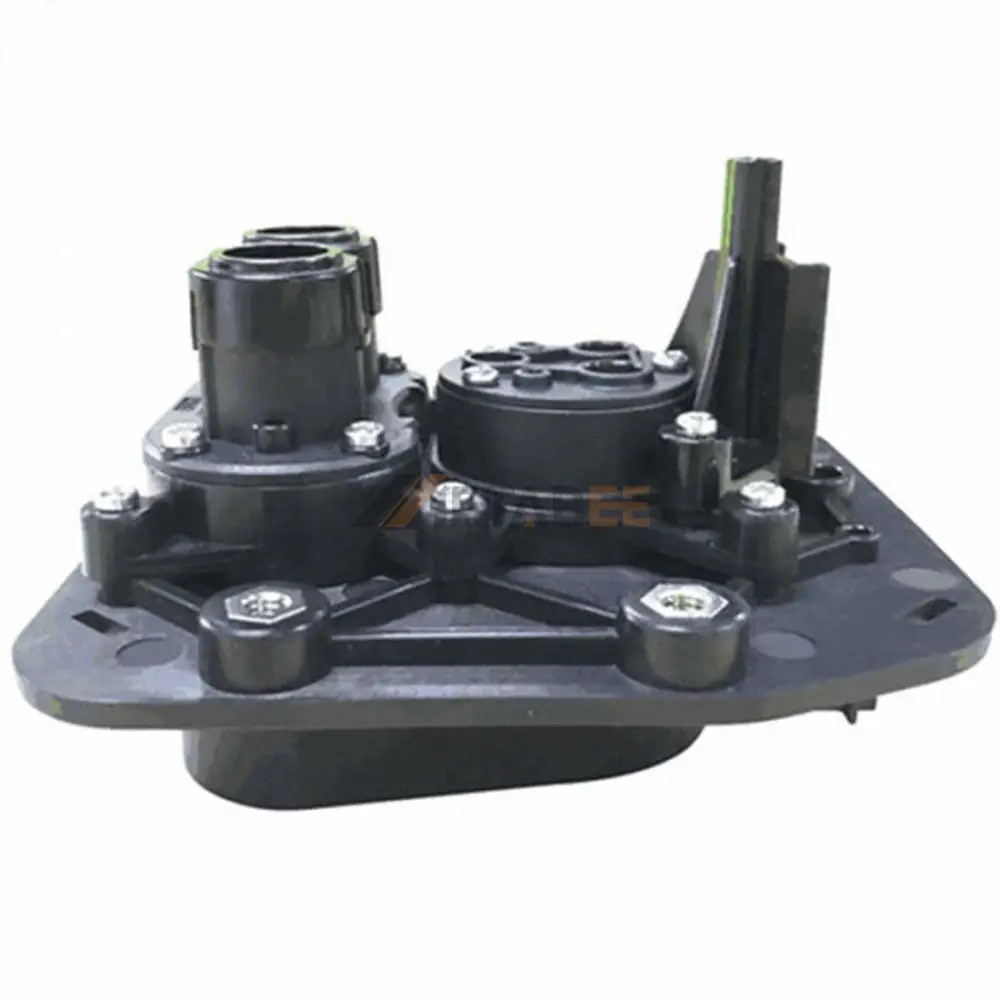

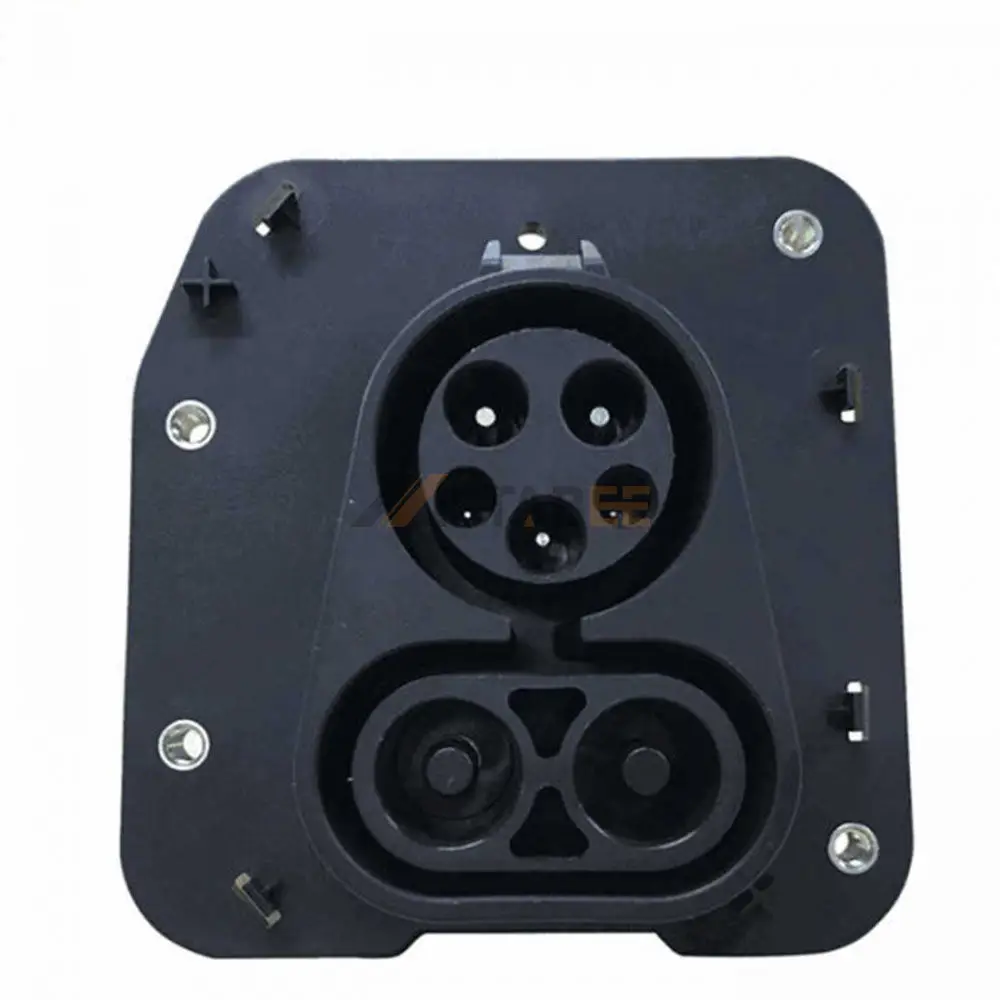

CCS COMBO 1 DC Charging Socket for EV, Single Phase, 1000V, 150A
Introduction
Build a high-performance DC fast-charging station with our CCS Combo 1 charging socket, a vital component from the CS COMBO DC Charging Connectors series. Engineered to meet the IEC 62196-3 standard, this socket is the interface for delivering an impressive 90kW of direct current power at a 1000V, 150A rating. It serves as the essential foundation for any commercial or private DC charging installation, ensuring broad compatibility with North American electric vehicles.
Constructed for maximum durability and safety, this socket features a robust, industrial-grade thermoplastic housing. The silver-plated copper alloy contacts provide superior electrical conductivity and heat dissipation for reliable high-power delivery. With a top-tier UL94V-0 flame-retardant rating and an IP65 certification for protection against dust and water, it is built to perform safely in any environment. Its wide operating temperature range of -30°C to 50°C guarantees flawless operation year-round.
Key Features:
- 90kW DC Fast Charging: Enables high-speed charging at a 1000V/150A rating.
- CCS Combo 1 Standard: Ensures full compliance for North American DC fast chargers.
- Industrial-Grade Build: Features a rugged thermoplastic housing and is IP65-rated.
- Maximum Safety: UL94V-0 flame-retardant classification for superior fire protection.
- High Efficiency: Silver-plated copper contacts for optimal power transfer.
- All-Climate Reliability: Proven to operate in extreme temperatures from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC3J-EV150S | |
| Product Series: | CCS COMBO DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 2X50mm²+1X6mm²+6X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 150A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 90kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
CCS Type:

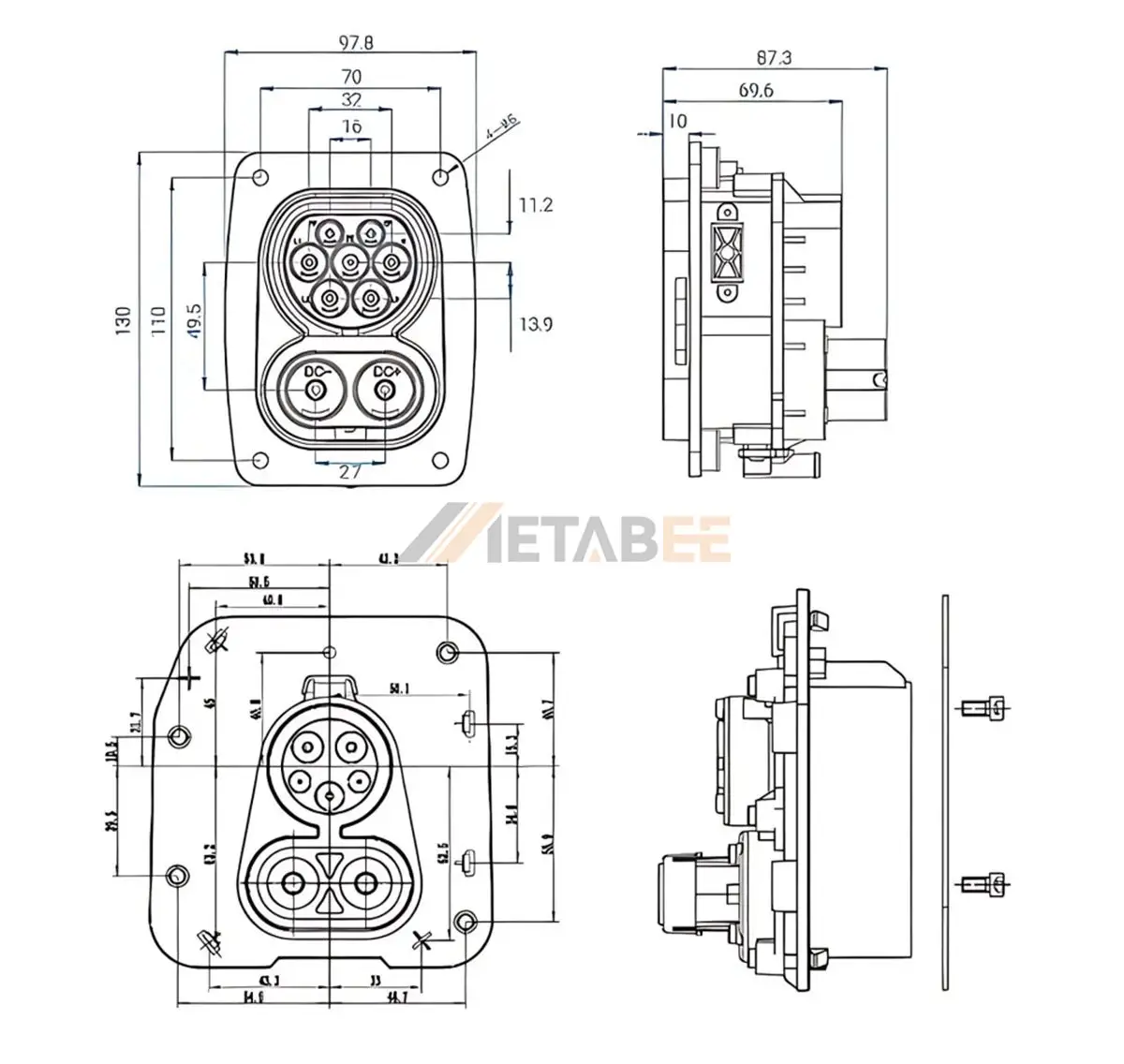

CCS Drawing:
Applications of this CCS COMBO 1 DC Charging Socket for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
Factory pricing and exceptional product quality. Get a free quote now!
