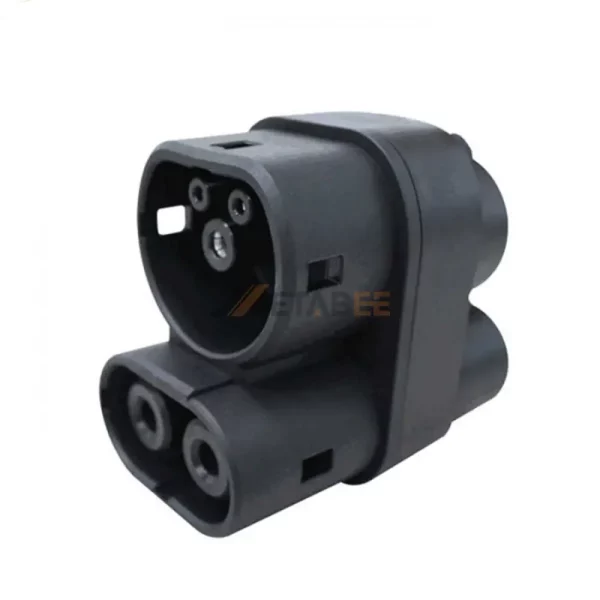

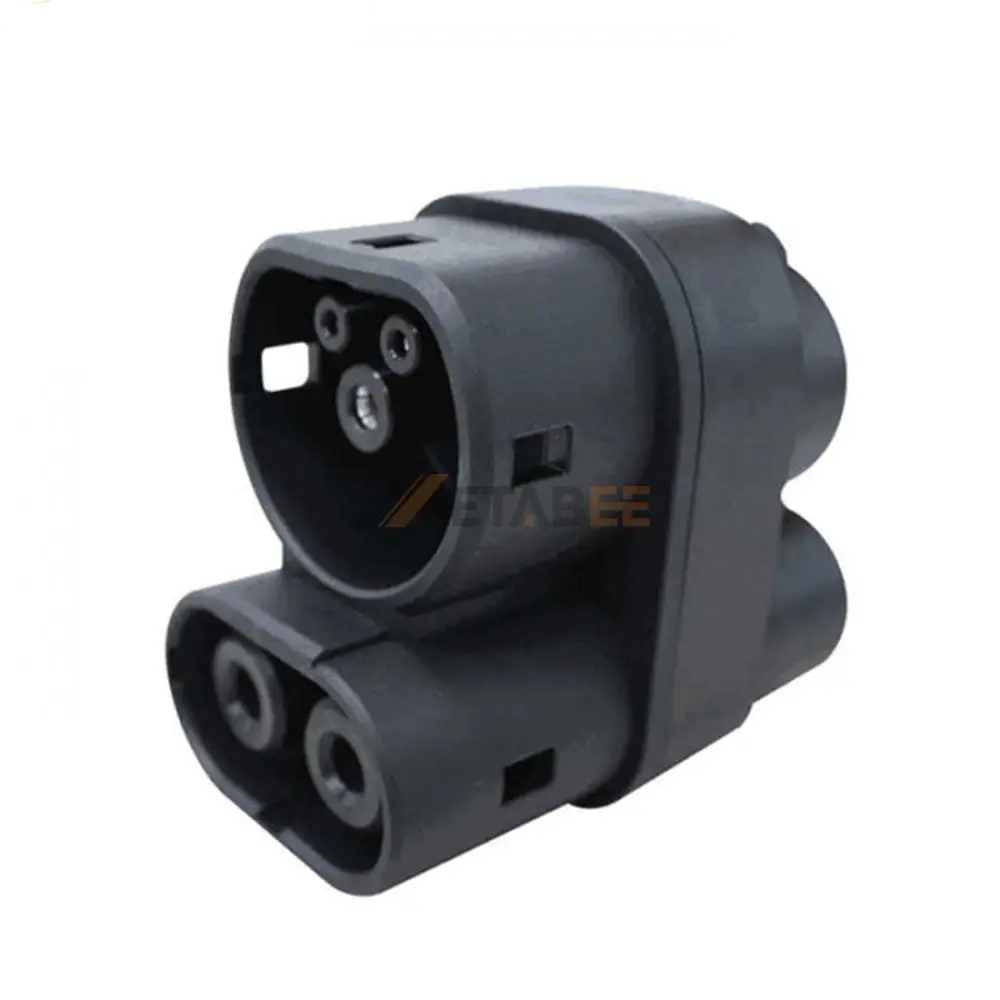

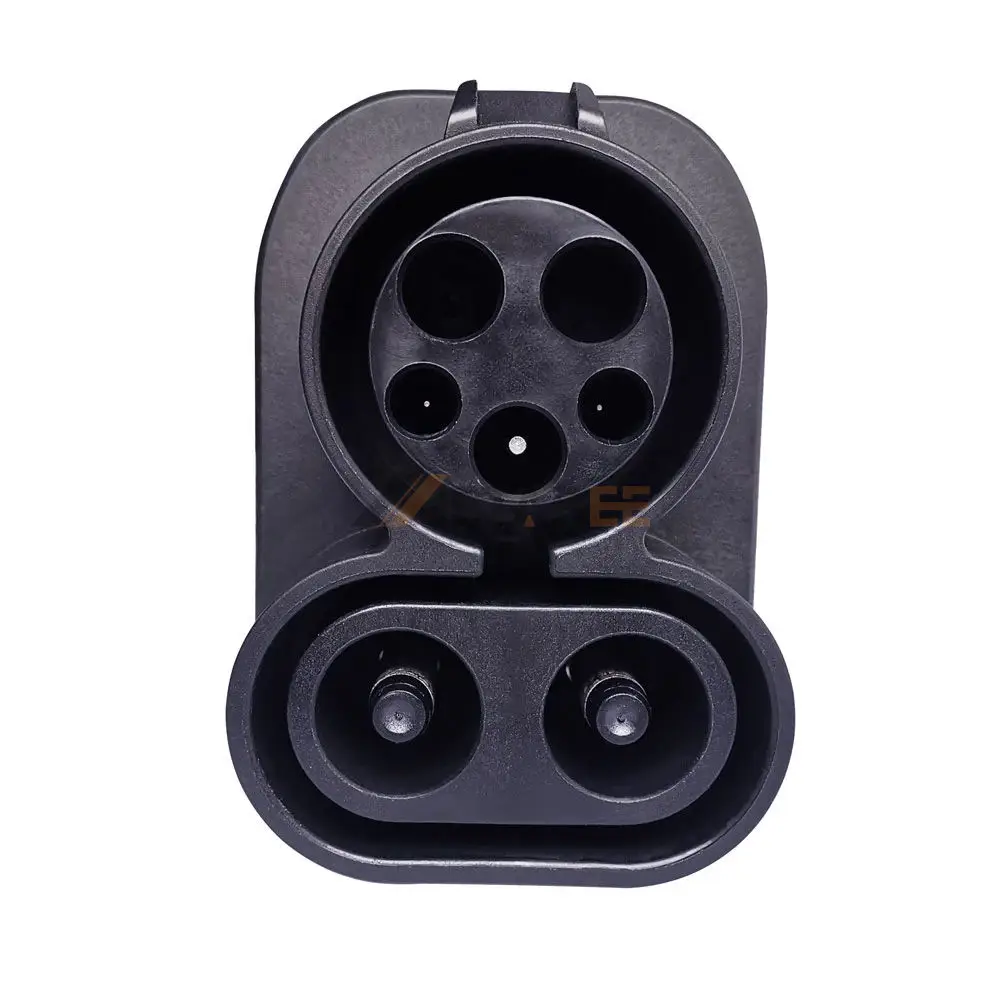

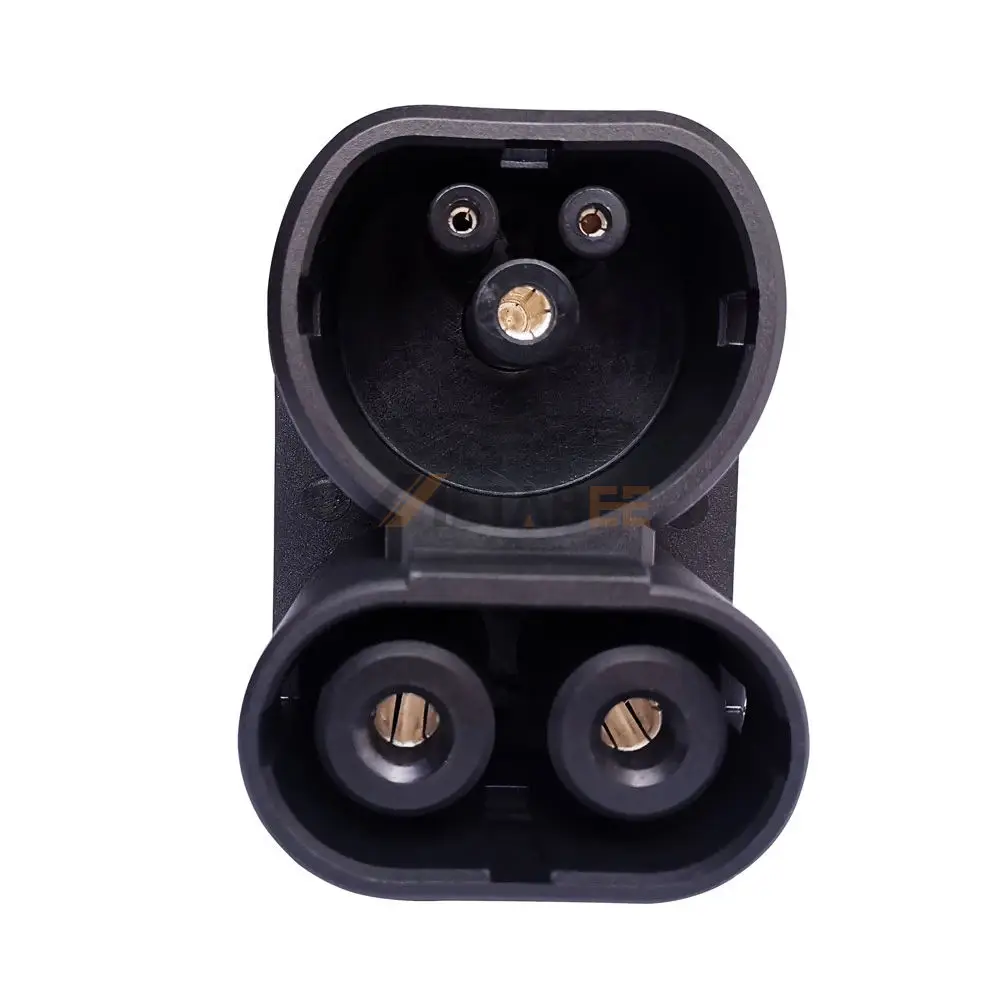

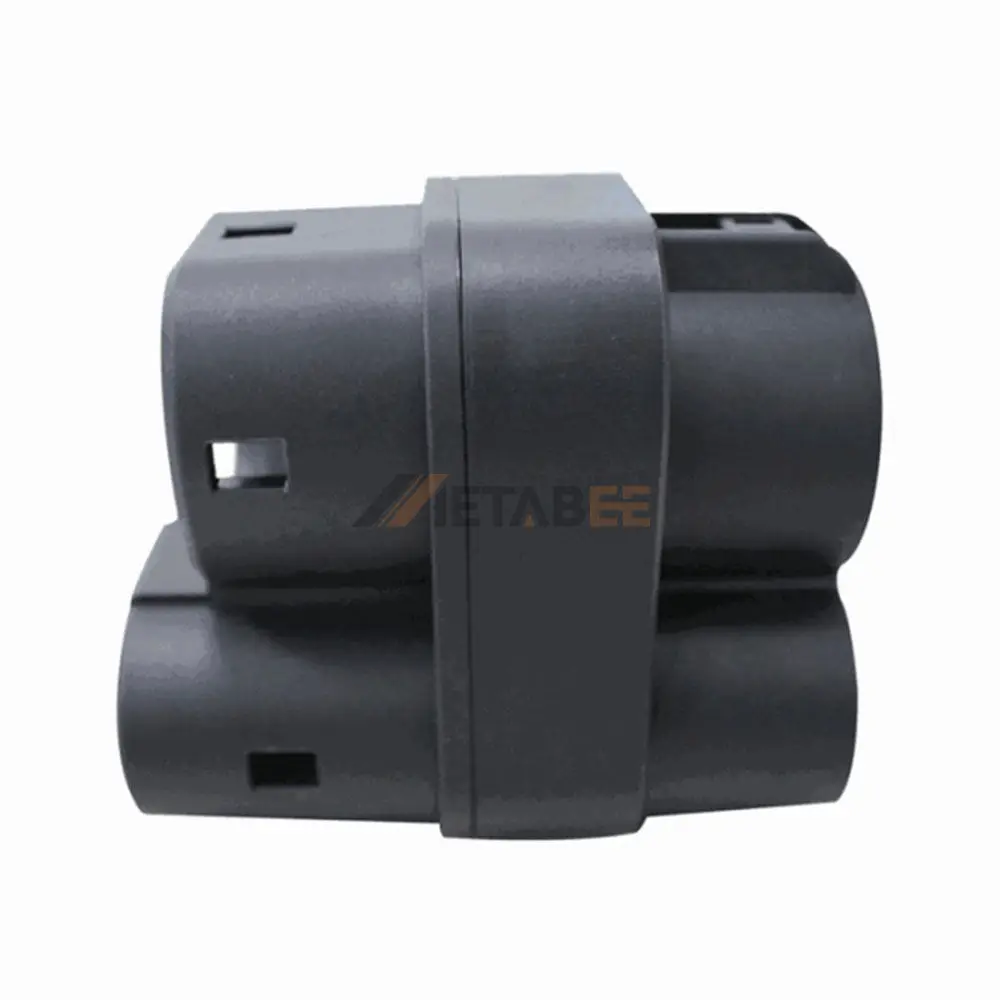

CCS 1 Plug to CCS 2 Plug DC Fast Charging Adapter for EV, 1000V, 150A
Introduction
Bridge the gap between different charging standards with our high-performance CCS1 to CCS2 DC Charging Adapter. Specifically designed for EVs following the IEC 62196-3 standard, this adapter enables seamless DC fast charging with a powerful 127.5kW maximum output. It is the perfect solution for drivers needing to adapt North American CCS1 chargers to CCS2 vehicle inlets without compromising on speed or safety.
Built with a rugged thermoplastic shell and silver-plated copper alloy contacts, this adapter ensures minimal electrical resistance and maximum heat dissipation. The UL94V-0 flame-retardant housing and IP65 weatherproof rating provide ultimate protection for outdoor use. Operating reliably between -30°C and 50°C, it is engineered to handle 1000V and 150A, delivering a robust and secure connection for rapid energy transfer.
Key Features:
- Rapid DC Charging: Supports up to 150A and 1000V for a 127.5kW power delivery.
- Cross-Standard Compatibility: Effortlessly connects CCS1 plugs to CCS2 vehicles.
- Superior Conductivity: Silver-plated copper alloy contacts reduce energy loss.
- All-Weather Protection: IP65-rated housing protects against water and dust.
- Maximum Safety: UL94V-0 certified flame-retardant materials for peace of mind.
- Thermal Resilience: Reliable performance in extreme climates (-30°C to 50°C).
Main Specifications:
General Information:
| Part No.: | YC-CCS1P-CCS2P-150A | |
| Product Series: | EV Charging Adapters | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 150A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 127.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Connector Adapter
There are currently four DC fast plugs: CHAdeMO, SAE Combo (CCS), GB (Guobiao from China), and the Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations.
Applications of this CCS 1 Plug to CCS 2 Plug DC Fast Charging Adapter:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
