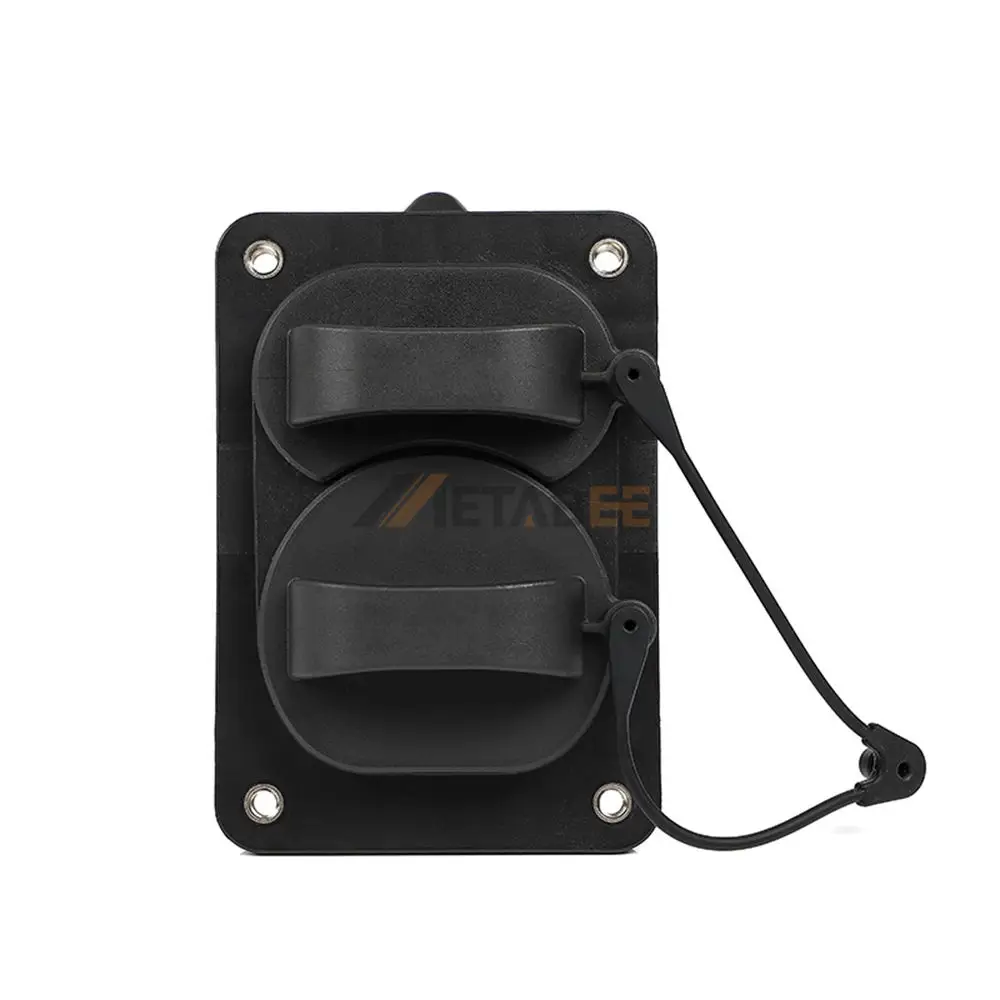

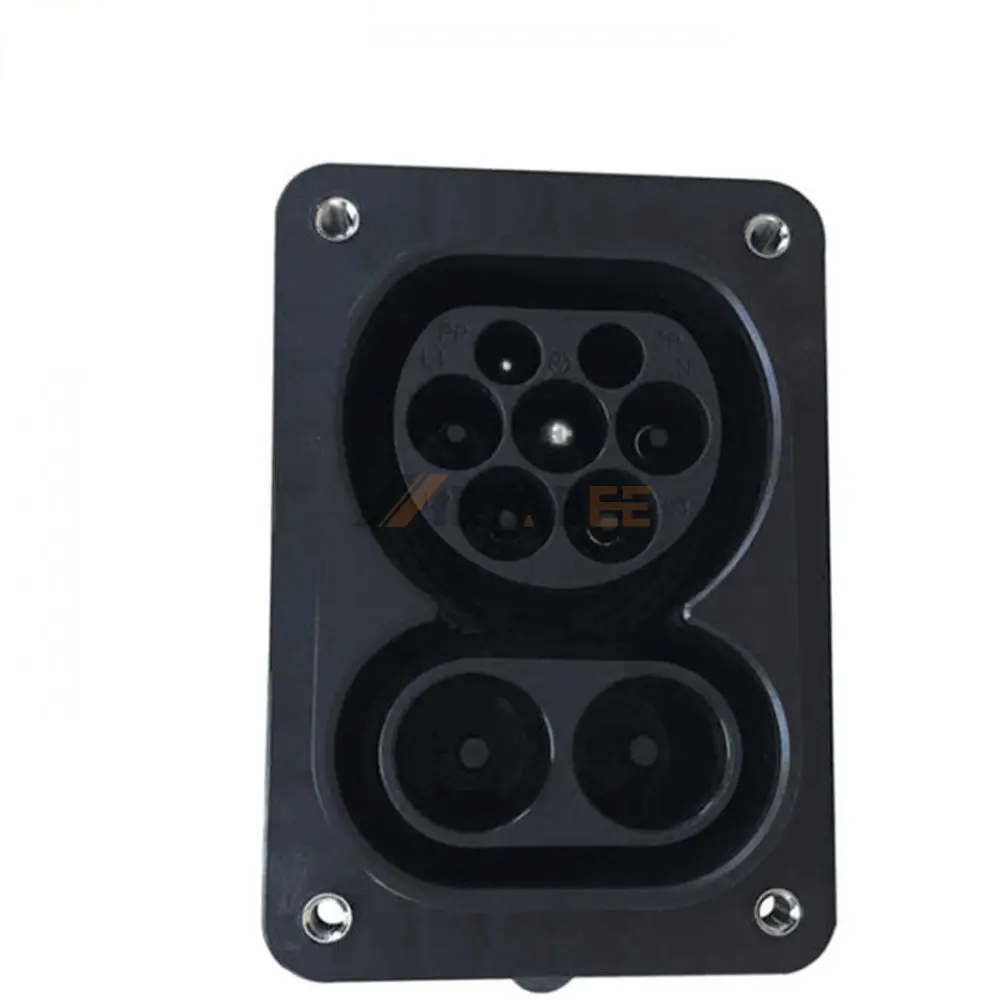

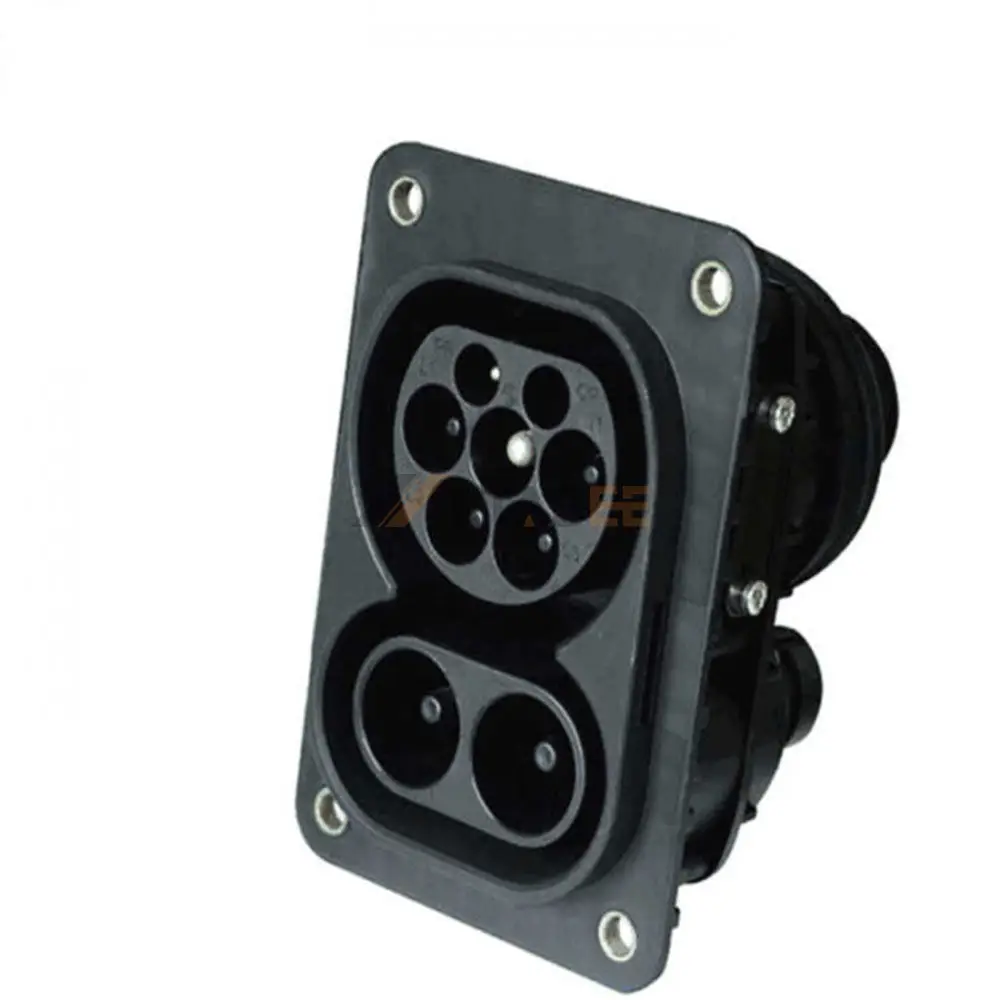

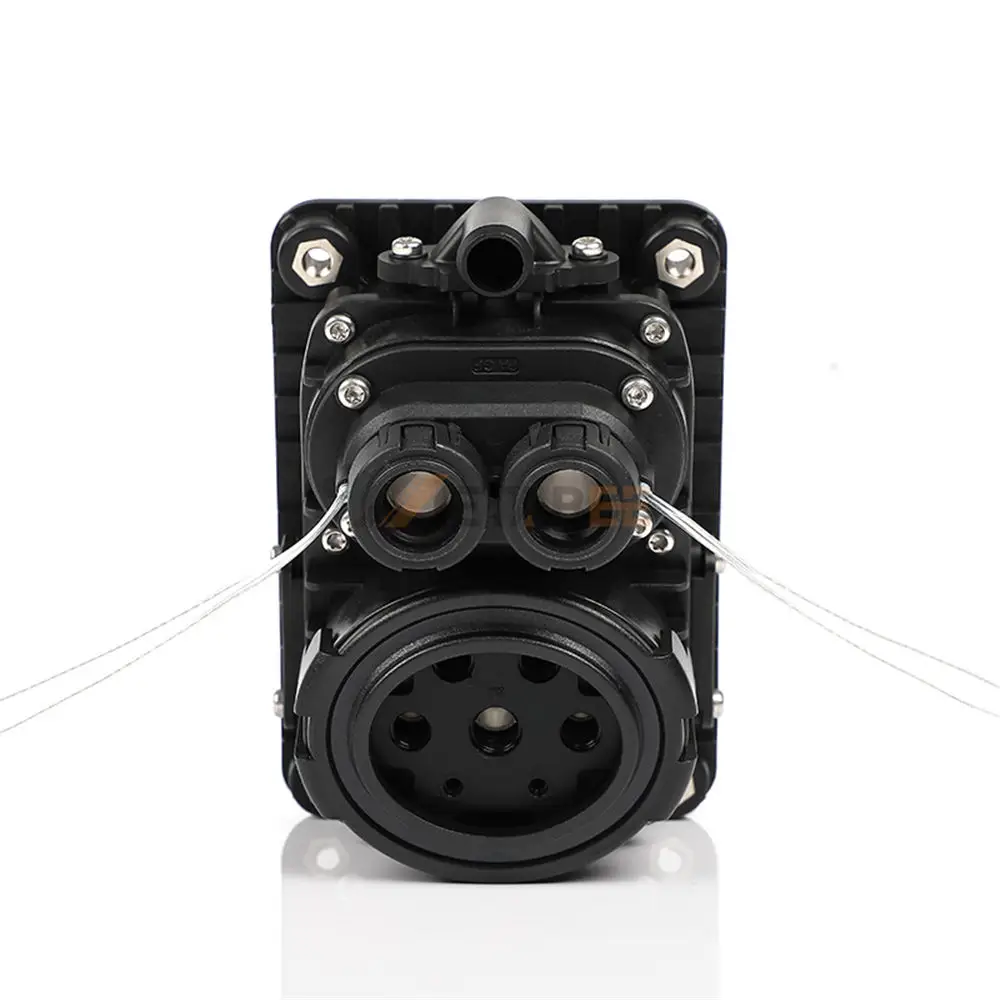

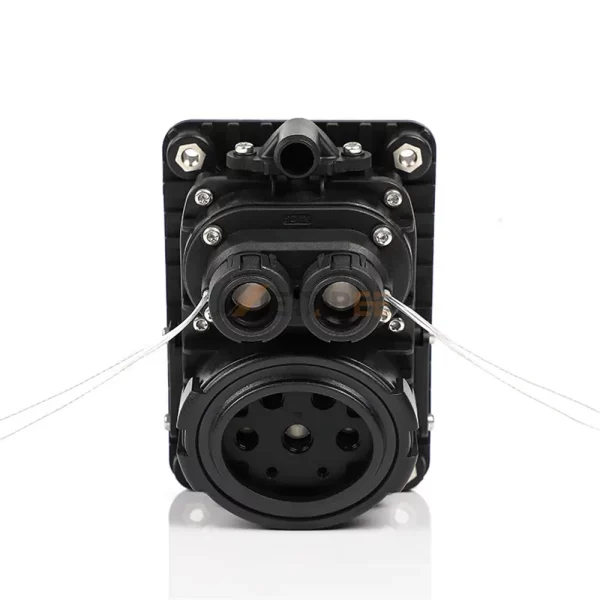

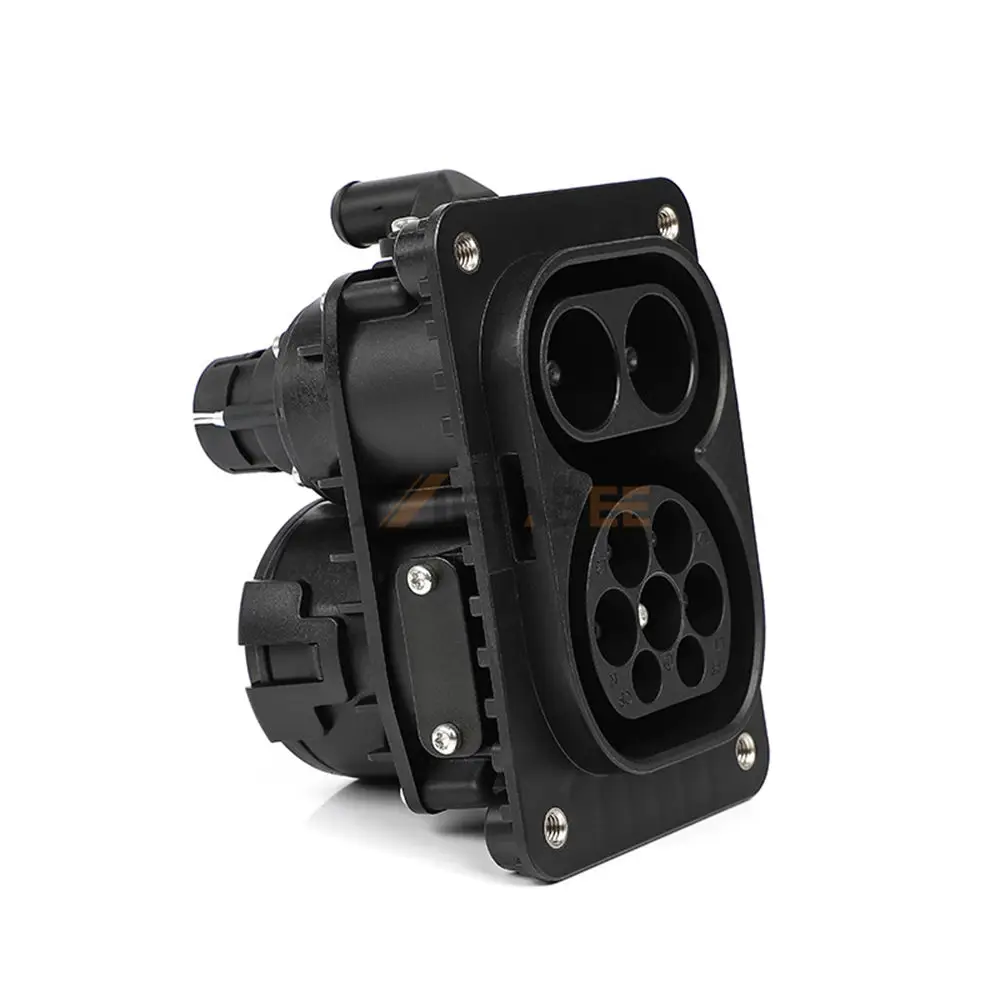

CCS COMBO 2 DC Electric Vehicle Charger, Socket, Single Phase, 1000V, 150A
Introduction
Revolutionize your EV charging infrastructure with our high-capacity CCS Combo 2 DC Electric Vehicle Charger Socket. Engineered for rapid energy delivery, this socket facilitates an impressive 127.5kW of direct current power at a robust 1000V and 150A. Adhering to the IEC 62196-3 standard, this socket is a critical component for establishing or upgrading DC fast-charging stations, ensuring seamless compatibility and accelerated charging for a wide range of electric vehicles.
Constructed for extreme durability and uncompromising safety, this charging socket features an industrial-grade thermoplastic housing. Internally, silver-plated copper alloy contacts guarantee superior electrical conductivity and exceptional resistance to corrosion, even under sustained high-power loads. With an IP65 rating for comprehensive protection against environmental elements, a UL94V-0 flame-retardant classification, and an operational temperature range of -30°C to 50°C, this socket delivers consistent, reliable performance in any climate.
Key Features:
- 127.5kW DC Fast Charging: Facilitates ultra-high power delivery at 1000V/150A.
- IEC 62196-3 Compliant: Essential component for standard-compliant DC fast charging.
- Industrial-Grade Durability: IP65-rated for superior environmental protection.
- Advanced Safety: UL94V-0 flame-retardant materials ensure maximum security.
- Optimal Conductivity: Silver-plated copper contacts for efficient energy transfer.
- Extreme Climate Operation: Functions reliably from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC3m-EV150S | |
| Product Series: | CCS COMBO DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 2X50mm²+1X25mm²+4X16mm²+6X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 150A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 127.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
CCS Type:
CCS Drawing:
Applications of this CCS COMBO 2 DC Electric Vehicle Charger:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
