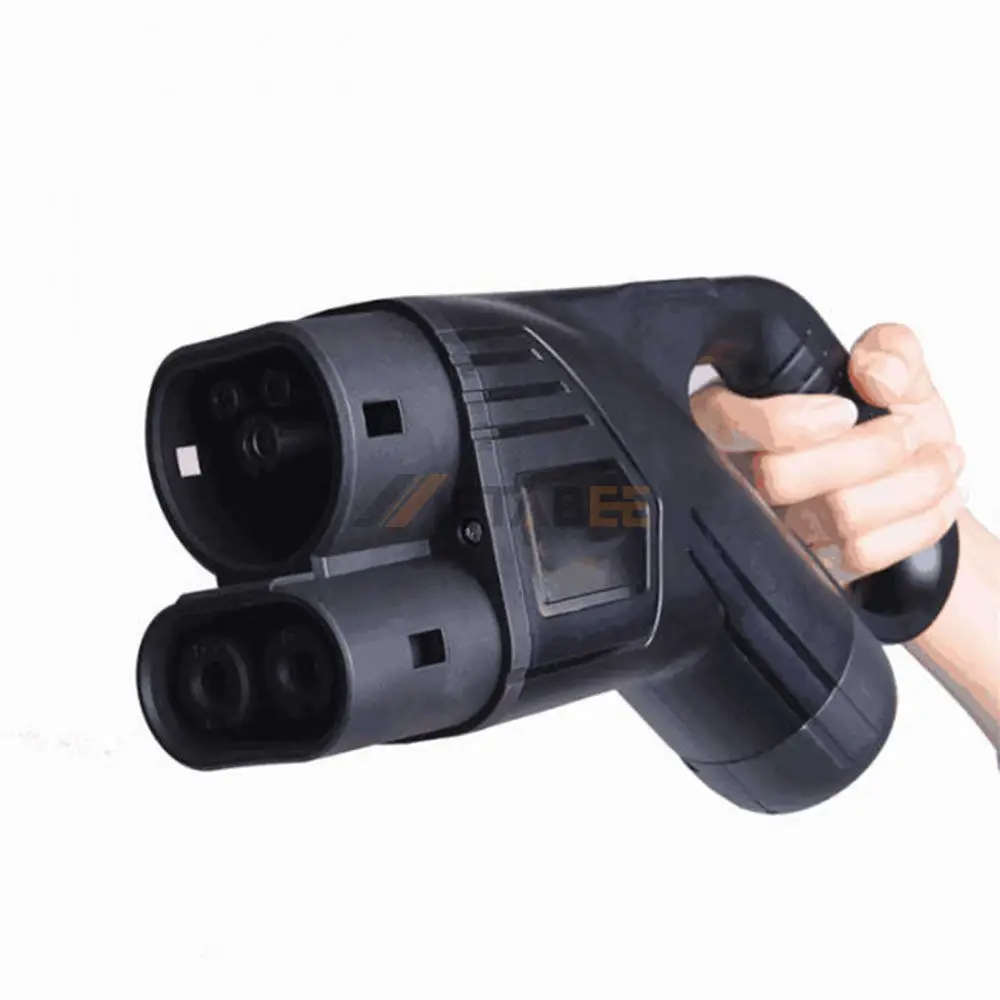

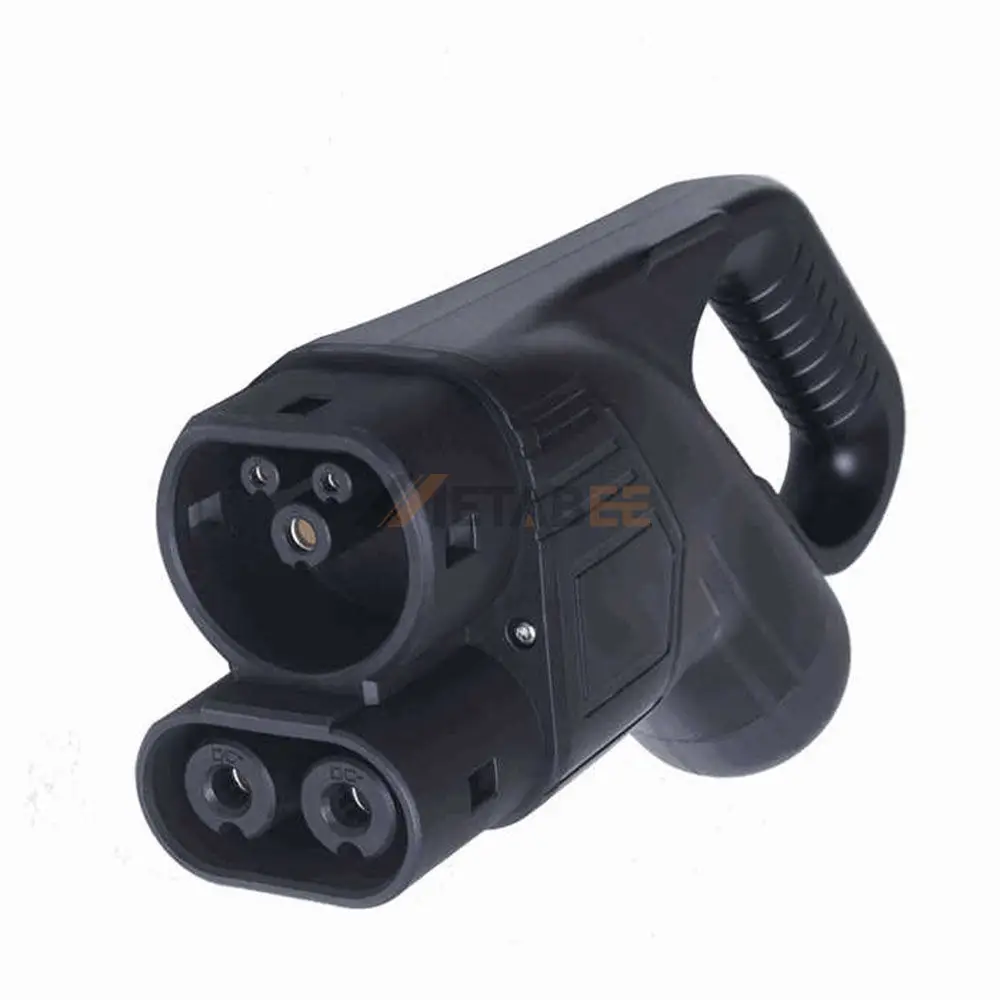

CCS COMBO 2 DC Charging Plug for EV, Single Phase, 1000V, 150A
Introduction
Enable next-generation DC fast charging with our high-performance CCS Combo 2 plug. Engineered for speed and efficiency, this connector delivers an incredible 127.5kW of direct current power at a 1000V, 150A rating, drastically reducing vehicle charging times. Compliant with the IEC 62196-3 standard, it is the essential component for building or upgrading DC fast-charging stations, ensuring wide compatibility with the latest generation of electric vehicles.
Designed for maximum safety and operational longevity in demanding environments, this plug is built with a rugged, impact-resistant thermoplastic housing. Inside, silver-plated copper alloy contacts provide superior conductivity and minimal heat generation during high-power sessions. With an IP65 rating for all-weather use, a top-tier UL94V-0 flame retardant classification, and a wide operating temperature range of -30°C to 50°C, it guarantees uncompromising reliability and user safety.
Key Features:
- 127.5kW DC Fast Charging: Delivers ultra-high power at 1000V/150A.
- CCS Combo 2 Standard: Ensures full compatibility with IEC 62196-3 compliant vehicles.
- Pro-Grade Durability: IP65-rated for complete protection against dust and water.
- Uncompromised Safety: Highest UL94V-0 flame-retardant classification.
- Superior Conductivity: Silver-plated copper contacts for efficient power transfer.
- All-Climate Performance: Operates reliably in extreme temperatures from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC3m-EV150P | |
| Product Series: | CCS COMBO DC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-3 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 2X50mm²+1X 25mm²+ 6 X 0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 150A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 127.5kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
CCS Type:
CCS Drawing:
Applications of this CCS COMBO 2 DC Charging Plug for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
